2014 Lexus GS350 USB

9
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5
6
7
8
9
1. BASIC OPERATION ..................................... 94
QUICK REFERENCE......................................... 94
MAP SCREEN OPERATION ........................ 98
MAP SCREEN INFORMATION................ 106
TRAFFIC AND PARKING INFORMATION..................................................111
2. DESTINATION SEARCH .......................... 118
DESTINATION SEARCH SCREEN ........... 118
SEARCH OPERATION .................................. 120
STARTING ROUTE GUIDANCE ..............133
3. ROUTE GUIDANCE ................................. 138
ROUTE GUIDANCE SCREEN .................. 138
TYPICAL VOICE GUIDANCE PROMPTS............................................................145
EDITING ROUTE ................................................146
4. MY MEMORY .............................................. 152
MY MEMORY SETTINGS .............................152
5. SETUP .............................................................. 172
NAVIGATION SETTINGS............................. 172
TRAFFIC AND PARKING SETTINGS ..... 177
6. TIPS FOR THE NAVIGATION SYSTEM ....................................................... 186
GPS (GLOBAL POSITIONING SYSTEM) ............................................................. 186
MAP DATABASE VERSION AND COVERED AREA .......................................... 189
1. BASIC OPERATION ................................... 194
QUICK REFERENCE ....................................... 194
SOME BASICS ..................................................... 197
2. RADIO OPERATION ............................... 205
AM/FM/DAB RADIO .................................... 205
3. MEDIA OPERATION ................................ 212
CD ............................................................................... 212
DVD ........................................................................... 218
USB MEMORY ...................................................225
iPod ............................................................................233
Bluetooth
® AUDIO .......................................... 240
AUX .......................................................................... 247
VTR ........................................................................... 250
4. AUDIO/VISUAL REMOTE CONTROLS .............................................. 253
STEERING SWITCHES ................................. 253
REAR SEAT AUDIO CONTROLS ........... 257
5. SETUP ............................................................. 260
AUDIO SETTINGS........................................... 260
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ..................................... 268
OPERATING INFORMATION................. 268
3NAVIGATION SYSTEM4AUDIO/VISUAL SYSTEM
GS_Navi+MM_OM30E40E_(EE).book Page 9 Thursday, July 24, 2014 3:57 PM

25
2. QUICK REFERENCE
QUICK GUIDE
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1No.FunctionPage
*1Using RDS-TMC*2 station based on FM-multiple broadcasting or
TPEG*2 information that is received, traffic events near the current po-
sition or the cursor position can be viewed as a list.111
*1Using TPEG*2 information that is received, the location and available
spaces of a parking lot can be checked. The parking lot can also be set
as a destination.
115
*1Select to display a Street View. 409
*1Select to view information on the selected point. 411
Select to view pictures in the USB memory connected to USB port 1.
231
Select to view pictures in the USB memory connected to USB port 2.
*1: Vehicles with navigation system
*2: Can only be used when receiv ing RDS-TMC or TPEG (Transport Protocol Experts Group) in-
formation. Depending on the country or area, receiving RDS-TMC and TPEG information
may not be possible.
GS_Navi+MM_OM30E40E_(EE).book Page 25 Thursday, July 24, 2014 3:57 PM

79
3. OTHER SETTINGS
BASIC FUNCTION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
2
■SETTING THE TIME ZONE
1Select “Time zone” .
2Select the desired time zone.
zIf “Other ” is selected, the zone can be
adjusted manually. Select “+” or “-” to
adjust the time zone.
CUSTOMIZING THE STARTUP
AND SCREEN OFF IMAGES
An image can be copied from a USB
memory and used as the startup and
screen off Images.
When the engine switch is in
ACCESSORY or IGNITION ON
mode, the initial screen will be
displayed. ( →P.38)
When “Screen off” on the “Display”
screen is selected, the screen is turned
off and the desired screen off image that
is set is displayed. (To turn the screen off:
→ P.49)
GS_Navi+MM_OM30E40E_(EE).book Page 79 Thursday, July 24, 2014 3:57 PM

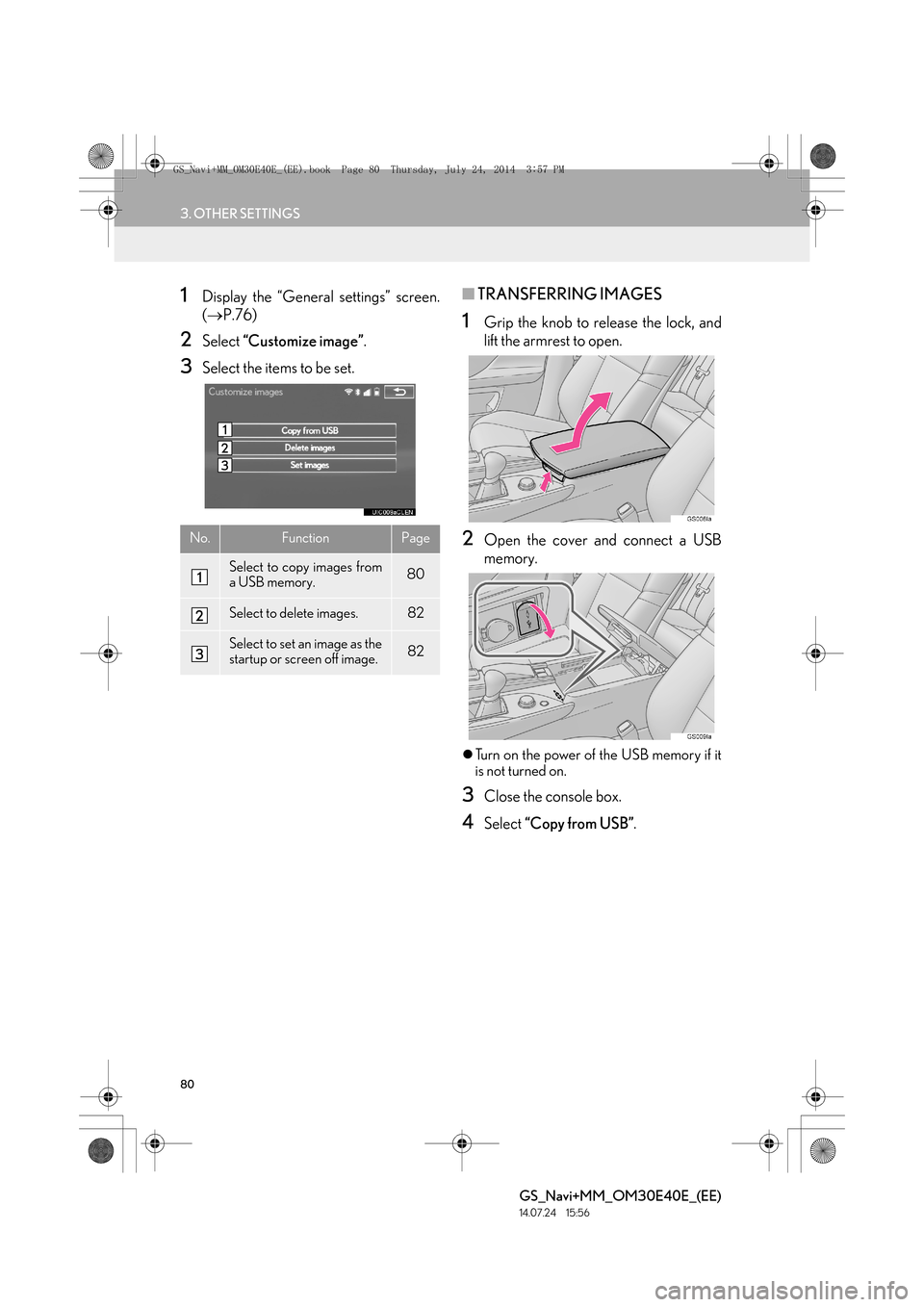

80
3. OTHER SETTINGS
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1Display the “General settings” screen.
(→ P.76)
2Select “Customize image” .
3Select the items to be set.
■TRANSFERRING IMAGES
1Grip the knob to release the lock, and
lift the armrest to open.
2Open the cover and connect a USB
memory.
zTurn on the power of the USB memory if it
is not turned on.
3Close the console box.
4Select “Copy from USB” .
No.FunctionPage
Select to copy images from
a USB memory.80
Select to delete images.82
Select to set an image as the
startup or screen off image.82
GS_Navi+MM_OM30E40E_(EE).book Page 80 Thursday, July 24, 2014 3:57 PM

81
3. OTHER SETTINGS
BASIC FUNCTION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
2
5Select the desired images from the list
and select “Copy”.
zThe selected image is displayed on the
right side of the screen. If the selected
image file is broken or incompatible,
will be displayed.
z The remaining number of image files that
can be transferred is displayed at the bot-
tom of the screen.
6Select “Yes” when the confirmation
screen appears.
INFORMATION
●
When saving image files to a USB mem-
ory to be transferred to this system, save
the images in a folder named “Image” (I-
m-a-g-e, case sensitive). If a different
folder name is used, this system will not
recognize the image files.
●The compatible file extensions are JPG
and JPEG.
●An image’s file name, including file exten-
sion, can be up to 32 characters.
●Image files of 10 MB or less can be trans-
ferred.
●Up to 10 images can be transferred to
this system.
●On vehicles with a 12.3-inch display, the
startup image can be selected from 3
preregistered movies. ( →P. 8 3 )
GS_Navi+MM_OM30E40E_(EE).book Page 81 Thursday, July 24, 2014 3:57 PM

93
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5 6
7
8
1. MY MEMORY SETTINGS .................... 152
SETTING UP HOME ............................................. 153
SETTING UP QUICK ACCESS ...................... 155
SETTING UP MEMORY POINTS .................. 157
SETTING UP AREA TO AVOID ..................... 163
SETTING UP ROUTE TRACE .......................... 166
BACKUP TO A USB MEMORY ..................... 168
COPYING FROM A USB MEMORY.......... 170
1. NAVIGATION SETTINGS .................... 172
NAVIGATION SETTINGS SCREEN ........... 173
2. TRAFFIC AND PARKING SETTINGS..................................................177
TRAFFIC AND PARKING SETTINGS
SCREEN ................................................................... 178
1. GPS (GLOBAL POSITIONING SYSTEM) ................................................... 186
LIMITATIONS OF THE NAVIGATION
SYSTEM .................................................................... 186
2. MAP DATABASE VERSION AND COVERED AREA ................................. 189
MAP DATA ................................................................. 189
ABOUT THE MAP DATA ................................... 190
4MY MEMORY
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
GS_Navi+MM_OM30E40E_(EE).book Page 93 Thursday, July 24, 2014 3:57 PM

153
4. MY MEMORY
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
NAVIGATION SYSTEM
3
1Display the “My memory” screen.
(→ P.152)
2Select “Home” .
3Select the desired item.
1Select “Register” .
2Select the desired item to search for the
location. (→P.118)
3Select “OK” when the editing home
screen appears. ( →P.154)
No.FunctionPage
Select to set home.153
Select to set the memory
points.157
Select to set quick access.155
Select to set areas to avoid.163
Select to set route traces.166
Select to copy from a USB
memory.170
Select to backup to a USB
memory.168
SETTING UP HOME
If a home has been registered, that infor-
mation can be recalled by selecting
“Home” on the “Destination” screen.
( → P.121)
No.FunctionPage
Select to register home.153
Select to edit home.154
Select to delete home.154
REGISTERING HOME
GS_Navi+MM_OM30E40E_(EE).book Page 153 Thursday, July 24, 201 4 3:57 PM

168
4. MY MEMORY
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
■CHANGING THE NAME
1Select “Name” .
2Enter the desired name and select
“OK”.
1Select “Delete” .
2Select the route trace to be deleted and
select “delete” .
3Select “Yes” when the confirmation
screen appears.
1Grip the knob to release the lock, and
lift the armrest to open.
DELETING ROUTE TRACES
BACKUP TO A USB MEMORY
Memory points registered in the naviga-
tion system can be copied to a USB
memory.
A password must first be set in order to
back up data. ( →P.170)
zExporting memory point data is for your
back-up use only and distribution or
usage in other system is strictly prohib-
ited.
GS_Navi+MM_OM30E40E_(EE).book Page 168 Thursday, July 24, 201 4 3:57 PM
