2014 Lexus GS350 radio controls
[x] Cancel search: radio controlsPage 9 of 438
9
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5
6
7
8
9
1. BASIC OPERATION ..................................... 94
QUICK REFERENCE......................................... 94
MAP SCREEN OPERATION ........................ 98
MAP SCREEN INFORMATION................ 106
TRAFFIC AND PARKING INFORMATION..................................................111
2. DESTINATION SEARCH .......................... 118
DESTINATION SEARCH SCREEN ........... 118
SEARCH OPERATION .................................. 120
STARTING ROUTE GUIDANCE ..............133
3. ROUTE GUIDANCE ................................. 138
ROUTE GUIDANCE SCREEN .................. 138
TYPICAL VOICE GUIDANCE PROMPTS............................................................145
EDITING ROUTE ................................................146
4. MY MEMORY .............................................. 152
MY MEMORY SETTINGS .............................152
5. SETUP .............................................................. 172
NAVIGATION SETTINGS............................. 172
TRAFFIC AND PARKING SETTINGS ..... 177
6. TIPS FOR THE NAVIGATION SYSTEM ....................................................... 186
GPS (GLOBAL POSITIONING SYSTEM) ............................................................. 186
MAP DATABASE VERSION AND COVERED AREA .......................................... 189
1. BASIC OPERATION ................................... 194
QUICK REFERENCE ....................................... 194
SOME BASICS ..................................................... 197
2. RADIO OPERATION ............................... 205
AM/FM/DAB RADIO .................................... 205
3. MEDIA OPERATION ................................ 212
CD ............................................................................... 212
DVD ........................................................................... 218
USB MEMORY ...................................................225
iPod ............................................................................233
Bluetooth
® AUDIO .......................................... 240
AUX .......................................................................... 247
VTR ........................................................................... 250
4. AUDIO/VISUAL REMOTE CONTROLS .............................................. 253
STEERING SWITCHES ................................. 253
REAR SEAT AUDIO CONTROLS ........... 257
5. SETUP ............................................................. 260
AUDIO SETTINGS........................................... 260
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ..................................... 268
OPERATING INFORMATION................. 268
3NAVIGATION SYSTEM4AUDIO/VISUAL SYSTEM
GS_Navi+MM_OM30E40E_(EE).book Page 9 Thursday, July 24, 2014 3:57 PM
Page 193 of 438
193
4
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5 6
7
8
9
1. CD................................................................... 212
OVERVIEW................................................................ 212
PLAYING AN AUDIO CD ................................ 216
PLAYING AN MP3/WMA/AAC DISC ...... 217
2. DVD................................................................ 218
OVERVIEW................................................................ 218
DVD OPTIONS....................................................... 222
3. USB MEMORY ........................................ 225
OVERVIEW............................................................... 225
USB AUDIO ............................................................. 230
USB VIDEO ................................................................ 231
USB PHOTO ............................................................. 231
4. iPod ................................................................233
OVERVIEW............................................................... 233
iPod AUDIO ............................................................. 238
iPod VIDEO ............................................................... 239
5. Bluetooth® AUDIO ................................. 240
OVERVIEW............................................................... 240
CONNECTING A Bluetooth® DEVICE .... 245
LISTENING TO Bluetooth® AUDIO............ 245
6. AUX .............................................................. 247
OVERVIEW............................................................... 247
7. VTR ................................................................ 250
OVERVIEW.............................................................. 250
VTR OPTIONS ........................................................ 252
1. STEERING SWITCHES ......................... 253
2. REAR SEAT AUDIO CONTROLS ........................................... 257
1. AUDIO SETTINGS.................................. 260
AUDIO SETTINGS SCREEN ............................ 261
1. OPERATING INFORMATION ......... 268
RADIO ........................................................................ 268
DVD PLAYER AND DISC ................................. 270
iPod ................................................................................ 275
FILE INFORMATION........................................... 276
TERMS .......................................................................... 279
ERROR MESSAGES.............................................. 281
3MEDIA OPERATION4AUDIO/VISUAL REMOTE
CONTROLS
5SETUP
6TIPS FOR OPERATING THE
AUDIO/VISUAL SYSTEM
AUDIO/VISUAL SYSTEM
For vehicles sold outside Europe, some of the functions cannot be operated while driving.
GS_Navi+MM_OM30E40E_(EE).book Page 193 Thursday, July 24, 201 4 3:57 PM
Page 243 of 438
243
3. MEDIA OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
AUDIO/VISUAL SYSTEM
4
CAUTION
●Do not operate the player’s controls or connect to the Bluetooth® audio system while driv-
ing.
●Your audio unit is fitted with Bluetooth® antennas. People with implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
defibrillators should maintain a reasonab le distance between themselves and the
Bluetooth
® antennas. The radio waves may affect the operation of such devices.
●Before using Bluetooth® devices, users of any electrical medical device other than implant-
able cardiac pacemakers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should consult the manufacturer of the device for information
about its operation under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
●Do not leave your portable player in the vehicle. In particular, high temperatures inside the
vehicle may damage the portable player.
GS_Navi+MM_OM30E40E_(EE).book Page 243 Thursday, July 24, 201 4 3:57 PM
Page 254 of 438
254
4. AUDIO/VISUAL REMOTE CONTROLS
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
X“MODE” switch
ModeOperationFunction
AM/FM
Radio, DAB, AUX, VTRPressChange audio modes
Press and hold
(0.8 sec. or more)Mute
CD, MP3/
WMA/AAC disc, DVD,
USB, iPod, BT audioPressChange audio modes
Press and hold
(0.8 sec. or more)Pause
GS_Navi+MM_OM30E40E_(EE).book Page 254 Thursday, July 24, 201 4 3:57 PM

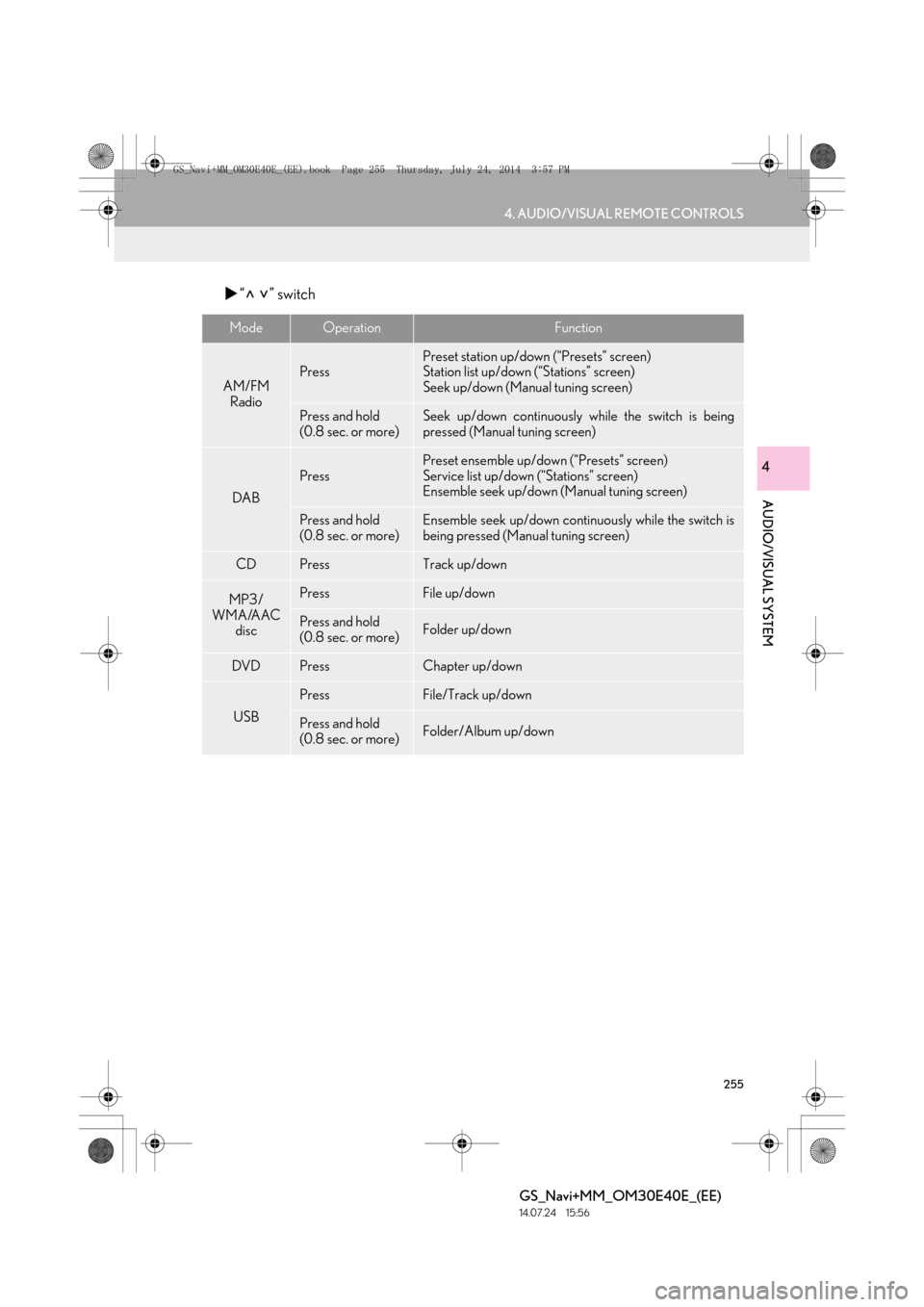

Page 255 of 438
255
4. AUDIO/VISUAL REMOTE CONTROLS
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
AUDIO/VISUAL SYSTEM
4
X“” switch
ModeOperationFunction
AM/FM
RadioPressPreset station up/down (“Presets” screen)
Station list up/down (“Stations” screen)
Seek up/down (Manual tuning screen)
Press and hold
(0.8 sec. or more)Seek up/down continuously while the switch is being
pressed (Manual tuning screen)
DAB
Press
Preset ensemble up/down (“Presets” screen)
Service list up/down (“Stations” screen)
Ensemble seek up/down (Manual tuning screen)
Press and hold
(0.8 sec. or more)Ensemble seek up/down continuously while the switch is
being pressed (Manual tuning screen)
CDPressTrack up/down
MP3/
WMA/AAC discPressFile up/down
Press and hold
(0.8 sec. or more)Folder up/down
DVDPressChapter up/down
USB
PressFile/Track up/down
Press and hold
(0.8 sec. or more)Folder/Album up/down
GS_Navi+MM_OM30E40E_(EE).book Page 255 Thursday, July 24, 201 4 3:57 PM
Page 257 of 438
257
4. AUDIO/VISUAL REMOTE CONTROLS
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
AUDIO/VISUAL SYSTEM
4
2. REAR SEAT AUDIO CONTROLS*
X“CH/FLD” switch
Some audio/visual features can be controlled from the rear seats.
*: If equipped
No.Switch
“CH/FLD” switch
“TUNE/TRACK” switch
“VOL” switch
“PWR” switch
“MODE” switch
ModeOperationFunction
AM/FM
RadioPressPreset station up/down (“Presets” screen)
Station list up/down (“Stations” screen)
Seek up/down (Manual tuning screen)
DABPressPreset ensemble up/down (“Presets” screen)
Service list up/down (“Stations” screen)
Ensemble seek up/down (Manual tuning screen)
GS_Navi+MM_OM30E40E_(EE).book Page 257 Thursday, July 24, 201 4 3:57 PM
Page 258 of 438
258
4. AUDIO/VISUAL REMOTE CONTROLS
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
X“TUNE/TRACK” switch
MP3/
WMA/AAC disc, DVD, USB,
BT audio
PressFolder/Album up/down
ModeOperationFunction
ModeOperationFunction
AM/FM RadioPress
Preset station up/down (“Presets” screen)
Station list up/down (“Stations” screen)
Seek up/down (Manual tuning screen)
Press and hold
(0.8 sec. or more)Seek up/down continuously while the switch is be-
ing pressed (Manual tuning screen)
DAB
PressPreset ensemble up/down (“Presets” screen)
Service list up/down (“Stations” screen)
Ensemble seek up/down (Manual tuning screen)
Press and hold
(0.8 sec. or more)Ensemble seek up/down continuously while the
switch is being pressed (Manual tuning screen)
CD, MP3/
WMA/AAC
disc, DVD,
USB, iPod, BT audioPressTrack/file/chapter up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
GS_Navi+MM_OM30E40E_(EE).book Page 258 Thursday, July 24, 201 4 3:57 PM
Page 428 of 438
428
ALPHABETICAL INDEX
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
Numerics
12.3-inch display ........................................................417
A
AM/FM/DAB radio ..............................................205Manual tuning ..................................................... 208
Overview ...............................................................205
Presetting a station ........................................... 208
RDS (Radio data system) ................................209
Time shift operation (DAB)............................... 211
Audio settings ...........................................................260
Audio/visual remote controls ............................253
Audio/visual system................................................ 193
AUX ............................................................................. 247 Overview ............................................................... 247
B
Basic function........................................................ 14, 37
Basic information before operation ...................38
Basic operation ................................................. 94, 194
Basic screens ............................................................. 421Audio/video system.......................................... 422
Switching the basic screen.............................. 421
To display on the main display ....................... 421
Vehicle information........................................... 423
Bluetooth
® audio ....................................................240
Connecting a Bluetooth® device ............... 245
Listening to Bluetooth® audio......................245
Overview ...............................................................240
Bluetooth
® phone message function............ 358
Calling the message sender ..........................363
Checking messages..........................................360
Receiving a message ........................................359
Replying to a message (Quick reply) ......... 361
C
Calling on the Bluetooth® phone.................... 346
By call history....................................................... 347
By contacts list .................................................... 349
By dial pad ..............................................................351
By favourites list.................................................. 347
By off hook switch.............................................. 352
SOS ......................................................................... 352
CD................................................................................... 212
Overview ................................................................ 212
Playing an audio CD ..........................................216
Playing an MP3/WMA/AAC disc ............. 217
Command list ........................................................... 292
Connected service settings..................................413 Connected service settings screen .............414
Connected services .............................................. 393
Connected services overview .......................... 394 Before using connected services................ 396
Connecting to internet via Bluetooth
® device ................................................67
Setting internet connection ...............................67
Connecting to internet via Wi-Fi
®..................... 70
Wi-Fi® function operating hints ......................74
Wi-Fi® settings screen......................................... 71
Contact settings ...................................................... 372 “Contacts” screen ............................................. 373
“Delete call history” screen ........................... 384
“Favourites” screen ...........................................380
D
Destination search .................................................... 118
Destination search screen ..................................... 118
DVD ...............................................................................218
DVD options........................................................ 222
Overview ................................................................218
ALPHABETICAL INDEX
GS_Navi+MM_OM30E40E_(EE).book Page 428 Thursday, July 24, 201 4 3:57 PM
