1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
5
4Say or select “Enter”.
zA map corresponding to the decided
address is displayed. To set the displayed
point as a destination, say “Enter”.
z If multiple points exist, the next point can be
displayed by saying “Next”.
1Press the talk switch.
z“Play artist ”, “Play album ”,
“Play song ” and “Play playlist
” are displayed in the “Shortcuts”
screen.
2Say or select “Play artist ” , “Play
album ” , “Play song ” or
“Play playlist ” .
zSay the desired name in the place of the
“<>”.
z A confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed.
3Say “Play” or select “Play”.
zThe system starts playing music.
INFORMATION
●
To change the country to be searched,
say “Change country” when the screen to
say the city name is displayed and the
screen will change to the country input
screen.
●The house number voice recognition
conditions are outlined below:
• Numerals: 10 digits or less
• Cardinals cannot be recognized.
• Numerals are recognized as single dig-
its only.
SPEECH COMMAND
EXAMPLE: SEARCH FOR A
TRACK
GS_Navi+MM_OM30E40E_(EE).book Page 289 Thursday, July 24, 201 4 3:57 PM

290
1. SPEECH COMMAND SYSTEM OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1Press the talk switch.
z“Call ” is displayed in the “Short-
cuts” screen.
z When “Call ” on the “Shortcuts”
screen is dimmed, the contact’s speech
command recognition cannot be used.
Check the Bluetooth
® connection and if
the contacts have been transferred to the
navigation system.
2Say or select a registered contact name.
z In the same manner as it is displayed on the
screen, “Call ”, after saying
“Call”
say the name of a contact.
For example: “Call”, “J o h n S m i t h”
z Short or abbreviated names in the contact
list may not be recognized. Change names
in the contact list to full names.
z Sometimes a voice recognition result con-
firmation screen will be displayed. After
confirming the result, say “Dial”.
z When the system recognizes multiple
names from the contact list, a name candi-
date list will be displayed on the screen. If
the desired name is not displayed on the
top of the screen, say the number of the
name from the candidate list to select a
name from the candidate list.
INFORMATION
●
A USB memory or iPod must be con-
nected to enable track searching and
playback. ( →P.225, 233)
●When a USB memory or iPod is con-
nected, recognition data is created so
tracks can be searched using speech
commands.
●Recognition data is updated under the
following conditions:
• When the USB memory or iPod data
has changed.
• When the voice recognition language is changed. ( →P. 76 )
●While the recognition data is being cre-
ated or being updated, a track search
cannot be performed using a speech
command.
●When “Play music” is dimmed in the
“Shortcuts” screen, it is not possible to
search for a track using a speech com-
mand. In this situation, reduce the amount
of music data in the USB memory or iPod
and update the recognition data to
enable searching by speech command.
SPEECH COMMAND
EXAMPLE: CALL NAME
GS_Navi+MM_OM30E40E_(EE).book Page 290 Thursday, July 24, 201 4 3:57 PM

291
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
5
zWhen a contact has multiple telephone
numbers registered in the contact list, a
candidate list will be displayed. If the
desired telephone number is not displayed
on the top of the screen, say the number of
the desired telephone number from the
candidate list to select a telephone number
from the candidate list.
3Say or select “Dial” to call the telephone
number.
1Press the talk switch.
z “Dial ” is displayed in the “Short-
cuts” screen.
z When “Dial ” on the “Shortcuts”
screen is dimmed, the telephone number
voice recognition cannot be used. Check
the Bluetooth
® phone connection.
2Say the telephone number.
zIn the same manner as it is displayed on the
screen, “Dial ”, after saying “Dial”
say the telephone number.
z Say the telephone number one digit at a
time.
For example, if the telephone number is
2345678:
Say “two three four five six seven eight”
z As the system cannot recognize additional
numbers, say the complete number without
stopping.
z When the system recogn izes multiple tele-
phone numbers, a telephone number can-
didate list will be displayed on the screen. If
the desired telephone number is not dis-
played on the top of the screen, say the
number of the desired telephone number
from the candidate list to select a telephone
number from the candidate list.
3Say or select “Dial” to call the telephone
number.
SPEECH COMMAND
EXAMPLE: DIAL NUMBER
GS_Navi+MM_OM30E40E_(EE).book Page 291 Thursday, July 24, 201 4 3:57 PM

292
1. SPEECH COMMAND SYSTEM OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
2. COMMAND LIST
zFrequently used commands are listed in the following tables.
z For devices that are not installed in the vehicle, the related commands will not be dis-
played in the “Shortcuts” screen. Also, according to conditions, other commands may
not be displayed in the “Shortcuts” screen.
z The functions available may vary according to the navigation system installed.
z Commands that have “O” in the shortcuts menu column can be recognized from the
“Shortcuts” screen.
XBasic
X Navi
*: For example; “Restaurant”, “Hospital” etc.
Recognizable speech commands and their actions are shown below.
z Voice recognition language can be changed. ( →P. 76 )
CommandAction
“Help”Prompts voice guidance to offer examples of commands
and operation methods
“Go back”Returns to the previous screen
CommandActionShortcuts
menu
“Find nearby ”Displays a list of near the cur-
rent positionO
“Enter an address”Enables setting a destination by saying the ad-
dressO
“Go home”Displays the route to homeO
GS_Navi+MM_OM30E40E_(EE).book Page 292 Thursday, July 24, 201 4 3:57 PM

294
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1. LEXUS PARKING ASSIST MONITOR .............................................. 296
LEXUS PARKING ASSIST MONITOR ...... 296
DRIVING PRECAUTIONS .............................. 296
SCREEN DISPLAY ............................................... 298
USING THE SYSTEM WHEN
PERPENDICULAR PARKING.................... 300
USING THE SYSTEM WHEN PARALLEL PARKING................................................................ 301
SWITCHING THE PARKING MODE SCREEN.................................................................. 302
2. PERPENDICULAR PARKING (ESTIMATED COURSE LINE
DISPLAY MODE) ................................ 303
SCREEN DESCRIPTION .................................. 303
PARKING .................................................................. 304
1LEXUS PARKING ASSIST
MONITOR
GS_Navi+MM_OM30E40E_(EE).book Page 294 Thursday, July 24, 201 4 3:57 PM

6
295
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5 6
7
8
9
3. PERPENDICULAR PARKING (PARKING ASSIST GUIDE LINE
DISPLAY MODE).................................305
SCREEN DESCRIPTION .................................. 305
PARKING .................................................................. 306
4. PARALLEL PARKING ........................... 307
VEHICLE MOVEMENT
PROCEDURE ...................................................... 307
PARKING .................................................................. 309
NARROW MODE .................................................. 314
5. LEXUS PARKING ASSIST MONITOR PRECAUTIONS..................................... 316
AREA DISPLAYED ON SCREEN.................. 316
THE CAMERA .......................................................... 317
DIFFERENCES BETWEEN THE SCREEN
AND THE ACTUAL ROAD ........................... 318
WHEN APPROACHING THREE-DIMENSIONAL OBJECTS .......... 319
6. THINGS YOU SHOULD KNOW ...... 321
IF YOU NOTICE ANY SYMPTOMS ........... 321
1. LEXUS PARKING ASSIST-SENSOR .................................. 324
TYPES OF SENSORS .......................................... 324
LEXUS PARKING ASSIST-SENSOR
SWITCH................................................................... 324
DISPLAY ..................................................................... 325
SENSOR DETECTION DISPLAY, OBSTACLE DISTANCE ................................. 327
DETECTION RANGE OF THE SENSORS .............................................................. 330
THE LEXUS PARKING ASSIST-SENSOR CAN BE OPERATED WHEN ....................... 331
LEXUS PARKING ASSIST-SENSOR DISPLAY .................................................................. 331
SENSOR DETECTION INFORMATION................................................... 331
LEXUS PARKING ASSIST-SENSOR FAILURE WARNING ...................................... 333
2. SETTING UP LEXUS PARKING ASSIST-SENSOR ..................................335
ALERT VOLUME SETTING ............................. 336
DISPLAY ON/OFF SETTING.......................... 336
ALERT DISTANCE SETTING .......................... 337
2LEXUS PARKING ASSIST-
SENSOR
PERIPHERAL MONITORING SYSTEM
For vehicles sold outside Europe, some of the functions cannot be operated while driving.
GS_Navi+MM_OM30E40E_(EE).book Page 295 Thursday, July 24, 201 4 3:57 PM

296
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56

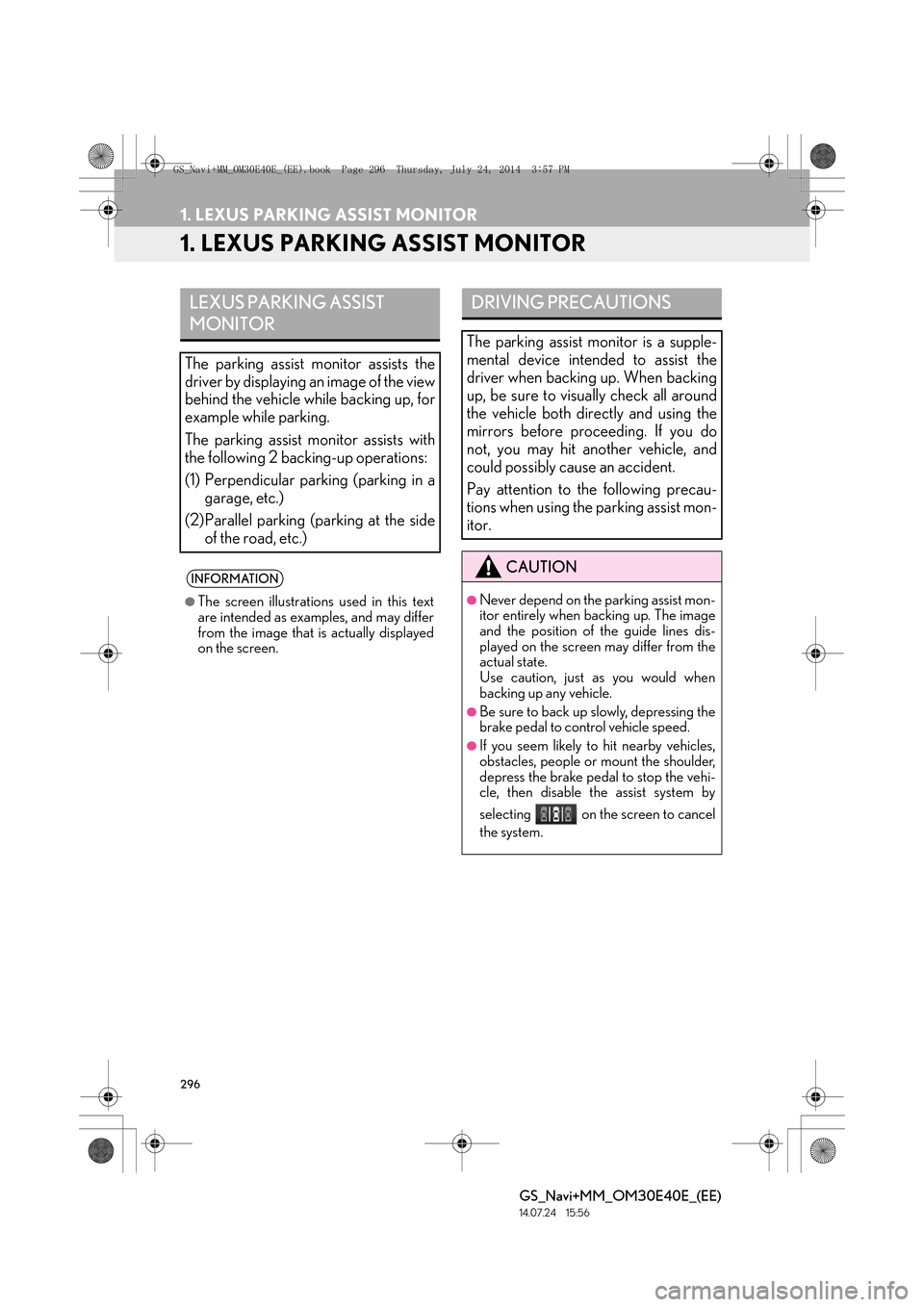

1. LEXUS PARKING ASSIST MONITOR
1. LEXUS PARKING ASSIST MONITOR
LEXUS PARKING ASSIST
MONITOR
The parking assist monitor assists the
driver by displaying an image of the view
behind the vehicle while backing up, for
example while parking.
The parking assist monitor assists with
the following 2 backing-up operations:
(1) Perpendicular parking (parking in agarage, etc.)
(2)Parallel parking (parking at the side of the road, etc.)
INFORMATION
●
The screen illustrations used in this text
are intended as examples, and may differ
from the image that is actually displayed
on the screen.
DRIVING PRECAUTIONS
The parking assist monitor is a supple-
mental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the parking assist mon-
itor.
CAUTION
●Never depend on the parking assist mon-
itor entirely when backing up. The image
and the position of the guide lines dis-
played on the screen may differ from the
actual state.
Use caution, just as you would when
backing up any vehicle.
●Be sure to back up slowly, depressing the
brake pedal to control vehicle speed.
●If you seem likely to hit nearby vehicles,
obstacles, people or mount the shoulder,
depress the brake pedal to stop the vehi-
cle, then disable the assist system by
selecting on the screen to cancel
the system.
GS_Navi+MM_OM30E40E_(EE).book Page 296 Thursday, July 24, 201 4 3:57 PM

297
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
6
CAUTION
●The instructions given are only guidelines.
When and how much to turn the steering
wheel will vary according to traffic condi-
tions, road surface conditions, vehicle
condition, etc. when parking. It is neces-
sary to be fully aware of this before using
the parking assist system.
●When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
●Do not use the parking assist monitor sys-
tem in the following cases:
• On icy or slick road surfaces, or in snow
• When using tyre chains or emergencytyres
• When the trunk is not closed com- pletely
• On roads that are not flat or straight, such as curves or slopes
CAUTION
●In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehicle
is moving, or you may become unable to
see the image on the screen. Be sure to
visually check all around the vehicle both
directly and using the mirrors before pro-
ceeding.
●If the tyre sizes are changed, the position
of the guide lines displayed on the screen
may change.
●The camera uses a special lens. The dis-
tances between objects and pedestrians
that appear in the image displayed on the
screen will differ from the actual dis-
tances. ( →P. 3 1 8 )
GS_Navi+MM_OM30E40E_(EE).book Page 297 Thursday, July 24, 201 4 3:57 PM
