2014 KIA SORENTO Features and Functions Guide

www.kia.com
Consumer - Roadside Assistance 1-800-333-4KIA (4542)
See Back Cover for Vehicle Maintenance Schedule Always check the Owner’s Manual for complete operating information and safety warnings.
FEATURES & FUNCTIONS GUIDE
© 2013 Kia Motors America, Inc. All rights reserved. Part Number: UX140-PS-004

GETTING TO KNOW YOUR SORENTO
Congratulations on Your New Kia Purchase!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.
Using This Guide
The information contained in this guide is a brief overview which will help you become familiar with the operation and features of your new Kia vehicle. The flipbook format facilitates information access, while the detailed illustrations ensure the instructions are easy to follow.
This Features & Functions Guide and the specific operational and safety information it provides is not a substitute for your Owner’s Manual. In the interest of your safety and that of your family, and to help you avoid risks that may result in death or serious injury, Kia reminds you to carefully read your Owner’s Manual in order to fully familiarize yourself with the important information it contains.
While the information contained in this guide is accurate at the time of printing, Kia may change vehicle
specifications without notice in advance or after the fact, and assumes no liability in connection with such changes.

Active ECO System* 05
Air Conditioning / Climate Control 22
Audio System - Standard* 16
Audio System - Navigation System* 20
Audio System - UVO System* 19
AUX/USB/iPod® Port & Power Outlets 21
Bluetooth® Wireless Technology 12
Cruise Control* 14
Digital Clock 21
Folding 2nd & 3rd Row Seats* 27
Front Active Headrests 28
PASSENGER AIR BAG OFF Indicator 35
Smart Key* 29
Tire Pressure Monitoring System (TPMS) 05
Windshield/Rear Wipers & Washers* 11
VIDEOS & QR CODES 02INSTRUMENT CLUSTERInstrument Cluster Overview / Indicators & Warning Lights 03Trip Computer / Tripmeter* 04Fuel Efficiency 04Tire Pressure Monitoring System (TPMS) 05Active ECO System* 05DRIVER’S PANELElectronic Stability Control (ESC) 06Blind Spot Detection (BSD) System* 06Hill-Start Assist Control (HAC) 06Hood Release Lever and Latch 06Instrument Panel Dimmer* 07All Wheel Drive (AWD) Transfer Mode* 07Heated Steering Wheel Button* 07Power Windows, Window Lock & Central Door Lock 08Electric/Folding Mirrors* 08Power/Heated Outside Mirrors* 08Engine Start/Stop Button* 08STEERING WHEEL CONTROLSTilt/Telescopic Steering Wheel 09LCD Display Control 09Headlights & High Beams 10Turn Signals & Fog Lights* 10Windshield/Rear Wipers & Washers* 11Bluetooth® Wireless Technology 12Audio Controls 14Cruise Control 14FlexSteer™ Steering Wheel Mode* 15AUDIO SYSTEMStandard Audio System Overview* 16Standard Audio System Operation* 17UVO System* 19Navigation System* 20
CENTER PANELDigital Clock 21AUX/USB/iPod® Port & Power Outlets 21Automatic Climate Control* 22Manual Climate Control* 233rd Row Air Conditioning Control* 23Automatic Gear Shift with Sportmatic® Shifting 24S E AT I N GSeat Warmers/Ventilated Seats* 25Driver Position Memory System* 25Power Adjustable Driver’s Seat* 266-Way Manual Adjustable Driver’s Seat* 26Folding 2nd & 3rd Row Seats* 27Front Active Headrests* 28Front Seat Headrest Adjustment 28OTHER KEY FEATURESRemote Keyless Entry (Folding Key)* 29Double-Turn Lock/Unlock All* 29Smart Key* 29HomeLink® with Auto-Dimming Rearview Mirror* 30Power Tailgate 31Fuel Cap / Malfunction Indicator (Check Engine Light) 31Manual Rear Hatch Release Button 31Map/Room/Dome Lamps 32Sunvisor 32Sunroof Operation* 33Roof Rack* 33 Rear-Camera Display* 34Backup Warning System* 34SAFETYOccupant Detection System (ODS) / PASSENGER AIR BAG OFF Indicator 35Child Safety Locks 35Safety Belts 36LEGAL DISCLAIMERS (See Back Inside Cover Page) MAINTENANCE (See Back Cover)
ESSENTIAL FEATURES
SORENTO FEATURES & FUNCTIONS GUIDE*IF EQUIPPED
Driving while drowsy or distracted is dangerous and should be avoided. Drivers should remain attentive to driving and exercise caution when using vehicle systems while driving.

SORENTO FEATURES & FUNCTIONS GUIDE2
How to snap a QR code
1 With your mobile
device, download a
QR Code Reader App
With many devices,
you can do this
through an App Store
or Marketplace
2 Open the QR Code
Reader App on your
mobile device
3 The app will utilize your device’s camera Center
the code in the camera viewing area:
•
With some apps, as soon as the app
recognizes the code, it will launch the
corresponding video
•
With other apps, you will have to snap or
“take a picture” of the code The app will
then launch the corresponding video
•
For operation specifics, refer to the
instructions that come with the QR Code
Reader app
Kia One Click Fuel Cap Video To view a video on your mobile device, SNAP this QR code or visit the listed website
Refer to page 2 for more information
VIDEOS & QR CODES - SMART PHONES, TABLETS AND COMPUTERS
Kia provides a number of video resources at your disposal to assist you with becoming
familiar with the features and functions found in your Kia vehicle You can access these
resources by snapping the QR codes with your smart phone/tablet (mobile devices) or by
visiting the following website: www KuTechVideos com/xm13/2013 Continue reading for a
more in-depth look at QR codes and for instructions on how to use them
What are QR Codes?
A QR Code is a square, 2-dimensional Bar Code that can be read by mobile devices loaded
with an appropriate Bar Code or QR Code Reader app The app reads the Bar Code image
and then launches/uploads the specific information the code contains, such as URLs, text,
photos, videos, and so much more
QR CODE
1
1 If you’re having trouble scanning codes, check the following:• The code should be centered and focused in your mobile device’s camera screen• Consider moving your device closer to or farther away from the code• The code should be well lit, without significant shadow• Avoid scanning from a significant angle• Confirm that the device’s app supports 2D QR Code Scanning Try another QR Code Reader app; not all apps are created equal
2 After scanning, a “connecting” message appears and then nothing happens or there’s a “connection error” message These messages typically indicate that your device is having trouble connecting to the Internet
QUICK TIPS
How to Use QR Codes
If you have a mobile device with a QR Code Reader App, you
can snap the code with your phone and you’ll be provided a
video with additional information pertaining to the topic For
example, in the Kia One Click Fuel Cap section, if you would
like additional information, just snap the code with your mobile
device to view the selected Kia Features & Functions Video
www.KuTechVideos.com/xm14/2014
REMINDER: When accessing videos on your mobile device, standard cellular data rates may apply

3ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS
INSTRUMENT CLUSTER
Charging System Warning Light
Cruise SET Indicator
Cruise Indicator
Engine Oil Pressure Warning Light
Low Fuel Level Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light
Electronic Power Steering Warning Light
160140
120
100
80
60
40
20
0
MPH
0
20
40
60
80
100
120
140
160
180
200
220
240
260km/h
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/hmi.INSTRANGE AVGE/Tc
F
X
!
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/hmi.INSTRANGE AVGE/Tc
F
X
!
!
MPHkm/hN00
20
40
6080100120
140
16020406080100120140160180200220240260ODO123456160 140
120
100
80
60
40
20
0
MPH
0
20
40
60
80
100
120
140
160
180
200
220
240
260km/h
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/hmi.INSTRANGE AVGE/Tc
F
X
!
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/hmi.INSTRANGE AVGE/Tc
F
X
!
!
MPHkm/hN00
20
40
6080100120
140
16020406080100120140160180200220240260ODO123456
REMINDER: Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations See your Owner’s Manual for more details
Instrument Cluster Overview / Indicators & Warning Lights
A Tachometer
B Turn Signal Indicators
C Speedometer
D Engine Temperature Gauge
E Indicator & Warning Lights
F Gear Shift Position Indicator*
G Odometer/Tripmeter*
H Trip Computer*
I Fuel Gauge
For more information on the function of all indicator and warning lights, please refer to the Owner’s Manual
QUICK TIPS
Low Windshield Washer Warning Light
Light on Indicator
AWD System Warning Light*
AWD LOCK Indicator*
ECOMINDER® Indicator
Key Out Warning Light*
Immobilizer Indicator*
High Beam Indicator
Electronic Stability Control (ESC) Indicator*
Electronic Stability Control (ESC) OFF Indicator*

Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator
Malfunction Indicator
Tailgate Open Warning Light
Front Fog Light Indicator
Seat Belt Warning Light
Parking Brake & Brake Fluid Warning Light
Door Ajar Warning Light
Air Bag Warning Light
Anti-lock Braking System (ABS) Warning Light
*IF EQUIPPED
A
B
CD
G
H
IFE
(Type B Cluster)(Type A Cluster)

SORENTO FEATURES & FUNCTIONS GUIDE4*IF EQUIPPED
INSTRUMENT CLUSTER

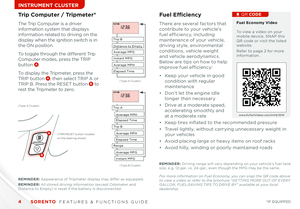

Trip Computer / Tripmeter* Fuel Efficiency
The Trip Computer is a driver
information system that displays
information related to driving on the
display when the ignition switch is in
the ON position
To toggle through the different Trip
Computer modes, press the TRIP
button A
To display the Tripmeter, press the
TRIP button A, then select TRIP A or
TRIP B Press the RESET button B to
rest the Tripmeter to zero
There are several factors that
contribute to your vehicle’s
fuel efficiency, including
maintenance of your vehicle,
driving style, environmental
conditions, vehicle weight
and vehicle aerodynamics
Below are tips on how to help
improve fuel efficiency:
• Keep your vehicle in good
condition with regular
maintenance
• Don’t let the engine idle
longer than necessary
• Drive at a moderate speed,
accelerating smoothly and
at a moderate rate
• Keep tires inflated to the recommended pressure
• Travel lightly, without carrying unnecessary weight in
your vehicles
• Avoid placing large or heavy items on roof racks
• Avoid hilly, winding or poorly maintained roads
REMINDER: Driving range will vary depending on your vehicle’s fuel tank size, e g 12-gal vs 24-gal , even though the MPG may be the same
For more information on Fuel Economy, you can snap the QR code above to view a video or refer to the brochure “GET TING MORE OUT OF E VERY GALLON, FUEL-SAVING TIPS TO DRIVE BY ” available at your local dealership.
Fuel Economy Video To view a video on your mobile device, SNAP this QR code or visit the listed website
Refer to page 2 for more information
QR CODE
MPG
INST Fuel Economy0
30 60
MPG
INST Fuel Economy0
30 60
www.KuTechVideos.com/xm14/2014
(Type A Cluster)
(Type B Cluster)
(Type A Cluster)
(TRIP/RESET button located on the steering wheel)
Tr i p B
Tr i p A
Average M PH
Average M PH
Average M P G
Elapsed Time
Elapsed Time
Instant MPG
Distance to Empty
Average M PH
Average M P G
Elapsed Time
Instant MPG
Tr i p B
Range
REMINDER: Appearance of Tripmeter display may differ as equipped
REMINDER: All stored driving information (except Odometer and Distance to Empty) is reset if the battery is disconnected
A
B

5ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
INSTRUMENT CLUSTER
Kia Tire Pressure Monitoring System Video
To view a video on your mobile device, SNAP this QR code or visit the listed website
Refer to page 2 for more information
Ecominder and Active ECO Video

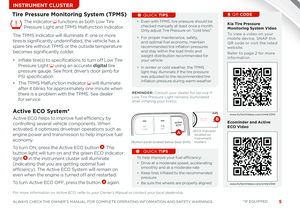

QR CODETire Pressure Monitoring System (TPMS)
REMINDER: Consult your dealer for service if Low Tire Pressure Light remains illuminated after inflating your tire(s)
www.KuTechVideos.com/xm14/2014
www.KuTechVideos.com/xm14/2014
The indicator functions as both Low Tire
Pressure Light and TPMS Malfunction Indicator
The TPMS indicator will illuminate if: one or more
tires is significantly underinflated, the vehicle has a
spare tire without TPMS or the outside temperature
becomes significantly colder
• Inflate tire(s) to specifications to turn off Low Tire
Pressure Light using an accurate digital tire
pressure gauge See front driver’s door jamb for
PSI specification
• The TPMS Malfunction Indicator will illuminate
after it blinks for approximately one minute when
there is a problem with the TPMS See dealer
for service
•
• Even with TPMS, tire pressure should be checked manually at least once a month Only adjust Tire Pressure on “cold tires”
• For proper maintenance, safety, and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
• In winter or cold weather, the TPMS light may illuminate if the tire pressure was adjusted to the recommended tire inflation pressure during warm weather
QUICK TIPS
ac tive
EC OAC
115VPO FF

To help improve your fuel efficiency:
• Drive at a moderate speed, accelerating smoothly and at a moderate rate
• Keep tires inflated to the recommended pressure
• Be sure the wheels are properly aligned
QUICK TIPS
Active ECO System*
Active ECO helps to improve fuel efficiency by
controlling several vehicle components When
activated, it optimizes drivetrain operations such as
engine power and transmission to help improve fuel
economy
To turn ON, press the Active ECO button A The
button light will turn on and the green ECO indicator
light B in the instrument cluster will illuminate
(indicating that you are getting optimal fuel
efficiency) The Active ECO System will remain on
even when the engine is turned off and restarted
To turn Active ECO OFF, press the button A again
(Button panel located below Gear Shif t)
( ECO indicator located on instrument cluster)
160140
120
100
80
60
40
20
0
MPH
0
20
40
60
80
100
120
140
160
180
200
220
240
260km/h
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/h
mi.
INSTRANGE AVGE/Tc
F
X
!
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/h
mi.
INSTRANGE AVGE/Tc
F
X
!
!
MPHkm/hN00
20
40
60
80100
120
140
160
20
40
60
80
100120140160
180
200
220
240
260
ODO123456
For more information on Active ECO, refer to your Owner’s Manual or contact your local dealership.
B
A

SORENTO FEATURES & FUNCTIONS GUIDE6*IF EQUIPPED SORENTO FEATURES & FUNCTIONS GUIDE6
DRIVER’S PANELDRIVER’S PANELDRIVER’S PANEL
Hood Release Lever and LatchElectronic Stability Control (ESC)
The ESC system is designed to help stabilize the vehicle during cornering maneuvers
It is a good idea to keep the ESC turned on for daily driving whenever possible
Press ESC button A to turn ESC OFF/ON
REMINDER: ESC is turned ON at vehicle start-up
REMINDER: The ESC Indicator Light in the instrument cluster will be lit momentarily whenever the ESC is active
Opening the Hood:
1 Pull the Hood
Release Lever A
to unlatch the Hood







2 In the front of the vehicle, lift
the Hood slightly and pull the
secondary Latch B inside of
the Hood’s center
and lift the Hood







Closing the Hood:
Lower the Hood about halfway
and then press down to securely
lock in place When HAC is active (e g , during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator
QUICK TIPS
Blind Spot Detection (BSD) System*
The system uses a radar sensor to help alert driver
while driving The BSD indicator on the button B
will illuminate when turned ON
The system will become active when the
vehicle is traveling more than 19 mph and
will alert the driver when another vehicle is
detected by the radar sensor
1st stage alert: When another vehicle is detected within the
BSD System boundary, a yellow light will illuminate on the
outside rearview mirrors
2nd stage alert: When 1st stage alert is on and a turn signal
is turned on or the hazard lights are on, an alarm will sound
Hillstart Assist Control (HAC)
HAC helps prevent the vehicle from rolling backwards when accelerating from
a stop while on a steep incline
The HAC automatically activates whether the ESC is OFF or ON but does NOT
activate when the ESC has malfunctioned
REMINDER: The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
A
B
X
X
X
AB
(button panel located lef t of Steering Wheel)
