2014 KIA RIO HATCHBACK Owners Manual

Features of your vehicle
10
4
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
two conditions:
1.This device may not cause harmful
interference, and
2.This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
✽ ✽

NOTICE
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment. If the keyless entry
system is inoperative due to changes
or modifications not expressly
approved by the party responsible
for compliance, it will not be cov-
ered by your manufacturer’s vehicle
warranty.
Battery replacement
A battery should last for several
years. If the transmitter or smart key
is not working properly, first try
replacing the battery. If you are
unsure how to use or replace the
battery, contact an authorized Kia
dealer. 1.Pry open the transmitter or smart
key center cover.
2.Replace the battery with a new battery (CR2032). When replacing
the battery, make sure the batteryis
positioned correctly.
3.Install the battery in the reverse order of removal.
■Type B OYDDCO2005
■Type A
OXM043004

411
Features of your vehicle
The transmitter or smart key is
designed to give you years of trou-
ble-free use, however it can malfunc-
tion if exposed to moisture or static
electricity. If you are unsure how to
use or replace the battery, contact an
authorized Kia dealer.
Using the wrong battery can cause
the transmitter or smart key to mal-
function. Be sure to use the correct
battery.
An inappropriately disposed battery
can be harmful to the environment
and human health.
Dispose the battery according to
your local law(s) or regulation.
Immobilizer system
(if equipped)
Your vehicle may be equipped with
an electronic engine immobilizer sys-
tem to reduce the risk of unautho-
rized vehicle use.
Your immobilizer system is com-
prised of a small transponder in the
ignition key and electronic devices
inside the vehicle.
With the immobilizer system, when-
ever you insert your ignition key into
the ignition switch and turn it to ON,
it checks and determines and verifies
that the ignition key is valid.If the key is determined to be valid,
the engine will start.
If the key is determined to be invalid,
the engine will not start.
To deactivate the immobilizer
system:
Insert the ignition key into the key
cylinder and turn it to the ON posi-
tion.
To activate the immobilizer sys-tem:
Turn the ignition key to the OFF posi-
tion. The immobilizer system acti-
vates automatically. Without a valid
ignition key for your vehicle, the
engine will not start.
Your Immobilizer password is a cus-
tomer unique password and should
be kept confidential. Do not leave this
number anywhere in your vehicle.
✽ ✽

NOTICE
Keep each key separately in order to
avoid a starting malfunction.
OED036001A
CAUTION- Transmitter
damage
The transmitter or smart key
can malfunction if exposed tomoisture, static electricity, heator direct sunlight and frombeing dropped.

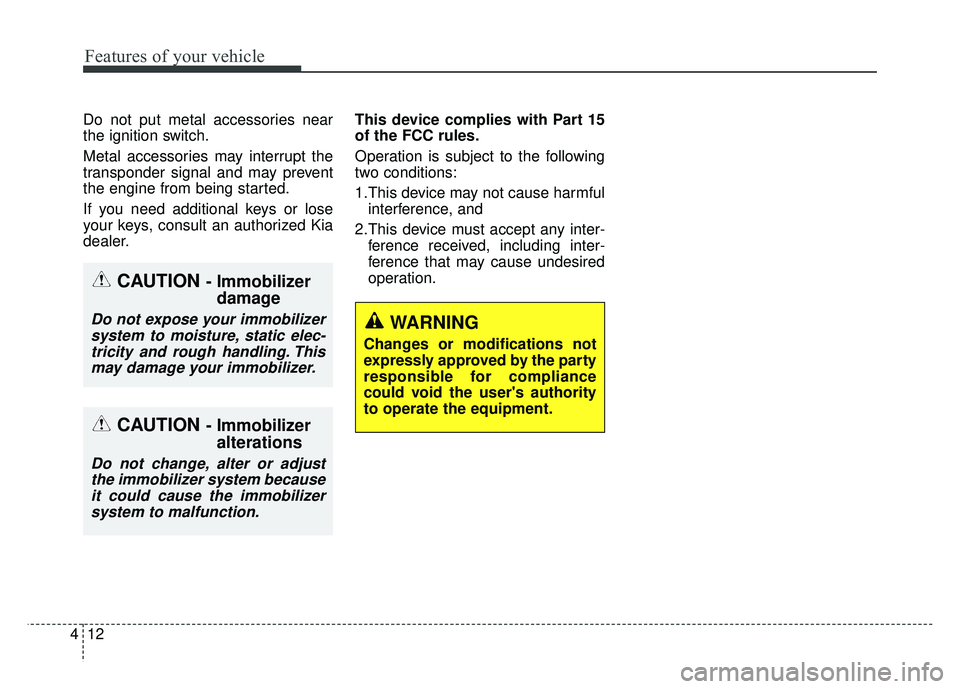

Features of your vehicle
12
4
Do not put metal accessories near
the ignition switch.
Metal accessories may interrupt the
transponder signal and may prevent
the engine from being started.
If you need additional keys or lose
your keys, consult an authorized Kia
dealer. This device complies with Part 15
of the FCC rules.
Operation is subject to the following
two conditions:
1.This device may not cause harmful
interference, and
2.This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance
could void the user's authority
to operate the equipment.
CAUTION - Immobilizerdamage
Do not expose your immobilizer
system to moisture, static elec-tricity and rough handling. Thismay damage your immobilizer.
CAUTION - Immobilizer alterations
Do not change, alter or adjust
the immobilizer system becauseit could cause the immobilizersystem to malfunction.

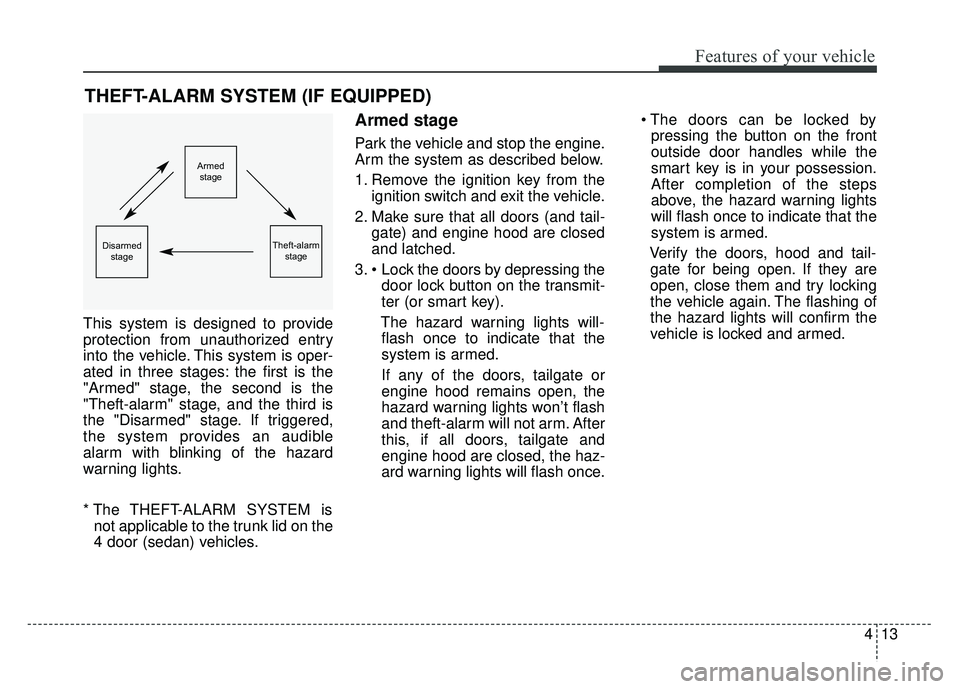

413
Features of your vehicle
This system is designed to provide
protection from unauthorized entry
into the vehicle. This system is oper-
ated in three stages: the first is the
"Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights.
* The THEFT-ALARM SYSTEM isnot applicable to the trunk lid on the
4 door (sedan) vehicles.
Armed stage
Park the vehicle and stop the engine.
Arm the system as described below.
1. Remove the ignition key from the ignition switch and exit the vehicle.
2. Make sure that all doors (and tail- gate) and engine hood are closed
and latched.
3. door lock button on the transmit-
ter (or smart key).
The hazard warning lights will- flash once to indicate that the
system is armed.
If any of the doors, tailgate or
engine hood remains open, the
hazard warning lights won’t flash
and theft-alarm will not arm. After
this, if all doors, tailgate and
engine hood are closed, the haz-
ard warning lights will flash once.
pressing the button on the front
outside door handles while the
smart key is in your possession.
After completion of the steps
above, the hazard warning lights
will flash once to indicate that the
system is armed.
Verify the doors, hood and tail- gate for being open. If they are
open, close them and try locking
the vehicle again. The flashing of
the hazard lights will confirm the
vehicle is locked and armed.
THEFT-ALARM SYSTEM (IF EQUIPPED)
Armed
stage
Theft-alarm stageDisarmedstage

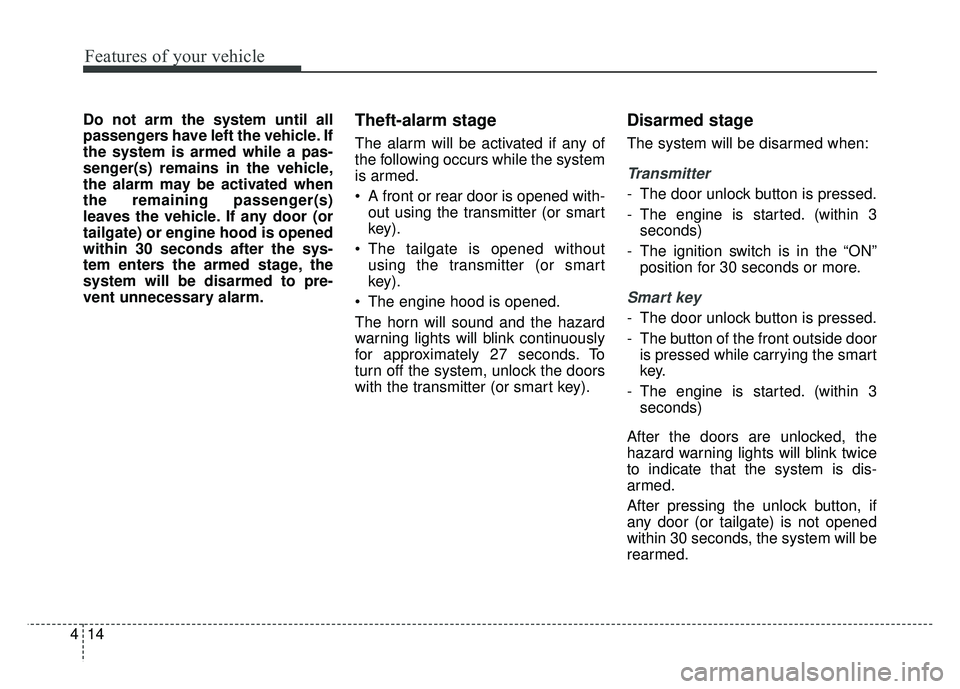

Features of your vehicle
14
4
Do not arm the system until all
passengers have left the vehicle. If
the system is armed while a pas-
senger(s) remains in the vehicle,
the alarm may be activated when
the remaining passenger(s)
leaves the vehicle. If any door (or
tailgate) or engine hood is opened
within 30 seconds after the sys-
tem enters the armed stage, the
system will be disarmed to pre-
vent unnecessary alarm.Theft-alarm stage
The alarm will be activated if any of
the following occurs while the system
is armed.
A front or rear door is opened with-
out using the transmitter (or smart
key).
The tailgate is opened without using the transmitter (or smart
key).
The engine hood is opened.
The horn will sound and the hazard
warning lights will blink continuously
for approximately 27 seconds. To
turn off the system, unlock the doors
with the transmitter (or smart key).
Disarmed stage
The system will be disarmed when:
Transmitter
- The door unlock button is pressed.
- The engine is started. (within 3 seconds)
- The ignition switch is in the “ON” position for 30 seconds or more.
Smart key
- The door unlock button is pressed.
- The button of the front outside dooris pressed while carrying the smart
key.
- The engine is started. (within 3 seconds)
After the doors are unlocked, the
hazard warning lights will blink twice
to indicate that the system is dis-
armed.
After pressing the unlock button, if
any door (or tailgate) is not opened
within 30 seconds, the system will be
rearmed.

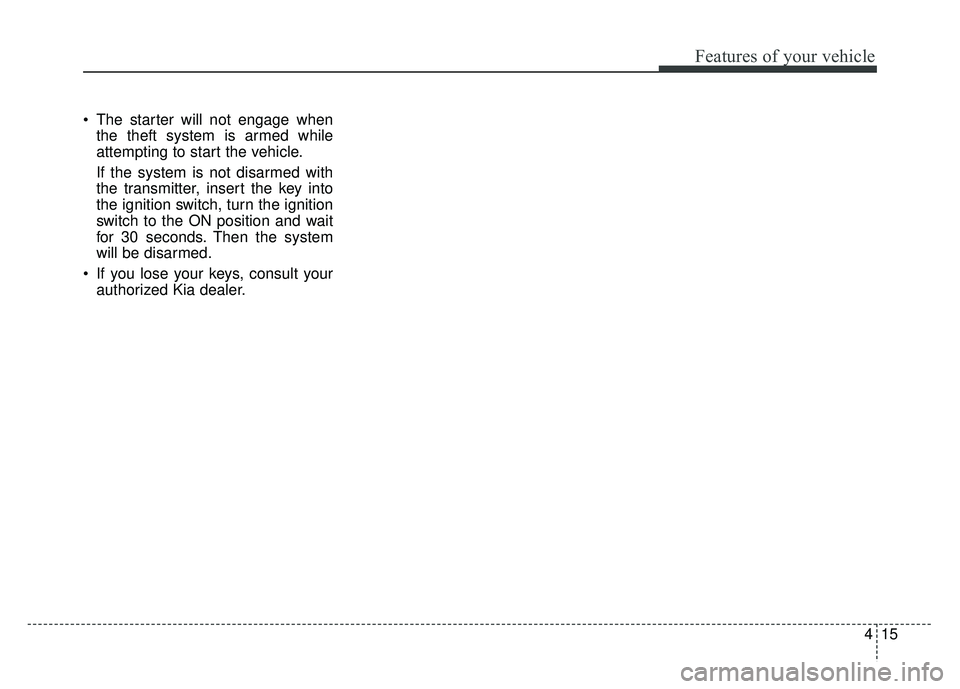

415
Features of your vehicle
The starter will not engage whenthe theft system is armed while
attempting to start the vehicle.
If the system is not disarmed with
the transmitter, insert the key into
the ignition switch, turn the ignition
switch to the ON position and wait
for 30 seconds. Then the system
will be disarmed.
If you lose your keys, consult your authorized Kia dealer.

Features of your vehicle
16
4
DOOR LOCKS
Operating door locks from
outside the vehicle
Turn the key toward the rear of the
vehicle to unlock and toward the
front of the vehicle to lock. If you lock/unlock the door with a
key, all vehicle doors will
lock/unlock automatically (if
equipped with power door locks).
From the driver’s door, turn the key toward the rear of the vehicle once
to unlock the driver’s door and
once more within 4 seconds to
unlock all doors (if equipped with
power door locks).
Doors can also be locked and unlocked with the transmitter key
(or smart key). (if equipped)
Once the doors are unlocked, they may be opened by pulling the door
handle.
When closing the door, push the door by hand. Make sure the doors
are closed securely.
✽ ✽

NOTICE
• In cold and wet climates, door lock
and door mechanisms may not
work properly due to freezing con-
ditions.
• If the door is locked/unlocked multiple times in rapid succession
with either the vehicle key or door
lock switch, the system may stop
operating temporarily in order to
protect the circuit and prevent
damage to system components.
OUB041004
■ Type B
■Type A
OUB043005
L
L
L
L
o
o
o
o
c
c
c
c
k
k
k
k U
U
U
U
n
n
n
n
l
l
l
l
o
o
o
o
c
c
c
c
k
k
k
k

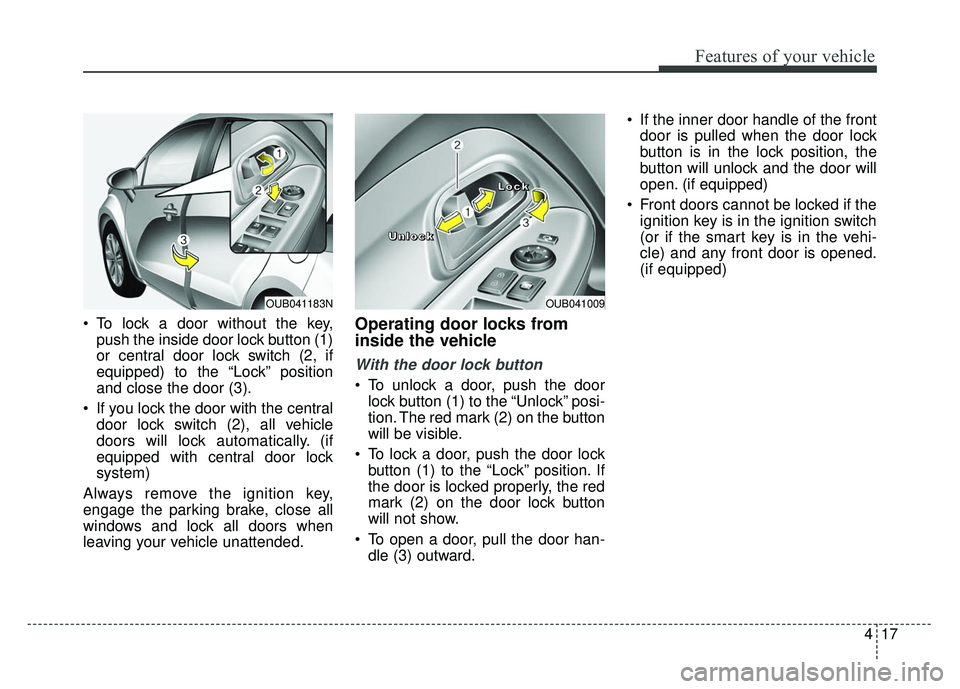

417
Features of your vehicle
To lock a door without the key,push the inside door lock button (1)
or central door lock switch (2, if
equipped) to the “Lock” position
and close the door (3).
If you lock the door with the central door lock switch (2), all vehicle
doors will lock automatically. (if
equipped with central door lock
system)
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.Operating door locks from
inside the vehicle
With the door lock button
To unlock a door, push the door lock button (1) to the “Unlock” posi-
tion. The red mark (2) on the button
will be visible.
To lock a door, push the door lock button (1) to the “Lock” position. If
the door is locked properly, the red
mark (2) on the door lock button
will not show.
To open a door, pull the door han- dle (3) outward. If the inner door handle of the front
door is pulled when the door lock
button is in the lock position, the
button will unlock and the door will
open. (if equipped)
Front doors cannot be locked if the ignition key is in the ignition switch
(or if the smart key is in the vehi-
cle) and any front door is opened.
(if equipped)
OUB041009
L
L
L
L
o
o
o
o
c
c
c
c
k
k
k
k




U
U
U
U
n
n
n
n
l
l
l
l
o
o
o
o
c
c
c
c
k
k
k
kOUB041183N
