2014 KIA MOHAVE Owners Manual

Safety features of your vehicle
8
3
Active headrest (if equipped)
The active headrest is designed to move
forward and upward during a rear impact.
This helps prevent the driver's and front
passenger’s heads from moving back-
ward and thus helps minimize neck
injuries. C010105AHM
Lumbar support (for driver’s seat)
The lumbar support can be adjusted by
moving the lever. Pivoting the lever
increases or decreases lumbar support.
OHM038008HNF2041-1
WARNING
A gap between the seat and the
headrest release button mayappear when seating on the seat or
when you push or pull the seat. Be
careful not to get your finger, etc.caught in the gap.
WARNING
Always make sure the headrest
locks into position after reinstalling
and adjusting it properly.

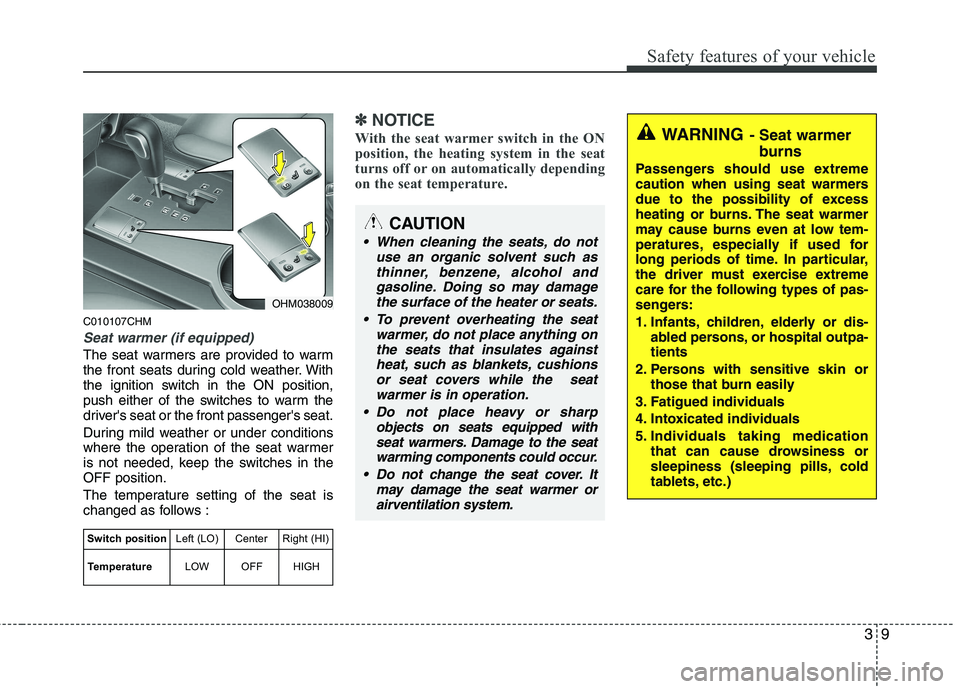

39
Safety features of your vehicle
C010107CHM
Seat warmer (if equipped)
The seat warmers are provided to warm
the front seats during cold weather. With
the ignition switch in the ON position,
push either of the switches to warm the
driver's seat or the front passenger's seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in theOFF position.
The temperature setting of the seat is
changed as follows :
✽✽NOTICE
With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending
on the seat temperature.WARNING - Seat warmer
burns
Passengers should use extreme
caution when using seat warmers
due to the possibility of excess
heating or burns. The seat warmer
may cause burns even at low tem-
peratures, especially if used for
long periods of time. In particular,
the driver must exercise extreme
care for the following types of pas-
sengers:
1. Infants, children, elderly or dis- abled persons, or hospital outpa- tients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills, cold
tablets, etc.)
OHM038009
Switch position Left (LO) Center Right (HI)
LOW OFF HIGH
Temperature
CAUTION
When cleaning the seats, do not
use an organic solvent such asthinner, benzene, alcohol andgasoline. Doing so may damage
the surface of the heater or seats.
To prevent overheating the seat warmer, do not place anything onthe seats that insulates againstheat, such as blankets, cushions
or seat covers while the seatwarmer is in operation.
Do not place heavy or sharp objects on seats equipped withseat warmers. Damage to the seat
warming components could occur.
Do not change the seat cover. It may damage the seat warmer orairventilation system.

Safety features of your vehicle
10
3
C010109BHM
Climate control seat and seat warmer
(if equipped)
The climate control seat is provided to
cool or warm the driver’s seat during hot
or cold weather by blowing air through
small vent hole on the surface of the seat
and seatback.
While the engine is running, push the left
portion of the button to cool the driver's
seat and push the right (driver’s seat) or
left (passenger’s seat) portion of the but-
ton to warm the driver’s seat or front pas-
senger’s seat (if equipped).
When the operation of the climate control
seat is not needed, keep the buttons inthe OFF position.
Each time you push the button, the air- flow is changed as follows:
CAUTION
When cleaning the seats, do not
use an organic solvent such as
thinner, benzene, alcohol and gasoline. Doing so may damagethe surface of the seats.
Do not spill liquid such as water or beverages on the surface ofthe front seats and seatbacks, orthe air vent holes may be blocked and prevented from working
properly.
Do not place materials such as plastic bags or newspapers underthe seats. The air vent may not work properly as the air intake
can be blocked.
When the air vent does not oper- ate, restart the vehicle. If there isno change, have your vehicleinspected by an authorized Kia
dealer.
Do not change the seat cover. It may damage the seat warmer orairventilation system.
OFF HIGH( ) MIDDLE( ) LOW( )

■Seat cooler (Driver’s seat)
■Seat warmer (Driver’s seat)
■Seat warmer (Passenger’s seat)
OHM039061/OHM039060/OHM039061G

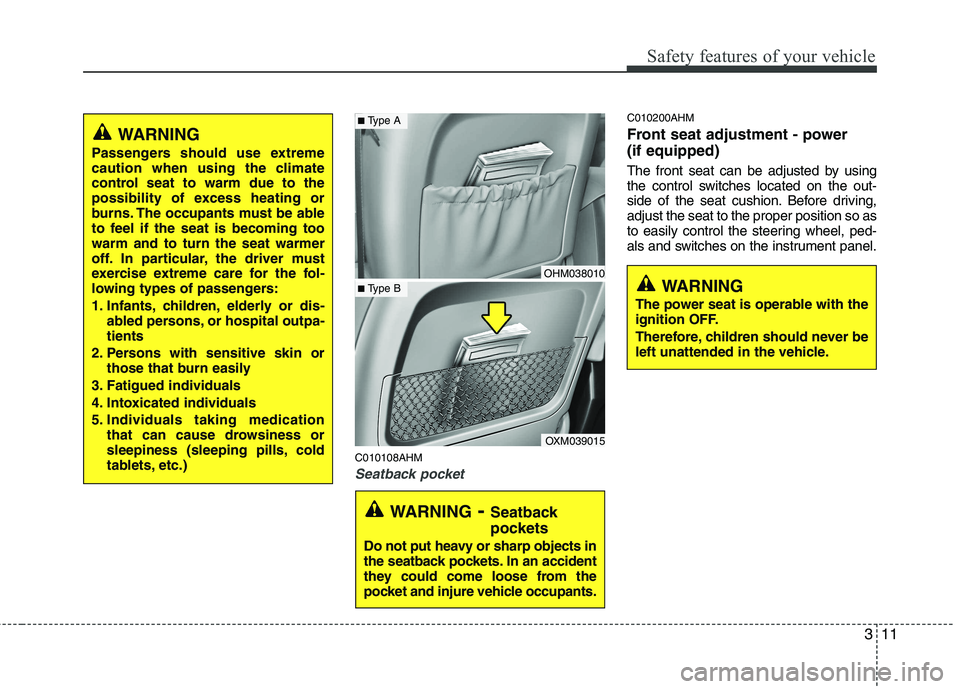

311
Safety features of your vehicle
C010108AHM
Seatback pocket
C010200AHM
Front seat adjustment - power (if equipped)
The front seat can be adjusted by using
the control switches located on the out-
side of the seat cushion. Before driving,adjust the seat to the proper position so as
to easily control the steering wheel, ped-
als and switches on the instrument panel.
WARNING- Seatback
pockets
Do not put heavy or sharp objects in
the seatback pockets. In an accident
they could come loose from the
pocket and injure vehicle occupants.
WARNING
The power seat is operable with the
ignition OFF.
Therefore, children should never be
left unattended in the vehicle.
WARNING
Passengers should use extreme
caution when using the climate
control seat to warm due to the
possibility of excess heating or
burns. The occupants must be able
to feel if the seat is becoming toowarm and to turn the seat warmer
off. In particular, the driver must
exercise extreme care for the fol-
lowing types of passengers:
1. Infants, children, elderly or dis- abled persons, or hospital outpa- tients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills, cold
tablets, etc.)
OXM039015
■Type BOHM038010
■Type A

Safety features of your vehicle
12
3
C010201AHM
Forward and backward
Push the control switch forward or back-
ward to move the seat to the desired
position. Release the switch once theseat reaches the desired position. C010202AHM
Seatback angle
Push the control switch forward or back-
ward to move the seatback to the desired
angle. Release the switch once the seatreaches the desired position.
OHM038011LOHM038012L
CAUTION
The power seat is driven by an
electric motor. Stop operating
once the adjustment is complet-ed. Excessive operation maydamage the electrical equipment.
When in operation, the power seat consumes a large amount ofelectrical power. To preventunnecessary charging system drain, don’t adjust the power seat
longer than necessary while theengine is not running.
Do not operate two or more power seat control switches at the sametime. Doing so may result in
power seat motor or electricalcomponent malfunction.

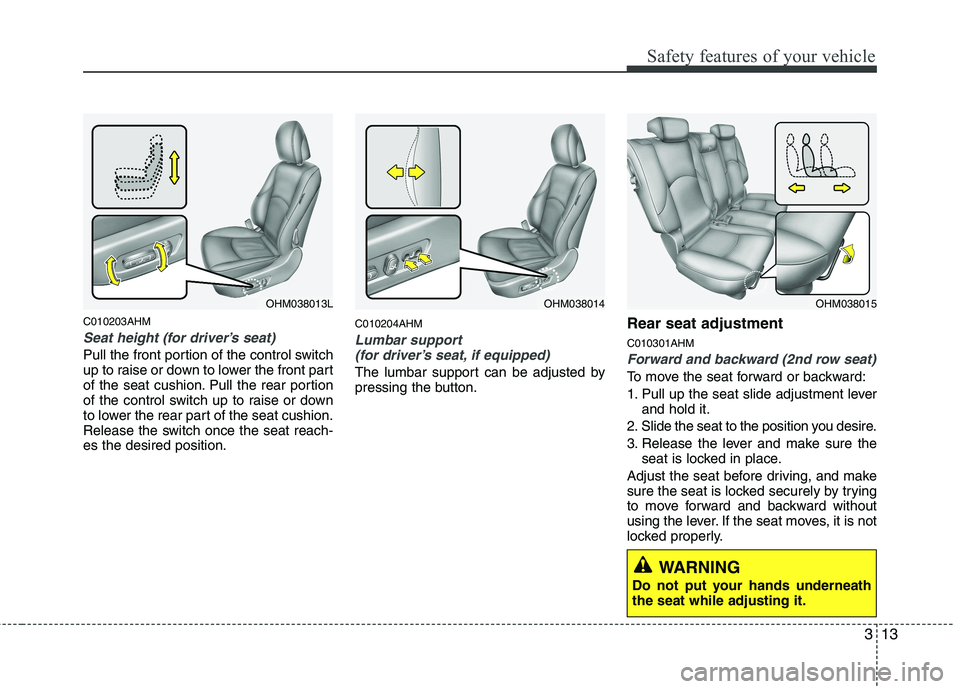

313
Safety features of your vehicle
C010203AHM
Seat height (for driver’s seat)
Pull the front portion of the control switch
up to raise or down to lower the front part
of the seat cushion. Pull the rear portion
of the control switch up to raise or down
to lower the rear part of the seat cushion.
Release the switch once the seat reach-es the desired position.C010204AHMLumbar support
(for driver’s seat, if equipped)
The lumbar support can be adjusted by
pressing the button. Rear seat adjustment C010301AHMForward and backward (2nd row seat)
To move the seat forward or backward:
1. Pull up the seat slide adjustment lever
and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
OHM038015OHM038014
WARNING
Do not put your hands underneath the seat while adjusting it.
OHM038013L

Safety features of your vehicle
14
3
C010302AHM
Seatback angle
To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback
of the seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.) C010303BHMHeadrest
The rear seat(s) is equipped with head-
rests in all the seating positions for the
occupant's safety and comfort.
The headrest not only provides comfort
for passengers, but also helps protect the
head and neck in the event of a collision.
WARNING
For maximum effectiveness in case of an accident, the headrest
should be adjusted so the middleof the headrest is at the same
height of the center of gravity of
an occupant's head. Generally,
the center of gravity of most peo-ple's head is similar with the
height of the top of their eyes.
Also adjust the headrest as close
to your head as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
Do not operate the vehicle with the headrests removed. Severe
injury to an occupant may occur
in the event of an accident.
Headrests may provide protec-
tion against severe neck injuries
when properly adjusted.
OHM038049NOHM038016
CAUTION
When there is no occupant in the
rear seats, adjust the height of theheadrest to the lowest position. The
rear seat headrest can reduce thevisibility of the rear area.

315
Safety features of your vehicle
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower theheadrest to the desired position (3).Removal
To remove the headrest, raise it as far as
it can go then press the release button(1) while pulling the headrest up (2).
To reinstall the headrest, put the head- rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height.
OHM038017OHM038018N
WARNING
Make sure the headrest locks in
position after adjusting it to proper-
ly protect the occupants.
