When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Instrument Panel Cover
The instrument panel cover has a low glare surface which
minimizes reflections on the windshield. Do not use
protectants or other products which may cause undesir-
able reflections. Use soap and warm water to restore the
low glare surface.
Instrument Panel Bezels
CAUTION!
When installing hanging air fresheners in your ve-
hicle, read the installation instructions carefully.
Some air fresheners will damage the finish of
painted or decorated parts if allowed to directly
contact any surface.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1.
Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.7
MAINTAINING YOUR VEHICLE 511

If the belts need cleaning, use MOPAR® Total Clean, a mild
soap solution, or lukewarm water. Do not remove the belts
from the vehicle to wash them. Dry with a soft cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).
FUSES
WARNING!
•When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Failure
to use proper fuses may result in serious personal
injury, fire and/or property damage.
• Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
• If the replaced fuse blows again, contact an autho-
rized dealer.
(Continued)
512 MAINTAINING YOUR VEHICLE

WARNING!(Continued)
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.

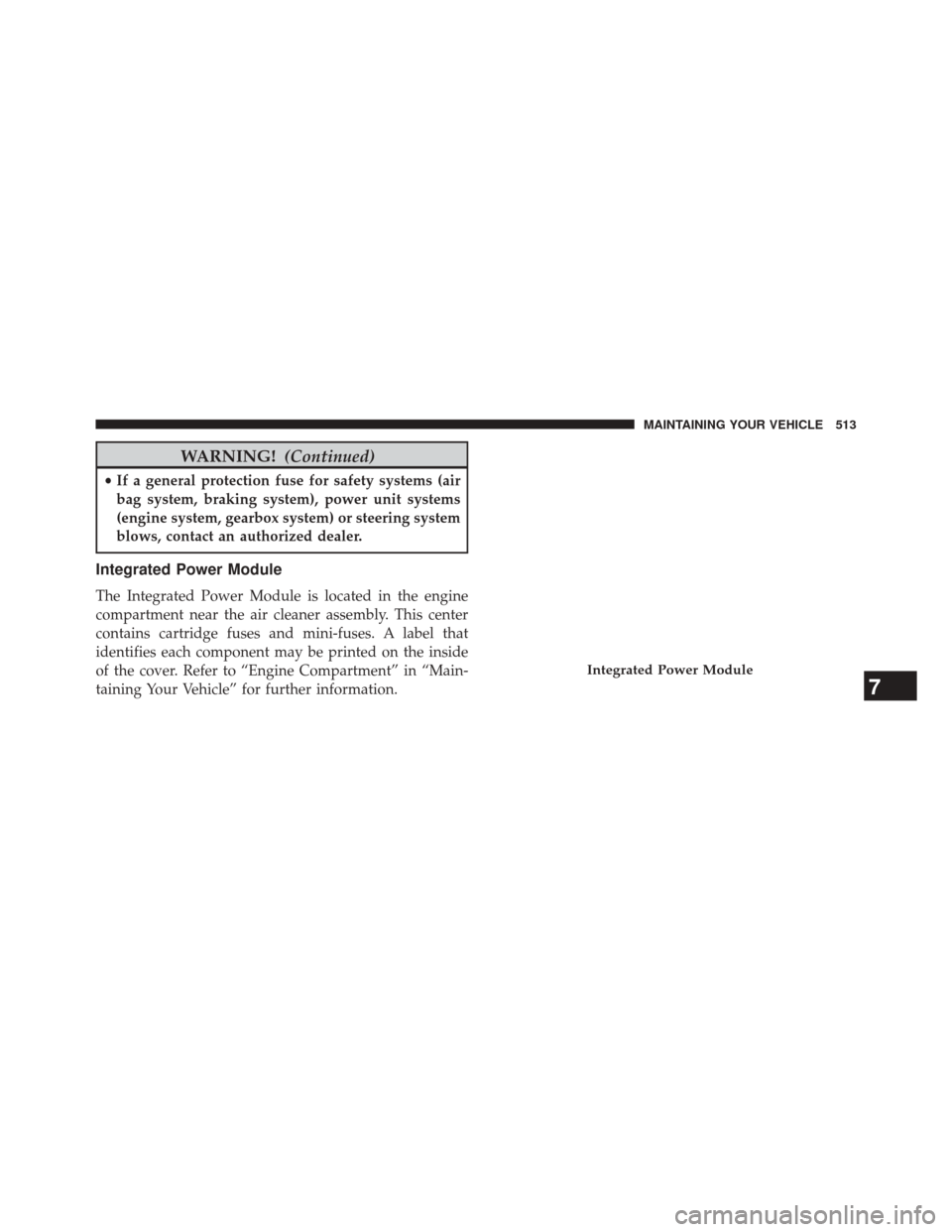

Integrated Power Module
The Integrated Power Module is located in the engine
compartment near the air cleaner assembly. This center
contains cartridge fuses and mini-fuses. A label that
identifies each component may be printed on the inside
of the cover. Refer to “Engine Compartment” in “Main-
taining Your Vehicle” for further information.
Integrated Power Module
7
MAINTAINING YOUR VEHICLE 513

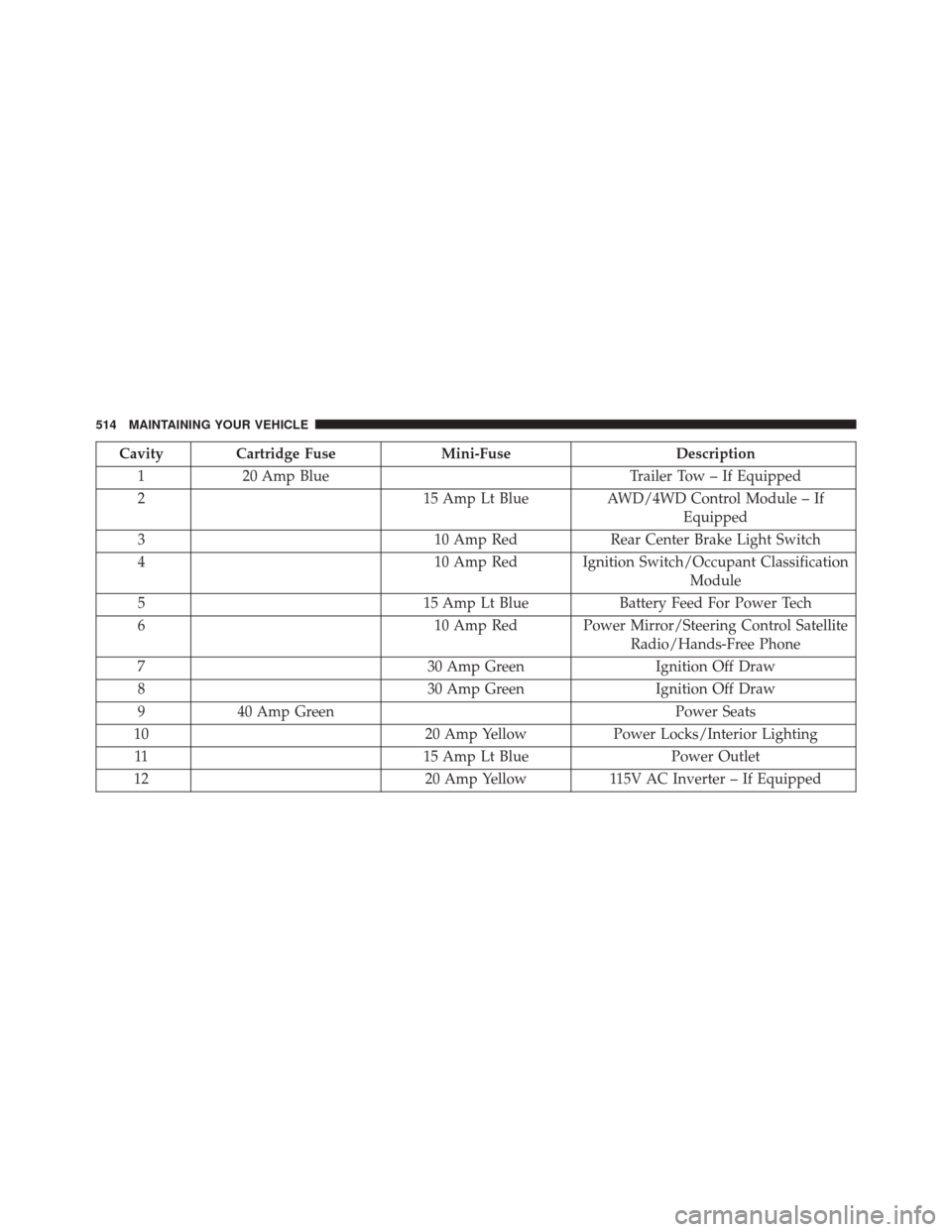

Cavity Cartridge FuseMini-FuseDescription
1 20 Amp Blue Trailer Tow – If Equipped
2 15 Amp Lt BlueAWD/4WD Control Module – If
Equipped
3 10 Amp RedRear Center Brake Light Switch
4 10 Amp Red Ignition Switch/Occupant Classification
Module
5 15 Amp Lt BlueBattery Feed For Power Tech
6 10 Amp Red Power Mirror/Steering Control Satellite
Radio/Hands-Free Phone
7 30 Amp GreenIgnition Off Draw
8 30 Amp GreenIgnition Off Draw
9 40 Amp Green Power Seats
10 20 Amp YellowPower Locks/Interior Lighting
11 15 Amp Lt BluePower Outlet
12 20 Amp Yellow115V AC Inverter – If Equipped
514 MAINTAINING YOUR VEHICLE

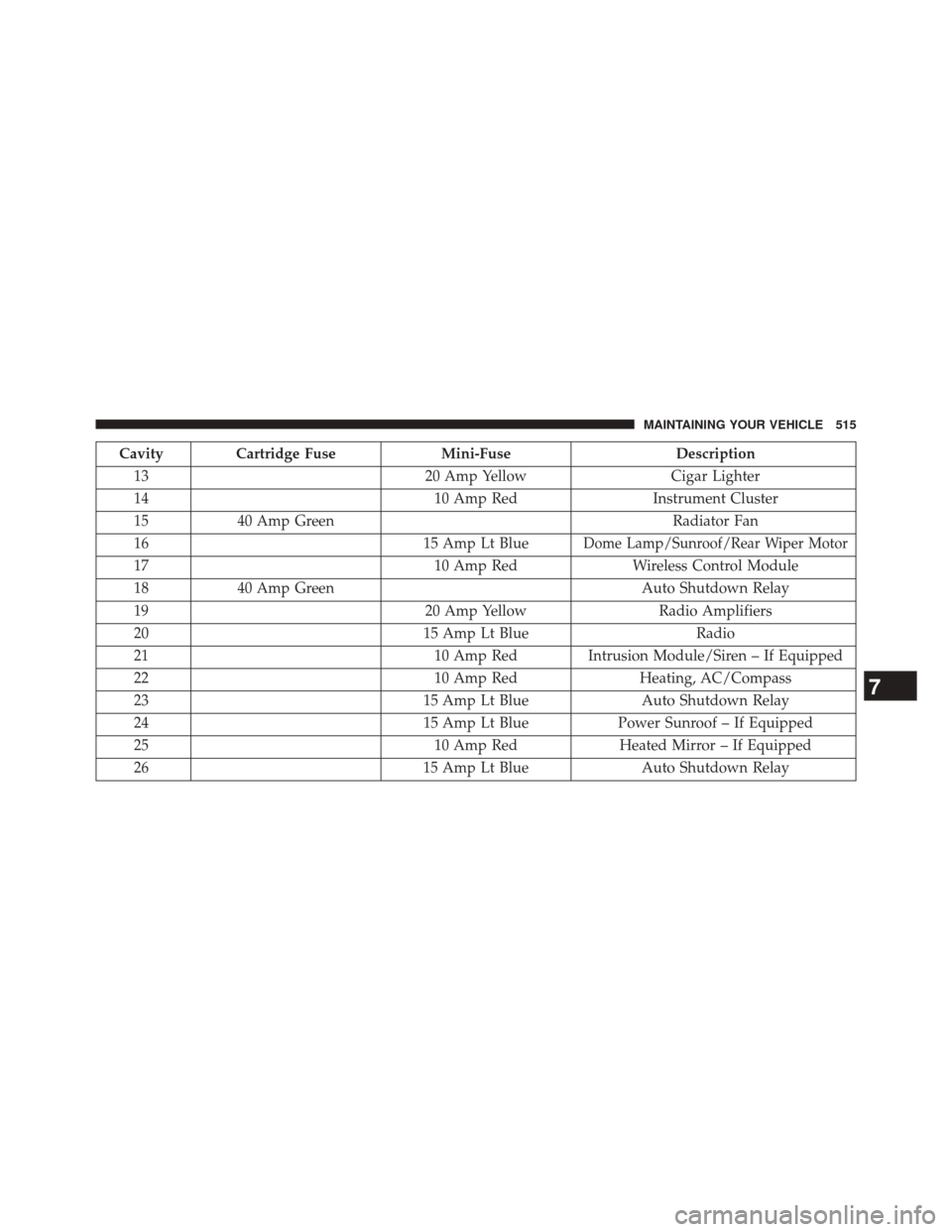

Cavity Cartridge FuseMini-FuseDescription
13 20 Amp YellowCigar Lighter
14 10 Amp RedInstrument Cluster
15 40 Amp Green Radiator Fan
16 15 Amp Lt Blue
Dome Lamp/Sunroof/Rear Wiper Motor
17 10 Amp RedWireless Control Module
18 40 Amp Green Auto Shutdown Relay
19 20 Amp YellowRadio Amplifiers
20 15 Amp Lt BlueRadio
21 10 Amp Red Intrusion Module/Siren – If Equipped
22 10 Amp RedHeating, AC/Compass
23 15 Amp Lt BlueAuto Shutdown Relay
24 15 Amp Lt BluePower Sunroof – If Equipped
25 10 Amp RedHeated Mirror – If Equipped
26 15 Amp Lt BlueAuto Shutdown Relay
7
MAINTAINING YOUR VEHICLE 515

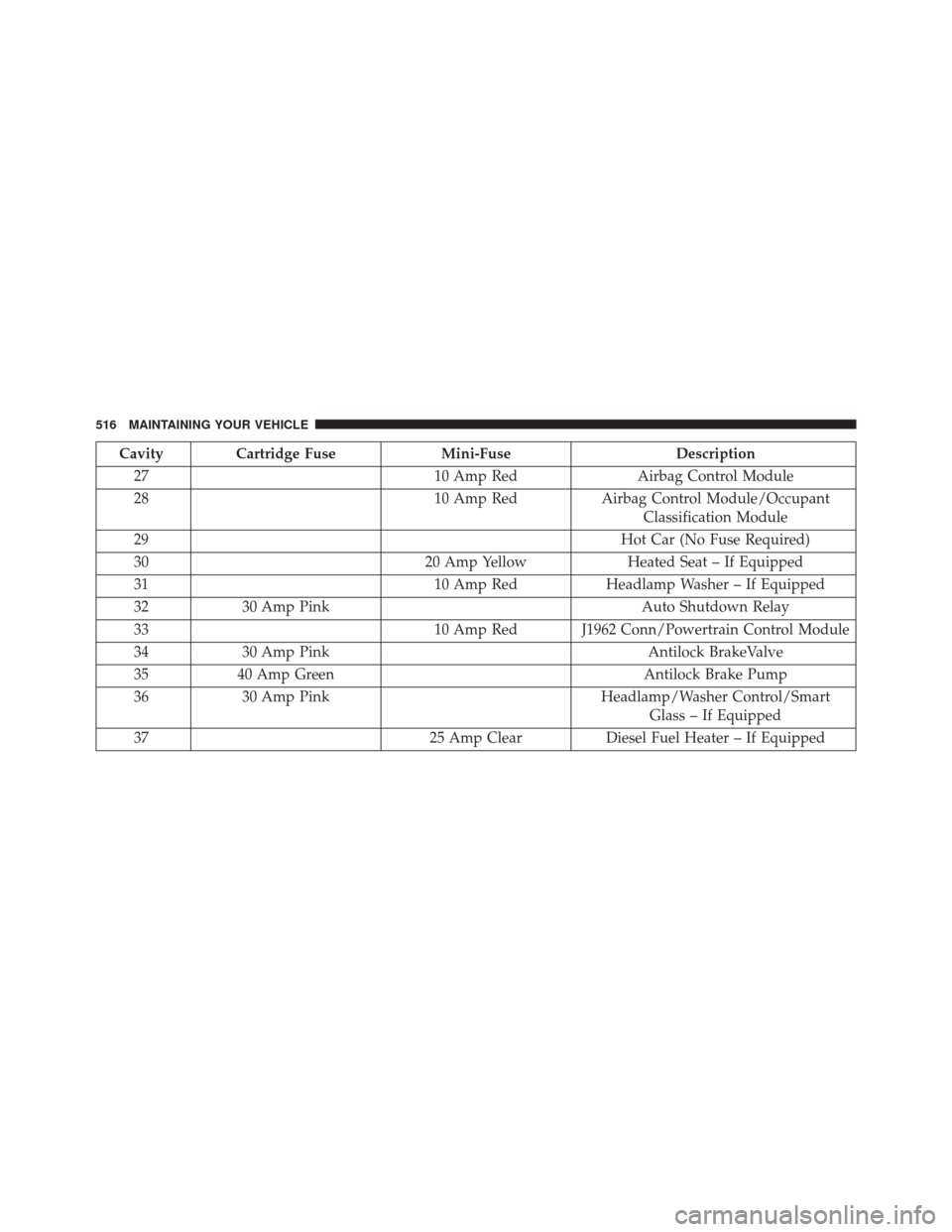

Cavity Cartridge FuseMini-FuseDescription
27 10 Amp RedAirbag Control Module
28 10 Amp RedAirbag Control Module/Occupant
Classification Module
29 Hot Car (No Fuse Required)
30 20 Amp YellowHeated Seat – If Equipped
31 10 Amp RedHeadlamp Washer – If Equipped
32 30 Amp Pink Auto Shutdown Relay
33 10 Amp Red J1962 Conn/Powertrain Control Module
34 30 Amp Pink Antilock BrakeValve
35 40 Amp Green Antilock Brake Pump
36 30 Amp Pink Headlamp/Washer Control/Smart
Glass – If Equipped
37 25 Amp ClearDiesel Fuel Heater – If Equipped
516 MAINTAINING YOUR VEHICLE

CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get into
the IPM, and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery. •
Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
• Or disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement7
MAINTAINING YOUR VEHICLE 517

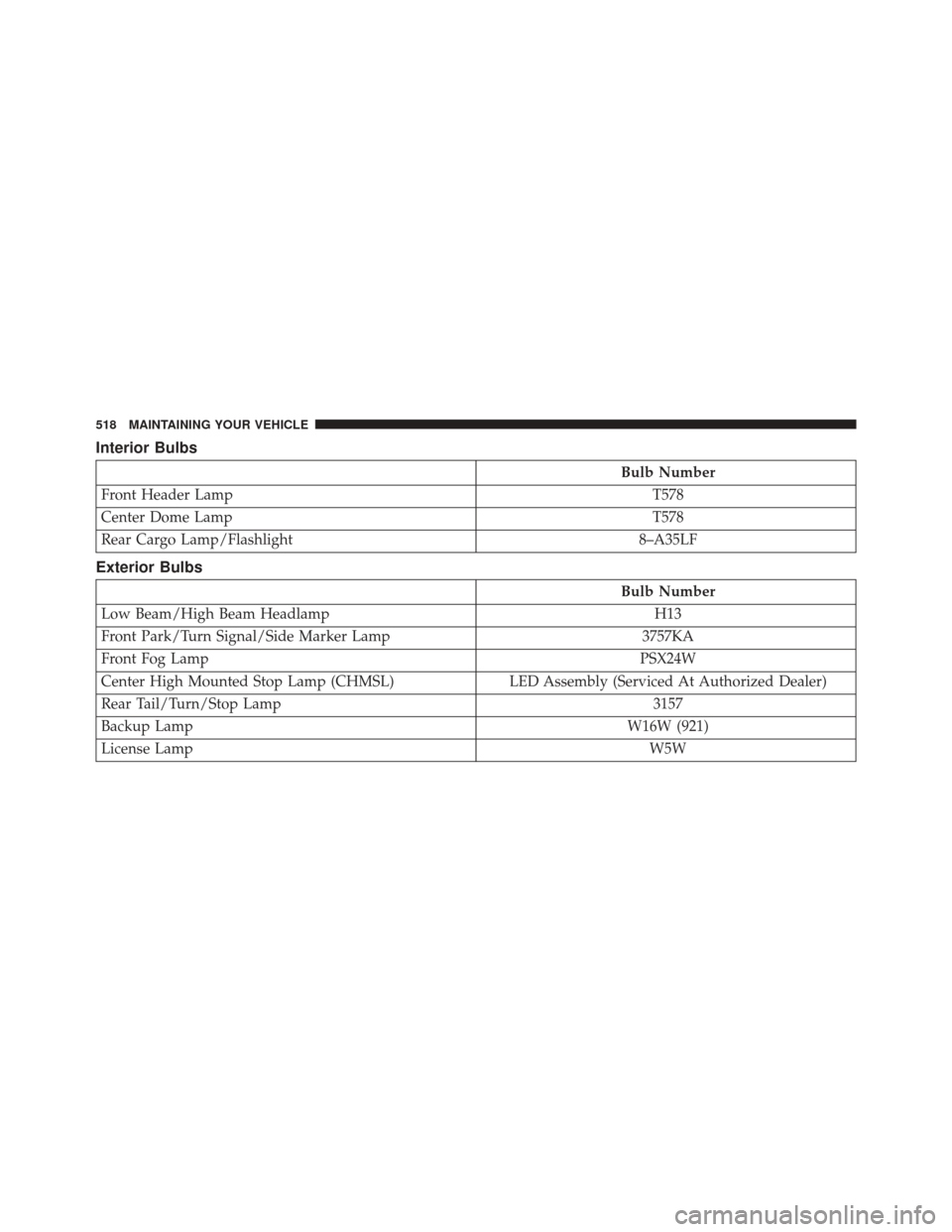

Interior Bulbs
Bulb Number
Front Header Lamp T578
Center Dome Lamp T578
Rear Cargo Lamp/Flashlight 8–A35LF
Exterior Bulbs
Bulb Number
Low Beam/High Beam Headlamp H13
Front Park/Turn Signal/Side Marker Lamp 3757KA
Front Fog Lamp PSX24W
Center High Mounted Stop Lamp (CHMSL) LED Assembly (Serviced At Authorized Dealer)
Rear Tail/Turn/Stop Lamp 3157
Backup Lamp W16W (921)
License Lamp W5W
