2014 INFINITI QX60 HYBRID display

1. Remain calm and do not overreact.
2. Maintain a firm grip on the steering wheel
with both hands and try to hold a straight
course.
3. When appropriate, slowly release the accel-
erator pedal to gradually slow the vehicle.
4. Gradually steer the vehicle to a safe location
off the road and away from traffic if possible.
5. Lightly apply the brake pedal to gradually
stop the vehicle.
6. Turn on the hazard warning flashers and
either contact a roadside emergency service
to change the tire or see “Changing a flat
tire” in the “In case of emergency” section of
this manual.DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of alcohol
or drugs. Alcohol in the bloodstream re-
duces coordination, delays reaction time
and impairs judgement. Driving after
drinking alcohol increases the likelihood
of being involved in an accident injuring
yourself and others. Additionally, if you
are injured in an accident, alcohol can
increase the severity of the injury.
INFINITI is committed to safe driving. However,
you must choose not to drive under the influence
of alcohol. Every year thousands of people are
injured or killed in alcohol-related accidents. Al-
though the local laws vary on what is considered
to be legally intoxicated, the fact is that alcohol
affects all people differently and most people
underestimate the effects of alcohol.
Remember, drinking and driving don’t mix! And
that is true for drugs, too (over-the-counter, pre-
scription, and illegal drugs) . Don’t drive if your
ability to operate your vehicle is impaired by alco-
hol, drugs, or some other physical condition.
DRIVING SAFETY PRECAUTIONS
Your INFINITI is designed for both normal and
off-road use. However, avoid driving in deep wa-
ter or mud as your INFINITI is mainly designed for
leisure use, unlike a conventional off-road ve-
hicle.
Remember that two-wheel drive models are less
capable than four-wheel drive models for rough
road driving and extrication when stuck in deep
snow or mud, or the like.
Please observe the following precautions:
WARNING
●Spinning the front wheels on slippery
surface may cause the AWD warning
message to display and the AWD sys-
tem to automatically switch from the
AWD to the 2WD mode. This could re-
duce the traction. Be especially careful
when towing a trailer. (AWD models)
●Drive carefully when off the road and
avoid dangerous areas. Every person
who drives or rides in this vehicle
should be seated with their seat belt
fastened. This will keep you and your
passengers in position when driving
over rough terrain.
5-10Starting and driving

When the ignition switch is pushed without de-
pressing the brake pedal, the ignition switch will
illuminate.
Push the ignition switch center:
●once to change to ACC.
●two times to change to ON.
●three times to return to OFF.
The ignition switch will automatically return to the
LOCK position when any door is either opened or
closed with the switch in the OFF position.The ignition lock is designed so that the ignition
switch position cannot be switched to OFF until
the shift lever is moved to the P (Park) position.
When the ignition switch cannot be pushed to-
ward the OFF position, proceed as follows:
1. Move the shift lever into the P (Park) posi-
tion.
2. Push the ignition switch. The ignition switch
position will change to the ON position.
3. Push the ignition switch again to the OFF
position.
The shift lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.
If the battery of the vehicle is discharged,
the push-button ignition switch cannot be
moved from the LOCK position.
Some indicators and warnings for operation are
displayed on the vehicle information display. See
“Vehicle information display” in the “Instruments
and controls” section of this manual.OPERATING RANGE
The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range.
When the Intelligent Key battery is almost dis-
charged or strong radio waves are present near
the operating location, the Intelligent Key sys-
tem’s operating range becomes narrower and
may not function properly.
If the Intelligent Key is within the operating range,
it is possible for anyone, even someone who does
not carry the Intelligent Key, to push the ignition
switch to start the engine.
LSD2014LSD2020
Starting and driving5-13

INFINITI INTELLIGENT KEY BATTERY
DISCHARGE
If the battery of the Intelligent Key is discharged,
or environmental conditions interfere with the
Intelligent Key operation, start the engine accord-
ing to the following procedure:
1. Place the shift lever in the P (Park) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the Intelligent
Key as illustrated. (A chime will sound.)4. Push the ignition switch while depressing
the brake pedal within 10 seconds after the
chime sounds. The engine will start.
After step 3 is performed, when the ignition
switch is pushed without depressing the brake
pedal, the ignition switch position will change to
ACC.
NOTE:
●When the ignition switch is pushed to the
ACC or ON position or the engine is started
by the above procedure, the Intelligent Key
battery discharge indicator appears in the
vehicle information display even when the
Intelligent Key is inside the vehicle. This is
not a malfunction. To turn off the Intelligent
Key battery discharge indicator, touch the
ignition switch with the Intelligent Key again.
●If the Intelligent Key battery discharge indi-
cator appears, replace the battery as soon
as possible. See “Battery replacement” in
the “Maintenance and do-it-yourself” sec-
tion.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using the registered key,
it may be due to interference caused by another
registered key, an automated toll road device or
automated payment device on the key ring. Re-
start the engine using the following procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 5 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered key.
If the no start condition re-occurs, INFINITI rec-
ommends placing the registered key on a sepa-
rate key ring to avoid interference from other
devices.
SSD0860
Starting and driving5-15

R (Reverse):
CAUTION
To prevent transmission damage, use the
P (Park) or R (Reverse) position only when
the vehicle is completely stopped.
Use the R (Reverse) position to back up. Make
sure the vehicle is completely stopped before
selecting the R (Reverse) position.The brake
pedal must be depressed and the shift lever
button pushed in to move the shift lever
from P (Park) , N (Neutral) or any drive po-
sition to R (Reverse) .
N (Neutral):
Neither forward nor reverse gear is engaged. The
engine can be started in this position. You may
shift to N (Neutral) and restart a stalled engine
while the vehicle is moving.
D (Drive):
Use this position for all normal forward driving.
Manual shift mode
When the shift lever is in the manual shift gate,
the transmission is ready for the manual shift
mode. Shift ranges can be selected manually by
moving the shift lever up or down. To cancelmanual shift mode, return the shift lever to the D
(Drive) position. The transmission returns to au-
tomatic driving mode.
When the shift lever is shifted from D (Drive) to
the manual shift gate with the vehicle stopped or
while driving, the transmission enters the manual
shift mode. Shift ranges can be selected manu-
ally. In the manual shift mode, the shift range is
displayed on the position indicator in the meter.
When shifting the shift lever to the manual shift
gate, the position indicator displays 1 (first) up to
7 (seventh) depending on vehicle speed.
Shift ranges up or down one by one as follows:
1⇔2⇔3⇔4⇔5⇔6⇔7
7 (7th):
Use this position for all normal forward driving at
highway speeds.
5 (5th) and 6 (6th):
Use this position when driving up long slopes, or
for engine braking when driving down long
slopes.
4 (4th) , 3 (3rd) and 2 (2nd):
Use these positions for hill climbing or engine
braking on downhill grades.1 (1st)
Use this position when climbing steep hills slowly
or when driving slowly, or for maximum engine
braking on steep downhill grades.
●Remember not to drive at high speeds for
extended periods of time in lower than 7th
gear. This reduces fuel economy.
When shifting up:
Move the shift lever to the + (up) side. (Shifts to
higher range.)
When shifting down:
Move the shift lever to the(down) side. (Shifts
to lower range.)
●The transmission will automatically down-
shift the gears. (For example, if you select the
3rd range, the transmission will shift down
between the 3rd and 1st gears.)
●Moving the shift lever rapidly to the same
side twice will shift the ranges in succession.
When canceling the manual shift mode:
Return the shift lever to the D (Drive) position to
return the transmission to the normal driving
mode.
Starting and driving5-19

To engage:Firmly depress the parking brake.
To release:
1. Firmly apply the foot brake.
2. Move the shift lever to the P (Park) position.
3. Firmly depress the parking brake pedal and it
will release.
4. Before driving, be sure the brake warning
light goes out.Four driving modes can be selected by using the
drive mode selector switch, STANDARD,
SPORT, ECO and SNOW.
NOTE:
●When the drive mode select switch selects a
mode, the mode may not switch quickly. This
is not a malfunction.
●Select the STANDARD mode center for nor-
mal driving.
STANDARD MODE
Recommended for normal driving. Turn the drive
mode select switch to the center position.
“STANDARD” appears in the vehicle information
display for 2 seconds.
SPORT MODE
Adjusts the engine and transmission to enhance
performance. Turn the drive mode select switch
to theSPORTposition. “SPORT” appears in the
vehicle information display for 2 seconds.
NOTE:
In the SPORT mode, fuel economy may be
reduced.
SNOW MODE
Used on snowy roads or slippery areas. When
the SNOW mode is activated, engine output is
controlled to avoid wheel spin. Turn the SNOW
mode off for normal driving. Turn the drive mode
select switch to the SNOW position. “SNOW”
appears in the vehicle information display for
2 seconds.
LSD0158
Drive mode select switch
SSD1024
INFINITI DRIVE MODE SELECTOR
5-22Starting and driving

ECO MODE
Adjusts the engine and transmission to enhance
fuel economy.
NOTE:
Selecting this drive mode will not necessar-
ily improve fuel economy as many driving
factors influence its effectiveness.
Operation
Turn the drive mode select switch to the ECO
position. “ECO” appears in the vehicle informa-
tion display for 2 seconds and the ECO drive
indicator light illuminates on the instrument panel.
When the accelerator pedal is depressed within
the range of economy drive, the ECO drive indi-
cator light illuminates in green. When the accel-
erator pedal is depressed above the range of
economy drive, the color of the ECO drive indi-
cator light changes to orange. For ECO pedal
system equipped models see “ECO pedal sys-
tem” in this section.
The ECO drive indicator light will not illuminate in
the following cases:
●When the shift lever is in the R (Reverse)
position.●When the vehicle speed is below 3 MPH
(4.8 km/h) or over 90 MPH (144 km/h).
●When the Intelligent Cruise Control (ICC)
system (if so equipped) is operated.
ECO pedal system
Helps assist the driver to improve fuel economy
by increasing the reaction force of the accelera-
tor pedal. When the ECO drive indicator light is
blinking or turns orange, the ECO pedal system
increases the reaction force of the accelerator
pedal.
ECO drive indicatorIlluminate or blink
when
Illuminate
(green)When the pedal is
depressed within
range of economy
drive
Blinks
(green)When the pedal is
depressed likely
over the range of
economy drive
Illuminate
(orange)When the pedal is
depressed over
the range of
economy drive
When the ECO drive indicator illuminates in
green, the accelerator reaction force is normal.
When the ECO drive indicator light is blinking or
turns orange, the ECO pedal system increases
the reaction force of the accelerator pedal.
The ECO pedal system may not vary accelerator
reaction force under the following conditions:
●When the shift lever is in the N (Neutral) or
R (Reverse) position.
●When Intelligent Cruise Control (ICC) (if so
equipped) is being operated.
If the ECO pedal system malfunctions, it will
cancel automatically. The ECO pedal system will
not vary the reaction force of the accelerator
pedal.
When the drive mode select switch is rotated
from the ECO mode to another mode (STAN-
DARD, SPORT or SNOW) while the ECO pedal
system is operating, the ECO pedal system con-
tinues to operate until the pedal is released.
If the accelerator pedal is depressed quickly, the
ECO pedal system will not increase the reaction
force of the acceleration pedal. The ECO pedal
system is not designed to prevent the vehicle
from accelerating.
Starting and driving5-23

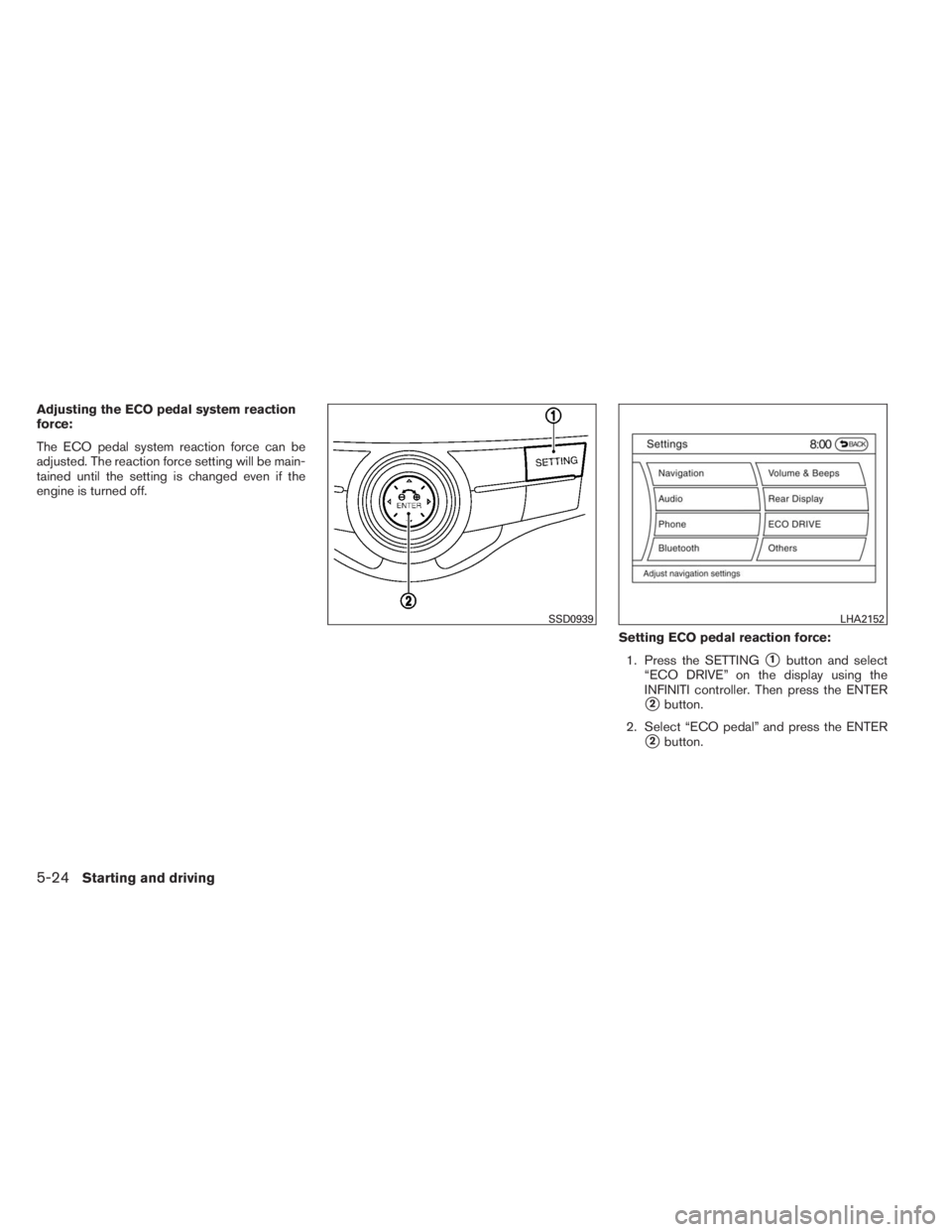

Adjusting the ECO pedal system reaction
force:
The ECO pedal system reaction force can be
adjusted. The reaction force setting will be main-
tained until the setting is changed even if the
engine is turned off.
Setting ECO pedal reaction force:
1. Press the SETTING
1button and select
“ECO DRIVE” on the display using the
INFINITI controller. Then press the ENTER
2button.
2. Select “ECO pedal” and press the ENTER
2button.
SSD0939LHA2152
5-24Starting and driving

on the instrument panel blinks in orange and a
warning chime sounds. When the LDP system is
on, it will automatically apply the brakes for a
short period of time, using the function of the
Vehicle Dynamic Control (VDC) system.
LANE DEPARTURE WARNING
(LDW) SYSTEM
Precautions on LDW system
WARNING
●This system is only a warning device to
inform the driver of a potential unin-
tended lane departure. It will not steer
the vehicle or prevent loss of control. It
is the driver’s responsibility to stay
alert, drive safely, keep the vehicle in
the traveling lane, and be in control of
the vehicle at all times.
●The system will not operate at speeds
below approximately 45 MPH (70 km/h)
or if it cannot detect lane markers.●If the LDW system malfunctions, it will
cancel automatically, and “Please see
owner’s manual” will appear in the ve-
hicle information display. If “Please see
owner’s manual” appears in the vehicle
information display, pull off the road to
a safe location and stop the vehicle.
Place the shift lever into the P (Park)
position and the ignition switch to the
off position and restart the engine. If
“Please see owner’s manual” continues
to appear in the vehicle information dis-
play, have the system checked by an
INFINITI retailer.
●Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
●Do not use the LDW system under the
following conditions as it may not func-
tion properly:
– During bad weather (rain, fog, snow,
wind, etc.) .
– When driving on slippery roads, such
as on ice or snow, etc.
– When driving on winding or uneven
roads.– When there is a lane closure due to
road repairs.
– When driving in a makeshift or tem-
porary lane.
– When driving on roads where the
lane width is too narrow.
– When driving without normal tire
conditions (for example, tire wear,
low tire pressure, installation of
spare tire, tire chains, nonstandard
wheels) .
– When the vehicle is equipped with
nonoriginal brake parts or suspen-
sion parts.
– When you are towing a trailer or
other vehicle.
The system may not function properly under the
following conditions:
●On roads where there are multiple parallel
lane markers; lane markers that are faded or
not painted clearly; yellow painted lane
markers; non-standard lane markers; or lane
markers covered with water, dirt, snow, etc.
●On roads where the discontinued lane mark-
ers are still detectable.
●On roads where there are sharp curves.
5-26Starting and driving
