2014 INFINITI Q70 Owners Manual

Black plate (167,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
ignition switch is not in the ON posi-
tion.
. The seat synchronization function is
automatically disabled if the outside
mirrors or steering wheel reaches its
maximum adjustment.
. The seat synchronization function will
not operate if the seat is adjusted over
one of the following maximum thresh-
olds:
— Seat sliding: 3.0 in (76 mm)
— Seatback reclining: 9.1 degrees
— Seat lifter (rear side): 0.8 in (20 mm)
Pre-driving checks and adjustments3-31
Condition:

Black plate (168,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
3-32Pre-driving checks and adjustments
MEMO
Condition:

Black plate (169,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4 Monitor, climate, audio, phone and voice recogni-tion systems
Safety note ...
.......................................................... 4-3
Center multi-function control panel ...
...................... 4-4
How to use INFINITI controller ...
.......................... 4-6
How to use touch screen (models with
navigation system) ...
.......................................... 4-6
Menu options (models with
navigation system) ...
.......................................... 4-8
How to select menus on the screen ...
................. 4-9
Vehicle information and settings ...
........................ 4-10
How to use STATUS button ...
............................ 4-10
How to use brightness control and display
ON/OFF button ...
.............................................. 4-10
How to use DISP button ...
................................ 4-10
How to use ECON button (models without
navigation system) ...
........................................ 4-10
How to use INFO button ...
................................ 4-10
How to use SETTING button ...
........................... 4-16
RearView monitor ...
.............................................. 4-26
How to read displayed lines ...
.......................... 4-27
How to park with predictive course lines ...
....... 4-28
Difference between predictive and
actual distances ...
............................................ 4-29
Predictive course line settings ...
....................... 4-32
How to adjust screen ...
.................................... 4-32
Sonar indicator (if so equipped) ...
.................... 4-33 Operating tips
...
.............................................. 4-33
Ventilators ...
........................................................ 4-33
Automatic climate control ...
.................................. 4-34
Automatic climate control (Type A) ...
............... 4-37
Automatic climate control (Type B) ...
............... 4-41
Forest Air
®(if so equipped) ...
......................... 4-43
Operating tips ...
.............................................. 4-47
Linking Intelligent Key ...
................................. 4-48
In-cabin microfilter ...
....................................... 4-48
Servicing climate control ...
.............................. 4-48
Audio system ...
.................................................... 4-49
Audio operation precautions ...
........................ 4-49
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................... 4-62
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
.................. 4-66
USB input operation ...
.................................... 4-69
Bluetooth
®streaming audio (models with
navigation system) ...
....................................... 4-74
iPod
®player operation ...
................................ 4-79
CD/DVD/USB memory care and cleaning ...
...... 4-81
Steering-wheel-mounted controls
for audio ...
..................................................... 4-82
Antenna ...
....................................................... 4-83
Car phone or CB radio ...
...................................... 4-84
Condition:

Black plate (170,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Bluetooth®Hands-Free Phone System
(models with navigation system) ...
........................ 4-85
Regulatory information ...
.................................. 4-86
Voice commands ...
........................................... 4-86
Control buttons ...
............................................. 4-87
Connecting procedure ...
.................................... 4-87
Phone selection ...
............................................. 4-88
Quick Dial ...
..................................................... 4-88
Making a call ...
................................................ 4-90
Receiving a call ...
............................................. 4-91
During a call ...
................................................. 4-92
Phone setting ...
................................................ 4-92
Troubleshooting guide ...
................................... 4-94
Bluetooth
®Hands-Free Phone System
(models without navigation system) ...
................... 4-95
Regulatory information ...
.................................. 4-96 Control buttons
...
............................................ 4-97
Voice recognition system ...
............................. 4-97
Pairing procedure ...
...................................... 4-102
Phonebook registration ...
.............................. 4-103
Making a call ...
............................................. 4-104
Receiving a call ...
.......................................... 4-104
During a call ...
.............................................. 4-104
Phone settings ...
........................................... 4-105
Voice adaptation mode ...
.............................. 4-108
INFINITI Voice Recognition system (models with
navigation system) ...
.......................................... 4-109
INFINITI Voice Recognition
standard mode ...
.......................................... 4-110
Using the system ...
....................................... 4-113
INFINITI Voice Recognition alternate
command mode ...
......................................... 4-121
Using the system ...
....................................... 4-129
Troubleshooting guide ...
............................... 4-134
Condition:

Black plate (171,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Y51D-V-E01-EA3F64F2-7061-4EF4-A3B5-D1E0F00C1194

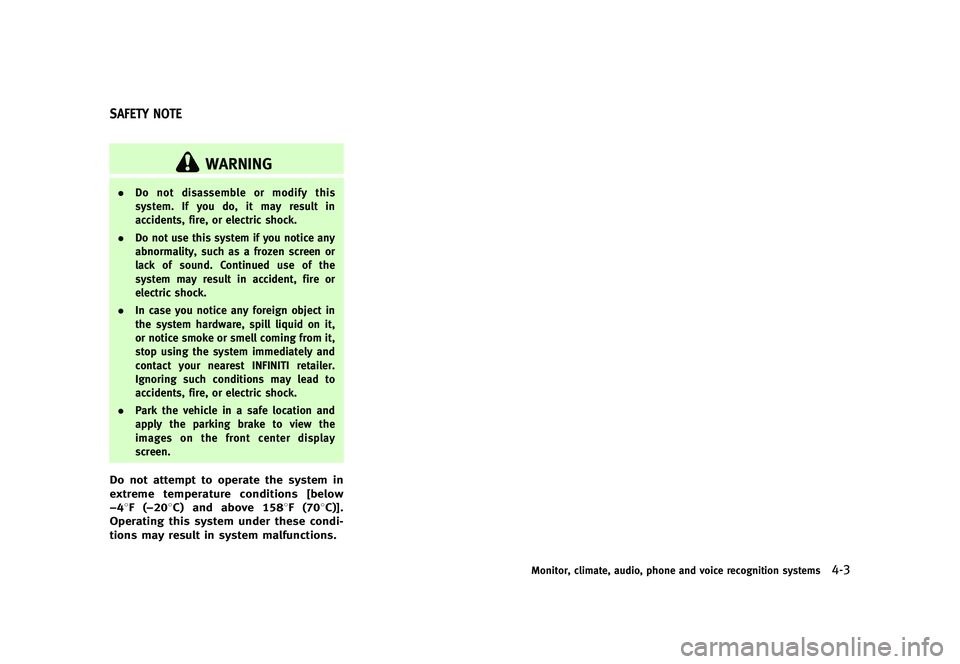

WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
. In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately and
contact your nearest INFINITI retailer.
Ignoring such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
Monitor, climate, audio, phone and voice recognition systems4-3
SAFETY NOTE
Condition:

Black plate (172,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-4Monitor, climate, audio, phone and voice recognition systems
Y51D-V-E01-D43391EA-34C3-427B-8F03-AEF473377191
SAA2953
Models with navigation system
1. “DISP” display setting button (P.4-10)
2, 5, 6. For navigation system control buttons
(Refer to the separate Navigation
System Owner’s Manual.) 3.
“INFO” vehicle and navigation infor-
mation button (P.4-10)
4. “SETTING” button (P.4-16)
7. INFINITI controller (P.4-6)
8. “STATUS” status display button
(P.4-10) 9.
“
OFF” brightness control and
display ON/OFF button (P.4-10)
CENTER MULTI-FUNCTION CONTROL PANEL
Condition:

Black plate (173,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
SAA2954
Models without navigation system
1. “INFO” vehicle information button
(P.4-10)
2. “STATUS” status display button
(P.4-10)
3. “DISP” display setting button (P.4-10)
4. “
”brightness UP button (P.4-10) 5.
“
ECON” button (P.4-10)
6. “SETTING” button (P.4-16)
7. INFINITI controller (P.4-6)
8. “
OFF” brightness control and
display ON/OFF button (P.4-10) 9.
“
”brightness DOWN button
(P.4-10)
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will use up all the battery power,
and the engine will not start.
Monitor, climate, audio, phone and voice recognition systems4-5
Condition:

Black plate (174,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-6Monitor, climate, audio, phone and voice recognition systems
SAA2955
Models with navigation system
SAA2956
Models without navigation system
HOW TO USE INFINITI CONTROLLERY51D-V-E01-81257972-4FFA-44BB-89C0-5DC8A6572A3CChoose an item on the display by rotating
or pushing the center dial
*2upward/
downward, and push the ENTER button
*1
for operation.
If you push the BACK button
*3before the
setup is completed, the setup will be
canceled and/or the display will return to
the previous screen.
After the setup is completed, push the
BACK button
*3and return to the previous
screen.
For the VOICE button
*4functions, refer to
the separate Navigation System Owner’s
Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
Y51D-V-E01-E3646515-44AE-4EF5-8609-E7E4870E4D3C
CAUTION
. The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. If the glass screen
breaks, do not touch it. Doing so could
result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is necessary, use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not
available while driving will be “grayed
out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that could
distract you. If distracted, you could lose
control of your vehicle and cause an
accident.
Condition:
