8. Parking brake release warningY51D-V-E01-D0E7A2F3-E58C-4AB1-956B-CF6828D72988This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.
9. Low fuel warningY51D-V-E01-6D57E440-020D-40C9-9287-22A41A142DF4This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it
is convenient, preferably before the fuel
gauge reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
10. Low washer fluid warningY51D-V-E01-DAF8A34C-EC8E-48A9-AECD-07C6E8A313A0This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. (See“Window washer fluid”
(P.8-19).)
11. Door/trunk open warning (igni-
tion switch is in the ON position)
Y51D-V-E01-BF6F8B2B-DDFF-4626-ADE2-1576DA433ADAThis warning appears if any of the doors
and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
12. Intelligent Key system warningY51D-V-E01-79D8FCFE-AC5D-4549-B87A-A9130816EC7AThis warning appears if there is a malfunc-
tion in the steering lock system (if so
equipped) or Intelligent Key system.
If this warning appears while the engine is
stopped, the steering lock (if so equipped)
cannot be released or the engine cannot be
started. If this warning appears while the
engine is running, the vehicle can be
driven. However, contact an INFINITI retai-
ler for repair as soon as possible.
13. Loose fuel cap warningGUID-B3E2FCE0-A8B6-40C3-88CC-48178F73936CThis warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See “Fuel-filler
cap ”(P.3-21).)
14. Check tire pressure warningGUID-4C26253E-7E93-4751-9C8A-98247F5BCF66This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. If
this warning appears, stop the vehicle and
adjust the pressure to the recommended
COLD tire pressure shown on the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. (See
“Low tire pressure warning light” (P.2-13)
and “Tire Pressure Monitoring System (TPMS)”
(P.5-4).)
15.“TIMER” indicatorY51D-V-E01-7DEBFF56-E102-4EAA-903C-9E6B1C5D84E4This indicator appears when the set
“TIMER” indicator activates. You can set
the time for up to 6 hours. (See “Trip
computer” (P.2-26).)
16. Low outside temperature warn-
ing
Y51D-V-E01-BF2E7BC6-70A6-4A07-B5D8-1C5551EE8C7BThis warning appears if the outside tem-
perature is below 378F (38C). The warning
can be set not to be displayed. (See “Trip
computer” (P.2-26).)
17. Cruise indicatorY51D-V-E01-A8FF4CA5-9F3E-4DA0-B756-B293036E1D58
Cruise main switch indicator:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The indicator is displayed when the cruise
control main switch is pushed. When the
main switch is pushed again, the indicator
disappears. When the cruise control main
switch indicator is displayed, the cruise
control system is operational.
Cruise set switch indicator:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The indicator is displayed while the vehicle
speed is controlled by the cruise control
system. If the indicator blinks while the
engine is running, it may indicate that the
cruise control system is not functioning
Instruments and controls2-23
Condition:

Black plate (96,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-24Instruments and controls
properly. Have the system checked by an
INFINITI retailer.
See“Cruise control” (P.5-47) for details.
18. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped)
Y51D-V-E01-C2F7FE0A-7E25-4149-BCD3-F440AD0BB7AAThe indicator is displayed when the In-
telligent Cruise Control (ICC) system main
switch is pushed. When the main switch is
pushed again, the indicator disappears.
While the main switch indicator is dis-
played, the ICC system is operational. (See
“Intelligent Cruise Control (ICC) system”
(P.5-49).)
19. Distance Control Assist (DCA)
system switch indicator (if so
equipped)
Y51D-V-E01-00CF0397-8891-414F-91A7-1850B3579BDAThe indicator is displayed when the Dis-
tance Control Assist (DCA) system switch is
pushed on. When the switch is pushed
again, the indicator disappears. While the
indicator is displayed, the DCA system is
operational. (See “Distance Control Assist
(DCA) system” (P.5-71).)
20. INFINITI Drive Mode Selector
indicator
Y51D-V-E01-708B65D5-BF9B-4CC6-974F-860B039A7695When a driving mode is selected, the
selected mode indicator is displayed for
approximately 2 seconds.
.STANDARD
. SPORT
. ECO
. SNOW
(See “INFINITI drive mode selector” (P.5-
20).)
SIC4325
Condition:

Black plate (97,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
INDICATORS FOR MAINTENANCEY51D-V-E01-52C16D2B-467B-4859-8546-2AD67E5E6337
1. Engine oil replacement indicatorY51D-V-E01-3FDC45F3-82B3-4BBF-978D-9DECB9A2BBB8This indicator appears when the customer
set time comes for changing the engine oil.
You can set or reset the distance for
changing the engine oil. (See“Trip compu-
ter” (P.2-26).)
2. Oil filter replacement indicatorY51D-V-E01-0AFD5D17-72FC-46CE-B8CA-E04D42BFF6A6This indicator appears when the customer
set time comes for replacing the oil filter.
You can set or reset the distance for
replacing the oil filter. (See “Trip compu-
ter” (P.2-26).)
3. Tire replacement indicatorY51D-V-E01-D043BFB0-376C-436B-9507-B122A946EB96This indicator appears when the customer
set distance comes for replacing tires. You
can set or reset the distance for replacing
tires. (See “Trip computer” (P.2-26).)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, including
tire pressure checks. See “Changing wheels
and tires” (P.8-43). Many factors including
tire inflation, alignment, driving habits and road conditions affect tire wear and when
tires should be replaced. Setting the tire
replacement indicator for a certain driving
distance does not mean your tires will last
that long. Use the tire replacement indicator
as a guide only and always perform regular
tire checks. Failure to perform regular tire
checks, including tire pressure checks could
result in tire failure. Serious vehicle damage
could occur and may lead to a collision,
which could result in serious personal injury
or death.
4.
“OTHER” indicatorY51D-V-E01-48BC06A4-D7B7-44C2-8CA0-26DC6E7DAE1AThis indicator appears when the customer
set time comes for replacing items other
than the engine oil, oil filter and tires. You
can set or reset the distance for replacing
the items. (See “Trip computer” (P.2-26).)
More maintenance reminders are also
available on the center display. (See
“How to use INFO button” (P.4-10).)
Instruments and controls2-25
Condition:

Black plate (98,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

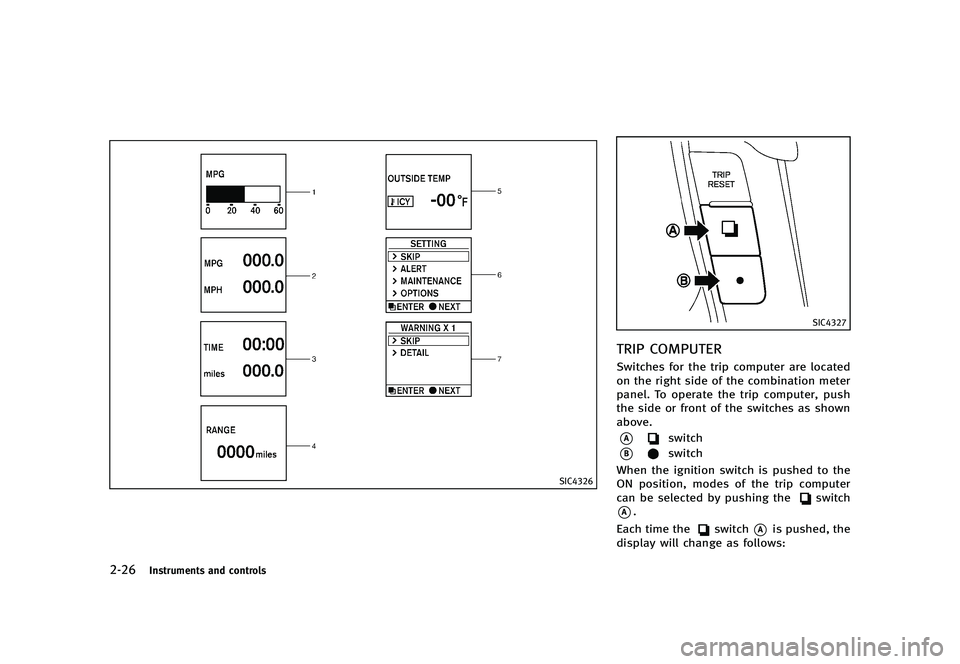

2-26Instruments and controls
SIC4326
SIC4327
TRIP COMPUTERY51D-V-E01-60C3F5A2-6BAA-4891-AFF0-D074E28C94F7Switches for the trip computer are located
on the right side of the combination meter
panel. To operate the trip computer, push
the side or front of the switches as shown
above.
*Aswitch
*Bswitch
When the ignition switch is pushed to the
ON position, modes of the trip computer
can be selected by pushing the
switch
*A.
Each time the
switch*Ais pushed, the
display will change as follows:
Condition:

Black plate (99,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Current fuel consumption?Average fuel
consumption and speed ?Elapsed time
and trip odometer ?Distance to empty
(dte) ?Outside air temperature (ICY) ?
Setting ?Warning check
1. Current fuel consumptionY51D-V-E01-9F26A159-1A8E-41A3-B3DA-2BDBDB913432The current fuel consumption mode shows
the current fuel consumption.
2. Average fuel consumption (MPG
or l (liter)/100 km) and speed (MPH
or km/h)
Y51D-V-E01-B805372B-7DDB-47E7-9DCC-BC55F0539831
Fuel consumption:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The average fuel consumption mode shows
the average fuel consumption since the
last reset. Resetting is done by pushing the
switch*Bfor longer than 1 second.
(The average speed is also reset at the
same time.)
The display is updated every 30 seconds.
At about the first 1/3 mile (500 m) after a
reset, the display shows “——”.
Speed:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The average speed mode shows the
average vehicle speed since the last reset.
Resetting is done by pushing the
switch*Bfor longer than 1 second. (The average fuel consumption is also reset at
the same time.)
The display is updated every 30 seconds.
The first 30 seconds after a reset, the
display shows
“——”.
3. Elapsed time and trip odometer
(mls or km)
Y51D-V-E01-60B95DAC-9BB7-4ECB-8D17-C9E90E882461
Elapsed time:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The elapsed time mode shows the time
since the last reset. The displayed time can
be reset by pushing the
switch*Bfor
longer than 1 second. (The trip odometer is
also reset at the same time.)
Trip odometer:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The trip odometer mode shows the total
distance the vehicle has been driven since
the last reset. Resetting is done by pushing
the
switch*Bfor longer than 1
second. (The elapsed time is also reset at
the same time.)
4. Distance to empty (dte —mls or
km)
Y51D-V-E01-96CC8C44-6C3B-4125-9862-3E975E79A58BThe distance to empty (dte) mode provides
you with an estimation of the distance that
can be driven before refueling. The dte is
constantly being calculated, based on the amount of fuel in the fuel tank and the
actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning
is displayed on the screen.
When the fuel level drops even lower, the
dte display will change to
“——”.
. If the amount of fuel added is small, the
display just before the ignition switch
is pushed to the OFF position may
continue to be displayed.
. When driving uphill or rounding curves,
the fuel in the tank shifts, which may
momentarily change the display.
5. Outside air temperature (ICY —8F
or 8C)
Y51D-V-E01-3D487D7F-28C9-4C29-B01D-77B8BCA6FE1EThe outside air temperature is displayed in
8F or 8C in the range of −22 to 1318F (−30
to 558C).
The outside air temperature mode includes
a low temperature warning feature. If the
outside air temperature is below 378F
(38C), the warning is displayed on the
screen.
The outside temperature sensor is located
in front of the radiator. The sensor may be
Instruments and controls2-27
Condition:

Black plate (100,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-28Instruments and controls
affected by road or engine heat, wind
directions and other driving conditions.
The display may differ from the actual
outside temperature or the temperature
displayed on various signs or billboards.
6. SettingY51D-V-E01-AF22EFC2-EA6F-49CF-9937-74270C1E28C7Setting cannot be made while driving. A
message“Setting can only be operated
when stopped” is also displayed on the
dot matrix crystal display.
The
switch*Aandswitch*Bare
used in the setting mode to select and
decide a menu.
SKIP:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Push theswitch*Ato move to the
warning check mode.
Push the
switch*Bto select other
menus.
ALERT:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0There are 3 submenus under the alert
menu.
. BACK
Select this submenu to return to the top
page of the setting mode.
. TIMER
Select this submenu to specify when the
“TIMER” indicator activates.
. ICY
Select this submenu to display the low
outside temperature warning.
MAINTENANCE:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0There are 5 submenus under the main-
tenance menu.
. BACK
Select this submenu to return to the top
page of the setting mode.
. OIL
Select this submenu to set or reset the
distance for changing the engine oil.
. FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
. TIRE
Select this submenu to set or reset the
distance for replacing tires.
. OTHER
Select this submenu and set or reset
the distance for replacing items other
than the engine oil, oil filter and tires.
OPTIONS:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0There are 4 submenus under the display
menu. .
BACK
Select this submenu to return to the top
page of the setting mode.
. LANGUAGE
Select this submenu to choose English
or French for display.
. UNIT
Select this submenu to choose the unit
from miles, MPG, 8F or km, l/100km,
8C.
. EFFECTS
Select this menu to set the dial effects
described below to on or off.
— The indicator needles sweep in the
meters when the engine is started.
7. Warning checkY51D-V-E01-84D17C85-7598-4143-B76A-A1BD37562223
SKIP:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Push theswitch*Ato move to the
warning check mode.
Push the
switch*Bto select other
menus.
DETAIL:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0This item is available only when a warning
is displayed.
Select this menu to see the details of
warnings.
Condition:

Black plate (101,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Y51D-V-E01-3A21F676-5A6E-4477-B844-5B384A714C8C
SIC2132
Your vehicle has two types of security
systems, as follows:
.Vehicle security system
. INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMY51D-V-E01-B2E64354-87F4-40F9-91AD-DA874CA2A588The vehicle security system provides visual
and audio alarm signals if someone opens
the doors, hood, or trunk lid when the
system is armed. It is not, however, a
motion detection type system that acti-
vates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but
cannot prevent it, nor can it prevent the
theft of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your Intelligent Key(s) in the
vehicle, and always lock it when unat-
tended. Be aware of your surroundings,
and park in secure, well-lit areas whenever
possible.
Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and speci-
alty shops. Your INFINITI retailer may also
offer such equipment. Check with your
insurance company to see if you may be
eligible for discounts for various theft
protection features.
SIC2045
How to arm the vehicle security
system
Y51D-V-E01-8ED55579-9B8D-449D-B4BE-9610F62444F01. Close all windows.
The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with
the Intelligent Key, door handle request
switch, power door lock switch or
mechanical key.
Instruments and controls2-29
SECURITY SYSTEMS
Condition:

Black plate (102,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-30Instruments and controls
5. Confirm that the security indicator lightcomes on. The security indicator light
stays on for about 30 seconds. The
vehicle security system is now pre-
armed. After about 30 seconds the
vehicle security system automatically
shifts into the armed phase. The
security light begins to flash once every
approximately 3 seconds. If, during this
30-second pre-arm time period, the
door is unlocked, or the ignition switch
is pushed to ACC or ON, the system will
not arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationY51D-V-E01-3A452288-F884-4B4B-B1D6-D5997C1EA010The vehicle security system will give the
following alarm:
. The headlights blink and the horn
sounds intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the
alarm reactivates if the vehicle is tampered with again.
The alarm is activated by:
. Unlocking the door or opening the trunk
lid without using the button on the
Intelligent Key, the door handle request
switch or the mechanical key. (Even if
the door is opened by releasing the
door inside lock knob, the alarm will
activate.)
. Opening the hood.
How to stop an activated alarmY51D-V-E01-DF1E4DAC-68DF-4235-AD8F-E1909167B5F8The alarm will stop by unlocking a door by
pushing the unlock button on the Intelli-
gent Key, the door handle request switch
or using the mechanical key. The alarm will
not stop if the ignition switch is pushed to
the ACC or ON position.
If the system does not operate as de-
scribed above, have it checked by an
INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
Y51D-V-E01-4C75AC83-8C74-453D-97A9-A911C41A3437The INFINITI Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered Intelligent Key.
Never leave these keys in the vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
Condition:
