2014 INFINITI Q50 HYBRID display

position is turned to ON)?PUSH
warning ?(Push the ignition switch ?
ignition switch position is turned to
OFF)
7. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent
Key battery is running out of power.
If this indicator appears, replace the
battery with a new one. (See “Intelligent
Key battery replacement” (P.8-25).)
8. Hybrid system start operation for
Intelligent Key system indicator
This indicator appears when the Intelligent
Key battery is running out of power and
when the Intelligent Key System and
vehicle are not communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while
depressing the brake pedal. (See “Intelli-
gent Key battery discharge” (P.5-13).)
9. Key ID Incorrect warning
The warning appears when the ignition
switch is pushed from the LOCK position
and the Intelligent Key cannot be recog-
nized by the system. You cannot start the hybrid system with an unregistered key.
Use the registered Intelligent Key.
See
“Intelligent Key” (P.3-2).
10. Parking brake release warning
This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.
11. Low fuel warning
This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it
is convenient, preferably before the fuel
gauge reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
12. Low washer fluid warning
This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. (See “Window washer fluid”
(P.8-16).)
13. Door/trunk open warning
This warning appears if any of the doors
and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
14. Intelligent Key system warning
This warning appears if there is a malfunc-
tion in the Intelligent Key system.
If this warning appears while the hybrid
system is stopped, the hybrid system
cannot be started. If this warning appears
while the hybrid system is running, the
vehicle can be driven. However, contact an
INFINITI retailer for repair as soon as
possible.
15. Loose Fuel Cap warning
This warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See “Fuel-filler
cap ”(P.3-22).)
16. Tire Pressure Low - Add Air
warning
This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected.
The warning appears each time the ignition
switch is placed in the ON position as long
as the low tire pressure warning light
remains illuminated. If this warning ap-
pears, stop the vehicle and adjust the
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Instruments and controls2-25

2-26Instruments and controls
Information label. (See“Low tire pressure
warning light” (P.2-15) and“Tire Pressure
Monitoring System (TPMS)” (P.5-4).)
17. Flat Tire - Visit dealer warning
This warning appears when the low tire
pressure warning light in the meter illumi-
nates and one or more flat tires are
detected while driving. A chime also
sounds for approximately 10 seconds.
(See“Low tire pressure warning light”
(P.2-15) and “Tire Pressure Monitoring
System (TPMS)” (P.5-4).)
18. Low oil pressure warning
This warning appears if low engine oil
pressure is detected. If the warning
appears during normal driving, pull off
the road in a safe area, stop the engine
immediately and call an INFINITI retailer or
other authorized repair shop.
The low oil pressure warning is not
designed to indicate a low oil level. Use
the dipstick to check the oil level. (See
“Engine oil”(P.8-12).)
19. High temperature warning
This warning appears when the engine
coolant temperature is extremely high.
CAUTION
If the high temperature warning appears
when the ignition switch is in the ON
position, stop the vehicle safely as soon
as possible.
If the vehicle is overheated, continuing
vehicle operation may seriously damage
the engine. (See “If your vehicle overheats”
(P.6-7) for the immediate action required.)
20. Hybrid system overheat warn-
ing
This warning appears when the tempera-
ture of the hybrid system is extremely high.
Stop the vehicle in a safe location as soon
as possible. Avoid quick starting or abrupt
acceleration. When the warning turns off,
the vehicle can be driven.
If the warning appears again soon after it
turns off, have the vehicle checked by an
INFINITI retailer.
WARNING
Do not hold the vehicle in a stopped
position on an uphill grade by depressing
the accelerator or by slowly creeping for-
ward. This may cause damage to the
transmission or the vehicle may enter traffic
causing serious injury or death. Always use
the brake pedal when stopping on an uphill
grade.
CAUTION
. If you continue to drive the vehicle while
the warning is displayed, the vehicle
may become undriveable. If this occurs,
place the shift lever in the “P”position
and wait for a short period of time with
the vehicle stopped until the display
goes out. In this case, the warning will
be displayed alternately with the SHIFT
“P” warning. (See “3. SHIFT“P”warn-
ing” (P.2-24).)
. Do not drive the vehicle with the warning
on. Doing so could cause a hybrid
system malfunction.

21. All-Wheel Drive (AWD) warning
(if so equipped)
This warning appears when the Intelligent
All-Wheel Drive (AWD) system is not
functioning properly while the hybrid
system is running. (See“Intelligent All-
Wheel Drive (AWD)” (P.5-101).)
22. Extended storage fuse warning
This warning may appear if the extended
storage fuse switch is not pushed in
(switched on). When this warning appears,
push in (switch on) the extended storage
fuse switch to turn off the warning. For
more information, see “Extended storage
fuse switch” (P.8-24).
23. Headlight warning
This warning appears if the LED headlights
are malfunctioning. Have the system
checked by an INFINITI retailer.
24. Adaptive Front lighting System
(AFS) warning (if so equipped)
This warning appears when the Adaptive
Front lighting System (AFS) is not function-
ing properly. Have the system checked by
an INFINITI retailer.
(See“Adaptive Front lighting System (AFS)” (P.2-45).)
25. Power will turn off to save the
battery warning
This warning appears after a period of time
if the shift lever has not moved from the
“P”
(Park) position with the ignition switch
in the ACC or ON position.
26. Power turned off to save the
battery warning
This warning appears after the ignition
switch is automatically turned OFF to save
the 12-volt battery.
27. Light reminder warning
This warning appears when the driver side
door is opened with the headlight switch
left ON and the ignition switch in the ACC,
OFF or LOCK position. Place the headlight
switch to “OFF”or“AUTO” position. For
additional information, see “Headlight and
turn signal switch” (P.2-41).
28.“TIMER” indicator
This indicator appears when the set
“TIMER” indicator activates. You can set
the time for up to 6 hours. (See the Infiniti
InTouch Owner’s Manual.)
29. Low outside temperature warn-
ing
This warning appears if the outside tem-
perature is below 378F(3 8C). The warning
can be set not to be displayed. (See the
Infiniti InTouch Owner’s Manual.)
30. Chassis control warning
This warning appears if Active Lane Control
(if so equipped), the active trace control
system and/or chassis control are not
functioning properly. Have the system
checked by an INFINITI retailer. (See “Active
Lane Control” (P.5-24),“Active trace con-
trol” (P.5-110) and “Chassis control” (P.5-
112).)
31. Cruise indicator
Models without Intelligent Cruise Control
(ICC) system:
This indicator shows the cruise control
system status. The status is shown by the
color.
See “Cruise control” (P.5-56) for details.
Models with Intelligent Cruise Control
(ICC) system:
This indicator shows the conventional
(fixed speed) cruise control mode status.
Instruments and controls2-27

2-28Instruments and controls
The status is shown by the color.
See“Conventional (fixed speed) cruise
control mode” (P.5-74) for details.
32. Intelligent Cruise Control (ICC)
system ON indicator (if so
equipped)
This indicator shows the Intelligent Cruise
Control (ICC) system status. The status is
shown by the color. (See “Intelligent Cruise
Control (ICC) system” (P.5-58).)
33. Driver assist system indicator
(if so equipped)
This indicator shows the status of the
following systems.
.Lane Departure Warning (LDW)
. Lane Departure Prevention (LDP)
. Blind Spot Warning (BSW)
. Blind Spot Intervention
TM(BSI)
. Distance Control Assist (DCA)
. Forward emergency braking
. Predictive forward collision warning
For more details, see “Lane Departure
Warning (LDW) system/Lane Departure
Prevention (LDP) system” (P.5-30),“Blind
Spot Warning (BSW) system/Blind Spot
Intervention
TM(BSI) system” (P.5-37),“Dis-tance Control Assist (DCA) system”
(P.5-
79), “Forward emergency braking system”
(P.5-89) and “Predictive forward collision
warning system” (P.5-94).
The figure and color of this indicator will
change depending on the conditions of the
above systems. (In each section, the name
of this indicator is referred to as, “driver
assist system lane indicator” ,“driver
assist system blind spot indicator” or
“driver assist system forward indicator”
depending on the systems.)
34. INFINITI Drive Mode Selector
indicator
When a driving mode is selected using the
INFINITI Drive Mode Selector, the selected
mode indicator is displayed.
. PERSONAL
. SPORT
. STANDARD
. ECO
. SNOW
(See “INFINITI Drive Mode Selector” (P.5-
21).)
35. Automatic Transmission (AT)
position indicator
This indicator shows the automatic shift
position.
In the manual shift mode, when the
transmission does not shift to the selected
gear due to a transmission protection
mode, the AT position indicator will blink
and a chime will sound.
See “Automatic transmission” (P.5-14) for
further details.

JVI0642X
TRIP COMPUTER
Switches for the trip computer are located
on the right side of the steering wheel. To
operate the trip computer, push the
switches as shown above.
Each time the
orswitch is pushed,
the display will change.
The display items for trip computer are
changed on the lower display. For details,
see the Infiniti InTouch Owner’s Manual.
JVO0108X
1. Energy monitor
The energy monitor related to the hybrid
system is shown by the graphic.
*A: Engine
*B: Li-ion battery
*Bshows the charge level of the Li-ion
battery.
The charge level display will continuously
change as the Li-ion battery charge level
increase or decreases during normal vehi-
cle operation. Movement of the display
from the far right to the far left of the bar is
normal. The energy flow is also displayed in the
lower display. (See
“Energy Flow”(P.Hybrid
System-5).)
2. EV mode odometer and twin trip
odometer (mile or km)
EV mode odometer:
This indicates the total distance traveled
using the electric motor only.
EV mode twin trip odometer:
This indicates the distance traveled in an
individual trip using the electric motor
only.
Two types of individual trip can be
recorded, TRIP A and TRIP B.
Pushing the TRIP RESET switch will toggle
between TRIP A and TRIP B.
To reset the display to 0, hold down the
TRIP RESET switch for more than approxi-
mately 1 second.

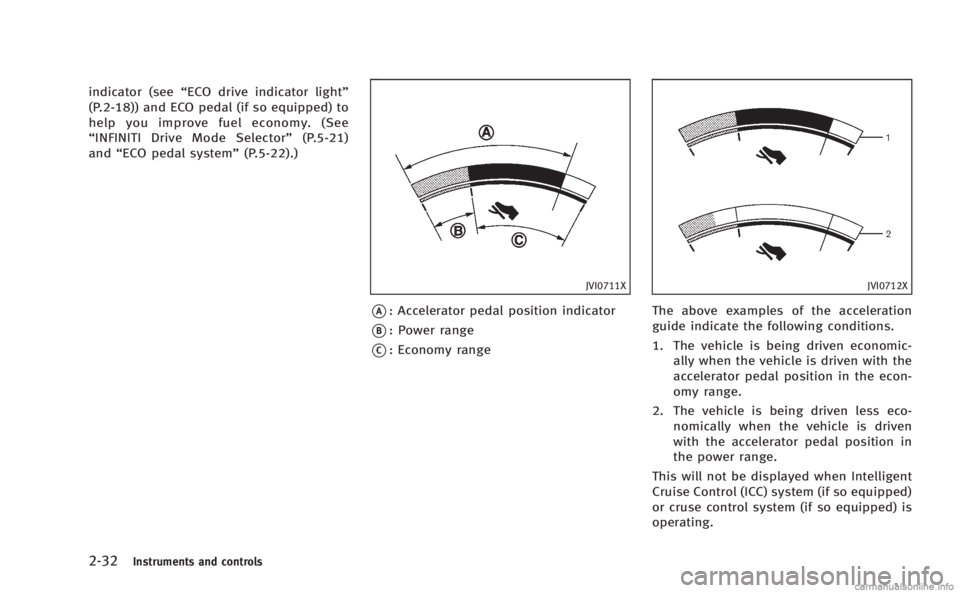

3. Acceleration guide
This display provides the driver a visual
display of how efficiently the vehicle is
being driven based on accelerator pedal
position. When the drive mode is set to
ECO using the lower display, the accelera-
tion guide operates with the ECO drive
Instruments and controls2-31

2-32Instruments and controls
indicator (see“ECO drive indicator light”
(P.2-18)) and ECO pedal (if so equipped) to
help you improve fuel economy. (See
“ INFINITI Drive Mode Selector” (P.5-21)
and “ECO pedal system” (P.5-22).)
JVI0711X
*A: Accelerator pedal position indicator
*B: Power range
*C: Economy range
JVI0712X
The above examples of the acceleration
guide indicate the following conditions.
1. The vehicle is being driven economic-
ally when the vehicle is driven with the
accelerator pedal position in the econ-
omy range.
2. The vehicle is being driven less eco- nomically when the vehicle is driven
with the accelerator pedal position in
the power range.
This will not be displayed when Intelligent
Cruise Control (ICC) system (if so equipped)
or cruse control system (if so equipped) is
operating.

4. Current fuel consumption and
average fuel consumption (MPG, l
(liter)/100 km or km/l)
Current fuel consumption:
The current fuel consumption mode shows
the current fuel consumption.
Average fuel consumption:
The average fuel consumption mode shows
the average fuel consumption since the
last reset. Resetting is done by pushing the
orswitch for longer than 1
second.
The average fuel consumption is also reset
on the lower display. See the Infiniti
InTouch Owner’s Manual.
The display is updated every 30 seconds.
At about the first 1/3 mile (500 m) after a
reset, the display shows “——”.
5. Average speed (MPH or km/h)
The average speed mode shows the
average vehicle speed since the last reset.
Resetting is done by pushing the
orswitch for longer than 1 second.
The display is updated every 30 seconds.
The first 30 seconds after a reset, the
display shows “——”.
6. Elapsed time and trip odometer
(mile or km)
Elapsed time:
The elapsed time mode shows the time
since the last reset. Resetting is done by
pushing the
orswitch for longer
than 1 second. (The trip odometer is also
reset at the same time.)
Trip odometer:
The trip odometer mode shows the total
distance the vehicle has been driven since
the last reset. Resetting is done by pushing
the
orswitch for longer than 1
second. (The elapsed time is also reset at
the same time.)
7. Distance to empty (dte —mile or
km)
The distance to empty (dte) mode provides
you with an estimation of the distance that
can be driven before refueling. The dte is
constantly being calculated, based on the
amount of fuel in the fuel tank and the
actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning
is displayed on the screen. When the fuel level drops even lower, the
dte display will change to
“——”.
. If the amount of fuel added is small, the
display just before the ignition switch
is pushed to the OFF position may
continue to be displayed.
. When driving uphill or rounding curves,
the fuel in the tank shifts, which may
momentarily change the display.
8. Engine coolant temperature
gauge
This gauge indicates the temperature of
the engine coolant. If the engine coolant is
overheated, the color of gauge will change
to the red.
The engine coolant temperature varies with
the outside air temperature and driving
conditions.
CAUTION
If the engine is overheated, continued
operation of the vehicle may seriously
damage the engine. See “If your vehicle
overheats” (P.6-7) for immediate action
required.
Instruments and controls2-33

2-34Instruments and controls
9. Navigation (if so equipped)
When the route guidance is set in the
navigation system, this item shows the
navigation route information.
For more details, see the Infiniti InTouch
Owner’s Manual.
10. Audio
The audio mode shows the status of audio
information.
For more details, see the Infiniti InTouch
Owner’s Manual.
11. Driving aids (if so equipped)
The driving aids mode shows the operating
condition for the following systems.
.Lane Departure Warning (LDW)
. Lane Departure Prevention (LDP)
. Blind Spot Warning (BSW)
. Blind Spot Intervention
TM(BSI)
. Distance Control Assist (DCA)
. Forward emergency braking
. Predictive forward collision warning
For more details, see “Lane Departure
Warning (LDW) system/Lane Departure
Prevention (LDP) system” (P.5-30),“Blind
Spot Warning (BSW) system/Blind Spot
Intervention
TM(BSI) system” (P.5-37),“Dis-tance Control Assist (DCA) system”
(P.5-
79), “Forward emergency braking system”
(P.5-89) and “Predictive forward collision
warning system” (P.5-94).
12. Tire pressure
The tire pressure mode shows the pressure
of all four tires while the vehicle is driven.
See the Infiniti InTouch Owner’s Manual for
the display settings.
When the“Tire Pressure Low - Add Air” or
“Flat Tire - Visit dealer” warning appears,
the display can be switched to the tire
pressure mode by pushing the
orswitch.
13. Chassis control
When Active Lane Control (if so equipped)
or the active trace control system is
operated, it shows the operating condition.
See “Active Lane Control” (P.5-24) and
“Active trace control” (P.5-110) for more
details.
14. Warning check
The present warnings are displayed. If no
warning is present, “No Warning”is dis-
played.
JVI0679M
CLOCK AND OUTSIDE AIR TEM-
PERATURE
The clock*1and outside air temperature
*2are displayed on the upper side of the
vehicle information display.
Clock
The clock can be adjusted on the lower
display. See the Infiniti InTouch Owner’s
Manual.
Outside air temperature (8For 8C)
The outside air temperature is displayed in
8For8C in the range of −22 to 1318F(−30
to 558C).
