2014 HYUNDAI TUCSON Owners Manual

7-75
7
Maintenance
Headlight
Halogen bulb
Always handle them carefully, andavoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
Never touch the glass with bare hands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only when installed in a headlamp.
If a bulb becomes damaged or cracked, replace it immediatelyand carefully dispose of it. 1. Open the hood.
2. Remove the headlamp bulb cover
by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
OLMB073042L
Handle halogen bulbs with
care. Halogen bulbs contain
pressurized gas that will pro-
duce flying pieces of glassthat could cause injuries if
broken.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-dling it.
WARNING
OLMB074101

7-76
Maintenance
5. Remove the bulb by pulling it out.
6. Insert a new bulb into the socket.
7. Install the socket in the assemblyby aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8. Install the headlight bulb cover by turning it clockwise.Turn signal light
1. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
2. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket
3. Insert a new bulb into the socket and rotating it until it locks into
place. 4. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
Parking (Position) light bulbs
If the LED light does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
OLM079046

7-77
7
Maintenance
Fog light bulbs
1. Remove the front bumper undercover.
2. Reach your hand into the back of the front bumper.
3. Disconnect the power connector from the socket.
4. Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots onthe housing.
5. Install the new bulb-socket into the housing by aligning the tabs on
the socket with the slots in the
housing. Push the socket into the
housing and turn the socket clock-
wise.
6. Connect the power connector to the socket.
7. Reinstall the front bumper under cover.
■■Type A
If the LED light does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
■■Type B
1. Remove the light assembly from
the vehicle by prying the lens and
pulling the assembly out.
2. Reinstall a new light assembly to the body of the vehicle.
OLMB073045OLMB073046
Side repeater light replacement

7-78
Maintenance
Rear combination light bulb replacement
(1) Stop/tail light
(2) Turn signal light
(3) Back-up light
(4) Side marker
Outside light
Turn signal light and stop/tail light
1. Open the tailgate.
2. Loosen the lamp assembly retain-ing screws with a cross-tip screw-
driver. 3. Remove the rear combination
lamp assembly from the body of
the vehicle.
OLMB073047
OLMB073048
OLMB073049

7-79
7
Maintenance
4. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6. Insert a new bulb into the socket and rotating it until it locks into
place. 7. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8. Reinstall the lamp assembly to the body of the vehicle.
Inside light
Tail light and Back-up light
1. Open the tailgate.
2. Remove the service cover using aflat-blade screwdriver.
OLMB073050
Turn signal light
Stop/tail light
OLMB073051

7-80
Maintenance
3. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Tail light: Remove the bulb from the socket by pressing it in and
rotating it counterclockwise until
the tabs on the bulb align with the
slots in the socket. Pull the bulb
out of the socket.
Back-up light: Remove the bulb
from the socket by pulling it out.
5. Insert a new bulb into the socket. 6. Install the socket into the assem-
bly by aligning the tabs on the
socket with the slots on the
assembly and turning the socket
clockwise.
7. Reinstall the light assembly to the body of the vehicle
High mounted stop light
1. Open the tailgate.
2. Gently remove the center cover ofthe rear tailgate trim.
3. Disconnect the electrical connec- tor.
OLMB073052
Back-up light
Tail light
OLMB073103
OLMB073104

7-81
7
Maintenance
4. Loosen the retaining nuts andremove the spoiler.
5. Remove the high mounted stop light assembly (A) after loosening
the nuts and washer nozzle (B).
6. Reinstall a new light assembly in the reverse order of removal.
License plate light bulb replacement
1. Loosen the lens retaining screwswith a philips head screwdriver.
2. Remove the lens.
3. Remove the bulb by pulling it straight out.
4. Install a new bulb.
5. Reinstall the lens securely with the lens retaining screws.
OLMB073105
A
B
OLMB073054

7-82
Maintenance

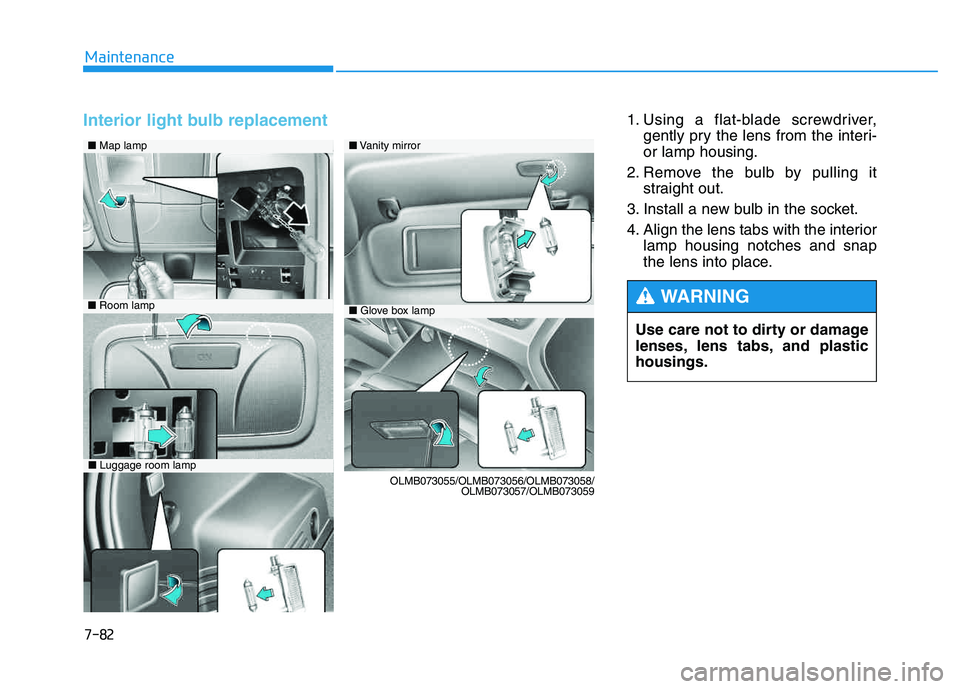

Interior light bulb replacement 1. Using a flat-blade screwdriver,gently pry the lens from the interi- or lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior lamp housing notches and snap
the lens into place.
■Map lamp
OLMB073055/OLMB073056/OLMB073058/
OLMB073057/OLMB073059
■Glove box lamp
■Luggage room lamp
■Vanity mirror
■ Room lamp
Use care not to dirty or damage
lenses, lens tabs, and plastichousings.
WARNING
