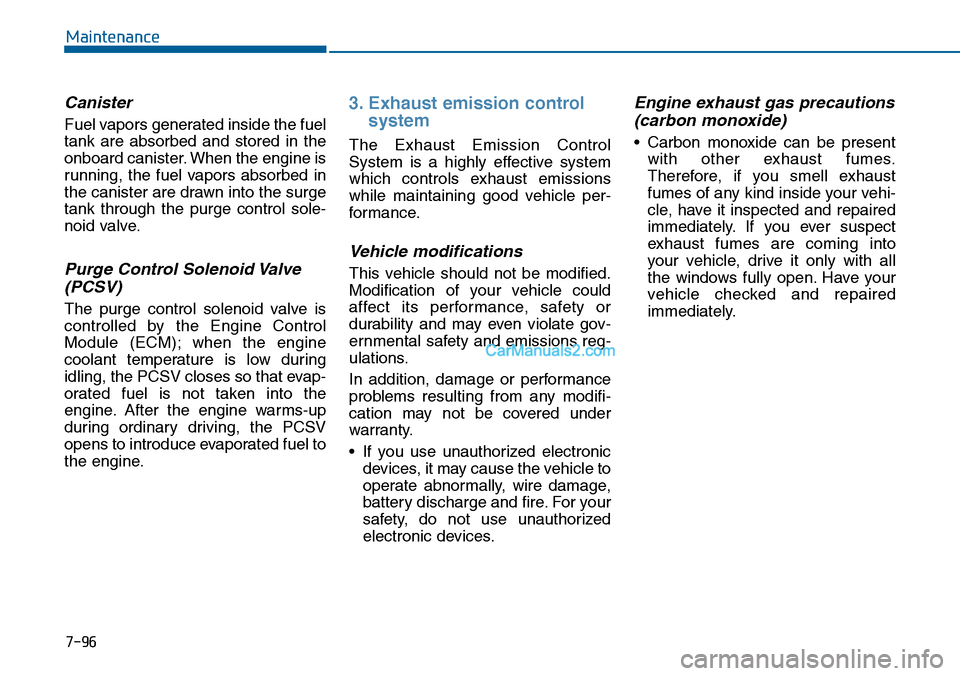

7-96
Maintenance
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the surge
tank through the purge control sole-
noid valve.
Purge Control Solenoid Valve
(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms-up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control
system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
•If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust gas precautions
(carbon monoxide)
•Carbon monoxide can be present
with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.

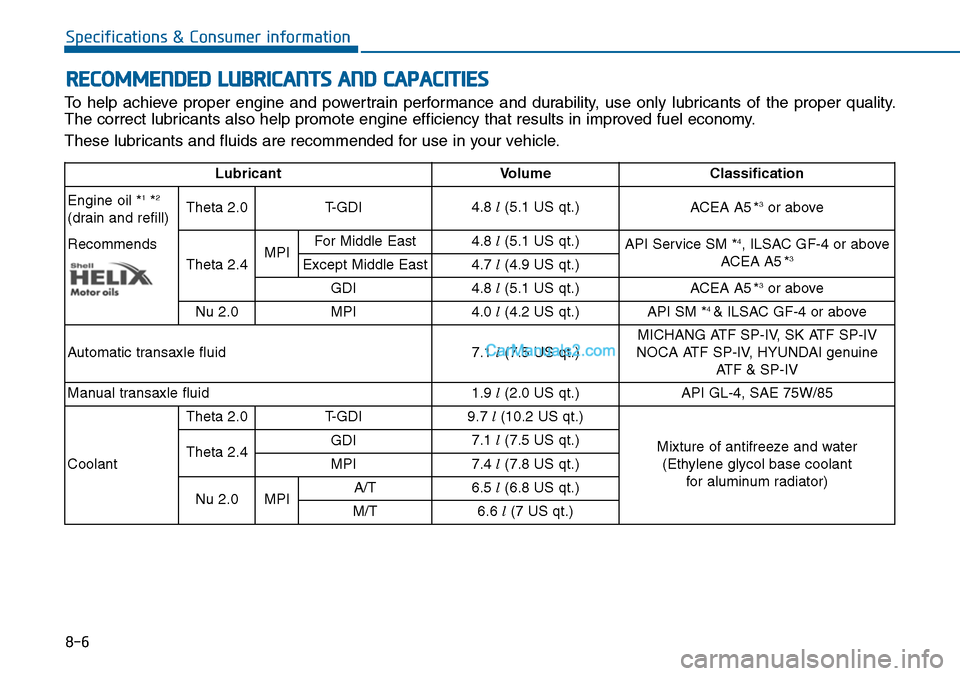

8-6
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVo l u m e C l a s s i f i c a t i o n
Engine oil *1*2
(drain and refill)
Recommends
Theta 2.0 T-GDI4.8l(5.1 US qt.)ACEA A5 *3or above
Theta 2.4MPIFor Middle East4.8l(5.1 US qt.)API Service SM *4, ILSAC GF-4 or above
ACEA A5 *3Except Middle East4.7l(4.9 US qt.)
GDI4.8l(5.1 US qt.)ACEA A5 *3or above
Nu 2.0 MPI4.0l(4.2 US qt.)API SM *4 & ILSAC GF-4 or above
Automatic transaxle fluid7.1l(7.5 US qt.)
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine
AT F & S P - I V
Manual transaxle fluid1.9l(2.0 US qt.)API GL-4, SAE 75W/85
Coolant
Theta 2.0T- G D I9.7 l(10.2 US qt.)
Mixture of antifreeze and water
(Ethylene glycol base coolant
for aluminum radiator)
Theta 2.4GDI7.1 l(7.5 US qt.)
MPI7.4 l(7.8 US qt.)
Nu 2.0 MPIA/T6.5 l(6.8 US qt.)
M/T6.6 l(7 US qt.)
