LLCD display messages
(if equipped)Shift to "P" position
(for smart key system and Continuously Variable Transaxle)• This warning message illuminates
if you try to turn off the engine with-
out the shift lever in P (Park) posi-
tion.
• At this time, the Engine Start/Stop button turns to the ACC position (If
you press the Engine Start/Stop
button once more, it will turn to the
ON position).
Low Key Battery (for smart key system)This warning message illuminates if
the battery of the smart key is dis-
charged when the Engine Start/Stop
button is in the OFF position.
Press start button while turningwheel (for smart key system)This warning message illuminates if
the steering wheel does not unlock
normally when the Engine Start/Stop
button is pressed.
Press the Engine Start/Stop button
while turning the steering wheel right
and left.
)')
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
OIB044130/OHCR046113
■
Type B ■Type C
OIB044131/OIB047131-
■
Type B ■Type C
OIB044132/OHCR046115
■
Ty p e B ■Type C

SSteering wheel unlocked (for smart key system)This warning message illuminates if
the steering wheel does not lock
when the Engine Start/Stop button is
in the OFF position.
Check steering wheel lock system (for smart key system)This warning message illuminates if
the steering wheel does not lock nor-
mally when the Engine Start/Stop
button is in the OFF position.
Press clutch pedal to start engine (for smart key system and manualtransaxle) This warning message illuminates if
the Engine Start/Stop button is in the
ACC position twice by pressing the
button repeatedly without depressing
the clutch pedal.
Depress the clutch pedal to start the
engine.
)')#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
OIB044133/OHCR046116
■
Ty p e B ■Type C
OIB044134/OHCR046117
■
Type B ■Ty p e C
OIB044136/OHCR046119
■
Ty p e B ■Ty p e C

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
IItems
Explanation
Automatically Unlock
• Disable : The auto door unlock operation will be canceled.
• Vehicle Off: All doors will be automatically unlocked when the ignition key is removed from theignition switch or the Engine Star/Stop button is set to the OFF position.
Door
Light
Items
Explanation
One Touch Turn Signal
• Off: The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is moved slightly.For more details, refer to “Light” in this chapter.
Head Lamp Delay
• Off: The headlamp delay function will be deactivated.
• On: The head lamp delay function will be activated.For more details, refer to “Light” in this chapter.
User settings mode (Cluster Type B)In this mode, you can change setting of the instrument cluster, doors, lamps, and so on.

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
IItems
Explanation
Auto Lock
• Disable : The auto door lock operation will be deactivated.
• Enable on Speed : All doors will be automatically locked when the vehicle speed exceeds 9.3mph (15km/h).
• Enable on Shift : All doors will be automatically locked if the Continuously Variable Transaxle shift lever is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
Auto Unlock
• Disable : The auto door unlock operation will be canceled.
• Vehicle Off: All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the Engine Star/Stop button is set to the OFF position.
• On Shift to P: All doors will be automatically unlocked if the automatic transaxle shift lever is shift- ed to the P (Park) position.
Door
Light
Items
Explanation
One Touch Turn Signal
• Off: The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is moved slightly.For more details, refer to “Light” in this chapter.
Head Lamp Delay
• Off: The headlamp delay function will be deactivated.
• On: The head lamp delay function will be activated.For more details, refer to “Light” in this chapter.
User settings mode (Cluster Type C)In this mode, you can change setting of the instrument cluster, doors, lamps, and so on.

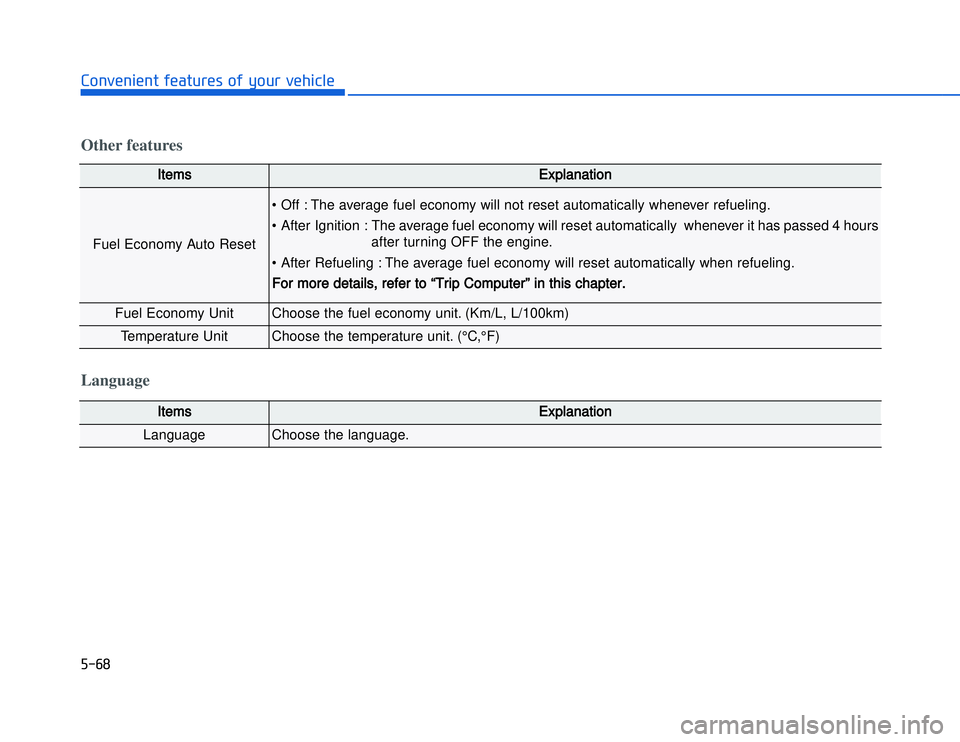

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3Other features
IItems
Explanation
Fuel Economy Auto Reset
• Off : The average fuel economy will not reset automatically whenever refueling.
• After Ignition : The average fuel economy will reset automatically whenever it has passed 4 hoursafter turning OFF the engine.
• After Refueling : The average fuel economy will reset automatically when refueling.For more details, refer to “Trip Computer” in this chapter.
Fuel Economy Unit
Choose the fuel economy unit. (Km/L, L/100km)
Temperature Unit
Choose the temperature unit. (°C,°F)
Language
Items
Explanation
Language
Choose the language.

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
Under "Auto Reset" mode, the aver-
age fuel economy will be cleared to
zero (---) when the vehicle speed
exceeds 1 km/h after refueling more
than 6 liters (1.6 gallons).
IInformation
The average fuel economy is not dis-
played for more accurate calculation
if the vehicle does not drive more than
10 seconds or 300 meters (0.19 miles)
since the ignition switch or the Engine
Start/Stop button is turned to ON.Instant Fuel Consumption (3)
(if equipped)• This mode displays the instant fuel
economy during the last few sec-
onds when the vehicle speed is
more than 10 km/h (6.2 MPH).
- Fuel economy range:0 ~ 30 L/100km, km/L
Tripmeter A/B (1)• The tripmeter is the total driving distance since the last tripmeter
reset.
- Distance range: 0.0 ~ 9999.9 km or mi.
• To reset the tripmeter, press the [OK] button (or RESET button) on
the steering wheel for more than 1
second when the tripmeter is dis-
played.
Average Speed (2)• The average vehicle speed is cal-culated by the total driving dis-
tance and driving time since the
last average vehicle speed reset.
- Speed range:0~220 km/h or 0~140 mph
• To reset the average vehicle speed, press the [OK] button (or RESET
button) on the steering wheel for
more than 1 second when the aver-
age vehicle speed is displayed.
Information
The average vehicle speed is not dis-played if the driving distance is less
than 300 meters (0.19 miles) or the
driving time is less than 10 seconds
since the ignition switch or the Engine
Start/Stop button is turned to ON.
Even if the vehicle is not in motion, the average vehicle speed keeps cal-
culating while the engine is running.i
i
OIB044158

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3EElapsed Time (3)• The elapsed time is the total driv-ing time since the last elapsed time
reset.
- Time range (hh:mm): 00:00 ~ 99:59
• To reset the elapsed time, press the [OK] button (or RESET button)
on the steering wheel for more
than 1 second when the elapsed
time is displayed.
Information
Even if the vehicle is not in motion, the
elapsed time keeps calculating while
the engine is running.
Digital Speedometer This message shows the speed of
the vehicle (km/h, MPH). The digital speedometer is displayed
when “SPEED” sets “ON” in the clus-
ter.
Pressing the RESET button for more
than 1 second, when the “SPEED”
“OFF” is displayed, the digital
speedometer is displayed.
i
OIB044160
OLF044085R

)')
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
IInformation
The average fuel economy is not dis-
played for more accurate calculation
if the vehicle does not drive more than
10 seconds or 300 meters (0.19 miles)
since the ignition switch or the Engine
Start/Stop button is turned to ON.Instant Fuel Economy (3)• This mode displays the instant fuel
economy during the last few sec-
onds when the vehicle speed is
more than 10 km/h (6.2 MPH).
- Fuel economy range:0 ~ 30 L/100km, km/L
Tripmeter A/B (km or mile, km/h or MPH)Tripmeter (1)• The tripmeter is the total driving
distance since the last tripmeter
reset.
- Distance range: 0.0 ~ 9999.9 km or mi.
• To reset the tripmeter, press the [OK] button (or RESET button) on
the steering wheel for more than 1
second when the tripmeter is dis-
played.
Average Vehicle Speed (2)• The average vehicle speed is cal-culated by the total driving dis-
tance and driving time since the
last average vehicle speed reset.
- Speed range:0~220 km/h or 0~140 mph
• To reset the average vehicle speed, press the [OK] button (or RESET
button) on the steering wheel for
more than 1 second when the aver-
age vehicle speed is displayed.
Information
The average vehicle speed is not dis-played if the driving distance is less
than 300 meters (0.19 miles) or the
driving time is less than 10 seconds
since the ignition switch or the Engine
Start/Stop button is turned to ON.
Even if the vehicle is not in motion, the average vehicle speed keeps cal-
culating while the engine is running.i
i
OIB044119
