1. Light control\bTurn signals ..........581
2. Steering wheel audio controls* ....64
\f. Instrument cluster ......................5\f6
4. Horn ..........................................5\f1
5. Driver's front air bag* ................4\f7
6. Wiper\bWasher ............................589
7. Trip mode switch* ....569, 57\f, 576
8. Engine Start\bStop button ............79Key ignition switch ......................75
9. Manual transaxle ......................719 Continuously Variable
Transaxle ..................................72\f
10. Power outlet ..........................5126
11. USB charger* ........................5127
12. Manual climate control system ..597
Automatic climate control
system ..................................5106
1\f. Audio system* ..................69, 6\f7
14. Hazard switch ............................82
15. Central door lock switch ..........515
16. Passenger's front air bag* ......4\f7
17. Glove box ..............................5121
* : if equipped
OIB017004R
The actual shape may differ from the illustration.

8
"!!" " " !
#"#!#
OIB074056

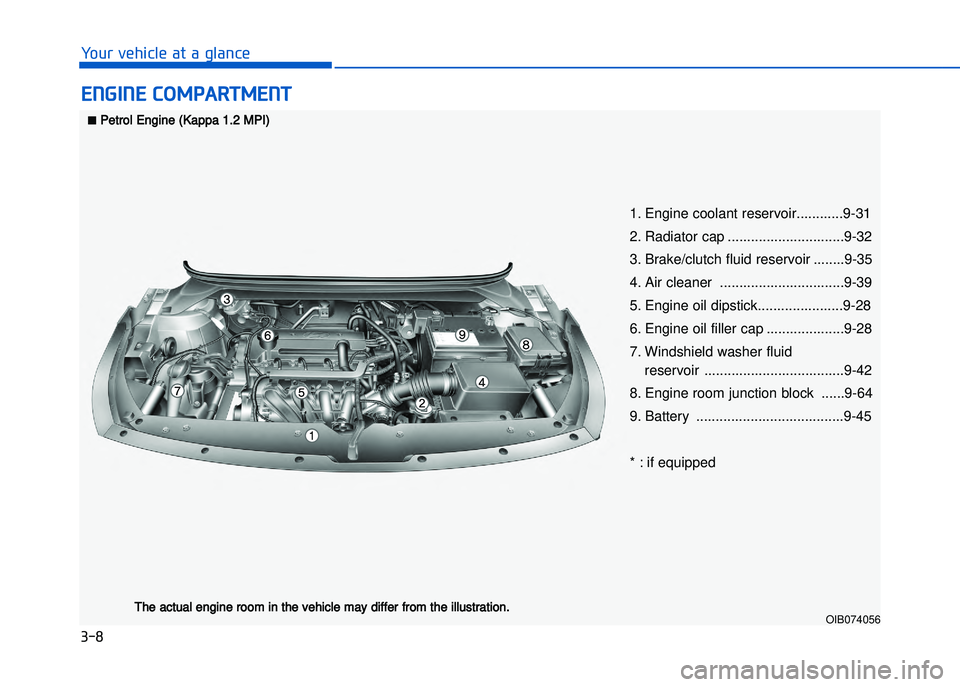

Petrol Engine (Kappa 1.2 MPI)
The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant
reservoir............9 31
2. Radiator
cap ..................\4............9 32
\f. Brake\bclutch
fluid reservoir ........9\f 5
4. Air
cleaner ..................\4..............9\f 9
5. Engine oil
dipstick................\4......92 8
6. Engine oil filler
cap ..................\4..92 8
7. Windshield washer fluid reservoir
..................\4..................\494 2
8. Engine room junction
block ......96 4
9. Battery
..................\4..................\4..94 5
* : if equipped


"!!" " " !

OIB074001

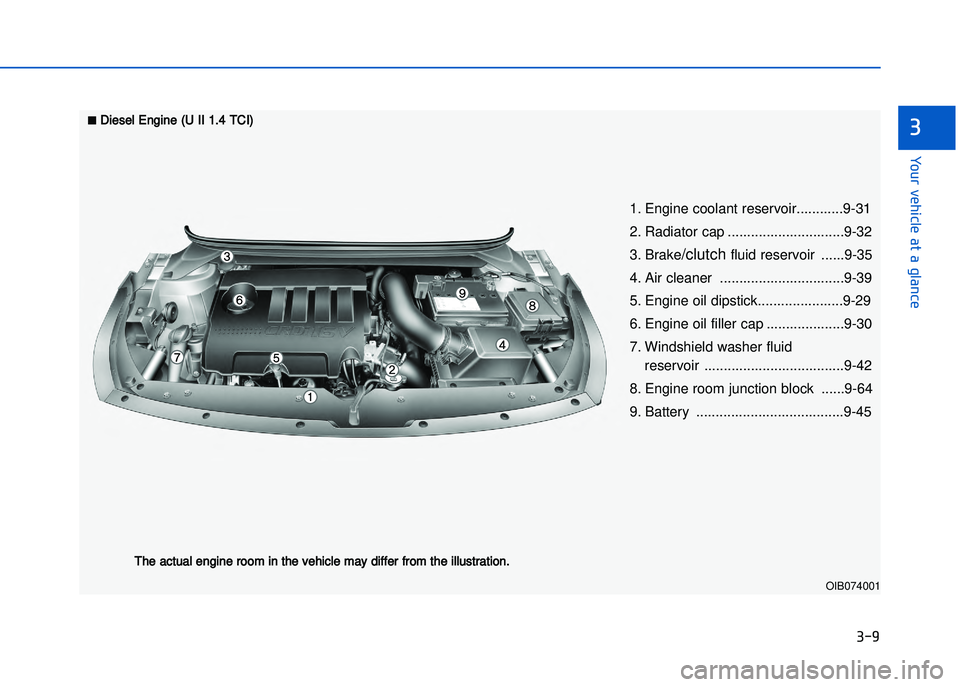

Diesel Engine (U II 1.4 TCI)The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant
reservoir............9 31
2. Radiator
cap ..................\4............9\f 2
\f. Brake\bclutch
fluid reservoir ......9\f 5
4. Air
cleaner ..................\4..............9\f 9
5. Engine oil
dipstick................\4......92 9
6. Engine oil filler
cap ..................\4..9 30
7. Windshield washer fluid reservoir
..................\4..................\494 2
8. Engine room junction
block ......96 4
9. Battery
..................\4..................\4..94 5

1
"&t%'s%st&'!"'%!'&&

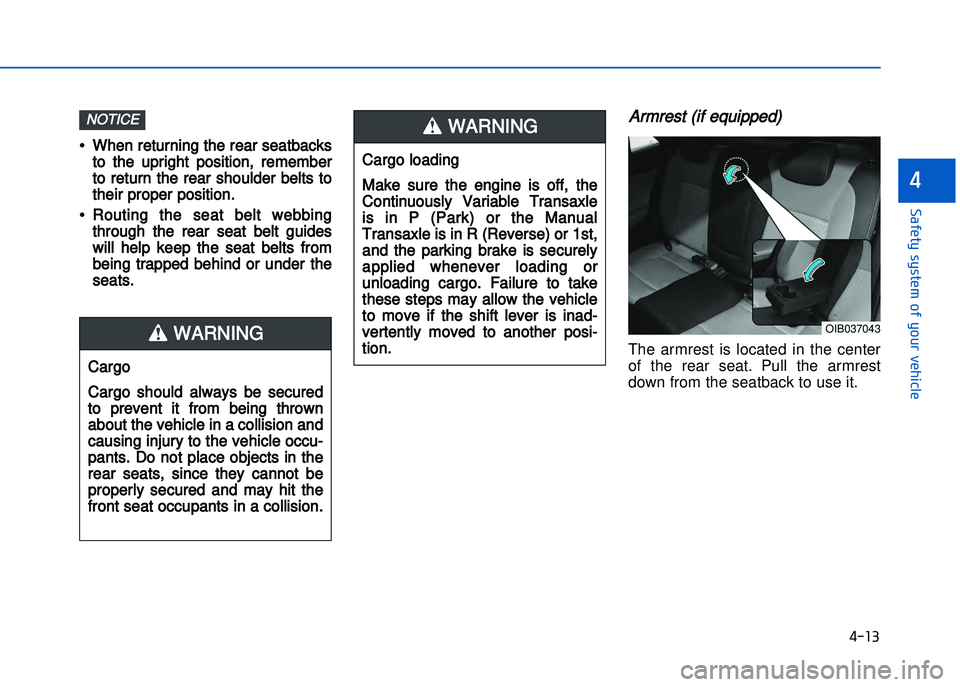

• When returning the rear seatbacksto the upright position, remember
to return the rear shoulder belts to
their proper position.
• Routing the seat belt webbing through the rear seat belt guides
will help keep the seat belts from
being trapped behind or under the
seats.
Armrest (if equipped)
The armrest is located in the center
of the rear seat. Pull the armrest
down from the seatback to use it.
NOTICE
Cargo loading
Make sure the engine is off, the
Continuously Variable Transaxle
is in P (Park) or the Manual
Transaxle is in R (Reverse) or 1st,
and the parking brake is securely
applied whenever loading or
unloading cargo. Failure to take
these steps may allow the vehicle
to move if the shift lever is inad
vertently moved to another posi
tion.
WARNING
Cargo
Cargo should always be secured
to prevent it from being thrown
about the vehicle in a collision and
causing injury to the vehicle occu
pants. Do not place objects in the
rear seats, since they cannot be
properly secured and may hit the
front seat occupants in a collision.
WARNING OIB037043

 9
"&t%'s%st&'!"'%!'&&

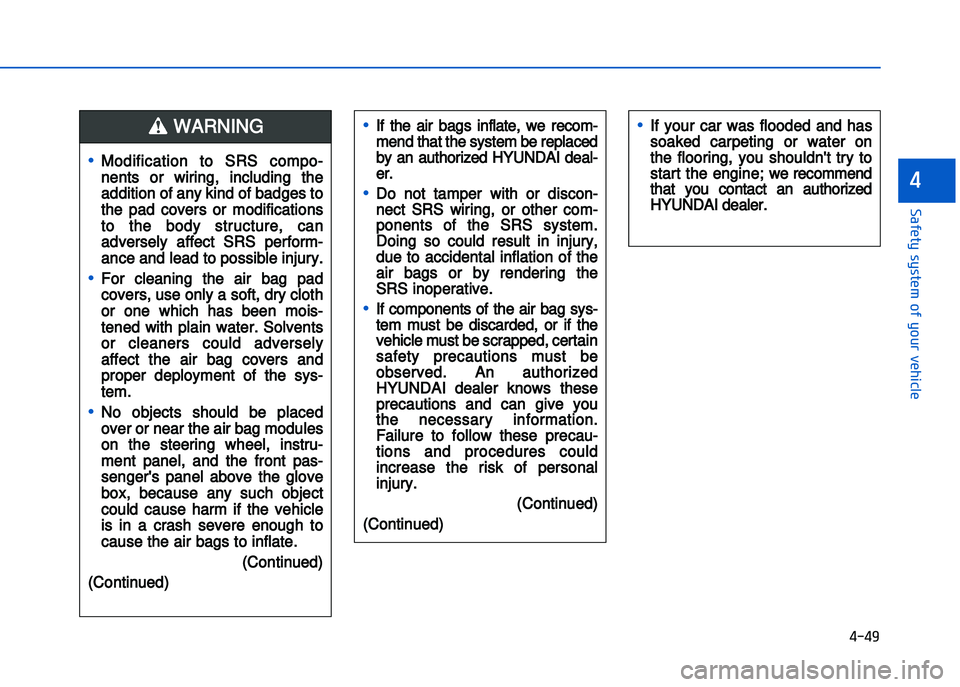

•Modification to SRS compo
nents or wiring, including the
addition of any kind of badges to
the pad covers or modifications
to the body structure, can
adversely affect SRS perform
ance and lead to possible injury.
•For cleaning the air bag pad
covers, use only a soft, dry cloth
or one which has been mois
tened with plain water. Solvents
or cleaners could adversely
affect the air bag covers and
proper deployment of the sys
t

em.
•No objects should be placed
over or near the air bag modules
on the steering wheel, instru
ment panel, and the front pas
senger's panel above the glove
box, because any such object
could cause harm if the vehicle
is in a crash severe enough to
cause the air bags to inflate.
(Continued)
(Continued)
WARNING •If the air bags inflate, we recom
mend that the system be replaced
by an authorized HYUNDAI deal
er.
•Do not tamper with or discon
nect SRS wiring, or other com
ponents of the SRS system.
Doing so could result in injury,
due to accidental inflation of the
air bags or by rendering the
SRS inoperative.
•If components of the air bag sys
tem must be discarded, or if the
vehicle must be scrapped, certain
safety precautions must be
observed. An authorized
HYUNDAI dealer kn

ows these
precautions and can give you
the necessary information.
Failure to follow these precau
tions and procedures could
increase the risk of personal
injury.
(Continued)
(Continued)
•If your car was flooded and has
soaked carpeting or water on
the flooring, you shouldn't try to
start the engine; we recommend
that you contact an authorized
HYUNDAI dealer.

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
RRemote key (if equipped)Your HYUNDAI uses a remote key,
which you can use to lock or unlock
a door (and tailgate) and even start
the engine.
1. Door Lock
2. Door Unlock
3. Tailgate Unlock
LockingTo lock :
1. Close all doors, engine hood and
tailgate.
2. Press the Door Lock button (1) on the remote key.
3. The doors will lock. The hazard warning lights will blink once.
4. Make sure the doors are locked by checking the position of the door
lock button inside the vehicle.
UnlockingTo unlock:
1. Press the Door Unlock button (2)on the remote key.
2. The doors will unlock. The hazard warning lights will blink two times.
Information
After unlocking the doors, the doors
will lock automatically after 30 sec-
onds unless a door is opened.i
$

+(('#&"*+'
%+
OIB034040
Do not leave the keys in your vehi-
cle with unsupervised children.
Unattended children could place
the key in the ignition switch and
may operate power windows or
other controls, or even make the
vehicle move, which could result in
serious injury or death.
WARNING

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
SSmart key (if equipped)Your HYUNDAI uses a Smart Key,
which you can use to lock or unlock
a door (and tailgate) and even start
the engine.
1. Door Lock
2. Door Unlock
3. Tailgate Unlock
Locking To lock :
1. Close all doors, engine hood and
tailgate.
2. Either press the door handle but- ton or press the Door Lock button
(1) on the smart key.
3. The hazard warning lights will blink once.
4. Make sure the doors are locked by checking the position of the door
lock button inside the vehicle.
Information
The door handle button will only
operate when the smart key is within
0.7~1 m (28~40 in.) from the outside
door handle. i
OIB044179
OIB044041

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
Even though you press the outside
door handle button, the doors will not
loc k and the chime will sound for
three seconds if any of the following
occur:
• The Smart Key is in the vehicle.
• The Engine Start/Stop button is in ACC or ON position.
• Any door except the tailgate is open.
UUnlockingTo unlock:
1. Carry the Smart Key.
2. Either press the door handle but-
ton or press the Door Unlock but-
ton (2) on the smart key.
3. The doors will unlock. The hazard warning lights will blink two times.
Information
The door handle button will onlyoperate when the smart key is with-
in 1 m (40 in.) from the outside door
handle. Other people can also open
the doors without the smart key in
possession.
After unlocking the doors, the doors will lock automatically after 30 sec-
onds unless a door is opened.i
Do not leave the Smart Key in
your vehicle with unsupervised
children. Unattended children
could press the Engine Start/ Stop
button and may operate power
windows or other controls, or even
make the vehicle move, which
could result in serious injury or
death.
WARNING
