2014 HONDA RIDGELINE navigation system

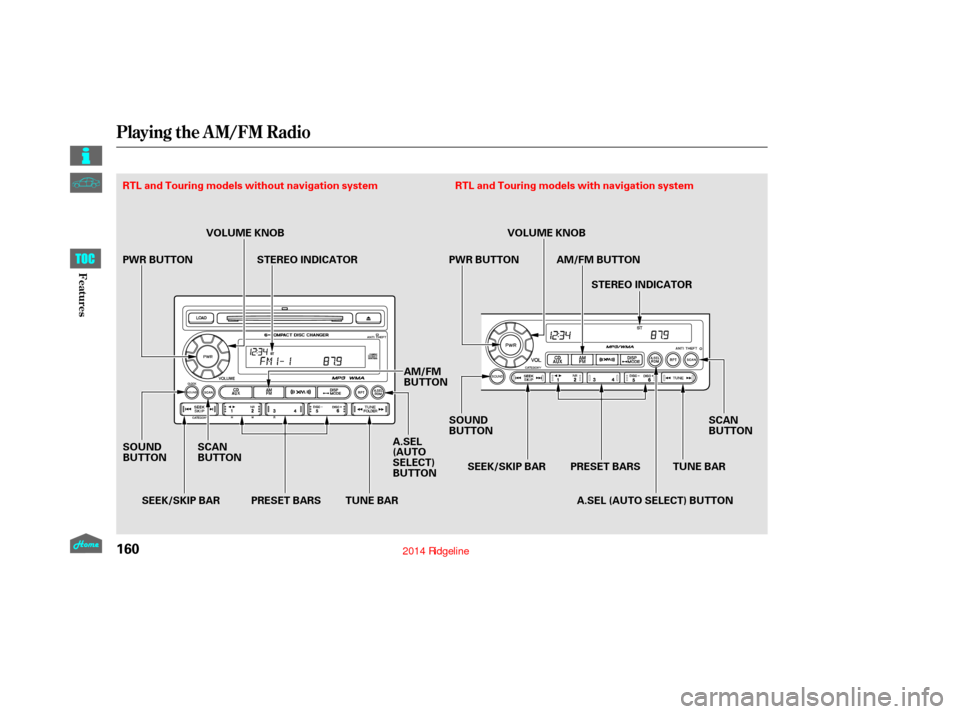

Playing the AM/FM Radio
160
SCAN
BUTTONTUNE BAR
PRESET BARS
SEEK/SKIP BAR
SOUND
BUTTON STEREO INDICATOR
TUNE BAR VOLUME KNOB
STEREO INDICATOR
AM/FM BUTTON
A.SEL (AUTO SELECT) BUTTON
SEEK/SKIP BAR
SOUND
BUTTON
AM/FM
BUTTON
VOLUME KNOB
A.SEL
(AUTO
SELECT)
BUTTON SCAN
BUTTON
PRESET BARS
RTL and Touring models without navigation system
RTL and Touring models with navigation system
PWR BUTTON PWR BUTTON
12/08/09 16:20:34 31SJC670_167
Features

µ
µ
µ
µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
bars, and auto select.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the side of the bar to tune
to a higher f requency, and press the side to tune to a lower
f requency.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
When the system finds a strong signal, it will stop and play that
station f or about 10 seconds.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR button or the AM/FM button.
Adjust the volume by turning the
volume knob.
Pushing the AUDIO button will also
turn on the system (see page ).
The band and f requency that the
radio was last tuned to are displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
On the AM band, AM noise
reduction turns on automatically. The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK/SKIP bar, then release it. If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
Each side of the bars (1
6) can store one f requency on AM
and two f requencies on FM.
Usethetune,seek,orscan
function to tune the radio to a
desired station. Select the desired band, AM or
FM. FM1 and FM2 let you store
six stations each.
Pick a preset number (1 6),
then press and hold it
until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
1.
2.
3.
4.
163
CONT INUED
On models with navigation system
T o Play the A M/FM Radio
T o Select a Station
TUNE
SCAN SEEK Preset
Playing the AM/FM Radio
161
12/08/09 16:20:45 31SJC670_168
Features

µ
µ
In addition to the knobs, buttons,
and bars on the radio control
panel, you can operate some of the
radio controls on the navigation
system screen. To adjust the sound, push the
AUDIO button, then enter the sound
grid by touching the SOUND icon on
the display.
While you are listening to the radio,
you can change to another band by
pressing the AUDIO button next to
the navigation system screen, and
then touching the desired band icon
(FM1, FM2, or AM).
AUTO SELECT, SCAN, and SOUND
are adjustable f rom the navigation
screen. For an explanation of these
f unctions, see pages and .
Touch the
A.SEL icon to activate the auto select
f unction. You will see A.SEL f lashing
on the display.
Touch the SCAN icon to
activate the scan function. You will
see SCAN on the display. Touch the
icon again to deactivate it. 161 162
CONT INUED
On models with navigation system
Operating the Radio on the
Navigation System Screen
AUTO SELECT
SCANA djust ing t he Sound
Playing the AM/FM Radio
163
AUDIO BUTTON
12/08/09 16:21:04 31SJC670_170
Features

µ
µ µ

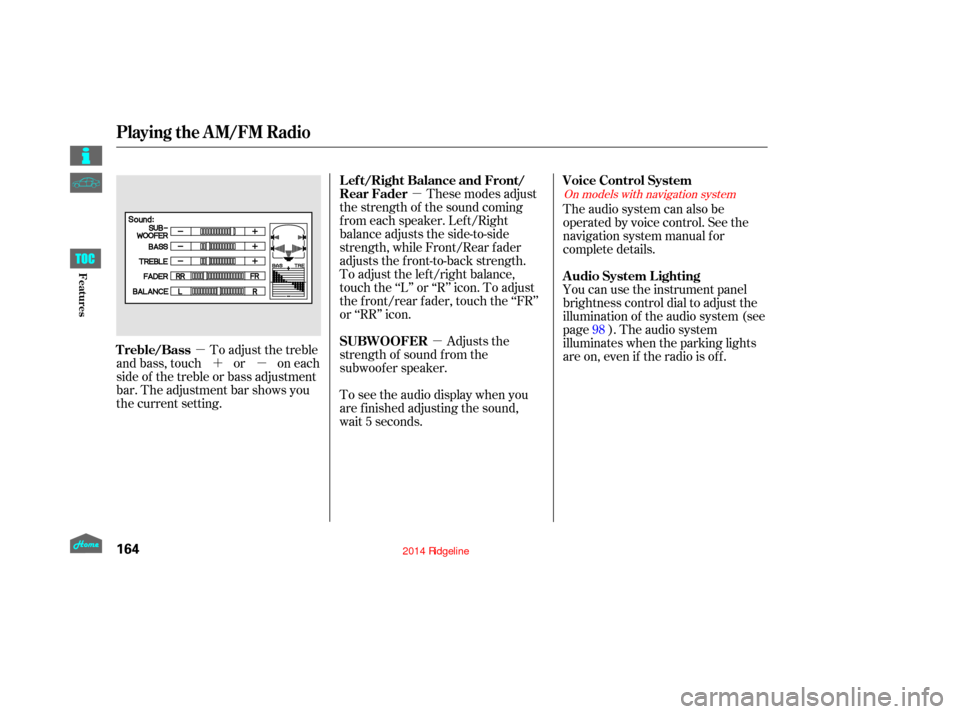

´µ These modes adjust
the strength of the sound coming
f rom each speaker. Lef t/Right
balance adjusts the side-to-side
strength, while Front/Rear f ader
adjusts the front-to-back strength.
To adjust the left/right balance,
touch the ‘‘L’’ or ‘‘R’’ icon. To adjust
the f ront/rear f ader, touch the ‘‘FR’’
or ‘‘RR’’ icon. The audio system can also be
operated by voice control. See the
navigation system manual f or
complete details.
To adjust the treble
and bass, touch or on each
side of the treble or bass adjustment
bar. The adjustment bar shows you
the current setting. Adjusts the
strength of sound f rom the
subwoof er speaker.
To see the audio display when you
are f inished adjusting the sound,
wait 5 seconds. You can use the instrument panel
brightness control dial to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
98On models with navigation system
L ef t/Right Balance and Front/
Rear Fader
Voice Control System
Treble/Bass SUBWOOFERA udio System L ighting
Playing the AM/FM Radio
164
12/08/09 16:21:11 31SJC670_171
Features

CONT INUED

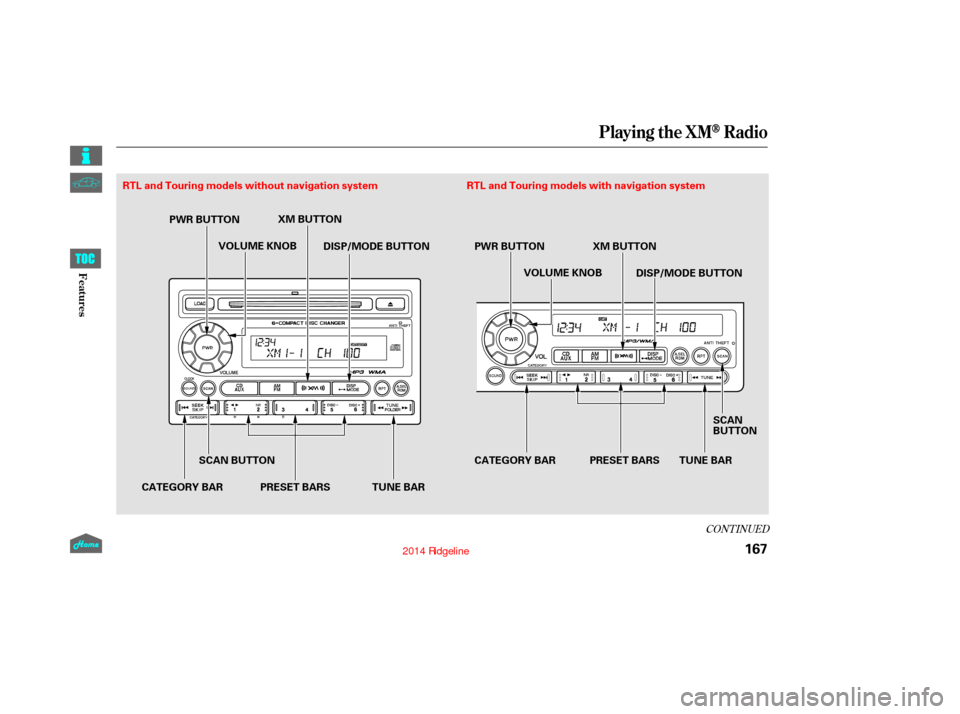

Playing the XMRadio
167
TUNE BAR
CATEGORY BAR CATEGORY BAR PRESET BARSSCAN
BUTTON
TUNE BAR
PRESET BARS XM BUTTON
XM BUTTON
VOLUME KNOB
VOLUME KNOB
SCAN BUTTON
RTL and Touring models without navigation system
RTL and Touring models with navigation system
PWR BUTTON DISP/MODE BUTTON PWR BUTTON DISP/MODE BUTTON
12/08/09 16:21:31 31SJC670_174
Features

µOn the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.

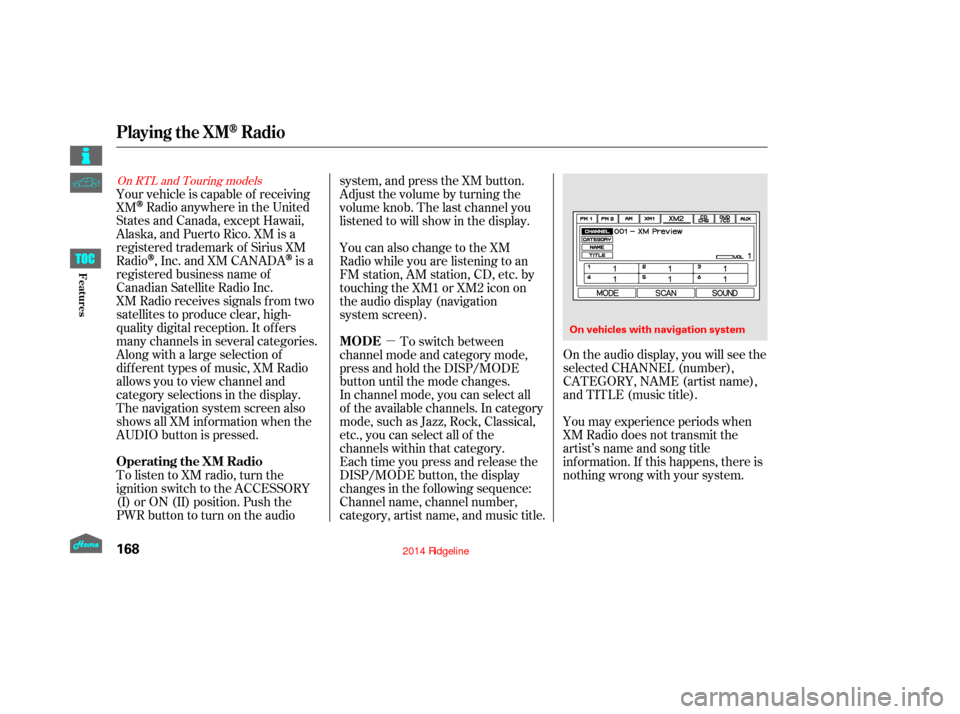

The navigation system screen also
shows all XM inf ormation when the
AUDIO button is pressed.
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position. Push the
PWR button to turn on the audio system, and press the XM button.
Adjust the volume by turning the
volume knob. The last channel you
listened to will show in the display.
Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
Channel name, channel number,
category, artist name, and music title. In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes. You can also change to the XM
Radio while you are listening to an
FM station, AM station, CD, etc. by
touching the XM1 or XM2 icon on
the audio display (navigation
system screen).
Your vehicle is capable of receiving
XM
Radio anywhere in the United
States and Canada, except Hawaii,
Alaska,andPuertoRico.XMisa
registered trademark of Sirius XM
Radio
,Inc.andXMCANADAis a
registered business name of
Canadian Satellite Radio Inc.
On RTL and Touring models
Playing the XMRadio
Operating the XM Radio MODE
168
On vehicles with navigation system
12/08/09 16:21:39 31SJC670_175
Features

You operate the CD player with the
same controls used for the radio. SeeThis audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA formats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
format, ‘‘WMA’’ will appear in
the display.
You can select up to 999 tracks/files.
If the number of tracks/files is
1,000 or more, the system can not
access them.
When there are more than 99 folders
in a disc, the display only shows
two digits.
You can select up to 400 tracks/f iles
in a disc.
A disc can support a maximum
number of 100 f olders, and each
f older can hold 255 playable f iles.If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA f iles, you can choose the
f ormat to listen by pressing and
holding CD/AUX or CD button until
you hear a beep.
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED
(UNSUPPORT on models with
navigation system), and then skips to
the next f ile.
Video CDs and DVDs do not work in
this unit.
Depending on the sof tware the f iles
were made with, it may not be
possible to play some f iles, or display
some text data.
You operate the CD changer with
the same controls used f or the radio.
For models without navigation
system, see pages through
.
For models with navigation system,
see pages through .
175
188
197
189 181
On models without navigation system
On models with navigation system
On RTS, RTL, and Touring models
On RT, DX, VP, and Sport models
Playing CDs
174
NOTE:
12/08/09 20:40:45 31SJC670_181
Features
operation inf ormation. See page f or the CD player

CONT INUED

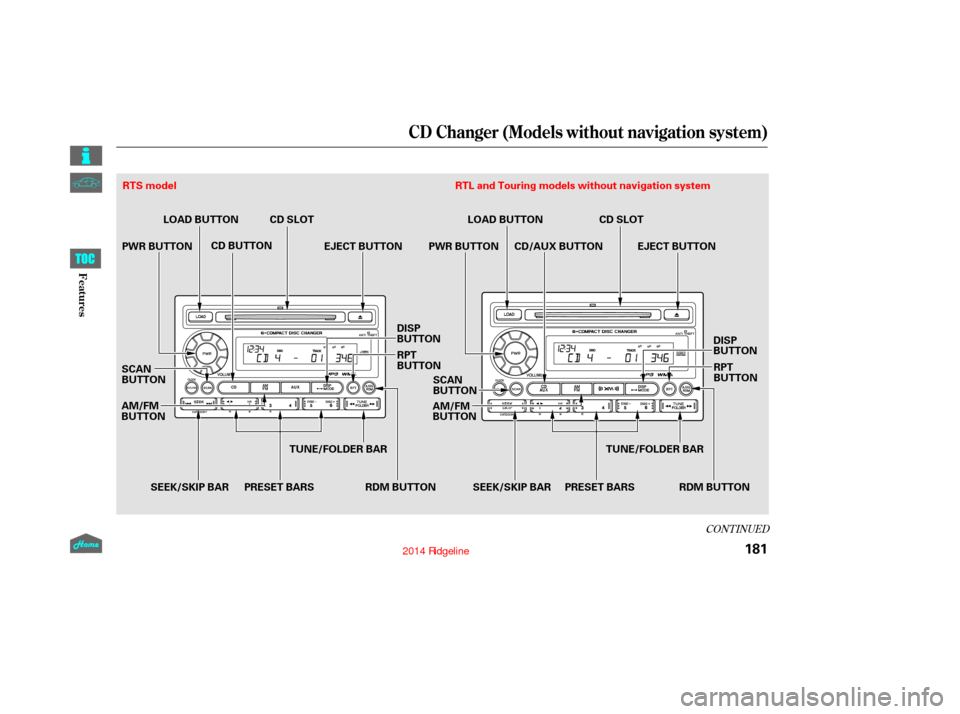

CD Changer (Models without navigation system)
181
AM/FM
BUTTONPRESET BARS
SCAN
BUTTON
TUNE/FOLDER BAR
CD SLOT
CD BUTTON
SEEK/SKIP BAR CD/AUX BUTTON
TUNE/FOLDER BAR
AM/FM
BUTTON
LOAD BUTTON
LOAD BUTTON
PWR BUTTON
SCAN
BUTTON
PWR BUTTON
EJECT BUTTON
EJECT BUTTON
SEEK/SKIP BAR PRESET BARS CD SLOT
RTS model
RTL and Touring models without navigation system
DISP
BUTTON RPT
BUTTON
RDM BUTTON RDM BUTTONRPT
BUTTON
DISP
BUTTON
