2014 HONDA PILOT light

409
uu Replacing Light Bulbs u High-Mount Brake Light Bulb
Maintenance

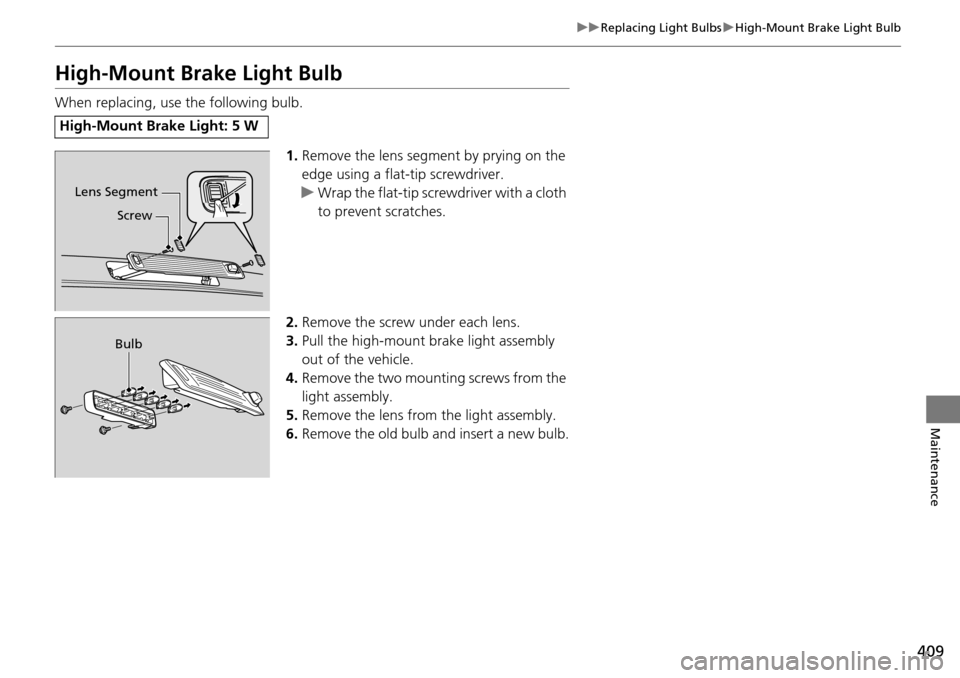

High-Mount Bra ke Light Bulb
When replacing, use the following bulb.
1.Remov
e the lens segment by prying on the
edge using a flat-tip screwdriver.
u Wrap the fla
t-tip screwdriver with a cloth
to prevent scratches.
2. Remove
the screw under each lens.
3.Pull the
high-mount brake light assembly
out of the vehicle.
4. Remove the
two mounting screws from the
light assembly.
5. Remove
the lens from the light assembly.
6.Remov
e the old bulb and insert a new bulb.
High-Mount Brake Light: 5 W
Screw
Lens Segment
Bulb

426
uu Remote Control and Wireless Headphone Care * u Replacing the Battery
Maintenance
If there is no sound coming from the wireless headphone, replace the battery.
1. To open the cover, inse rt a coin in the slot
and twist it slightly to pry the cover away
from the earpiece.
2. Make sure to r
eplace the battery with the
correct polarity.
■Wireless Headphone
Coin
Battery type: AAA
BatteryCover

435Continued

Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park
the vehicle on firm, level, and non-slippery surface an d apply the parking
brake.
2. Move t
he shift lever to (P
.
3. Turn
on the hazard warning lights an d turn the ignition switch to LOCK (0
.
1Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model.
Do not use them with another vehicle.
Do not use another type of compact spare tire or
wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.

444
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check brightness of the interior light.
Turn on interior lights and check brightness.
●If the interior lights are dim or do not come on at all
2 Battery P. 423●If the interior lights come on normally 2 Inspecting and Changing Fuses P. 458
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.
Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 342
Check the immobilizer system indicator.
When the immobilizer system indicator is bl
inking, the engine cannot be started.
2Immobilizer System P. 118
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 80
Check the fuse.
Check all fuses, or have the vehicle
checked by a dealer.
2Inspecting and Changing Fuses P. 458
If the problem continues:
2 Emergency Towing P. 459
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 445

445Continued

Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect
the first jumper cable to your
vehicle's + terminal.
2. Connect
the other end of the first jumper
cable to the booster battery + terminal.
u Us
e a 12-volt booster battery only.
3. Connect the
second jumper cable to the
booster battery - terminal.
4. Conn
ect the other end of the second
jumper cable to the grounding strap as
shown.
Do not connect this jumper cable to any
other part.
5. If yo
ur vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
6. Attem
pt to start your ve hicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1 Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3 WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery

448
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperat
ure gauge needle is at the mark or the engine suddenly loses
power.
• Steam
or spray comes out of the engine compartment.
■First thing to do
1. Im
mediately park the vehicle in a safe place.
2.Turn
off all accessories and turn on the hazard warning lights.
u No s
team or spray present: Keep the engine running and open the hood.
u Ste
am or spray is present: Turn off the engine and wait until it subsides.
Then, open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
needle at the mark may damage the engine.
3 WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
H
H

450
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the
vehicle on level ground in a safe place.
2. If
necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Stop the e
ngine and let it sit for about three minutes.
2. Open the hoo
d and check the oil level.
2Oil Check P. 393
3. Start the engine and check th e low oil pressure indicator.
u The light
goes out: Start driving again.
u The l
ight does not go out within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear
defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.

452
uu Indicator, Comin g On/Blinking u If the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brak
e fluid is low.
•There is a
malfunction in the brake system.
■What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal,
check the brake fluid level the next time you stop.
• If a
bnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Low Tire Pressure Indicator Comes On
■Reasons for the indicator to come on
A tire pressure is significantly low. If the
compact spare tire is installed,
the indicator stays on for a while, then goes off after driving a few miles
(kilometers).
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure
and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
Models with info rmation display
1If the Low Tire Pressure Indicator Comes On
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
