2014 HONDA CR-V Owners Manual

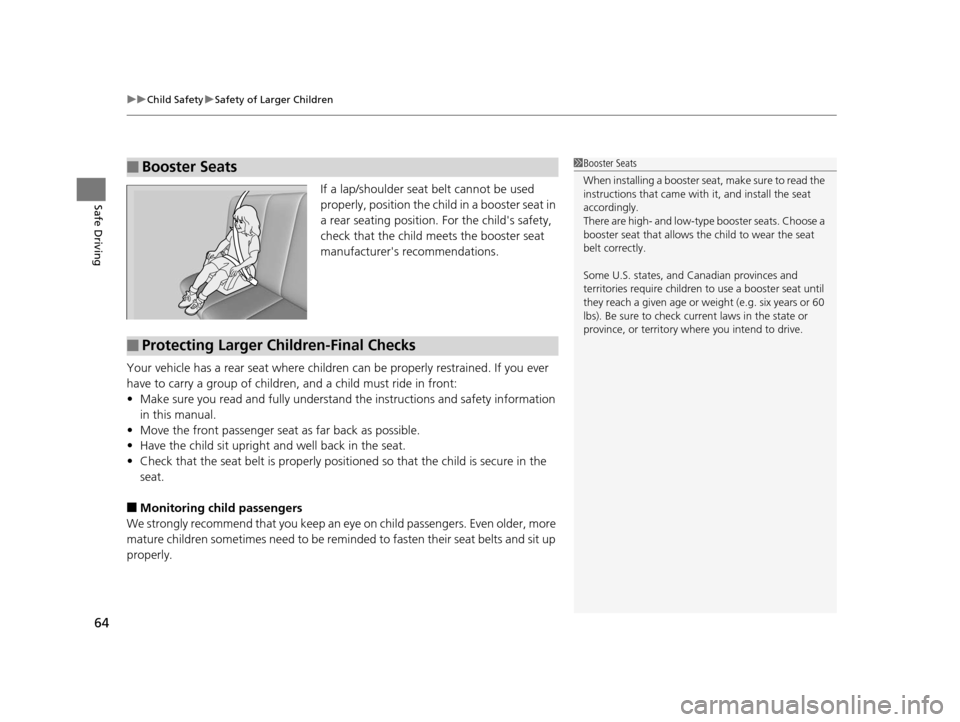

uuChild Safety uSafety of Larger Children
64
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
a rear seating position. For the child's safety,
check that the child m eets the booster seat
manufacturer's recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and full y understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or we ight (e.g. six years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children-Final Checks
14 CR-V-31T0A6200.book 64 ページ ２０１４年２月１０日　月曜日　午後７時１分

65
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailga te open, airflow can pull exhaust gas into
the interior and create a hazardous conditio n. If you must drive with the tailgate
open, open all the windows and set the heating and cooling system
*/climate control
system* as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the heating and cooling system
*/climate control system* in the same manner
if you sit in your parked vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediat ely after starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
* Not available on all models
14 CR-V-31T0A6200.book 65 ページ ２０１４年２月１０日　月曜日　午後７時１分

66
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
Radiator Cap U.S. models
U.S. models only Dashboard
Canadian models
Doorjambs
U.S. models only
Sun Visor
14 CR-V-31T0A6200.book 66 ページ ２０１４年２月１０日　月曜日　午後７時１分

67
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 68
Gauges and Displays Gauges .............................................. 77
Information Display............................ 78
intelligent Multi-Information Display (i-MID)... 81
14 CR-V-31T0A6200.book 67 ページ ２０１４年２月１０日　月曜日　午後７時１分

68
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanation
Parking Brake
and Brake
System Indicator
●Comes on for a few seconds when you
turn the ignition switch to ON
(w, then
goes off if the parking brake has been
released.
●Comes on when the parking brake is
applied, and goes off when it is released.
●Comes on when the brake fluid level is
low.
●Comes on if there is a problem with the
brake system.
●The beeper sounds and the indicator
comes on if you drive with the parking
brake not fully released.
●Comes on while driving - Make sure the parking
brake is released. Check the brake fluid level.
2 What to do when the indicator comes on while
driving P. 335
●Comes on along with the ABS indicator - Have
your vehicle checked by a dealer.
2 If the Brake System Indicator Comes On (Red)
P. 335
Low Oil Pressure
Indicator
●Comes on when you turn the ignition
switch to ON
(w, and goes off when the
engine starts.
●Comes on when the engine oil pressure is
low.
●Comes on while driving - Immediately stop in a safe
place.
2 If the Low Oil Pressure Indicator Comes On P. 333
U.S.
Canada
14 CR-V-31T0A6200.book 68 ページ ２０１４年２月１０日　月曜日　午後７時１分

69
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Malfunction
Indicator Lamp
●Comes on when you turn the ignition switch
to ON
( w, and goes off when the engine
starts, or after several seconds if the engine
did not start. If “readiness codes” have not
been set, it blinks five times before it goes off.
●Comes on if there is a problem with the
emissions control systems.
●Blinks when a misfire in the engine's cylinders
is detected.
●Readiness codes are part of the on board diagnostics
for the emissions control systems.
2 Testing of Readiness Codes P. 349●Comes on while driving - Have your vehicle
checked by a dealer.
●Blinks while driving - Stop in a safe place where
there are no flammable objects. Stop the engine for
10 minutes or more, and wa it for it to cool down.
Then, take your vehicle to a dealer.
2 If the Malfunction Indicator Lamp Comes On or
Blinks P. 334
Charging System
Indicator
●Comes on when you turn the ignition switch
to ON
( w, and goes off when the engine
starts.
●Comes on when the battery is not charging.
●Comes on while driving - Turn off the heating and
cooling system*/climate control system* and rear
defogger to reduce electricity consumption.
2 If the Charging System Indicator Comes On
P. 333
Shift Lever
Position Indicator
●Indicates current the shift lever position.
(d indicator:●Comes on for a few seconds when you turn
the ignition switch to ON
(w, then goes off.●Comes on when you press the (d button
while the shift lever is in
(D.
2 Shifting P. 243
* Not available on all models
14 CR-V-31T0A6200.book 69 ページ ２０１４年２月１０日　月曜日　午後７時１分

70
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Transmission
Indicator
●Comes on for a few seconds when you turn
the ignition switch to ON
(w, then goes off.●Blinks if the transmission system has a
problem.
●Blinks while driving - Avoid sudden starts and
acceleration and have your vehicle checked by a dealer
immediately.
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds if you are
not wearing a seat belt when you turn the
ignition switch to ON
(w.●If the front passenger is not wearing a seat
belt, the indicator comes on a few seconds
later.
●Blinks while driving if either you or the front
passenger has not fastened a seat belt. The
beeper sounds and the indicator blinks at
regular intervals.
●The beeper stops and the in dicator goes off when you
and the front passenger fasten their seat belts.
●Stays on after you or the front passenger has
fastened the seat belt - A detection error may have
occurred in the sensor. Have your vehicle checked by a
dealer.
2 Seat Belt Reminder P. 30
Low Fuel
Indicator
●Comes on when the fuel reserve is running
low (approximately 2.3 U.S. gal./8.6 Liter left).
●Blinks if there is a problem with the fuel
gauge.
●Comes on - Refuel your vehicle as soon as possible.●Blinks - Have your vehicle checked by a dealer.
14 CR-V-31T0A6200.book 70 ページ ２０１４年２月１０日　月曜日　午後７時１分

71
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Anti-lock Brake
System (ABS)
Indicator●Comes on for a few seconds when you turn
the ignition switch to ON
(w, then goes off.●If it comes on at any other time, there is a
problem with the ABS.
●Stays on constantly - Have your vehicle checked by
a dealer. With this indicator on, your vehicle still has
normal braking ability but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 258
Supplemental
Restraint System
Indicator
●Comes on for a few seconds when you turn
the ignition switch to ON
(w, then goes off.●Comes on if a problem with any of the
following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●Stays on constantly or does not come on at all -
Have your vehicle checked by a dealer.
All-Wheel Drive
( AWD ) System
Indicator
*
●Comes on for a few seconds when you turn
the ignition switch to ON
(w, then goes off.●Comes on if there is a problem with the
AWD.
●Blinks when the AWD sy stem is overheated.
The system is inactive.
●Stays on constantly - the engine drives the front
wheels only in this state. Have your vehicle checked
by a dealer.
●Blinks while driving - the engine drives the front
wheels only in this state. Stop in a safe place, shift to
(P, and idle the engine until the indicator goes off. If
the indicator does not stop b linking, take your vehicle
to a dealer.
2 Real Time AWD with Intelligent Control
SystemTM* P. 251
* Not available on all models
14 CR-V-31T0A6200.book 71 ページ ２０１４年２月１０日　月曜日　午後７時１分
