2014 HONDA CR-V Owners Manual

uuAdjusting the Seats uAdjusting the Seat Positions
128
Controls
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor until the vehicle is safely parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
■Maintain a Proper Sitting Position1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
14 CR-V-31T0A6200.book 128 ページ ２０１４年２月１０日　月曜日　午後７時１分

129
uuAdjusting the Seats uRear Seats
Continued
Controls
Rear Seats
The rear seats can be folded down separa tely to allow for additional storage space.
■To fold down the seat
1. Store the center seat belt first. Insert the la tch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the ceiling.
2 Seat Belt with Detachable Anchor P. 34
3.Lower the center head restraint to its lo west position. Put the armrest back into
the seat-back.
4.Pull the release strap.
u The seat cushion flips forward, the head
restraints tilt down ward, and the seat-
back then folds flat.
4. Pull the release lever.
u The seat cushion flips forward, the head
restraints tilt down ward, and the seat-
back then folds flat.
■Folding Down the Rear Seats1 Folding Down the Rear Seats
Make sure all items in the cargo area or items
extending to the rear seats are properly
secured. Loose items can fly forward if you have
to brake hard.
Remove any items from th e rear seat cushion and
floor before you fold down the rear seat.
Make sure the seat-back completely lowers (a click
sounds). Otherwise it will no t re-latch when returned
to the upright position.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Pull
From the rear door side
LeverFrom the cargo area side
14 CR-V-31T0A6200.book 129 ページ ２０１４年２月１０日　月曜日　午後７時１分

uuAdjusting the Seats uRear Seats
130
Controls
■To return the seat to the original
position
1. Pull the seat-back up and push back into
place until a click is heard.
2. Push the head restraint up to its original
position.
3. Pull the seat cushion up and push it down
into its original position.
Pull the lever on the right to change the angle
of the right half of the seat-back, and left for
the left half.
■Rear Seat-back Adjusting
1 To return the seat to the original position
Make sure the seat-back, head restraints and seat
cushion are securely latche d back into place before
driving.
14 CR-V-31T0A6200.book 130 ページ ２０１４年２月１０日　月曜日　午後７時１分

131
uuAdjusting the Seats uArmrest
Controls

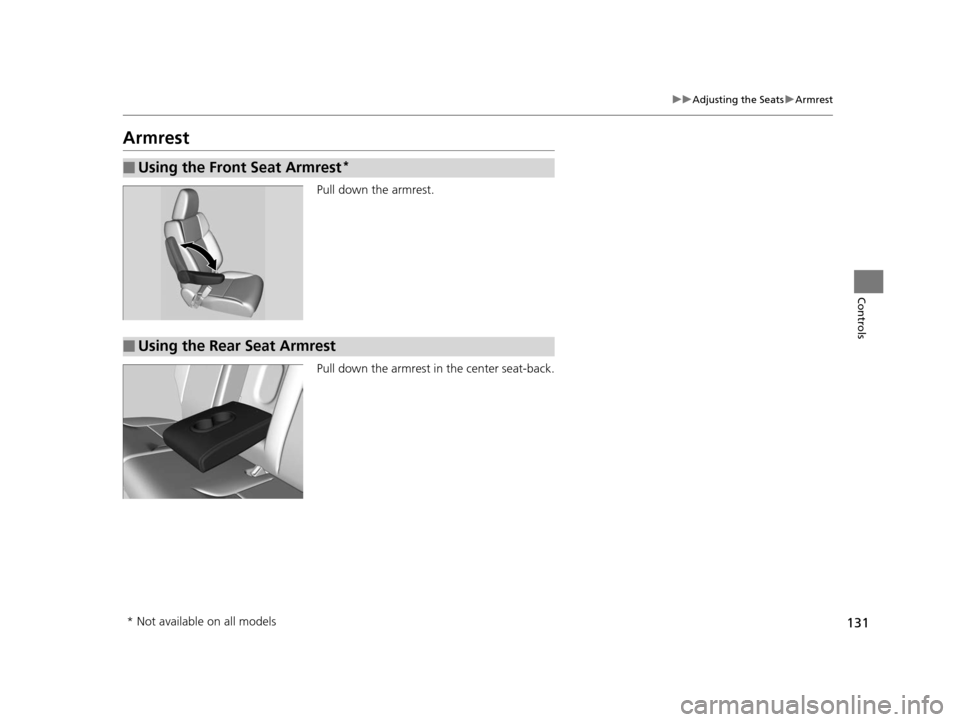

Armrest
Pull down the armrest.
Pull down the armrest in the center seat-back.
■Using the Front Seat Armrest*
■Using the Rear Seat Armrest
* Not available on all models
14 CR-V-31T0A6200.book 131 ページ ２０１４年２月１０日　月曜日　午後７時１分

132
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver's door.
• You remove the key from the ignition
switch.
Only the cargo area light comes on when the
tailgate is opened.
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
The map lights can be turned on and off by
pressing the lenses.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver's door but do not open
it.
•When you remove the key from the ignition switch
but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 84
The interior lights go off i mmediately in the following
situations:
•When you lock the driver's door.
•When you close the driver's door with the key in
the ignition switch.
•When you turn the ignition switch to ON ( w.
If you leave any doors open without the key in the
ignition switch, the interior lights go off after about
15 minutes.
Door Activated Position
Off
Front
Door Activated Position
On
Off
Rear and Cargo Area
■Map Lights
1 Map Lights
When the interior light swit ch is in the door activated
position and any door is open, pressing the lens does
not turn off the map light.
14 CR-V-31T0A6200.book 132 ページ ２０１４年２月１０日　月曜日　午後７時１分

133
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key.
Slide the lid using the release knob to open or
close the console compartment.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
■Console Compartment
14 CR-V-31T0A6200.book 133 ページ ２０１４年２月１０日　月曜日　午後７時１分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
134
Controls
■Front seat beverage holders
Are located in the console between the front
seats.
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
14 CR-V-31T0A6200.book 134 ページ ２０１４年２月１０日　月曜日　午後７時１分

Continued135
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The accessory power so ckets can be used when the i gnition switch is in ACCESSORY
(q or ON (w.
■Accessory power socket on the console
panel
Open the cover to use it.
■Accessory power socket in the console
compartment*
Open the console lid and the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 180
watts or less (15 amps).
To prevent battery drain, only use the power socket
with the engine running.
When both sockets are being used, the combined
power rating of the accesso ries should not exceed
180 watts (15 amps).
* Not available on all models
14 CR-V-31T0A6200.book 135 ページ ２０１４年２月１０日　月曜日　午後７時１分
