2014 HONDA CIVIC key

uuWhen Driving uStarting the Engine
314Driving
3. Turn the ignition switch to START
(e

without depressing the accelerator pedal.
1. Keeping your right foot on the brake pedal, release the parking brake. Check that
the parking brake indicator has gone off.
2 Parking Brake P. 337
2.Put the shift lever in
(D
. Select
(R
when reversing.
3. Gradually release the brake pedal and gently depress the accelerator pedal to pull
away.
■Hill start assist system
Hill start assist keeps the brake engaged briefly to help prevent the vehicle from
rolling on inclines as you move your foot from the brake pedal to the accelerator.
Depress the clutch pedal, and shift to
(1
when facing uphill, or
(R
when facing
downhill, then release the brake pedal.
Move the shift lever to
(D
, (S
, or
(L
when facing uphill, or
(R
when facing
downhill, then release the brake pedal.
1 Starting the Engine
Do not hold the key in START
(e for more than 15
seconds.
•If the engine does not start right away, wait for at
least 10 seconds before trying again.•If the engine starts, but then immediately stops,
wait at least 10 seconds before repeating step 3
while gently depressing the acce lerator pedal.
Release the accelerator pedal once the engine
starts.
The immobilizer system protects your vehicle from
theft. If an improperly coded key (or other device) is
used, the engine's fuel system is disabled. 2 Immobilizer System P. 125
All models
■
Starting to DriveAutomatic transmission (CVT) modelsManual transmission modelsAutomatic transmission (CVT) models
1Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very steep or slippery slope, and
does not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.

320
uuWhen Driving uShifting
Driving
ShiftingChange the shift position in accordance with your driving needs.■Shift lever positions*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.Automatic transmission (CVT) models
1 Shifting
You cannot turn the ignition switch to LOCK
(0*1
and remove the key unless the shift lever is in
( P.
The vehicle may move forward very slightly even in
( N while the engine is cold.
Depress the brake pedal firmly and, when necessary,
apply the parking brake.
Reverse
Used when reversingDrive
Used for normal drivingPark
Used when parking or starting the engine
Neutral
Used when idling
Release ButtonDrive (S)
Used:●For better acceleration●To increase engine braking●When going up or down hills
Low●Used to further increase engine braking●Used when going up or down hills

401
Continued
Maintenance
Remote Transmitter Care
*
Replacing the Button BatteryIf the indicator does not come on when the button is pressed, replace the battery.
1.Unscrew the cover with a small Phillips-
head screwdriver.
2. Open the remote transmitter.
u Wrap the small flat-tip screwdriver with a
cloth to prevent scratching the
transmitter.
3. Remove the button battery with the small
flat-tip screwdriver.
4. Make sure to replace the battery with the
correct polarity.■
Master Keys with Remote Transmitter
*
1Replacing the Button BatteryNOTICEAn improperly disposed of battery can damage the
environment. Always confirm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Screw
Battery type: CR1620
Battery* Not available on all models

402
uuRemote Transmitter Care
*uReplacing the Button Battery
Maintenance
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Remove carefully to avoid losing the
buttons.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
3. Make sure to replace the battery with the
correct polarity.
■
Smart Entry Remote
*
Battery type: CR2032
Battery
* Not available on all models

432Handling the Unexpected

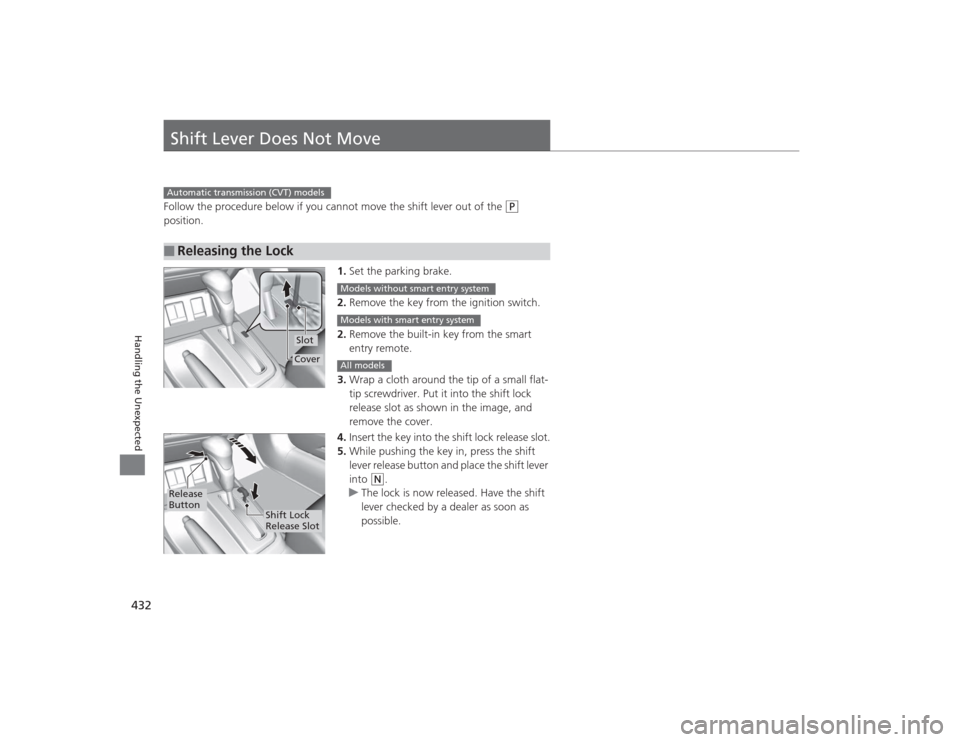

Shift Lever Does Not MoveFollow the procedure below if you cannot move the shift lever out of the
(P

position.
1.Set the parking brake.
2. Remove the key from the ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.
4. Insert the key into the shift lock release slot.
5. While pushing the key in, press the shift
lever release button and place the shift lever
into
(N
.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■
Releasing the LockAutomatic transmission (CVT) models
SlotCover
Models without smart entry systemModels with smart entry systemAll models
Release
Button
Shift Lock
Release Slot

440
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.■Circuit protected and fuse rating■
Interior Fuse BoxFuse Label
Circuit Protected
Amps
1
HAC Option
*
(20 A)
2
ACG
10 A
3
SRS
10 A
4
Fuel Pump
15 A
5
Meter
7.5 A
6
Power Window
7.5 A
7
VB SOL
*
(15 A)
8
Door Lock Motor 2 (Unlock)
15 A
9
Door Lock Motor 1 (Unlock)
15 A
10
−
−
11
Moonroof
*
(20 A)
12
Accessory Power Socket
(Center Console)
*
(20 A)
13
−
−
14
Seat Heaters
*
(15 A)
15
Driver’s Door Lock Motor (Unlock)
*
(10 A)
16
−
−
17
−
−
18
−
−
19
ACC
7.5 A
20
ACC Key Lock
7.5 A
21
Daytime Running Lights
7.5 A
22
HAC
7.5 A
23
HAC
*
(7.5 A)
24
ABS/VSA
7.5 A
25
ACC
*
(7.5 A)
26
−
−
27
Accessory Power Socket (Front)
20 A
28
Washer
(15 A)
29
ODS
7.5 A
30
Driver’s Door Lock Motor
(Lock)
*
(10 A)
31
SMART
*
(10 A)
32
Door Lock Motor 2 (Lock)
15 A
Circuit Protected
Amps
33
Door Lock Motor 1 (Lock)
15 A
34
Small Lights
7.5 A
35
Illumination
7.5 A
36
−
−
37
−
−
38
Left Headlight High Beam
10 A
39
Right Headlight High Beam
10 A
40
TPMS
*
(7.5 A)
41
Door Lock
20 A
42
Driver’s Power Window
20 A
43
Rear Passenger’s Side Power Window
(20 A)
44
Front Passenger’s Side Power Window
20 A
45
Rear Driver’s Side Power Window
(20 A)
46
Wiper
(30 A)
−
STS
*
(7.5 A)
Circuit Protected
Amps
* Not available on all models

459Index
Display Button.......................................... 198
Display/Information Button ...................... 86
Door Mirrors ............................................. 144
Doors ........................................................ 106
Auto Door Locking.................................. 117
Auto Door Unlocking .............................. 117
Door Open Indicator ........................... 31, 72
Keys........................................................ 106
Locking/Unlocking the Doors from the Inside .............................................. 114
Locking/Unlocking the Doors from
the Outside ........................................... 109
Lockout Prevention System ..................... 113
DOT Tire Quality Grading ........................ 394
Driving ...................................................... 303
Automatic Transmission (CVT)................. 319
Braking ................................................... 337
Cruise Control ........................................ 326
Shifting Gear .......................................... 322
Shifting Position ...................................... 320
Starting the Engine ......................... 313, 315
Dust and Pollen Filter .............................. 403EEco Assist System.......................................... 7
ECON Button ............................................ 325
Elapsed Time .............................................. 88
Electric Power Steering (EPS) System ........ 73
Indicator ........................................... 73, 437
Electronic Stability Control (ESC) ............ 329Emergency
................................................ 442
Emergency Engine Stop ........................... 428
Emergency Trunk Opener ........................ 124
Emissions Testing (Readiness Codes) ....... 451
Engine ....................................................... 448
Coolant ................................................... 371
Jump Starting .......................................... 429
Oil ........................................................... 364
Starting ........................................... 313, 315
Switch Buzzer .......................................... 131
Engine Coolant ......................................... 371
Adding to the Radiator ............................ 372
Adding to the Reserve Tank ..................... 371
High Temperature Indicator ....................... 72
Low Temperature Indicator ........................ 75
Overheating ............................................ 433
Engine Oil ................................................. 364
Adding .................................................... 367
Checking ................................................. 365
Displaying Oil Life ............................ 353, 357
Low Oil Pressure Indicator .................. 69, 435
Recommended Engine Oil ........................ 364
ENGINE START/STOP Button .................... 132
EPS (Electric Power Steering) System ...... 437
Exhaust Gas Hazard (Carbon
Monoxide) ................................................. 64
Expanded View Driver’s Mirror ............... 145
Exterior Care (Cleaning) ........................... 406
Exterior Mirrors ........................................ 144
FFeatures.................................................... 169
Filters Dust and Pollen ....................................... 403
Oil ........................................................... 368
Flat Tire ..................................................... 411
Floor Mats ................................................. 405
Fluids
Brake/Clutch ........................................... 374
Continuously Variable Transmission (CVT) ..................................................... 373
Engine Coolant ....................................... 371
Manual Transmission ............................... 373
Windshield Washer ................................. 375
Fog Light Indicator ..................................... 74
Folding Down the Rear Seats .................. 152
Foot Brake ................................................ 338
Front Airbags (SRS) ..................................... 42
Front Seats ................................................ 146
Adjusting ................................................ 146
Fuel ...................................................... 18, 343
Economy ................................................. 346
Gauge ....................................................... 82
Instant Fuel Economy .......................... 82, 89
Low Fuel Indicator ..................................... 71
Range ................................................. 85, 88
Recommendation .................................... 343
Refueling................................................. 343
Fuel Economy ........................................... 346
Fuel Fill Cap ........................................ 18, 345
Message.................................................. 436

461Index
Lights On .................................................. 74
Low Fuel ................................................... 71
Low Oil Pressure ............................... 69, 435
Low Temperature...................................... 75
Low Tire Pressure/TPMS ............ 73, 333, 335
Maintenance Minder......................... 76, 353
Malfunction Indicator Lamp .............. 69, 436
Parking Brake and Brake System (Red) ............................................... 68, 437
REV..................................................... 76, 83
Seat Belt Reminder.............................. 33, 70
Security System Alarm............................... 75
Shift Lever Position.................................... 70
Smart Entry System ................................... 75
Supplemental Restraint System ........... 49, 71
System Message ....................................... 74
Transmission ............................................. 70
Trunk Open .............................................. 73
Turn Signal ............................................... 74
Vehicle Stability Assist (VSA ®)
System ............................................ 72, 329
VSA ® OFF.......................................... 72, 330
Washer Level ............................................ 76
Information .............................................. 443
Information Display ................................... 84
Instant Fuel Economy .......................... 82, 89
Instrument Panel ........................................ 67
Brightness Control .................................. 141
intelligent Multi-Information Display (i-MID) ....................................................... 86
Interior Lights ........................................... 154 Interior Rearview Mirror
.......................... 144
i-VTEC and REV Indicators .......................... 83
JJack (Wheel Nut Wrench)........................ 414
Jump Starting ........................................... 429KKey Number Tag ....................................... 107
Keyless Lockout Prevention ..................... 113
Keys ........................................................... 106
Lockout Prevention .................................. 113
Master Keys ............................................. 106
Number Tag ............................................ 107
Rear Door Won’t Open ............................ 116
Remote Transmitter ................................. 109
Types and Functions ................................ 106
Valet Key ................................................. 107
Won’t Turn ................................................ 21
Kickdown (Automatic Transmission) ....... 319LLaneWatch
TM............................................. 331
Language (HFL) ................................. 247, 278
LATCH (Child Seats) .................................... 57 Lights
................................................. 136, 376
Automatic ............................................... 137
Bulb Replacement ................................... 376
Daytime Running Lights........................... 139
Fog Lights ............................................... 139
High Beam Indicator .................................. 74
Interior .................................................... 154
Light Switches ......................................... 136
Lights On Indicator .................................... 74
Turn Signals ............................................ 136
Load Limits ................................................ 307
Locking/Unlocking .................................... 106
Auto Door Locking/Unlocking.................. 117
Childproof Door Locks............................. 116
From Inside ............................................. 114
From Outside .......................................... 109
Keys ........................................................ 106
Using a Key ............................................. 113
Lockout Prevention System ..................... 113
Low Battery Charge ................................. 435
Low Fuel Indicator ...................................... 71
Low Oil Pressure Indicator ................. 69, 435
Low Smart Entry Remote Signal Strength .................................................. 108
Lower Anchors ............................................ 57
Lubricant Specifications Chart ......... 444, 446
Luggage (Maximum Load Limit) ............. 307
