2014 HONDA CIVIC display

uuAudio System Basic Operation uPlaying a CD
208Features
1. Select MENU and select Music Search .
2. Select a folder.
3. Select a track.
■

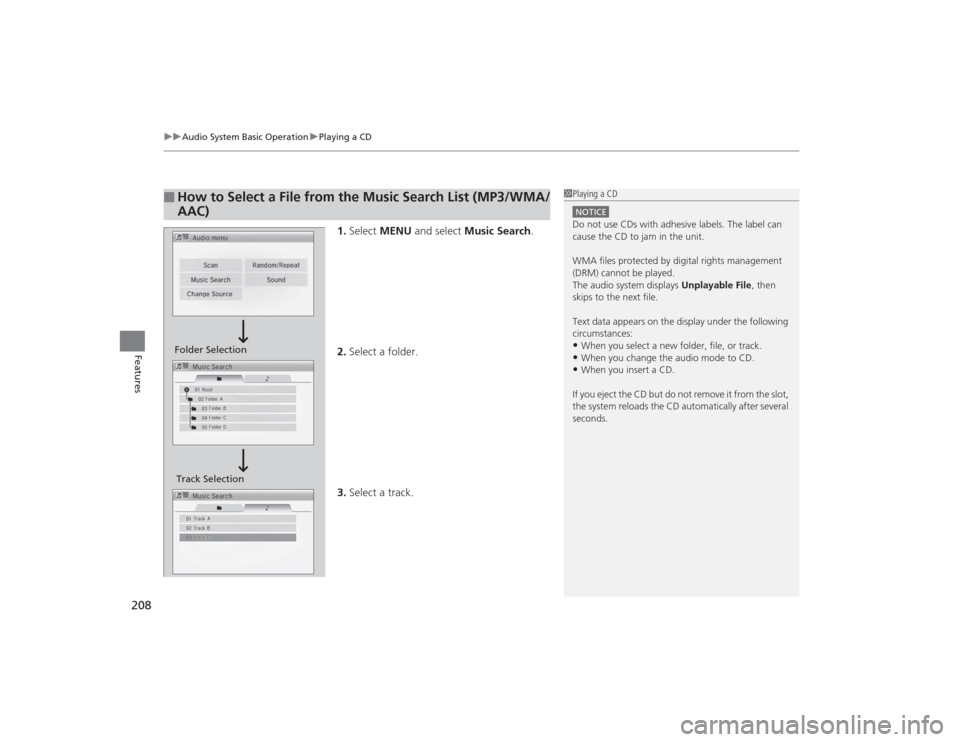

How to Select a File from the Music Search List (MP3/WMA/
AAC)
1Playing a CDNOTICEDo not use CDs with adhesive labels. The label can
cause the CD to jam in the unit.
WMA files protected by digital rights management
(DRM) cannot be played.
The audio system displays Unplayable File, then
skips to the next file.
Text data appears on the display under the following
circumstances:•When you select a new folder, file, or track.•When you change the audio mode to CD.•When you insert a CD.
If you eject the CD but do not remove it from the slot,
the system reloads the CD automatically after several
seconds.
Folder Selection
Track Selection

210

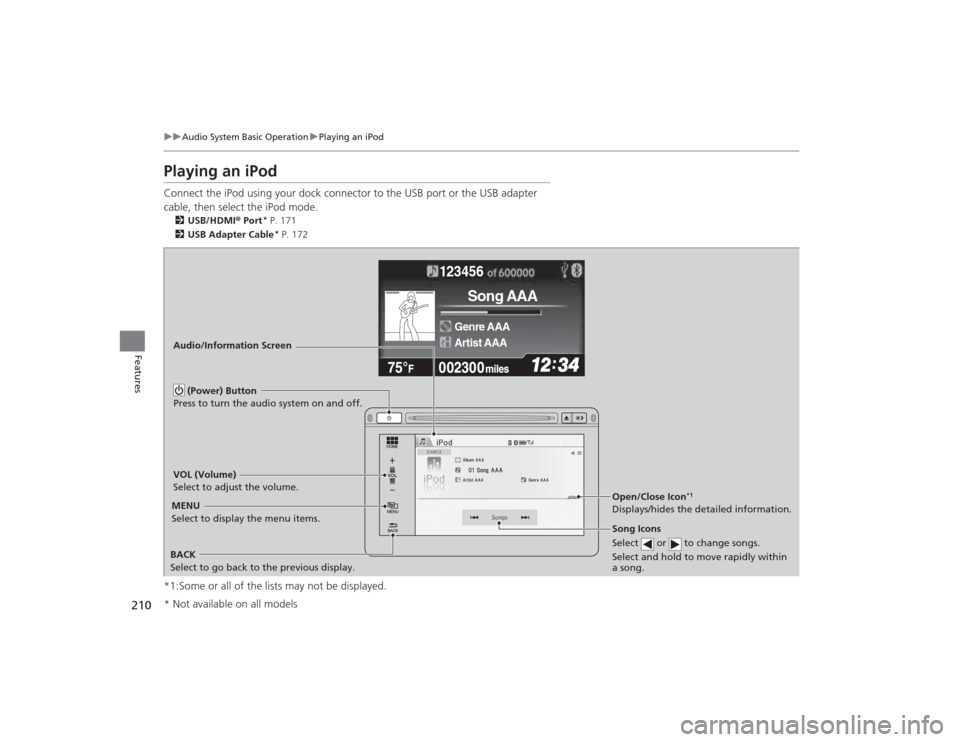

uuAudio System Basic Operation uPlaying an iPod
Features
Playing an iPodConnect the iPod using your dock connector to the USB port or the USB adapter
cable, then select the iPod mode.2 USB/HDMI ® Port
* P. 171
2 USB Adapter Cable* P. 172
*1:Some or all of the lists may not be displayed.
eƒŒ
_
NO>q_Š€“‹>___
123456
Genre AAA
Song AAA
Artist AAA
Audio/Information Screen
BACK
Select to go back to the previous display. VOL (Volume)
Select to adjust the volume.
Song Icons
Select or to change songs.
Select and hold to move rapidly within
a song.MENU
Select to display the menu items. (Power) Button
Press to turn the audio system on and off.
Open/Close Icon
*1
Displays/hides the detailed information.
* Not available on all models

Continued
211
uuAudio System Basic Operation uPlaying an iPod
Features
1. Select MENU and select Music Search .
2. Select the items on that menu.
■
How to Select a Song from the Music Search List
1How to Select a Song from the Music Search List
Available operating functions vary on models or
versions. Some functions may not be available on the
vehicle's audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive
* P. 225
If you operate the music app on your iPhone/iPod
while the phone is connected to the display audio
system, you may no longer be able to operate the
same app on the display audio. Reconnect the device
if necessary.
Folder Selection
Track Selection* Not available on all models

213

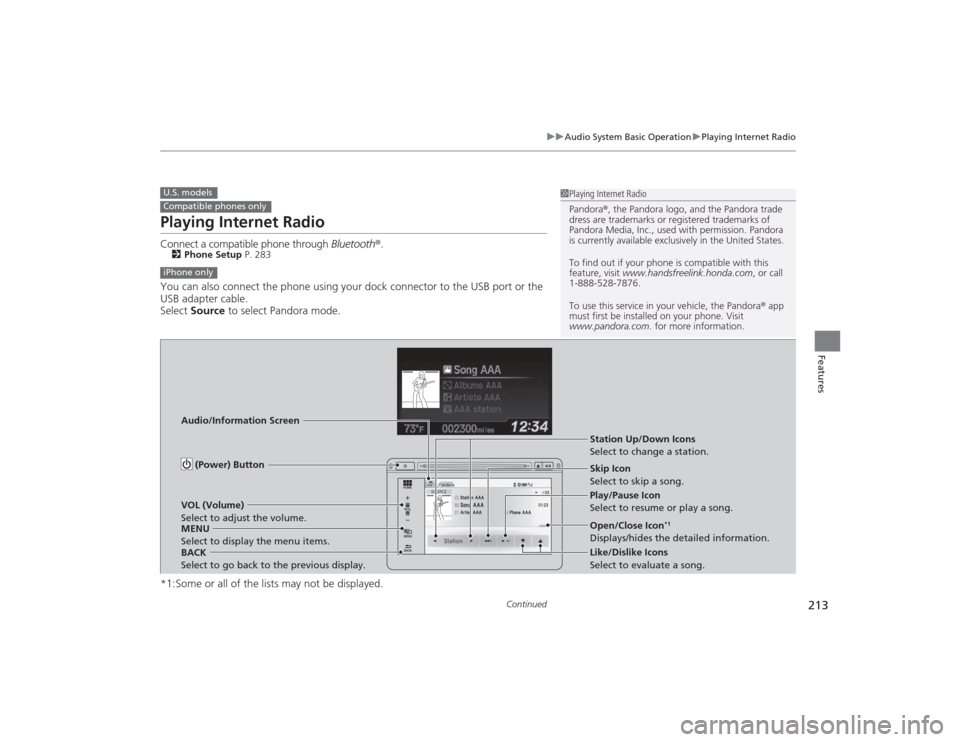

uuAudio System Basic Operation uPlaying Internet Radio
Continued
Features
Playing Internet RadioConnect a compatible phone through Bluetooth®.2Phone Setup P. 283You can also connect the phone using your dock connector to the USB port or the
USB adapter cable.
Select Source to select Pandora mode.
*1:Some or all of the lists may not be displayed.U.S. modelsCompatible phones only
1 Playing Internet Radio
Pandora ®, the Pandora logo, and the Pandora trade
dress are trademarks or regi stered trademarks of
Pandora Media, Inc., used with permission. Pandora
is currently available exclusively in the United States.
To find out if your phone is compatible with this
feature, visit www.handsfreelink.honda.com , or call
1-888-528-7876.
To use this service in your vehicle, the Pandora ® app
must first be installed on your phone. Visit
www.pandora.com . for more information.
iPhone only
Audio/Information Screen
BACK
Select to go back to the previous display. VOL (Volume)
Select to adjust the volume.
MENU
Select to display the menu items. (Power) Button
Station Up/Down Icons
Select to change a station.
Skip Icon
Select to skip a song.
Play/Pause Icon
Select to resume or play a song.
Open/Close Icon
*1
Displays/hides the detailed information.
Like/Dislike Icons
Select to evaluate a song.

215

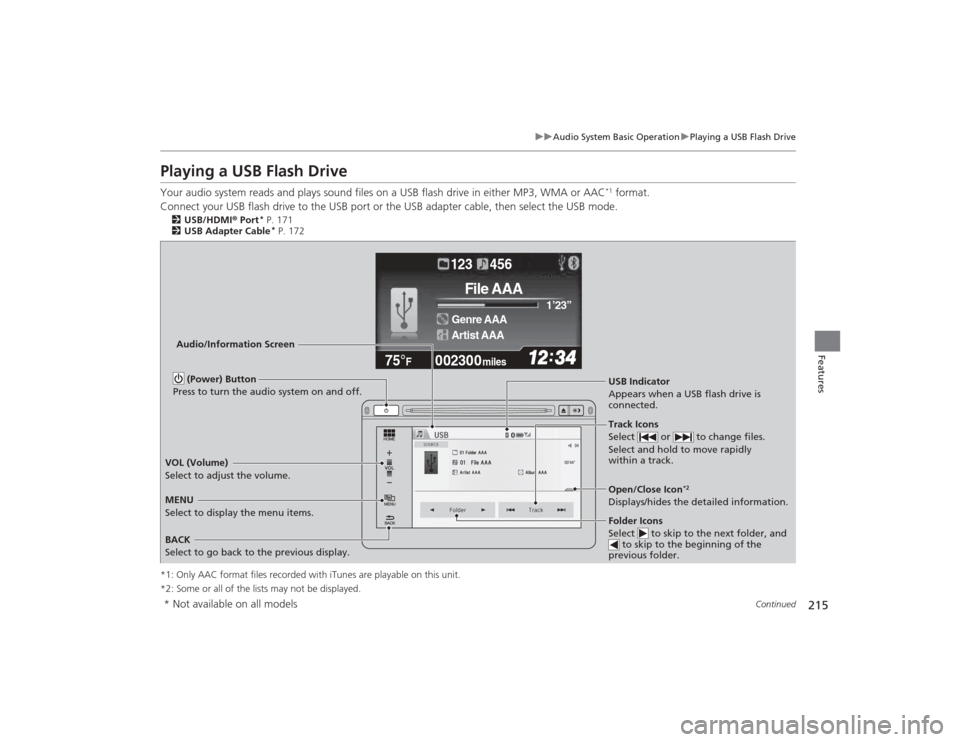

uuAudio System Basic Operation uPlaying a USB Flash Drive
Continued
Features
Playing a USB Flash DriveYour audio system reads and plays sound files on a USB flash drive in either MP3, WMA or AAC
*1 format.
Connect your USB flash drive to the USB port or the USB adapter cable, then select the USB mode.
2 USB/HDMI® Port
* P. 171
2 USB Adapter Cable* P. 172
*1: Only AAC format files recorded with iTunes are playable on this unit.
*2: Some or all of the lists may not be displayed.
002300
75°
F miles
Genre AAA 1’23’’
File AAA
Artist AAA123 456
Audio/Information Screen
BACK
Select to go back to the previous display. (Power) Button
Press to turn the audio system on and off.
Track Icons
Select or to change files.
Select and hold to move rapidly
within a track.
MENU
Select to display the menu items. USB Indicator
Appears when a USB flash drive is
connected.
Folder Icons
Select to skip to the next folder, and
to skip to the beginning of the
previous folder.VOL (Volume)
Select to adjust the volume.
Open/Close Icon
*2
Displays/hides the detailed information.
* Not available on all models

uuAudio System Basic Operation uPlaying a USB Flash Drive
216Features
1. Select MENU and select Music Search .
2. Select a folder.
3. Select a track.
■

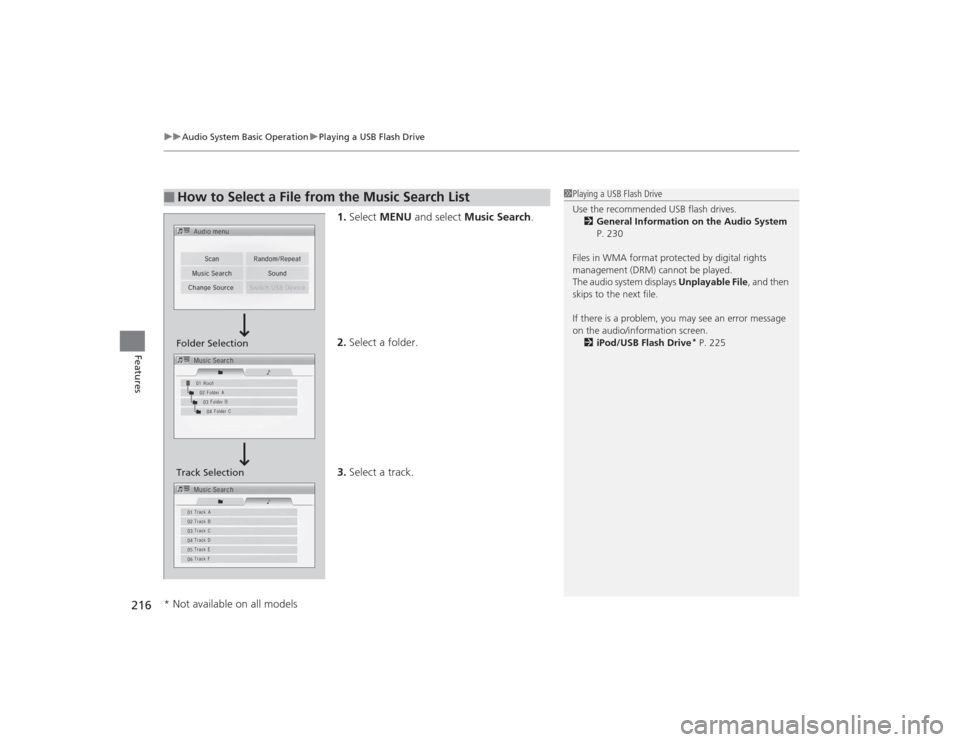

How to Select a File from the Music Search List
1Playing a USB Flash Drive
Use the recommended USB flash drives.
2 General Information on the Audio System
P. 230
Files in WMA format protected by digital rights
management (DRM) cannot be played.
The audio system displays Unplayable File, and then
skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive
* P. 225
Folder Selection
Track Selection
* Not available on all models

218

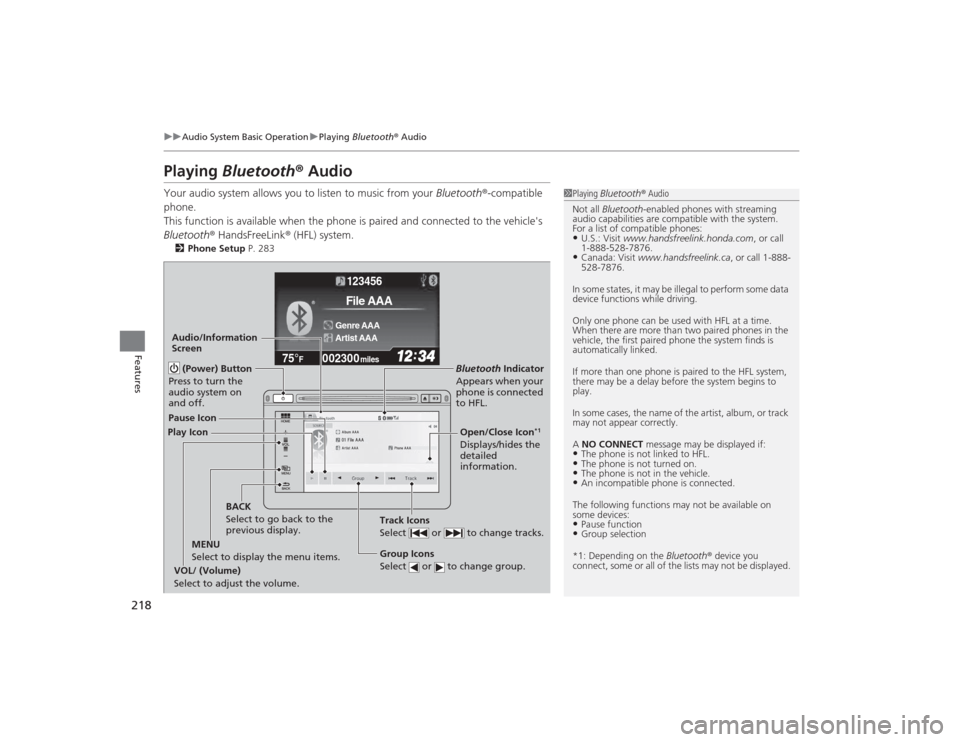

uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Features
Playing Bluetooth® AudioYour audio system allows you to listen to music from your Bluetooth®-compatible
phone.
This function is available when the phone is paired and connected to the vehicle's
Bluetooth ® HandsFreeLink ® (HFL) system.2 Phone Setup P. 283
1Playing Bluetooth ® Audio
Not all Bluetooth -enabled phones with streaming
audio capabilities are compatible with the system.
For a list of compatible phones:•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
In some states, it may be illegal to perform some data
device functions while driving.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically linked.
If more than one phone is paired to the HFL system,
there may be a delay before the system begins to
play.
In some cases, the name of the artist, album, or track
may not appear correctly.
A NO CONNECT message may be displayed if:•The phone is not linked to HFL.•The phone is not turned on.•The phone is not in the vehicle.•An incompatible phone is connected.
The following functions may not be available on
some devices:•Pause function•Group selection
*1: Depending on the Bluetooth® device you
connect, some or all of the lists may not be displayed.
_ _Š€“‹>___NO>d‡Šƒ>___
n†
Û
Û
002300
75°
F miles
123456Genre AAAFile AAAArtist AAA
Track Icons
Select or to change tracks.
Bluetooth Indicator
Appears when your
phone is connected
to HFL.
(Power) Button
Press to turn the
audio system on
and off.
Audio/Information
Screen
Play Icon Pause Icon
BACK
Select to go back to the
previous display.
MENU
Select to display the menu items. Group Icons
Select or to change group.VOL/ (Volume)
Select to adjust the volume.
Open/Close Icon
*1
Displays/hides the
detailed
information.

219

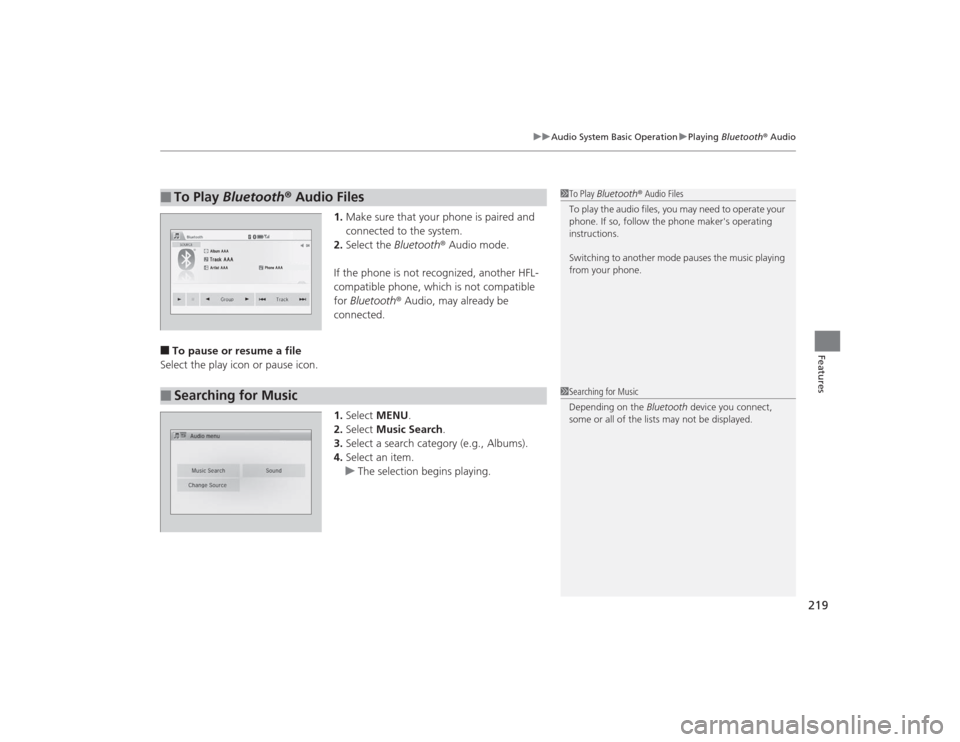

uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Features
1. Make sure that your phone is paired and
connected to the system.
2. Select the Bluetooth® Audio mode.
If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth ® Audio, may already be
connected.
■To pause or resume a file
Select the play icon or pause icon.
1.Select MENU .
2. Select Music Search.
3. Select a search category (e.g., Albums).
4. Select an item.
u The selection begins playing.■
To Play Bluetooth ® Audio Files
1 To Play Bluetooth ® Audio Files
To play the audio files, you may need to operate your
phone. If so, follow the phone maker's operating
instructions.
Switching to another mode pauses the music playing
from your phone.
Û
Û
■
Searching for Music
1 Searching for Music
Depending on the Bluetooth device you connect,
some or all of the lists may not be displayed.
