2014 HONDA CIVIC COUPE clock

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 25
For Safe Driving P. 26 Seat Belts P. 30 Airbags P. 37
2Instrument Panel P. 65
Indicators P. 66 Gauges and Multi-Information Display P. 81
2Controls P. 99
Clock P. 100 Locking and Unlocking the Doors P. 102
Opening and Closing the Moonroof* P. 121
Adjusting the Seats P. 137
2 Features P. 159
Audio System P. 160 Audio System Basic Operation P. 166, 184
Customized Features* P. 220 Bluetooth® HandsFreeLink ® P. 233, 264
2 Driving P. 291
Before Driving P. 292 Towing a Trailer P. 297
Refueling P. 332 Fuel Economy P. 335
2Maintenance P. 337
Before Performing Maintenance P. 338 Maintenance MinderTM P. 341
Checking and Maintaining Wiper Blades P. 370
Heating and Cooling System
*/Climate Control System* Maintenance P. 384
2 Handling the Unexpected P. 391
Tools P. 392 If a Tire Goes Flat P. 393
Overheating P. 407 Indicator, Coming On/Blinking P. 409
2Information P. 417
Specifications P. 418 Identification Numbers P. 422
Emissions Testing P. 425 Warranty Coverages P. 427
14 CIVIC 2D_SI-31TS86210.book 0 ページ ２０１４年１月２９日　水曜日　午後８時９分

3
Quick Reference Guide❙Headlights/Turn Signals (P127)
❙Wipers/Washers (P131)
❙Km/Mile Change Knob (P81)
❙CLOCK Knob* (P100)
❙MENU Button (P87)
❙(+ / (- / / Buttons (P87)
❙Navigation System Voice Control Buttons*
() See Navigation System Manual
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P233, 264)
❙ (SEL/RESET) Knob (P84)
❙SOURCE Button (P87)
❙ (Display/Information) Button (P83)
❙Brightness Control (P132)
❙LaneWatchTM * (P320)
❙Fog Lights* (P130)
❙Paddle Shifter (Shift Down)* (P309)
❙Paddle Shifter (Shift Up)* (P309)
❙Cruise Control Buttons (P315)
❙Horn (Press an area around .)
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 3 ページ ２０１４年１月２９日　水曜日　午後８時９分

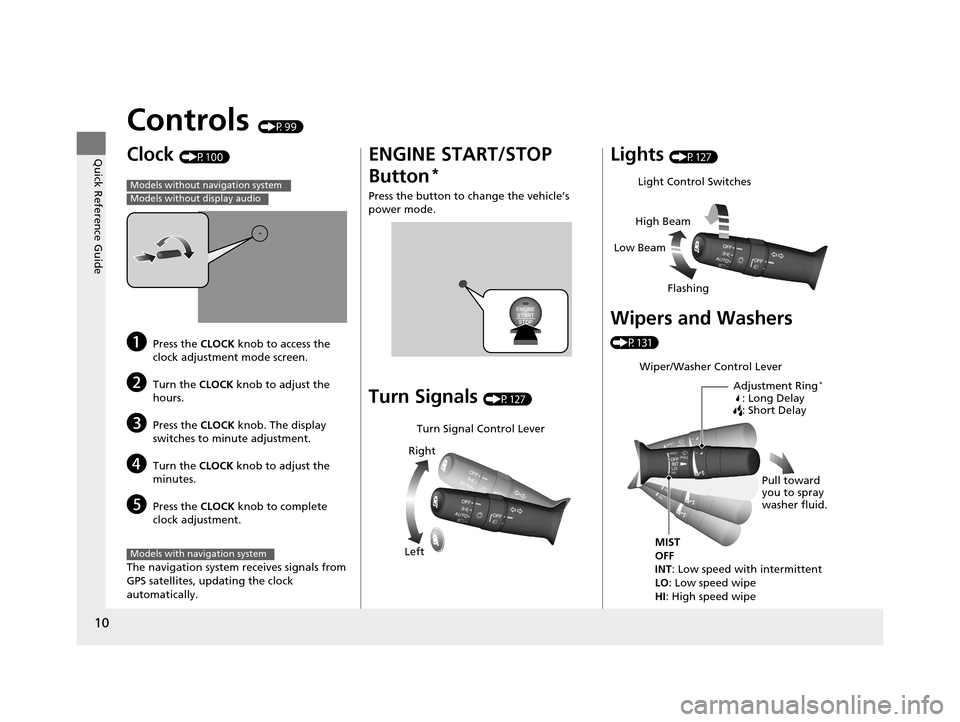

10
Quick Reference Guide
Controls (P99)
Clock (P100)
aPress the CLOCK knob to access the
clock adjustment mode screen.
bTurn the CLOCK knob to adjust the
hours.
cPress the CLOCK knob. The display
switches to minute adjustment.
dTurn the CLOCK knob to adjust the
minutes.
ePress the CLOCK knob to complete
clock adjustment.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation systemModels without display audio
Models with navigation system
ENGINE START/STOP
Button
*
Press the button to change the vehicle’s
power mode.
Turn Signals (P127)
Turn Signal Control Lever
Right
Left
Lights (P127)
Wipers and Washers
(P131)
Light Control Switches
Low Beam High Beam
Flashing
Wiper/Washer Control Lever Adjustment Ring
*
: Long Delay
: Short Delay
MIST
OFF
INT: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
14 CIVIC 2D_SI-31TS86210.book 10 ページ ２０１４年１月２９日　水曜日　午後８時９分

83
uuGauges and Multi-Information Display uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel
intelligent Multi-Information Display (i-MID)
The i-MID shows the odometer, trip meter, outside temperature indicator, and other
gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (display/information) button to change the display.
■Switching the Display
1 Switching the Display
To change the item displayed on the fuel
consumption screen:
1. Press and hold the button until the item
blinks.
2. Press the button to select an item while the item is blinking for about six seconds.
The display is fixed when the time elapses and
blinking stops.
123456
Genre AAASong AAA
Artist AAA200
2001h 30mElapsed Time
1h 30mElapsed Time
24.024.0
40mphAverage Speed
40mphAverage Speed200milesRange
123456
123456
123456123456
123456
123456123456
123456123456
123456
(Display/
Information)
Button
Fuel consumption Audio/HFL display Fuel consumption
Blank screen Full size analogue clock/
Wallpaper
2.4 ℓ engine models
Power monitor
1.8 ℓ engine models
Press .
Press and hold .
Range
Elapsed time
Average speed Range
Average speed
Elapsed time
Average fuel
14 CIVIC 2D_SI-31TS86210.book 83 ページ ２０１４年１月２９日　水曜日　午後８時９分

88
uuGauges and Multi-Information Display uintelligent Mult i-Information Display (i-MID)
Instrument Panel
■Customization flow
Press the MENU button.1Customized Features
You can exit the customizing screen at any time by
pressing the MENU button.
Vehicle Menu
Vehicle Information
Odometer/Trip Meter
Adjust Clock*
Maintenance info
Trip Meter Reset
Select Trip/Odometer
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 88 ページ ２０１４年１月２９日　水曜日　午後８時９分

91
uuGauges and Multi-Information Display uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel
■List of customizable options
*1: Default Setting Setup Group Customizable Features
Description Selectable settings
Vehicle
InformationMaintenance infoResets the Maintenance MinderTM.No/Yes
Odometer/
Trip Meter Trip Meter Reset
Resets the trip meter. Trip A/Trip B
Select Trip/Odometer Switches between odometer, trip meter A, and trip
meter B. ODO
*1/
Trip A /Trip B
Adjust
Clock*Sets time display 12 hour or 24 hour and adjust the time.12 h*1/24 h
Customize
Settings TPMS Calibration
*Calibrates the TPMS.
Cancel/Initialize
Display
Setup Select
Wallpaper
*Selects the full-size analo
gue clock or the wallpaper. Clock*1/
Image 1/ Image 2/
Image 3
Import
Wallpaper
*Imports an image file for a new wallpaper. Three images can be stored.2
Importing Wallpapers
from USB P. 95
Delete
Wallpaper*Deletes an image file for a wallpaper. Image 1/Image 2/Image 3
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 91 ページ ２０１４年１月２９日　水曜日　午後８時９分

Continued95
uuGauges and Multi-Information Display uintelligent Multi-Information Display (i-MID)
Instrument Panel
■Example for customizing wallpapers
You can customize the display from clock to wallpaper.
Importing Wallpapers from USB
You can import up to three images, one at a time for wallpaper from a USB flash
drive.
Select Import Wallpaper from Customize Settings and properly connect a USB
flash drive to store an image.
1.Connect the USB flash drive to the adapter
cable.
2 USB Adapter Cable P. 162
2.Press the MEMU button.
3. Select Customize Settings with the
(+ /
(- button, then press the SOURCE
button.
4. Select Display Setup with the
(+ / (-
button, then press the SOURCE button.
1Customized Features
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 2 MB.
•The maximum image size is 1,920 x 936 pixels. If
the image size was less than 480 x 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•Up to 255 files can be selected.
•The file name must be fewer than 64 characters.
Models with one display
14 CIVIC 2D_SI-31TS86210.book 95 ページ ２０１４年１月２９日　水曜日　午後８時９分

99
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 100
Locking and Unlocking the Doors
Key Types and Functions .................. 102
Low Smart Entry Remote Signal Strength*..... 104Locking/Unlocking the Doors from the Outside .......................................... 105
Locking/Unlocking the Doors from the Inside ............................................. 110
Auto Door Locking/Unlocking .......... 112
Opening and Closing the Trunk ....... 113
Security System
Immobilizer System .......................... 116
Security System Alarm ...................... 116
Opening and Closing the Windows ..... 119
Opening and Closing the Moonroof*...... 121Operating the Switches Around the
Steering Wheel Ignition Switch
*............................... 122
ENGINE START/STOP Button*........... 123
Ignition Switch and Power Mode Comparison ................................... 126
Turn Signals ..................................... 127
Light Switches.................................. 127
Fog Lights
*...................................... 130
Daytime Running Lights ................... 130
Wipers and Washers ........................ 131
Brightness Control ........................... 132
Rear Defogger/Heated Door Mirror* Button .... 133
Adjusting the Steering Wheel .......... 134
Adjusting the Mirrors
Interior Rearview Mirror ................... 135
Power Door Mirrors ......................... 135
Adjusting the Seats .......................... 137
Interior Lights/Interior Convenience ItemsInterior Lights .................................. 145
Interior Convenience Items .............. 147
Heating and Cooling
*
Using Vents, Heating and A/C.......... 152
Climate Control System*
Using Automatic Climate Control .... 155Automatic Climate Control Sensors..... 157
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 99 ページ ２０１４年１月２９日　水曜日　午後８時９分
