2014 HONDA CIVIC COUPE clock

228
uuCustomized Features*u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Info
Clock
Clock/Wall-
paper typeClock
See System on P. 226
Wallpaper
Clock Adjustment
Clock Format
Clock Display
Clock Location
Sync Clock With
Smartphone*
Clock Reset*
OtherInfo Screen PreferenceChanges the Info Screen type.Info Top /Info Menu /
Off*1
DefaultCancels/Resets all customized items in the Info
group as default.Yes /No
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 228 ページ ２０１４年１月２９日　水曜日　午後８時９分

uuMaintenance Under the Hood uEngine Coolant
356
Maintenance
1. Make sure the engine and radiator are
cool.
2. Turn the radiator cap counterclockwise to
relieve any pressure in the cooling system.
Do not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.
6. Pour coolant into the reserve tank until it
reaches the MAX mark. Put the cap back
on the reserve tank.
■Radiator1 Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.Radiator Cap
1.8 ℓ engine models
2.4 ℓ engine models
Radiator Cap
14 CIVIC 2D_SI-31TS86210.book 356 ページ ２０１４年１月２９日　水曜日　午後８時９分

381
Maintenance
Battery
Checking the Battery
Check the battery terminals for corrosion
monthly.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 163
•The clock resets.
2 Adjusting the Clock P. 100
•The navigation system* is disabled.
2 Refer to the Navigation System Manual
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminal with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 381 ページ ２０１４年１月２９日　水曜日　午後８時９分

Index
431
Index
Index
Numbers
7-Speed Manual Shift Mode................... 309
Operation ............................................... 310
A
ABS (Anti-lock Brake System) .................. 328
Accessories and Modifications ................ 336
Accessory Power Socket ........................... 150
Additives
Coolant .................................................. 355
Engine Oil ............................................... 348
Washer ................................................... 359
Adjusting Armrest .................................................. 144
Clock ...................................................... 100
Front Seats.............................................. 137
Head Restraints ....................................... 139
Mirrors.................................................... 135
Rear Seats ............................................... 143
Steering Wheel ....................................... 134
Temperature ............................................. 86
Air Conditioning System (Climate Control System) .................................................... 155
Changing the Mode................................ 156
Defrosting the Windshield and Windows .............................................. 156
Dust and Pollen Filter .............................. 384
Recirculation/Fresh Air Mode................... 156 Sensor ..................................................... 157
Using Automatic Climate Control ............ 155
Air Conditioning System (Heating and Cooling System) ...................................... 152
Cooling ................................................... 154
Defrosting the Windshield and Windows ............................................... 154
Dust and Pollen Filter ............................... 384
Heating ................................................... 153
Air Pressure ............................... 373, 419, 421
Airbags ........................................................ 37
Advanced Airbags ..................................... 43
After a Collision ......................................... 40
Airbag Care ............................................... 49
Event Data Recorder .................................. 22
Front Airbags (SRS) .................................... 40
Indicator .............................................. 47, 70
Passenger Airbag Off Indicator .................. 48
Sensors ...................................................... 37
Side Airbags .............................................. 44
Side Curtain Airbags .................................. 46
AM/FM Radio .................................... 168, 191
Anti-lock Brake System (ABS) .................. 328
Indicator .................................................... 69
Armrest ..................................................... 144
Audio Remote Controls ............................ 164
Audio System ............................................ 160
Adjusting the Sound ........................ 167, 189
Auxiliary Input Jack .................................. 162 Error Messages ........................................ 211
General Information ................................ 217
Internet Radio ................................. 177, 200
iPod ........................................................ 197
MP3/WMA/AAC ...................... 179, 202, 207
Reactivating ............................................ 163
Recommended CDs ................................. 217
Recommended Devices............................ 219
Remote Controls ..................................... 164
Security Code .......................................... 163
Theft Protection ...................................... 163
USB Adapter Cable.......................... 161, 162
USB Flash Drives ...................................... 219
USB/HDMI
® Port ...................................... 161
Authorized Manuals ................................ 429
Auto Door Locking/Unlocking ................. 112
Customize ................................................. 94
Automatic Lighting .................................. 128
Automatic Transmission
Creeping ................................................. 304
Kickdown ................................................ 304
Shift Lever Does Not Move ...................... 406
Automatic Transmission (CVT) ................. 304
Fluid ........................................................ 357
Operating the Shift Lever........... 16, 306, 308
Shifting ........................................... 305, 307
Auxiliary Input Jack .................................. 162
Average Fuel Economy .............................. 85
Average Speed ........................................... 85
14 CIVIC 2D_SI-31TS86210.book 431 ページ ２０１４年１月２９日　水曜日　午後８時９分

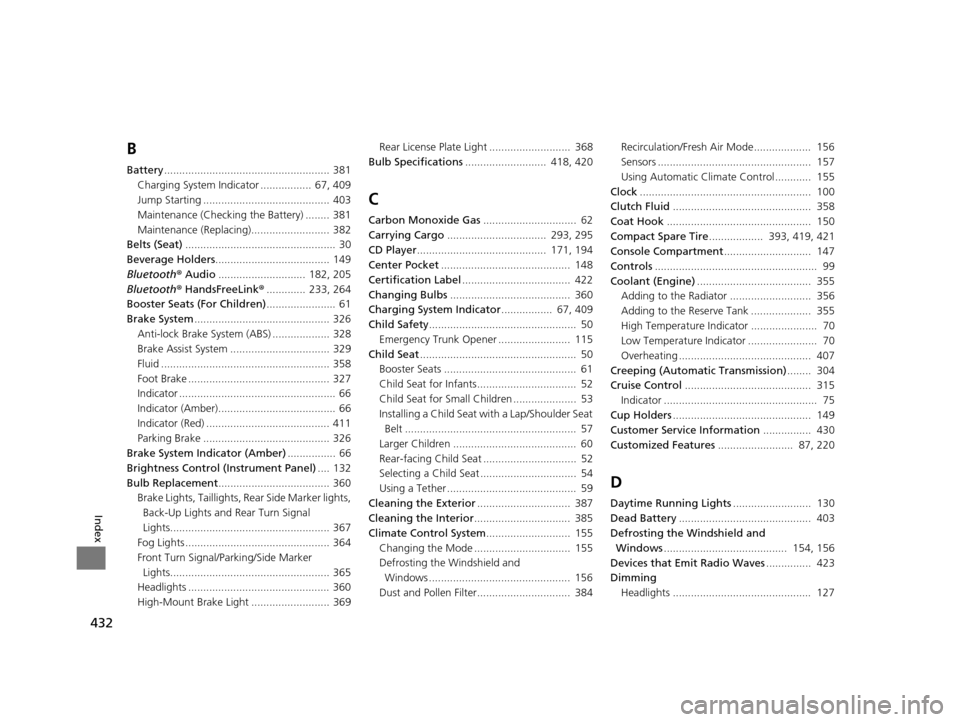

432
Index
B
Battery....................................................... 381
Charging System Indicator ................. 67, 409
Jump Starting .......................................... 403
Maintenance (Checking the Battery) ........ 381
Maintenance (Replacing).......................... 382
Belts (Seat) .................................................. 30
Beverage Holders ...................................... 149
Bluetooth ® Audio ............................. 182, 205
Bluetooth ® HandsFreeLink ®............. 233, 264
Booster Seats (For Children) ....................... 61
Brake System ............................................. 326
Anti-lock Brake System (ABS) ................... 328
Brake Assist System ................................. 329
Fluid ........................................................ 358
Foot Brake ............................................... 327
Indicator .................................................... 66
Indicator (Amber)....................................... 66
Indicator (Red) ......................................... 411
Parking Brake .......................................... 326
Brake System Indicator (Amber) ................ 66
Brightness Control (Instrument Panel) .... 132
Bulb Replacement ..................................... 360
Brake Lights, Taillights, Re ar Side Marker lights,
Back-Up Lights and Rear Turn Signal
Lights..................................................... 367
Fog Lights ................................................ 364
Front Turn Signal/Par king/Side Marker
Lights..................................................... 365
Headlights ............................................... 360
High-Mount Brake Light .......................... 369 Rear License Plate Light ........................... 368
Bulb Specifications ........................... 418, 420
C
Carbon Monoxide Gas ............................... 62
Carrying Cargo ................................. 293, 295
CD Player ........................................... 171, 194
Center Pocket ........................................... 148
Certification Label .................................... 422
Changing Bulbs ........................................ 360
Charging System Indicator ................. 67, 409
Child Safety ................................................. 50
Emergency Trunk Opener ........................ 115
Child Seat .................................................... 50
Booster Seats ............................................ 61
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 57
Larger Children ......................................... 60
Rear-facing Child Seat ............................... 52
Selecting a Child Seat ................................ 54
Using a Tether ........................................... 59
Cleaning the Exterior ............................... 387
Cleaning the Interior ................................ 385
Climate Control System ............................ 155
Changing the Mode ................................ 155
Defrosting the Windshield and Windows ............................................... 156
Dust and Pollen Filter............................... 384 Recirculation/Fresh Air Mode................... 156
Sensors ................................................... 157
Using Automatic Climate Control............ 155
Clock ......................................................... 100
Clutch Fluid .............................................. 358
Coat Hook ................................................ 150
Compact Spare Tire .................. 393, 419, 421
Console Compartment ............................. 147
Controls ...................................................... 99
Coolant (Engine) ...................................... 355
Adding to the Radiator ........................... 356
Adding to the Reserve Tank .................... 355
High Temperature Indicator ...................... 70
Low Temperature Indicator ....................... 70
Overheating ............................................ 407
Creeping (Automatic Transmission) ........ 304
Cruise Control .......................................... 315
Indicator ................................................... 75
Cup Holders .............................................. 149
Customer Service Information ................ 430
Customized Features ......................... 87, 220
D
Daytime Running Lights .......................... 130
Dead Battery ............................................ 403
Defrosting the Windshield and
Windows ......................................... 154, 156
Devices that Emit Radio Waves ............... 423
Dimming
Headlights .............................................. 127
14 CIVIC 2D_SI-31TS86210.book 432 ページ ２０１４年１月２９日　水曜日　午後８時９分
