2014 FORD TAURUS Owners Manual

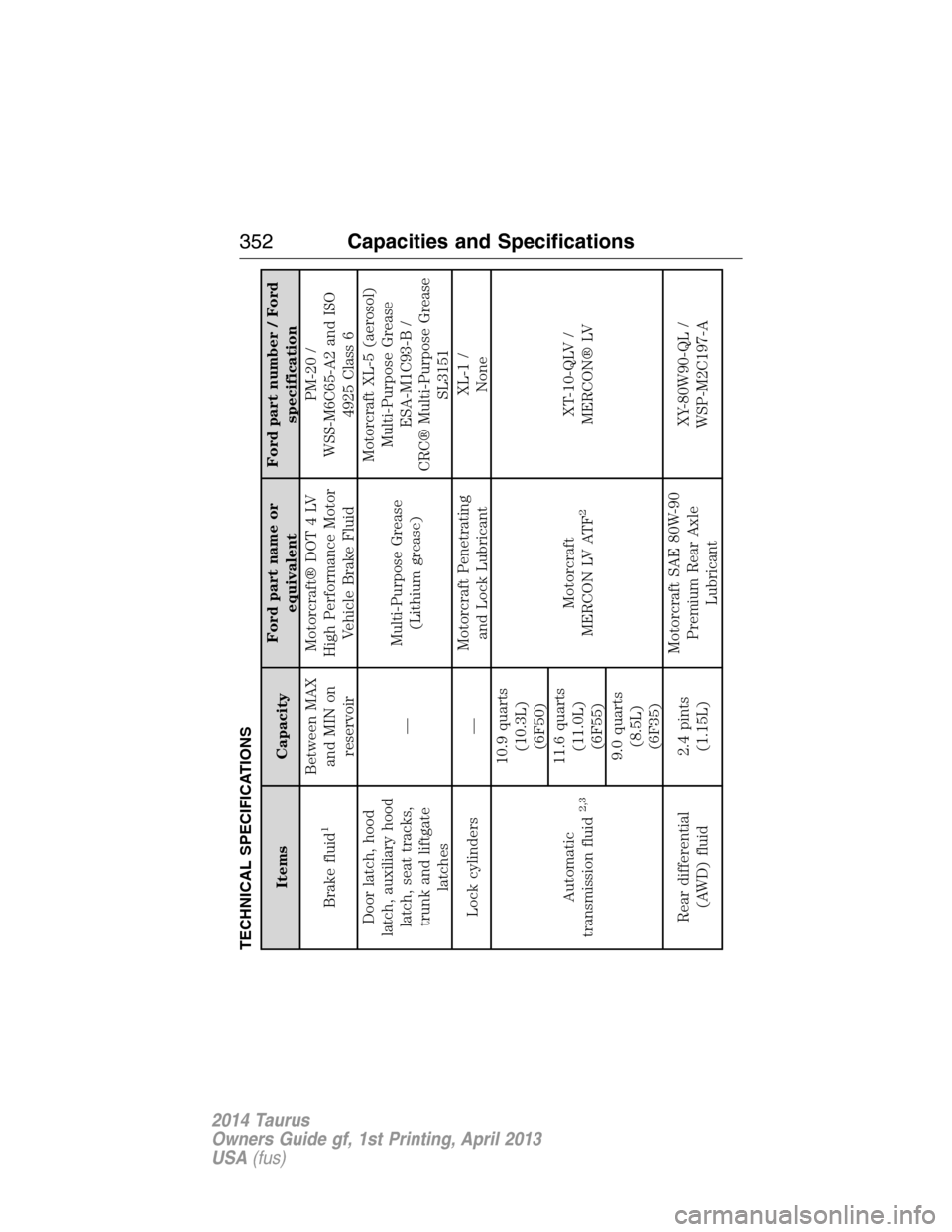

TECHNICAL SPECIFICATIONS
Items CapacityFord part name or
equivalentFord part number / Ford
specification
Brake fluid
1
Between MAX
and MIN on
reservoirMotorcraft® DOT 4 LV
High Performance Motor
Vehicle Brake FluidPM-20 /
WSS-M6C65-A2 and ISO
4925 Class 6
Door latch, hood
latch, auxiliary hood
latch, seat tracks,
trunk and liftgate
latches—Multi-Purpose Grease
(Lithium grease)Motorcraft XL-5 (aerosol)
Multi-Purpose Grease
ESA-M1C93-B /
CRC® Multi-Purpose Grease
SL3151
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Automatic
transmission fluid
2,3
10.9 quarts
(10.3L)
(6F50)
Motorcraft
MERCON LV ATF
2
XT-10-QLV /
MERCON® LV 11.6 quarts
(11.0L)
(6F55)
9.0 quarts
(8.5L)
(6F35)
Rear differential
(AWD) fluid2.4 pints
(1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
352Capacities and Specifications
2014 Taurus
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Items CapacityFord part name or
equivalentFord part number / Ford
specification
Power Transfer Unit
(PTU) fluid (AWD)
4
18 ounces
(0.53L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Engine oil3.5L V6 engine
6.0 quarts
(5.7L)Motorcraft SAE 5W-20
Motor Oil or equivalentWSS-M2C945-A
5,6
3.5L V6 SHO
engine
6.0 quarts
(5.7L)Motorcraft SAE 5W-30
Motor Oil or equivalentWSS-M2C946-A
5,6
2.0L EcoBoost
engine
5.7 quarts
(5.4L)Motorcraft SAE 5W-30
Motor Oil or equivalentWSS-M2C946-A
5,6
Capacities and Specifications353
2014 Taurus
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Items CapacityFord part name or
equivalentFord part number / Ford
specification
Engine coolant
7
3.5L V6 engine
11.1 quarts
(10.5L)
Motorcraft Orange
Antifreeze/Coolant
Prediluted•VC-3DIL-B (US)
•CVC-3DIL-B (Canada) /
WSS-M97B44-D2 3.5L V6 SHO
engine
11.4 quarts
(10.8L)
2.0L EcoBoost
engine
11.6 quarts
(11.0L)
Fuel tank19.0 gallons
(71.9 L)——
Windshield washer
fluidFill as requiredMotorcraft Premium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A1 or ZC-32-B1 (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
A/C Refrigerant
Capacity
8
2.0L GTDI
1.62 lb (0.74kg)
3.5LTiVCT
1.43 lb (0.65kg)Motorcraft R–134a
Refrigerant•YN-19 (US)
•CYN16–R (Canada) /
WSH-M17B19–A
354Capacities and Specifications
2014 Taurus
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Items CapacityFord part name or
equivalentFord part number / Ford
specification
A/C Refrigerant
Compressor Oil
8
2.0L GTDI &
3.5LTiVCT
5.2floz
(0.153 L)Motorcraft PAG
Refrigerant Compressor
OilYN-12–D
WSH-M1C231–B
1Use only Motorcraft DOT 4 LV High Performance Brake Fluid or equivalent meeting
WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommended fluid may
cause brake system damage.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MERCON LV should only use MERCON® LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.4See your authorized dealer for fluid level checking or filling.5Your engine has been designed to use Motorcraft engine oils or equivalent oils that meet Ford
specifications. It is also acceptable to use an engine oil of recommended viscosity grade that
meets API SN requirements and displays the API Certification Mark for gasoline engines.6Do not use supplemental engine oil additives in your engine. They are unnecessary and could
lead to engine damage that is not covered by Ford’s warranty.7Add the coolant type originally equipped in your vehicle.8Warning: The A/C refrigerant system contains refrigerant R134A under high pressure. Opening
the A/C refrigerant system can cause personal injury. A/C refrigerant system is to be serviced
only by qualified personnel.
Capacities and Specifications355
2014 Taurus
Owners Guide gf, 1st Printing, April 2013
USA(fus)

MOTORCRAFT® PART NUMBERS
Component3.5L V6
engine3.5L V6 SHO
engine2.0L EcoBoost
engine
Air filter
elementFA-1884 FA-1884 FA-1884
Oil filter FL-500-S FL-500-S FL-910-S
Battery BXT-59 BXT-65-650 BXT-65-650
Spark plugs SP-534
1SP-5341SP-5271
Cabin air filter FP68 FP68 FP68
Seat air filter FS-104
Windshield
wiper blade
(Utility)WW-2206-PF (driver side)
WW-2601-PF (passenger side)
WW1106 (rear)
Windshield
wiper blade
(Sedan)WW-2501 (driver side)
WW-2043 (passenger side)
1Refer toscheduled maintenance informationfor the appropriate
intervals for changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft® or equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
356Capacities and Specifications
2014 Taurus
Owners Guide gf, 1st Printing, April 2013
USA(fus)

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
XXXXXXXXXXXXXXXXX
Capacities and Specifications357
2014 Taurus
Owners Guide gf, 1st Printing, April 2013
USA(fus)

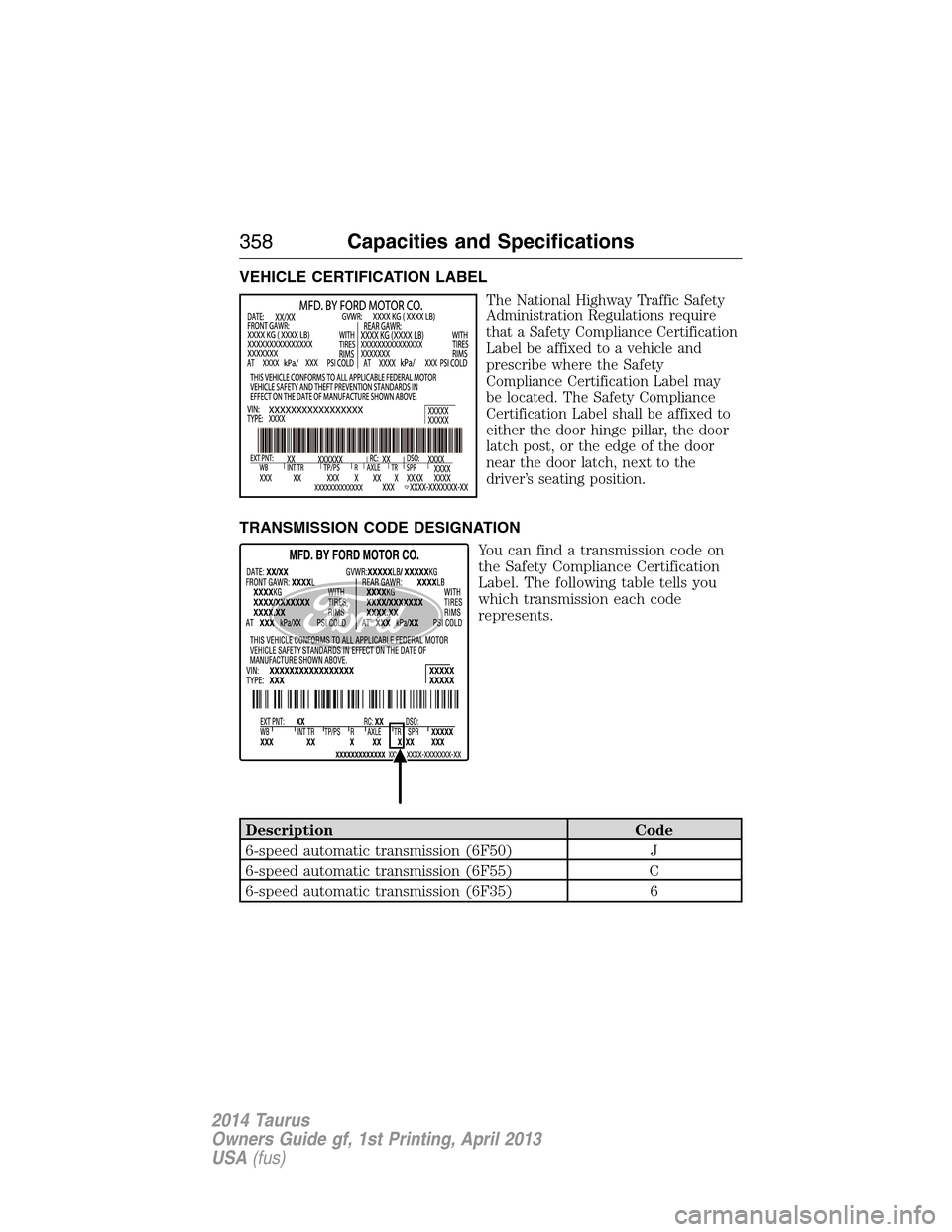

VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance Certification
Label be affixed to a vehicle and
prescribe where the Safety
Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to
either the door hinge pillar, the door
latch post, or the edge of the door
near the door latch, next to the
driver’s seating position.
TRANSMISSION CODE DESIGNATION
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (6F50) J
6-speed automatic transmission (6F55) C
6-speed automatic transmission (6F35) 6
358Capacities and Specifications
2014 Taurus
Owners Guide gf, 1st Printing, April 2013
USA(fus)

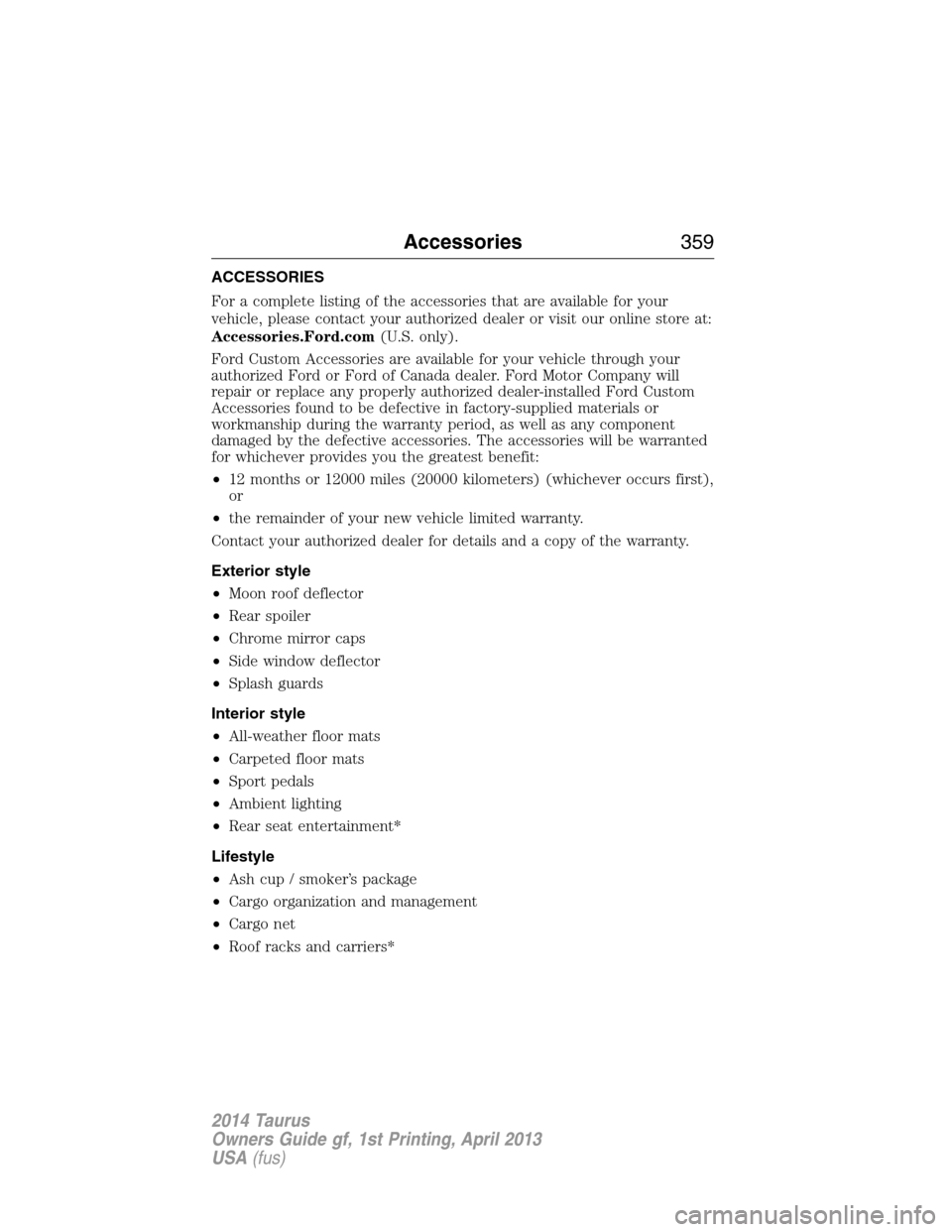

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact your authorized dealer or visit our online store at:
Accessories.Ford.com(U.S. only).
Ford Custom Accessories are available for your vehicle through your
authorized Ford or Ford of Canada dealer. Ford Motor Company will
repair or replace any properly authorized dealer-installed Ford Custom
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12000 miles (20000 kilometers) (whichever occurs first),
or
•the remainder of your new vehicle limited warranty.
Contact your authorized dealer for details and a copy of the warranty.
Exterior style
•Moon roof deflector
•Rear spoiler
•Chrome mirror caps
•Side window deflector
•Splash guards
Interior style
•All-weather floor mats
•Carpeted floor mats
•Sport pedals
•Ambient lighting
•Rear seat entertainment*
Lifestyle
•Ash cup / smoker’s package
•Cargo organization and management
•Cargo net
•Roof racks and carriers*
Accessories359
