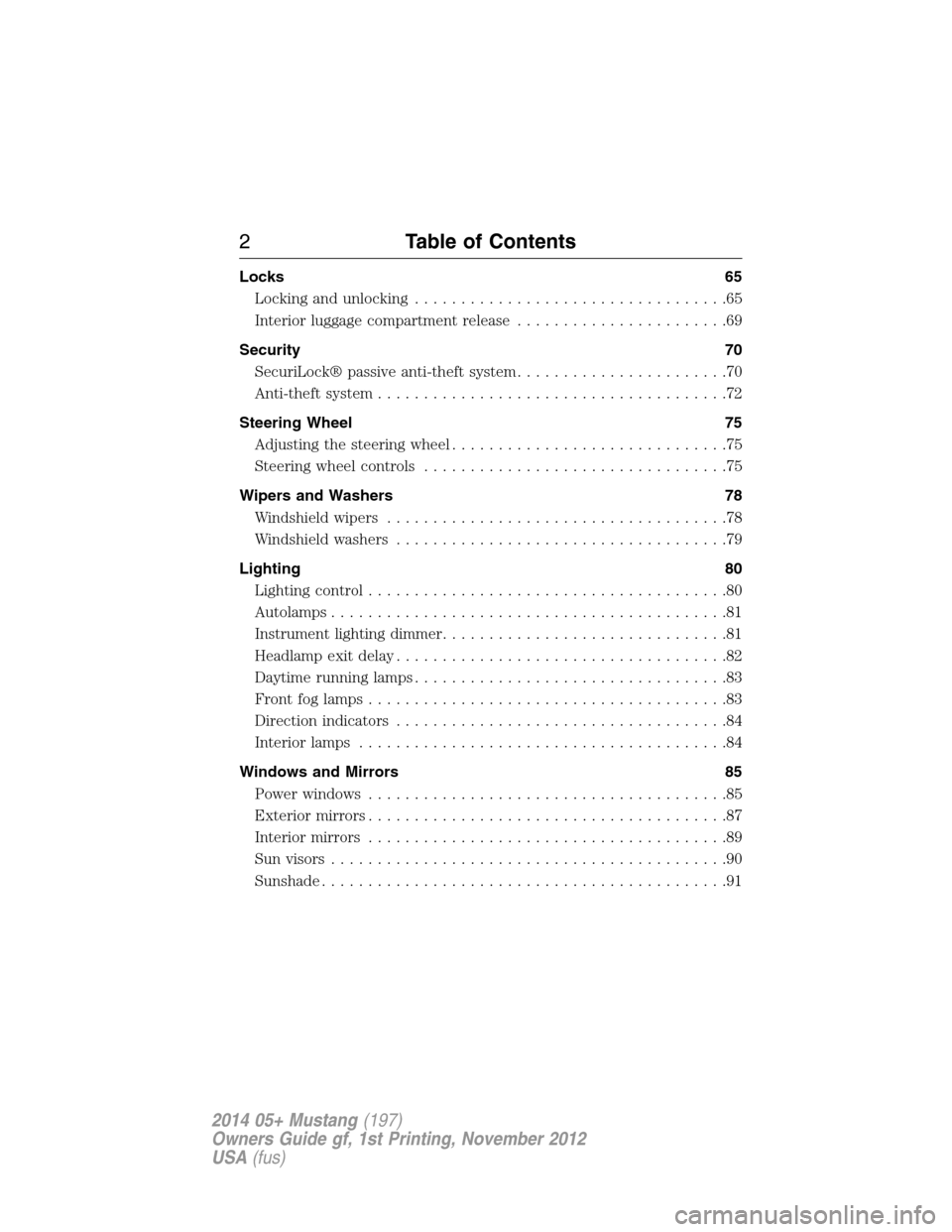

Locks 65
Locking and unlocking..................................65
Interior luggage compartment release.......................69
Security 70
SecuriLock® passive anti-theft system.......................70
Anti-theft system......................................72
Steering Wheel 75
Adjusting the steering wheel..............................75
Steering wheel controls.................................75
Wipers and Washers 78
Windshield wipers.....................................78
Windshield washers....................................79
Lighting 80
Lighting control.......................................80
Autolamps...........................................81
Instrument lighting dimmer...............................81
Headlamp exit delay....................................82
Daytime running lamps..................................83
Front fog lamps.......................................83
Directionindicators ....................................84
Interior lamps........................................84
Windows and Mirrors 85
Power windows.......................................85
Exteriormirrors.......................................87
Interiormirrors .......................................89
Sunvisors ...........................................90
Sunshade............................................91
2Table of Contents
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Maintenance 238
General information...................................238
Opening and closing the hood............................239
Under hood overview..................................240
Engine compartment...................................240
Engine oil dipstick....................................242
Engine oil check......................................242
Engine coolant check..................................243
Automatic transmission fluid check........................248
Brake fluid check.....................................249
Power steering fluid check..............................249
Washer fluid check....................................250
Battery ............................................250
Checking the wiper blades..............................252
Air filter(s).........................................252
Adjusting the headlamps................................253
Changing a bulb......................................255
Vehicle Care 260
Cleaning products.....................................260
Cleaning the exterior..................................260
Waxing.............................................262
Repairing minor paint damage............................262
Cleaning the engine...................................262
Cleaning the windows and wiper blades.....................263
Cleaning the interior...................................264
Cleaning the instrument panel and instrument cluster lens.......264
Cleaning leather seats..................................265
Cleaning the alloy wheels...............................266
Vehicle storage.......................................266
6Table of Contents
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

LIGHTING CONTROL
A. Off
B. Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps
C. Headlamps
High Beams
•Push the lever toward the
instrument panel to activate.
•Pull the lever toward you to
deactivate.
Headlamp Flasher
•Pull toward you slightly to activate
and release to deactivate.
A
ABC
OF
F
OF
F
80Lighting
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

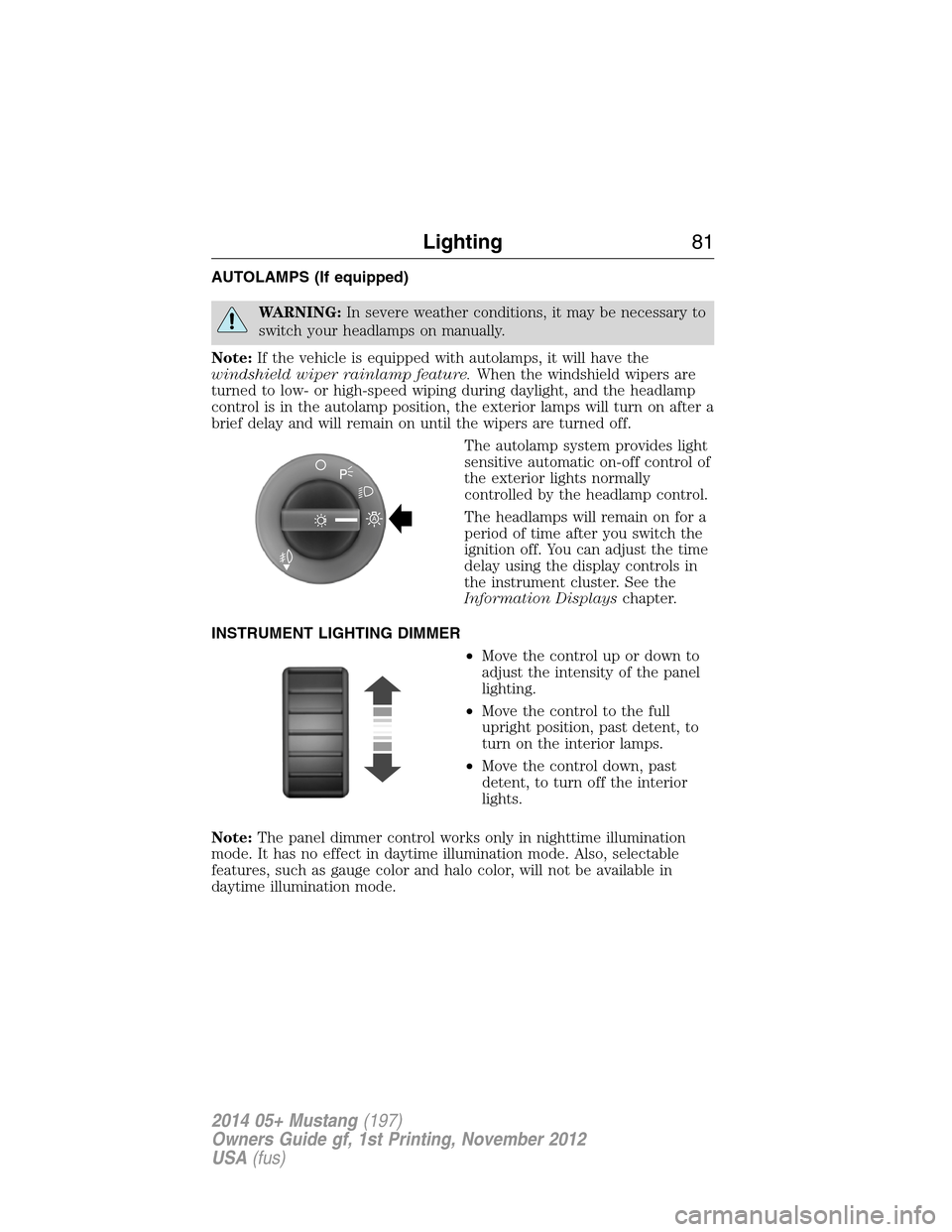

AUTOLAMPS (If equipped)
WARNING:In severe weather conditions, it may be necessary to
switch your headlamps on manually.
Note:If the vehicle is equipped with autolamps, it will have the
windshield wiper rainlamp feature.When the windshield wipers are
turned to low- or high-speed wiping during daylight, and the headlamp
control is in the autolamp position, the exterior lamps will turn on after a
brief delay and will remain on until the wipers are turned off.
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The headlamps will remain on for a
period of time after you switch the
ignition off. You can adjust the time
delay using the display controls in
the instrument cluster. See the
Information Displayschapter.
INSTRUMENT LIGHTING DIMMER
•Move the control up or down to
adjust the intensity of the panel
lighting.
•Move the control to the full
upright position, past detent, to
turn on the interior lamps.
•Move the control down, past
detent, to turn off the interior
lights.
Note:The panel dimmer control works only in nighttime illumination
mode. It has no effect in daytime illumination mode. Also, selectable
features, such as gauge color and halo color, will not be available in
daytime illumination mode.
A
Lighting81
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

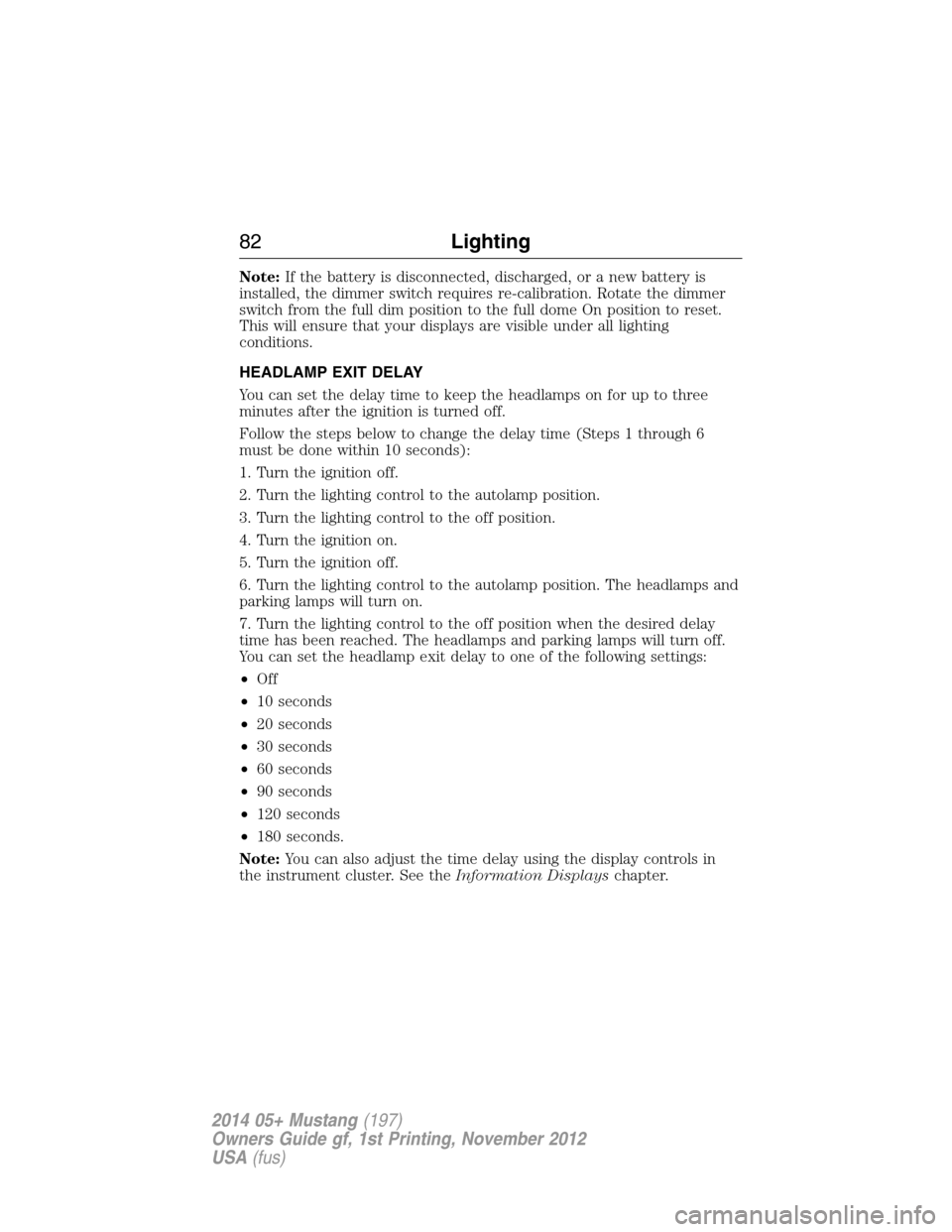

Note:If the battery is disconnected, discharged, or a new battery is
installed, the dimmer switch requires re-calibration. Rotate the dimmer
switch from the full dim position to the full dome On position to reset.
This will ensure that your displays are visible under all lighting
conditions.
HEADLAMP EXIT DELAY
You can set the delay time to keep the headlamps on for up to three
minutes after the ignition is turned off.
Follow the steps below to change the delay time (Steps 1 through 6
must be done within 10 seconds):
1. Turn the ignition off.
2. Turn the lighting control to the autolamp position.
3. Turn the lighting control to the off position.
4. Turn the ignition on.
5. Turn the ignition off.
6. Turn the lighting control to the autolamp position. The headlamps and
parking lamps will turn on.
7. Turn the lighting control to the off position when the desired delay
time has been reached. The headlamps and parking lamps will turn off.
You can set the headlamp exit delay to one of the following settings:
•Off
•10 seconds
•20 seconds
•30 seconds
•60 seconds
•90 seconds
•120 seconds
•180 seconds.
Note:You can also adjust the time delay using the display controls in
the instrument cluster. See theInformation Displayschapter.
82Lighting
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

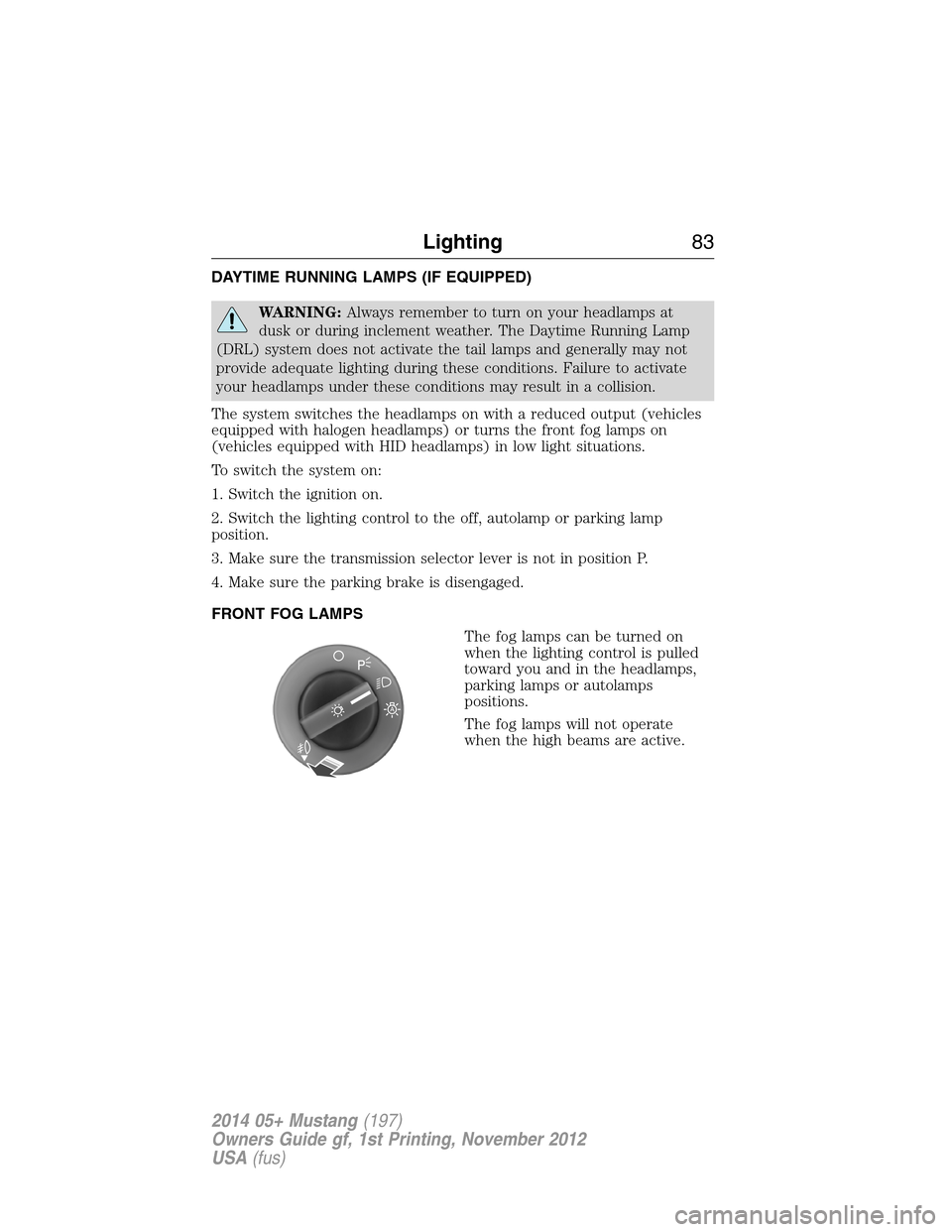

DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
The system switches the headlamps on with a reduced output (vehicles
equipped with halogen headlamps) or turns the front fog lamps on
(vehicles equipped with HID headlamps) in low light situations.
To switch the system on:
1. Switch the ignition on.
2. Switch the lighting control to the off, autolamp or parking lamp
position.
3. Make sure the transmission selector lever is not in position P.
4. Make sure the parking brake is disengaged.
FRONT FOG LAMPS
The fog lamps can be turned on
when the lighting control is pulled
toward you and in the headlamps,
parking lamps or autolamps
positions.
The fog lamps will not operate
when the high beams are active.
A
Lighting83
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Engine Coolant Temperature Gauge
Indicates engine coolant temperature. At normal operating temperature,
the level indicator will be in the normal range. If the engine coolant
temperature exceeds the normal range, stop the vehicle as soon as safely
possible, switch off the engine and let the engine cool.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Type 2
Cluster shown in standard measure. Metric similar.
A. Speedometer
B. Information display. See theInformation Displayschapter for more
information.
C. Tachometer
D. Fuel gauge
E. Engine coolant temperature gauge
Note:The instrument cluster gauges are backlit with white backlighting
when the headlamps are off. When the headlamps are on, you can select
one of the preset colors for the nighttime gauge backlighting or create
up to three custom colors using the MyColor® feature (if equipped).
Ambient color and halo color are also selectable. See theInformation
Displayschapter for more information. When certain gauges enter a
warning state, they will be backlit in red.
ABC
DE
Instrument Cluster93
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

High Beams
Illuminates when the high beam headlamps are on.
Low Fuel
Illuminates when the fuel level in the fuel tank is at or near
empty.
Low Tire Pressure Warning
Illuminates when your tire pressure is low. If the light remains
on at start-up or while driving, the tire pressure should be
checked. When the ignition is first turned to on, the light will
illuminate for three seconds to ensure the bulb is working. If the light
does not turn on or begins to flash, contact your authorized dealer as
soon as possible.
Powertrain Malfunction/Reduced Power
Illuminates when a powertrain fault has been detected. Contact
your authorized dealer as soon as possible.
Safety Belt
Reminds you to fasten your safety belt. A Belt-Minder® chime
will also sound to remind you to fasten your safety belt.
