2014 FORD MUSTANG headlamp

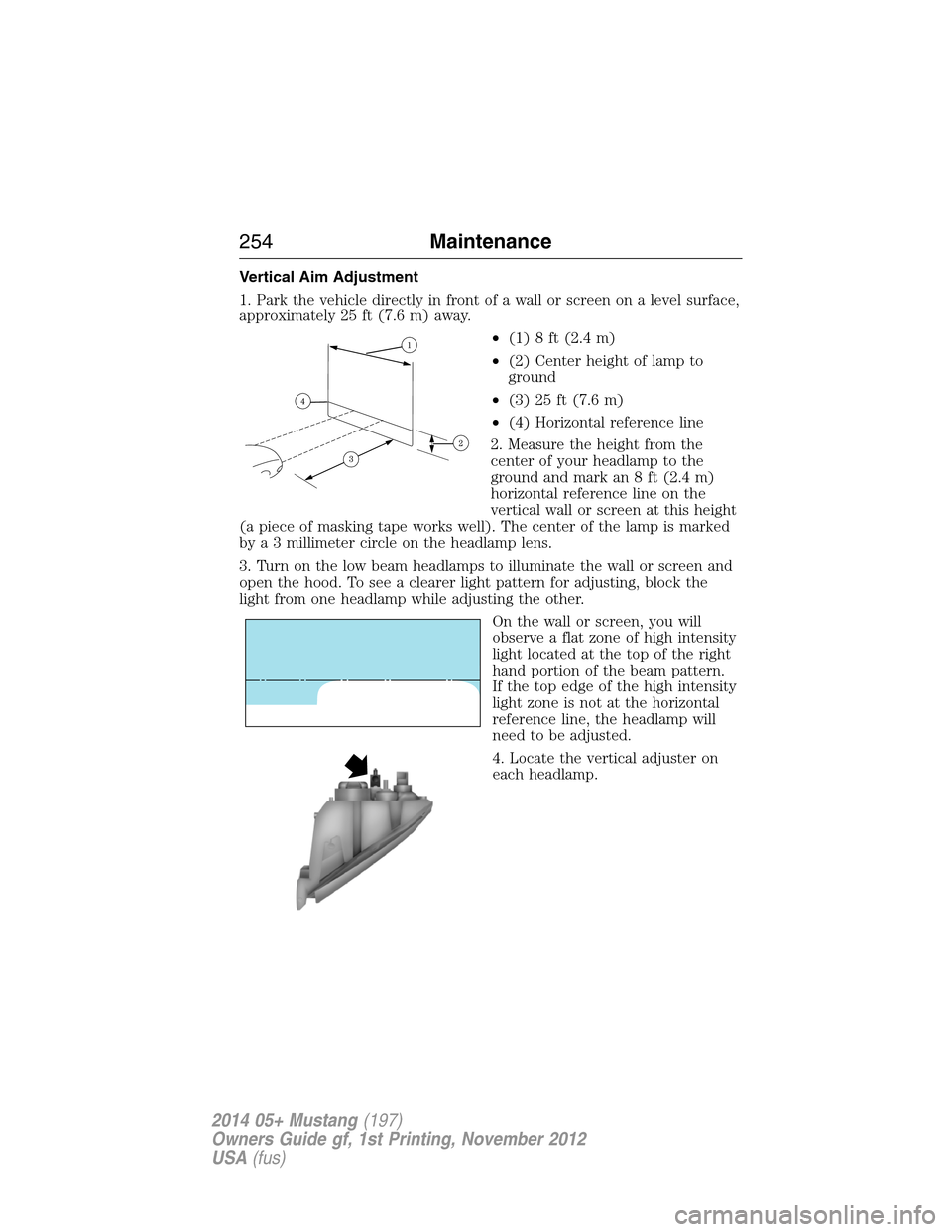

Vertical Aim Adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 ft (7.6 m) away.
•(1)8ft(2.4m)
•(2) Center height of lamp to
ground
•(3) 25 ft (7.6 m)
•(4) Horizontal reference line
2. Measure the height from the
center of your headlamp to the
ground and mark an 8 ft (2.4 m)
horizontal reference line on the
vertical wall or screen at this height
(a piece of masking tape works well). The center of the lamp is marked
bya3millimeter circle on the headlamp lens.
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood. To see a clearer light pattern for adjusting, block the
light from one headlamp while adjusting the other.
On the wall or screen, you will
observe a flat zone of high intensity
light located at the top of the right
hand portion of the beam pattern.
If the top edge of the high intensity
light zone is not at the horizontal
reference line, the headlamp will
need to be adjusted.
4. Locate the vertical adjuster on
each headlamp.
254Maintenance
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

5. Then usea7mmAllenwrench or a Phillips screwdriver to adjust the
vertical aim of the headlamp. HORIZONTAL AIM IS NOT REQUIRED
FOR THIS VEHICLE AND IS NON-ADJUSTABLE.
6. Close the hood and turn off the lamps.
CHANGING A BULB
Lamp Assembly Condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
These are examples of acceptable condensation:
•Presence of thin mist (no streaks, drip marks or droplets).
•Fine mist covers less than 50% of the lens.
These are examples of unacceptable moisture (usually caused by a lamp
water leak):
•Water puddle inside the lamp.
•Large water droplets, drip marks or streaks present on the interior of
the lens.
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Replacing HID Headlamp Bulbs
The headlamps on your vehicle use a high intensity discharge source.
These lamps operate at a high voltage. When the bulb is burned out, the
bulb and starter capsule assembly must be replaced by your authorized
dealer.
Replacing Front Parking Lamp/Turn Signal Bulbs
1. Make sure the headlamp control is in the off position and open the
hood.
2. Remove the hex head screws attaching the beauty shield at the top,
forward edge of the engine compartment just aft of the headlamps.
3. Remove the beauty shield to gain access to the front parking lamp and
turn signal assembly.
Maintenance255
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

4. Rotate the socket
counterclockwise and remove from
the lamp assembly.
5. Carefully pull the bulb straight out of socket.
Install the new bulb in reverse order.
Replacing Front Sidemarker Bulb
1. Make sure the headlamp control is in the off position.
2. Remove the hex head screws
attaching the underbody forward
aeroshield.
3. Remove the underbody forward
aeroshield to gain access to the
front sidemarker assembly.
4. Rotate the socket counterclockwise and remove from the lamp
assembly.
5. Carefully pull the bulb straight
out of socket.
256Maintenance
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Replacing Fog Lamp Bulbs (V6) (if equipped)
1. Make sure the headlamp control is in the off position and open the
hood.
2. Remove the hex head screws
attaching the underbody forward
aeroshield.
3. Remove the underbody forward
aeroshield to gain access to the fog
lamp assembly.
4. Disconnect the electrical
connector from the bulb by pulling
it straight off.
5. Rotate the bulb counterclockwise and remove from the lamp assembly.
Install the new bulb in reverse order.
Replacing Fog Lamp Bulbs (GT)
Your vehicle is equipped with LED fog lamp bulbs. It is designed to last
the life of the vehicle. If replacement is required, it is recommended that
you see your authorized dealer.
Replacing Tail Lamp/Brake/Rear Turn Signal Lamps
Your vehicle is equipped with LED tail lamp, brake and rear turn signal
lamps. It is designed to last the life of the vehicle. If replacement is
required, it is recommended that you see your authorized dealer.
Replacing Backup Bulbs
Your vehicle is equipped with LED backup lamps. They are designed to
last the life of the vehicle. If replacement is required, it is recommended
that you see your authorized dealer.
Maintenance257
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Replacing Rear Sidemarker Lamp Bulbs
1. Make sure the headlamp switch is in the off position and locate the
sidemarker on the rear bumper fascia.
2. Insert a flathead screwdriver between the rear of the sidemarker lens
and the bumper fascia.
3. Push the screwdriver to the front of the vehicle and then slide it
towards you to pop out the lamp assembly.
4. Carefully pull the bulb straight
out of socket.
Install the new bulb in reverse
order.
Replacing License Plate Lamp Bulbs
1. Make sure the headlamp switch is in the off position.
2. Remove the 2 screws and the lens
from the license plate lamp assembly.
3. Carefully pull the bulb straight out
from the lamp assembly.
Install the new bulb(s) in reverse
order.
258Maintenance
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

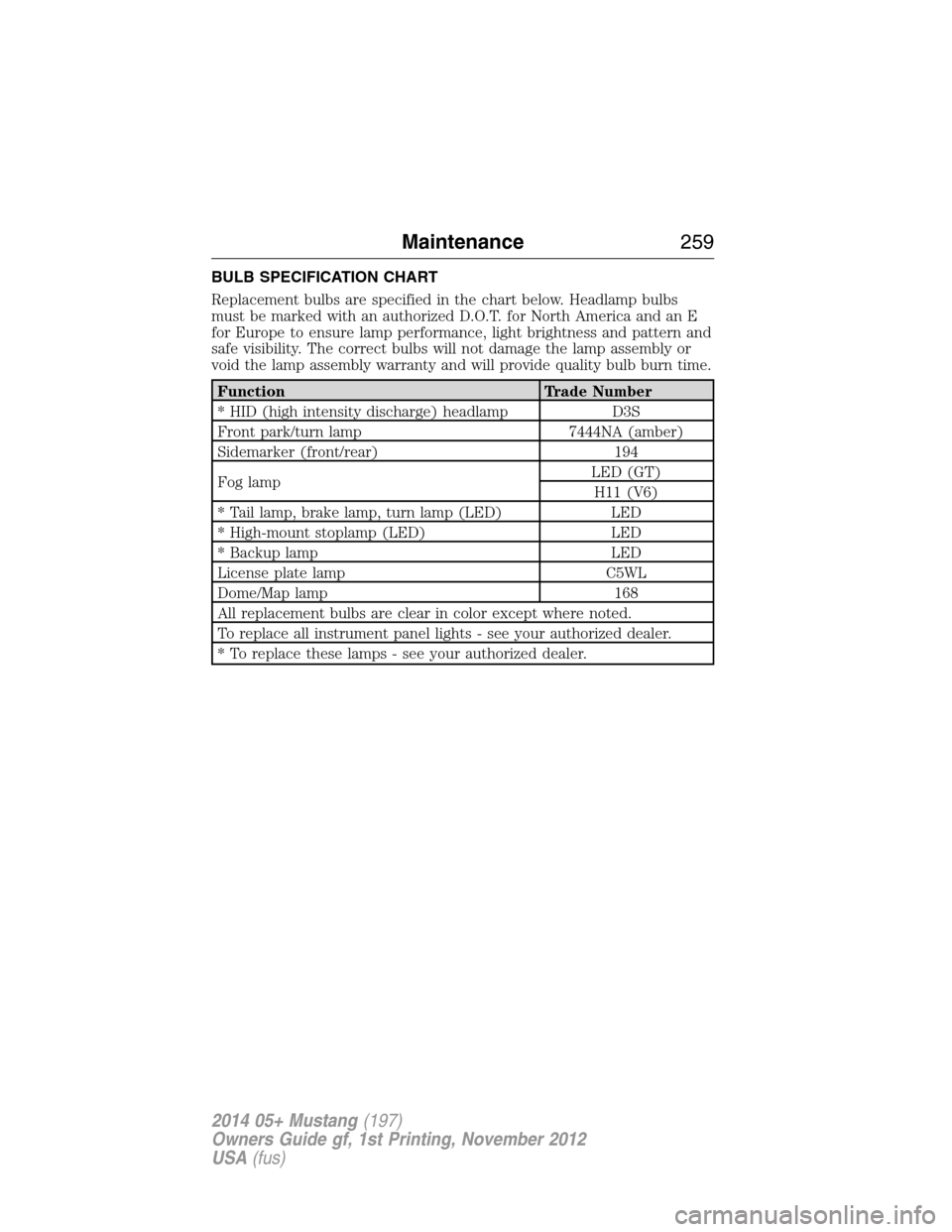

BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized D.O.T. for North America and an E
for Europe to ensure lamp performance, light brightness and pattern and
safe visibility. The correct bulbs will not damage the lamp assembly or
void the lamp assembly warranty and will provide quality bulb burn time.
Function Trade Number
* HID (high intensity discharge) headlamp D3S
Front park/turn lamp 7444NA (amber)
Sidemarker (front/rear) 194
Fog lampLED (GT)
H11 (V6)
* Tail lamp, brake lamp, turn lamp (LED) LED
* High-mount stoplamp (LED) LED
* Backup lamp LED
License plate lamp C5WL
Dome/Map lamp 168
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer.
* To replace these lamps - see your authorized dealer.
Maintenance259
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

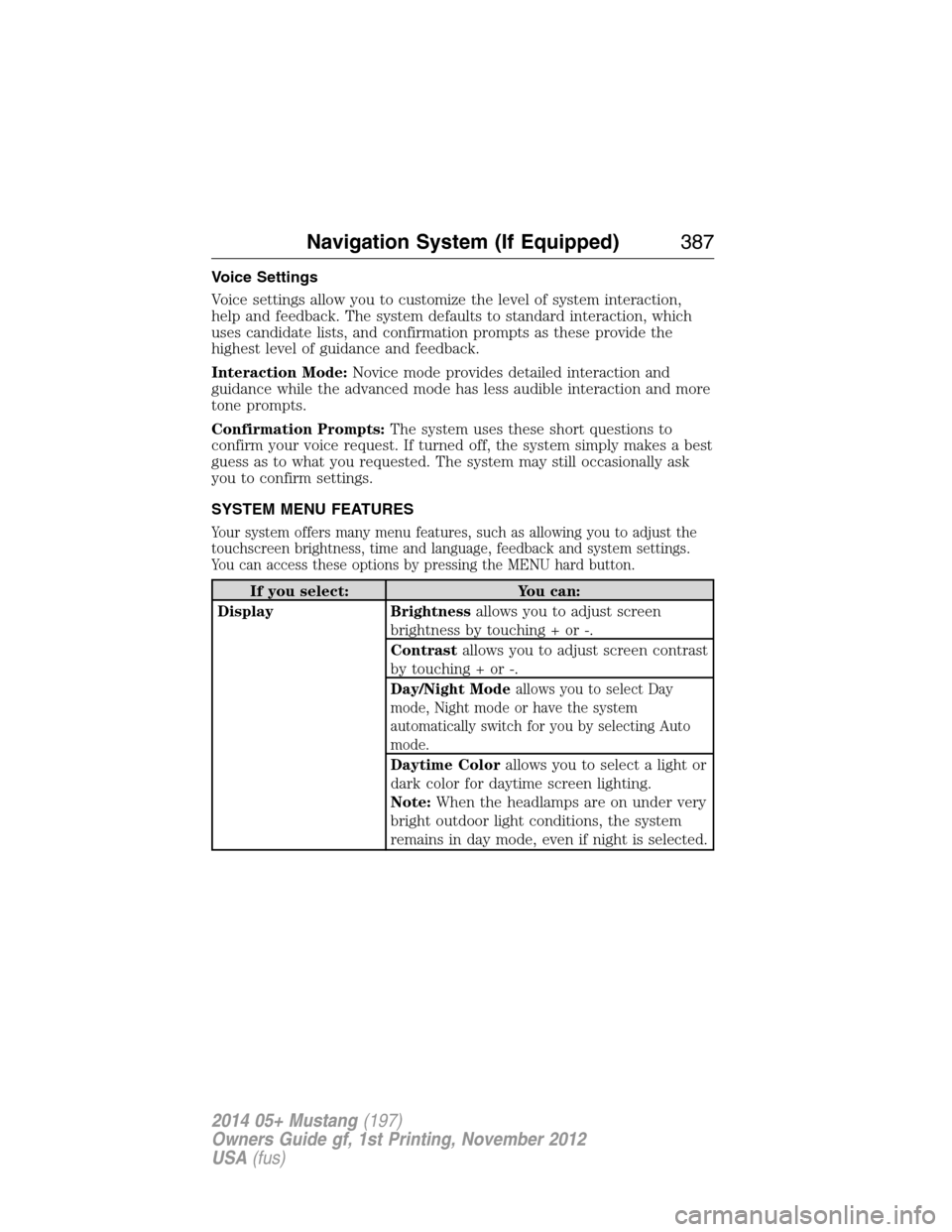

Voice Settings
Voice settings allow you to customize the level of system interaction,
help and feedback. The system defaults to standard interaction, which
uses candidate lists, and confirmation prompts as these provide the
highest level of guidance and feedback.
Interaction Mode:Novice mode provides detailed interaction and
guidance while the advanced mode has less audible interaction and more
tone prompts.
Confirmation Prompts:The system uses these short questions to
confirm your voice request. If turned off, the system simply makes a best
guess as to what you requested. The system may still occasionally ask
you to confirm settings.
SYSTEM MENU FEATURES
Your system offers many menu features, such as allowing you to adjust the
touchscreen brightness, time and language, feedback and system settings.
You can access these options by pressing the MENU hard button.
If you select: You can:
Display Brightnessallows you to adjust screen
brightness by touching + or -.
Contrastallows you to adjust screen contrast
by touching + or -.
Day/Night Mode
allows you to select Day
mode, Night mode or have the system
automatically switch for you by selecting Auto
mode.
Daytime Colorallows you to select a light or
dark color for daytime screen lighting.
Note:When the headlamps are on under very
bright outdoor light conditions, the system
remains in day mode, even if night is selected.
Navigation System (If Equipped)387
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

odometer .................................110
trip odometer ..........................110
H
Hazard flashers .........................217
HD Radio™ ...............................394
Headlamps
aiming ..............................253–254
bulb specifications ..................259
flash to pass ..............................80
high beam .................................80
Head restraints .........................139
Heating ..............................131, 133
Hill start assist ..........................176
Homelink wireless control
system ........................................147
Hood ..........................................239
I
Ignition ...............................155, 305
Illuminated visor mirror .............90
Information displays ...................99
Inspection/maintenance (I/M)
testing ........................................168
Instrument panel
cleaning ...................................264
cluster ........................................94
J
Jack ............................................289
positioning ...............................289
storage .....................................289
Joining two calls
(multiparty/conference call) ....344Jukebox features .......................409
Jump-starting your vehicle ......218
K
Keyless entry system
autolock .....................................66
Keys .......................................55, 71
positions of the ignition .........155
L
Lamps
bulb replacement
specifications chart ................259
headlamps, flash to pass ..........80
interior lamps ...........................84
LATCH anchors ...........................28
Lights, warning and indicator ....94
Limited slip axle (see Traction
Loc) ............................................176
Loading pictures .......................384
Load limits .................................194
Locks
autolock .....................................66
doors ..........................................65
Lubricant specifications ...........306
Lug nuts ....................................304
M
Manual transmission .................173
fluid capacities ........................306
lubricant specifications ..........306
reverse .....................................175
Map icons ..................................434
Map mode ..................................433
Map updates ..............................436
456Index
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
