Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, discolored fluids that also show signs of
overheating and foreign material contamination should be inspected
immediately by a qualified expert, such as the factory-trained technicians
at your dealership. Your vehicle’s oils and fluids should be changed at the
specified intervals or in conjunction with a repair. Flushing is a viable
way to change fluid for many vehicle sub-systems during scheduled
maintenance. It is critical that systems are flushed only with new fluid
that is the same as that required to fill and operate the system, or using
a Ford-approved flushing chemical.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six month intervals.
Check every month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if
necessary.
Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag, safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as
necessary.
Scheduled Maintenance531
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

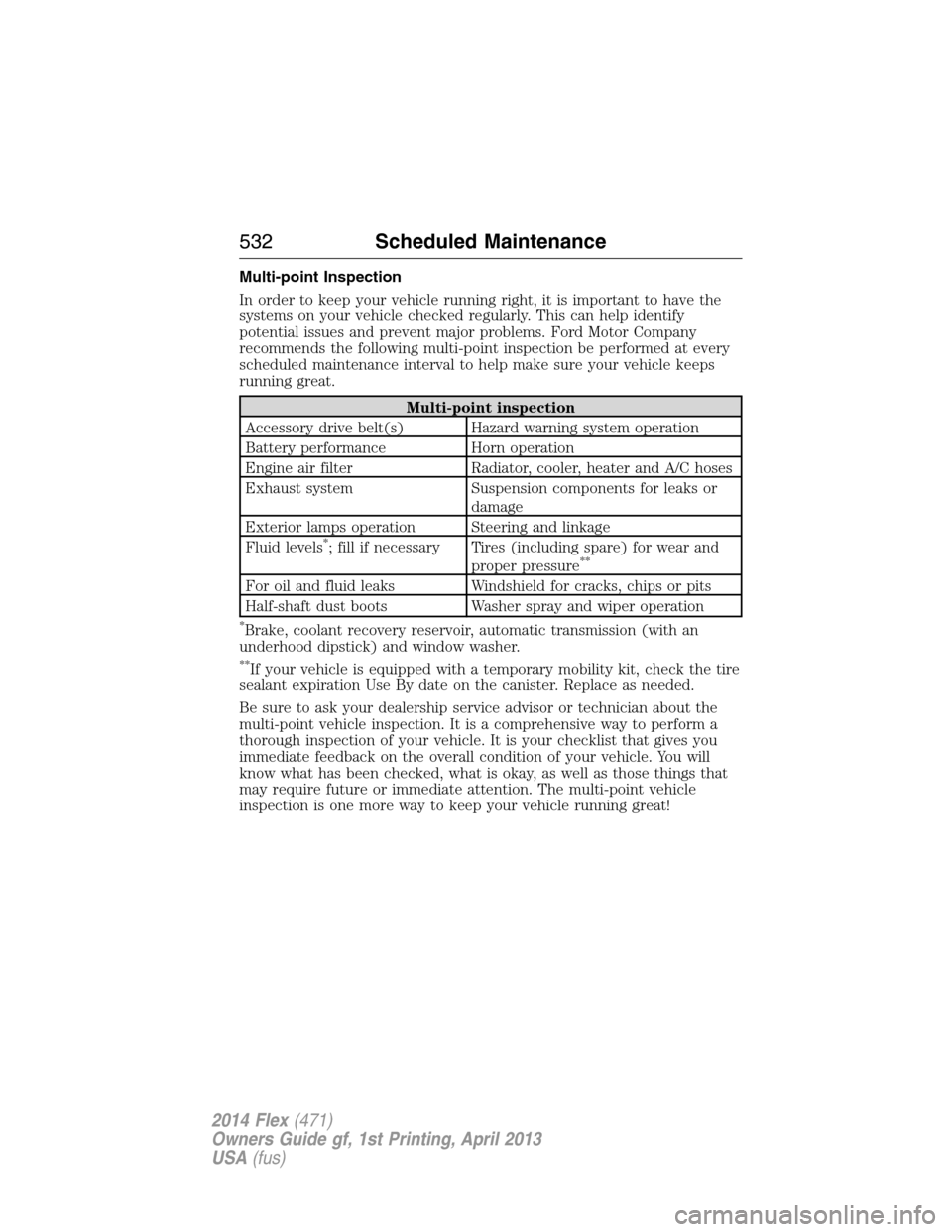

Multi-point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point inspection
Accessory drive belt(s) Hazard warning system operation
Battery performance Horn operation
Engine air filter Radiator, cooler, heater and A/C hoses
Exhaust system Suspension components for leaks or
damage
Exterior lamps operation Steering and linkage
Fluid levels
*; fill if necessary Tires (including spare) for wear and
proper pressure**
For oil and fluid leaks Windshield for cracks, chips or pits
Half-shaft dust boots Washer spray and wiper operation
*Brake, coolant recovery reservoir, automatic transmission (with an
underhood dipstick) and window washer.
**If your vehicle is equipped with a temporary mobility kit, check the tire
sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It is a comprehensive way to perform a
thorough inspection of your vehicle. It is your checklist that gives you
immediate feedback on the overall condition of your vehicle. You will
know what has been checked, what is okay, as well as those things that
may require future or immediate attention. The multi-point vehicle
inspection is one more way to keep your vehicle running great!
532Scheduled Maintenance
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed below:
Normal vehicle axle maintenance:Rear axles and power take-off
units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3000 miles (4800 kilometers) or three months,
whichever comes first. This interval can be waived if the axle is filled
with 75W140 synthetic gear fluid meeting Ford specification
WSL-M2C192-A, part number F1TZ-19580-B or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of
Traction-Lok rear axles (seeTechnical specificationsin theCapacities
and Specificationschapter for details).
Police, Taxi and Livery vehicle axle maintenance:Change rear axle
fluid every 100000 miles (160000 kilometers). Rear axle fluid change
may be waived if the axle was filled with 75W140 synthetic gear fluid
meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B
or equivalent. Add four ounces (118 mL) of additive friction modifier
XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok
rear axles. The axle fluid should be changed anytime the axle has been
submerged in water.
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5000 miles (8000 kilometers).
If the available API SM or SN oils are not available, then the oil change
service interval is 3000 miles (4800 kilometers).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions require frequent
inspection and replacement of the engine air filter and cabin air filter.
544Scheduled Maintenance
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

911 Assist™ ......................405, 479
A
ABS (see Brakes) .....................208
Accessing and using your USB
port ............................................458
Accessing call history/phone
book during active call .............394
Accessing your calendar ..........479
Accessing your media menu
features ......................................417
Accessing your phone menu
features ......................................396
Accessory delay ........................105
Active call menu options .........394
Active Park Assist .....................213
Adaptive Cruise Control ...........224
Adding (pairing) a phone ........466
Advanced menu options ...404, 424
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ..............................404
Airbag supplemental restraint
system ..........................................52
and child safety seats ..............53
description ................................52
disposal ......................................62
driver airbag ..............................52
passenger airbag .......................52
side airbag ...........................52, 57
Air cleaner filter .......306–307, 359
Air conditioning ........................135
manual heating and air
conditioning system ...............135
Air filter, cabin ..........................143All Wheel Drive (AWD),
driving off road .........................200
Ambient mood/lighting .............486
AM/FM .......................................446
Antifreeze (see Engine
coolant) .....................................292
Anti-lock brake system
(see Brakes) ..............................208
Anti-theft system ..................86, 89
arming the system ..............86, 89
disarming a triggered system ..89
Audio system
Single CD ................369, 374–375
Audio system
(see Radio) ................369, 374–375
Automatic transmission
driving an automatic
overdrive .................................195
fluid, adding ............................298
fluid, checking ........................298
fluid, refill capacities ..............356
fluid, specification ..................356
Selectshift (SST) ....................196
Auxiliary Input Jack .................454
Auxiliary input jack (Line in) ..382
Auxiliary powerpoint ................172
A/V inputs ..........................384, 462
B
Battery .......................................303
acid, treating emergencies .....303
jumping a disabled battery ....267
maintenance-free ....................303
replacement, specifications ...359
servicing ..................................303
Blind Spot Information
System .......................................232
546Index
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Booster seats ...............................22
Brakes ........................................207
anti-lock ...................................208
anti-lock brake system (ABS)
warning light ...........................208
brake warning light ................208
fluid, checking and adding ....302
fluid, refill capacities ..............356
fluid, specifications .................356
lubricant specifications ..........356
parking ....................................208
shift interlock ..........................198
trailer .......................................255
C
Capacities for refilling fluids ....356
Cargo net ...................................242
CD ..............................369, 374–375
CD player ..........................367, 457
CD voice commands .................458
Cell phone use ............................15
Changing a tire .........................347
Child safety restraints ..........30, 32
Child safety seats
automatic locking mode
(retractor) .................................40
LATCH .......................................30
Child safety seats - booster
seats .............................................22
Cleaning the touchscreen ........436
Cleaning your vehicle ...............315
engine compartment ..............317
instrument panel ....................319
interior .....................................319
plastic parts ............................316
washing ....................................315
waxing .....................................317wheels ......................................321
wiper blades ............................318
Climate control (see Air
conditioning or Heating) ..........135
Climate voice commands .........497
Clock ..................................369, 484
Collision Warning System .........237
Compass Display .......................120
Console ......................................175
overhead ..................................177
rear ..........................................175
Coolant ......................................292
checking and adding ..............292
refill capacities ........................356
specifications ..........................356
Cooler ........................................176
Cross Traffic Alert ....................232
Cruise control ...........................223
Customer Assistance ................265
Ford Extended Service
Plan ..........................................364
Getting roadside assistance ...265
Getting the service you
need .........................................270
Ordering additional owner’s
literature .................................276
Utilizing the
Mediation/Arbitration
Program ...................................274
D
Defrost .......................135, 137–138
rear window ............................143
Dipstick
automatic transmission
fluid ..........................................298
engine oil .................................291
Index547
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Display settings .........................485
Drivebelt ....................................355
Driving under special
conditions ..................199, 201, 204
sand .........................................202
snow and ice ...........................205
through water .................203, 262
Dual automatic temperature
control (DATC) .................137–138
E
Electronic message center .......117
Electronic stability control ......211
Emergencies, roadside
jump-starting ..........................267
running out of fuel .................188
Emergency brake
(see Parking brake) ..................208
Emission control system ..........192
End user license agreement ....510
Engine ........................................355
cleaning ...................................317
coolant .....................................292
fail-safe cooling .......................296
idle speed control ...................303
lubrication specifications .......356
refill capacities ........................356
service points ..........................290
Engine block heater .................184
Engine oil
checking and adding ..............291
dipstick ....................................291
filter, specifications ................359
refill capacities ........................356
specifications ..........................356
Event data recording ..................12
Exhaust fumes ..........................183F
Fail safe cooling ........................296
Fleet MyKey programming ........71
Floor mats .................................263
Fluid capacities .........................356
Four-Wheel Drive vehicles
driving off road .......................200
Freezer ......................................176
Fuel
cap ...........................................190
capacity ...................................356
choosing the right fuel ...........187
filler funnel .............................188
filling your vehicle with fuel ..190
filter, specifications ........302, 359
fuel pump shut-off ..................266
octane rating ...................187, 355
quality ......................................187
running out of fuel .................188
safety information relating to
automotive fuels .....................186
Fuel and distance computer ....120
outside temperature
indicator ..................................120
to empty indicator ..................120
trip distance ............................120
trip/reset button .....................120
Fuses ..................................278–279
G
Garage door opener ..................167
Gas cap (see Fuel cap) ............190
Gauges ...............................110–111
odometer .................................120
trip odometer ..........................120
H
Hazard flashers .........................266
548Index
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
