2014 FORD EXPLORER Owners Manual

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed below:
Normal vehicle axle maintenance:Rear axles and power take-off
units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3000 miles (4800 kilometers) or three months,
whichever comes first. This interval can be waived if the axle is filled
with 75W140 synthetic gear fluid meeting Ford specification
WSL-M2C192-A, part number F1TZ-19580-B or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of
Traction-Lok rear axles (seeTechnical specificationsin theCapacities
and Specificationschapter for details).
Police, Taxi and Livery vehicle axle maintenance:
Change rear axle
fluid every 100000 miles (160000 kilometers). Rear axle fluid change may be
waived if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent. Add
four ounces (118 mL) of additive friction modifier XL-3 (EST-M2C118-A) or
equivalent for complete refill of Traction-Lok rear axles. The axle fluid should
be changed anytime the axle has been submerged in water.
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5000 miles (8000 kilometers).
If the available API SM or SN oils are not available, then the oil change
service interval is 3000 miles (4800 kilometers).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions require frequent
inspection and replacement of the engine air filter and cabin air filter.
576Scheduled Maintenance
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

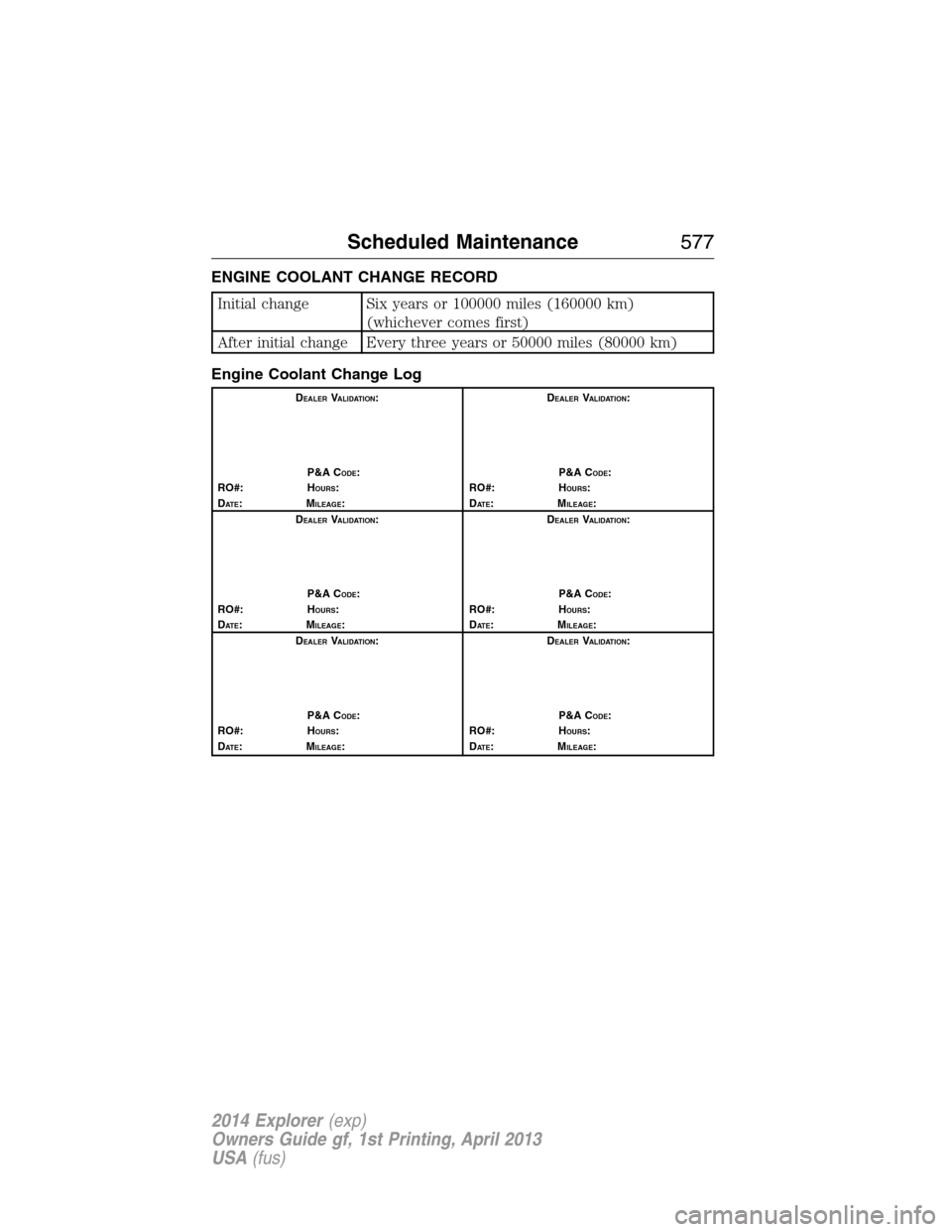

ENGINE COOLANT CHANGE RECORD
Initial change Six years or 100000 miles (160000 km)
(whichever comes first)
After initial change Every three years or 50000 miles (80000 km)
Engine Coolant Change Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance577
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

911 Assist™ ......................438, 512
A
ABS (see Brakes) .....................222
Accessing and using your USB
port ............................................490
Accessing call history/phone
book during active call .............427
Accessing your calendar ..........511
Accessing your media menu
features ......................................450
Accessing your phone menu
features ......................................429
Accessory delay ........................107
Active call menu options .........427
Active Park Assist .....................230
Adaptive Cruise Control ...........241
Adding (pairing) a phone ........498
Advanced menu options ...436, 456
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ..............................436
Airbag supplemental restraint
system ..........................................51
and child safety seats ..............52
description ................................51
disposal ......................................60
driver airbag ..............................51
passenger airbag .......................51
side airbag ...........................51, 55
Air cleaner filter .......333–334, 391
Air conditioning ........................144
manual heating and air
conditioning system ...............144
Air filter .....................................334Air filter, cabin ..........................152
All Wheel Drive (AWD),
driving off road .........................214
Ambient mood/lighting .............518
Ambulance packages ..................15
AM/FM .......................................478
Antifreeze
(see Engine coolant) ................318
Anti-lock brake system
(see Brakes) ..............................222
Anti-theft system ..................85, 88
arming the system ..............85, 88
disarming a triggered system ..88
Audio system
Single CD ................402, 406, 408
Audio system
(see Radio) ................402, 406, 408
Automatic transmission ............206
fluid, adding ............................324
fluid, checking ........................324
fluid, refill capacities ..............387
fluid, specification ..................387
Selectshift (SST) ....................209
Auxiliary Input Jack .................487
Auxiliary input jack (Line in) ..415
Auxiliary powerpoint ................183
A/V inputs ..........................417, 495
Axle
lubricant specifications ..........387
refill capacities ........................387
B
Battery .......................................329
acid, treating emergencies .....329
jumping a disabled battery ....291
maintenance-free ....................329
578Index
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

replacement, specifications ...391
servicing ..................................329
Blind Spot Information
System .......................................256
Booster seats ...............................22
Brakes ........................................221
anti-lock ...................................222
anti-lock brake system (ABS)
warning light ...........................222
brake warning light ................222
fluid, checking and adding ....328
fluid, refill capacities ..............387
fluid, specifications .................387
lubricant specifications ..........387
parking ....................................222
shift interlock ..........................210
trailer .......................................280
C
Capacities for refilling fluids ....387
Cargo net ...................................266
CD ..............................402, 406, 408
CD player ..........................400, 489
CD voice commands .................490
Cell phone use ............................16
Changing a tire .........................376
Changing the air filter ..............334
Child safety restraints ..........30, 32
Child safety seats
attaching with tether straps ....32
automatic locking mode
(retractor) .................................40
LATCH .......................................30
Child safety seats - booster
seats .............................................22
Cleaning the touchscreen ........468Cleaning your vehicle ...............343
engine compartment ..............345
instrument panel ....................347
interior .....................................347
plastic parts ............................344
washing ....................................343
waxing .....................................345
wheels ......................................349
wiper blades ............................346
Climate control (see Air
conditioning or Heating) ..........144
Climate voice commands .........529
Clock ..................................402, 516
Collision Warning System .........261
Console ......................................186
overhead ..................................187
rear ..........................................186
Coolant ......................................318
checking and adding ..............318
refill capacities ........................387
specifications ..........................387
Cross Traffic Alert ....................256
Cruise control ...........................240
Customer Assistance ................289
Ford Extended Service
Plan ..........................................397
Getting roadside assistance ...289
Getting the service you
need .........................................294
Ordering additional owner’s
literature .................................300
Utilizing the
Mediation/Arbitration
Program ...................................298
D
Defrost .......................144, 146, 148
rear window ............................152
Index579
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Dipstick
automatic transmission
fluid ..........................................324
engine oil .................................317
Display settings .........................517
Driver alert ................................250
Driving under special
conditions ..................212, 216, 218
sand .........................................217
snow and ice ...........................219
through water .................218, 286
Dual automatic temperature
control (DATC) .................146, 148
E
Electronic message center .......121
Electronic stability control ......225
Emergencies, roadside
jump-starting ..........................291
running out of fuel .................197
Emergency brake
(see Parking brake) ..................222
Emission control system ..........202
End user license agreement ....542
Engine ........................................385
cleaning ...................................345
coolant .....................................318
fail-safe cooling .......................322
idle speed control ...................329
lubrication specifications .......387
refill capacities ........................387
service points ..................314–316
Engine block heater .................193
Engine oil
checking and adding ..............317
dipstick ....................................317
filter, specifications ................391refill capacities ........................387
specifications ..........................387
Event data recording ..................12
Exhaust fumes ..........................193
F
Fail safe cooling ........................322
Fleet MyKey programming ........69
Floor mats .................................287
Fluid capacities .........................387
Fuel
cap ...........................................199
capacity ...................................387
choosing the right fuel ...........196
filler funnel .............................197
filling your vehicle with fuel ..199
filter, specifications ........329, 391
fuel pump shut-off ..................290
octane rating ...........................385
quality ......................................196
running out of fuel .................197
safety information relating to
automotive fuels .....................195
Fuel and distance computer ....125
outside temperature
indicator ..................................125
to empty indicator ..................125
trip distance ............................125
trip/reset button .....................125
Fuses ..........................302–303, 308
G
Garage door opener ..................178
Gas cap (see Fuel cap) ............199
Gauges ...............................113–114
odometer .................................125
trip odometer ..........................125
580Index
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

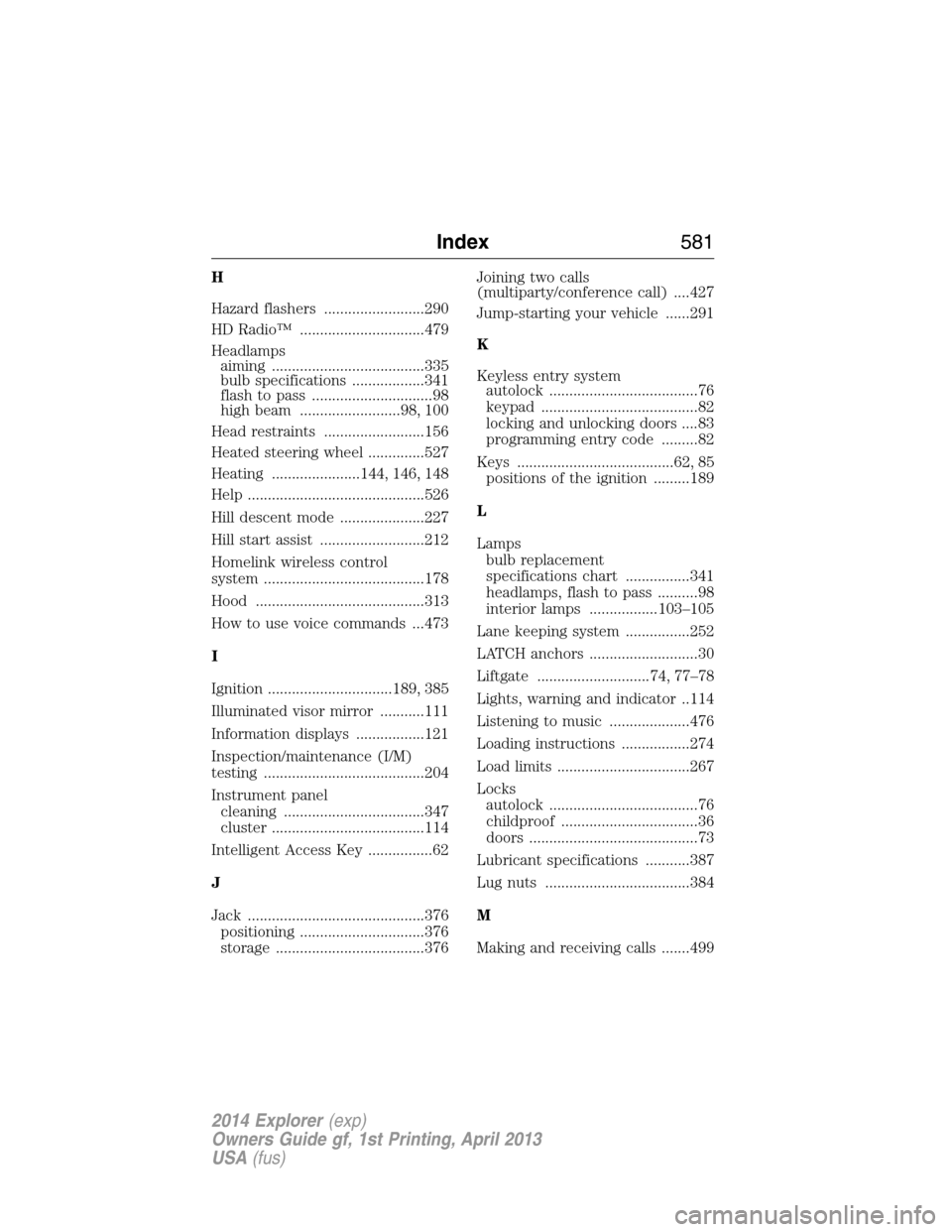

H
Hazard flashers .........................290
HD Radio™ ...............................479
Headlamps
aiming ......................................335
bulb specifications ..................341
flash to pass ..............................98
high beam .........................98, 100
Head restraints .........................156
Heated steering wheel ..............527
Heating ......................144, 146, 148
Help ............................................526
Hill descent mode .....................227
Hill start assist ..........................212
Homelink wireless control
system ........................................178
Hood ..........................................313
How to use voice commands ...473
I
Ignition ...............................189, 385
Illuminated visor mirror ...........111
Information displays .................121
Inspection/maintenance (I/M)
testing ........................................204
Instrument panel
cleaning ...................................347
cluster ......................................114
Intelligent Access Key ................62
J
Jack ............................................376
positioning ...............................376
storage .....................................376Joining two calls
(multiparty/conference call) ....427
Jump-starting your vehicle ......291
K
Keyless entry system
autolock .....................................76
keypad .......................................82
locking and unlocking doors ....83
programming entry code .........82
Keys .......................................62, 85
positions of the ignition .........189
L
Lamps
bulb replacement
specifications chart ................341
headlamps, flash to pass ..........98
interior lamps .................103–105
Lane keeping system ................252
LATCH anchors ...........................30
Liftgate ............................74, 77–78
Lights, warning and indicator ..114
Listening to music ....................476
Loading instructions .................274
Load limits .................................267
Locks
autolock .....................................76
childproof ..................................36
doors ..........................................73
Lubricant specifications ...........387
Lug nuts ....................................384
M
Making and receiving calls .......499
Index581
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

MAP DVD - Loading and
Unloading ..................................499
Map icons ..................................537
Map mode ..................................536
Map preferences .......................534
Map updates ..............................539
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................455
Message center .........................121
warning messages ...........125, 132
Mirrors ...............................108, 110
fold away .................................108
programmable memory ............64
side view mirrors (power) .....108
Moon roof ..................................111
Motorcraft® parts .............343, 391
MyFord Touch™ system ..........465
MyKey ..........................................69
N
Navigation features ...................530
Navigation voice commands ....540
Notifications ..............................511
P
Pairing other phones ........424, 498
Pairing your phone ...................498
Pairing your phone for the first
time ....................................424, 498
Parental MyKey programming ...69
Park Assist ................................230
Parking brake ............................222Parts
(see Motorcraft® parts) ..........391
Passenger Occupant
Classification Sensor ...................53
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................435
Phone redial ..............................429
Phone settings ..................502, 523
Phone voice commands ............503
Playing music (by artist,
album, genre, playlist, tracks,
similar) ......................................452
POI categories ...........................532
Point of Interest (POI) .............532
Power distribution box
(see Fuses) ...............................303
Power door locks ........................73
Power liftgate ..............................78
Power mirrors ...........................108
Powerpoint ................................183
Power steering ..........................264
fluid, checking and adding ....328
Power Windows .........................106
Privacy information ..........420, 470
Push button start system .........189
Putting a call on/off hold .........427
Q
Quick touch buttons .................538
R
Radio ..........................402, 406, 408
AM/FM .....................................478
582Index
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Single CD ................402, 406, 408
Radio reception .........................400
Radio voice commands .............483
Rear heated seats .....................167
Rear view camera
display ................................235, 519
Rear window
defroster ....................144, 146, 148
Receiving a text
message .............................431, 502
Recommendations for
attaching safety restraints for
children ........................................24
Relays ................................302–303
Remote entry system
illuminated entry ................76–77
locking/unlocking doors ...........73
opening the trunk .....................74
replacing the batteries .............63
Reverse sensing system ...........230
Roadside assistance ..................289
Roll stability control .................225
Roof rack ...................................266
Route preferences ....................534
S
Safety Belt Maintenance ............47
Safety belts (see Safety
restraints) ..............................39, 42
Safety defects, reporting ..........301
Safety information ............419, 469
Safety restraints ..............39–40, 42
Belt-Minder® ............................43
Belt-Minder®,
deactivating/activating .............44extension assembly ..................42
for adults .............................39–40
for children ...............................24
inflatable safety belt .................45
Occupant Classification
Sensor ........................................53
safety belt maintenance ...........47
seat belt maintenance ..............47
warning light and chime ..........43
Safety restraints - LATCH
anchors ........................................30
Safety seats for children ............24
Safety Compliance
Certification Label ....................392
Satellite Radio ...................402, 484
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............566
SD card ......................417, 490, 530
Seat belts (see Safety
restraints) ....................................39
Seats ..........................................166
child safety seats ......................24
climate control ........................165
easy access/easyout feature ..162
front seats ...............159–160, 164
heated ..............................163, 167
memory seat .....................64, 161
second row seats ....................166
third row seats ........168, 173, 175
Second-row power fold seat ....171
SecuriCode keyless entry
system ..........................................82
SecuriLock passive anti-theft
system ..........................................85
Selecting your media source
(USB, Line in, BT audio) .........450
Sending new text messages .....501
Index583
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
