2014 FIAT QUBO technical specifications

FUEL SYSTEMVersions Fuel system
1.3 Multijet 75 HPElectronically controlled Common Rail Multijet direct injection with turbocharger and
intercooler
WARNING
Modifications or repairs to the fuel supply system that are not carried out properly or do not
take the technical specifications of the system into account can cause malfunctions leading
to the risk of fire.
TRANSMISSIONVersions Gearbox Clutch Traction
1.3 Multijet 75 HPFive forward speed plus
reverse with synchronizers
for the engagement of the
forward speedsHydraulic drive Front
195KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

BRAKESVersions Front service brakes Rear service brakes Parking brake
1.3 Multijet 75 HPdisk drumcontrolled by hand lever,
acting on rear brakesIMPORTANT Water, ice and salt sprinkled on the roads may deposit on the brake disks reducing braking
efficiency the first time the brakes are applied.SUSPENSIONVersions Front Rear
1.3 Multijet 75 HPMc Pherson independent wheels torsion beamSTEERINGVersions Turning circle (kerb to kerb) (m) Type
1.4
10.55rack and pinion with electric power
steering (for versions/markets, where
provided) 1.3 Multijet 75 HP
1.3 Multijet 95 HP
196KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

WHEELSWHEELS AND TYRES
Pressed steel or alloy wheels. Tubeless radial carcass
tyres. All approved tyres are listed in the Log Book.
IMPORTANT If there are any discrepancies between
the Owner's handbook and the logbook, take the
information from the latter.
Respect the prescribed size to ensure safety of the
vehicle in movement. Fit tyres of the same make and
type on all wheels.
IMPORTANT Do not use air chambers with tubeless
tyres.
SPARE WHEEL
Pressed steel rims. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured between rims: -1 ±1
mm
The values refer to the vehicle in running order.
CORRECT READING OF THE TYRE
Example: 175/70 R 14 91T(see fig. 180)175
Nominal width (S, distance in mm between
sidewalls)
70
Height/width ratio (H/S) as a percentage
RRadial tyre14
Rim diameter in inches (Ø)
91
Load index
T
Maximum speed index
Maximum speed index
Q
up to 160 km/h
Rup to 170 km/hSup to 180 km/hT
up to 190 km/h
U
up to 200 km/h
H
up to 210 km/h
V
up to 240 km/h
W
up to 270 km/h
Y
up to 300 km/hfig. 180
F0T0014
197KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Maximum speed index for snow tyresQM+S
up to 160 km/h
TM+S
up to 190 km/h
HM+S
up to 210 km/h
Load index
Load index
60= 250 kg84= 500 kg
61= 257 kg85= 515 kg
62= 265 kg86= 530 kg
63= 272 kg87= 545 kg
64= 280 kg88= 560 kg
65= 290 kg89= 580 kg
66= 300 kg90= 600 kg
67= 307 kg91= 615 kg
68= 315 kg92= 630 kg
69= 325 kg93= 650 kg
70= 335 kg94= 670 kg
71= 345 kg95= 690 kg
72= 355 kg96= 710 kg
73= 365 kg97= 730 kg
74= 375 kg98= 750 kg
75= 387 kg99= 775 kg
Load index
76= 400 kg100= 800 kg
77= 412 kg101= 825 kg
78= 425 kg102= 850 kg
79= 437 kg103= 875 kg
80= 450 kg104= 900 kg
81= 462 kg105= 925 kg
82= 475 kg106= 950 kg
83= 487 kg
198KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

CORRECT RIM READING
Example: 5 1/2J x 14 H2 ET 44(see fig. 180)5 1/2
rim diameter in inches (1).
Jrim drop centre outline (side projection where the
tyre bead rests) (2).14
rim nominal diameter in inches (corresponds to
diameter of the tyre to be mounted) (3 = Ø).
H2
shape and number of humps (circumference
measurement which keeps the heel of tubeless
tyres in position on the rim).
ET 44
wheel camber (distance between the disc/rim
support plane and the wheel centre line).RIM PROTECTOR TYRES
WARNING
Do not fit wheel cups when using
integral cups fixed (with springs) to the
steel rim and tyres other than factory-fitted
tyres provided with Rim Protector fig. 181. Use
of unsuitable tyres and wheel cups may cause
sudden loss of tyre pressure.
fig. 181
F0S0351
199KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

STANDARD RIMS AND TYRESVersions Rims Standard tyres Snow tyresSpace-saver spare wheel
(*)
Rim -
Ty r e
1.3 Multijet6Jx15H2-ET44 185/65 R15 88T185/65 R15Q
(M+S)6 Jx15H2-ET44 185/65 R15
185/65 R15T
(M+S)
(***)
6 Jx15H2-ET44 185/65 R15
6Jx16-ET45 195/55 R16 87T -6 Jx15H2-ET44
(**)
185/65 R15
(**)
(*) (for versions/markets, where provided)
(***) QUBO Trekking versions
(**) Follow the IMPORTANT note below for correct use of the space-saver spare wheel.
WARNING
Use of the space-saver spare wheel must be strictly reduced to the necessary minimum and
never exceed 80 km/h. An orange warning label is affixed on the space-saver spare wheel
illustrating usage restrictions. Never remove or cover the label.The following information is provided
in four languages on the label:Warning! For temporary use only! 80 km/h max! Replace as soon as
possible with a standard service wheel. Never cover this indication.
200KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

COLD TYRE INFLATION PRESSURE (bar)SizeSTANDARD TYRES
SPARE
WHEEL
(*)
No load Medium load Full load
Front Rear Front Rear Front Rear
185/65 R15
88T2.3 2.2 2.3 2.1 2.3 2.5
2.5
195/55 R16
87T2.3 2.1 2.3 2.1 2.4 2.4
(*) (for versions/markets, where provided)Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. However, recheck that the value
is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure prescribed for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres at full-load pressures.
201KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

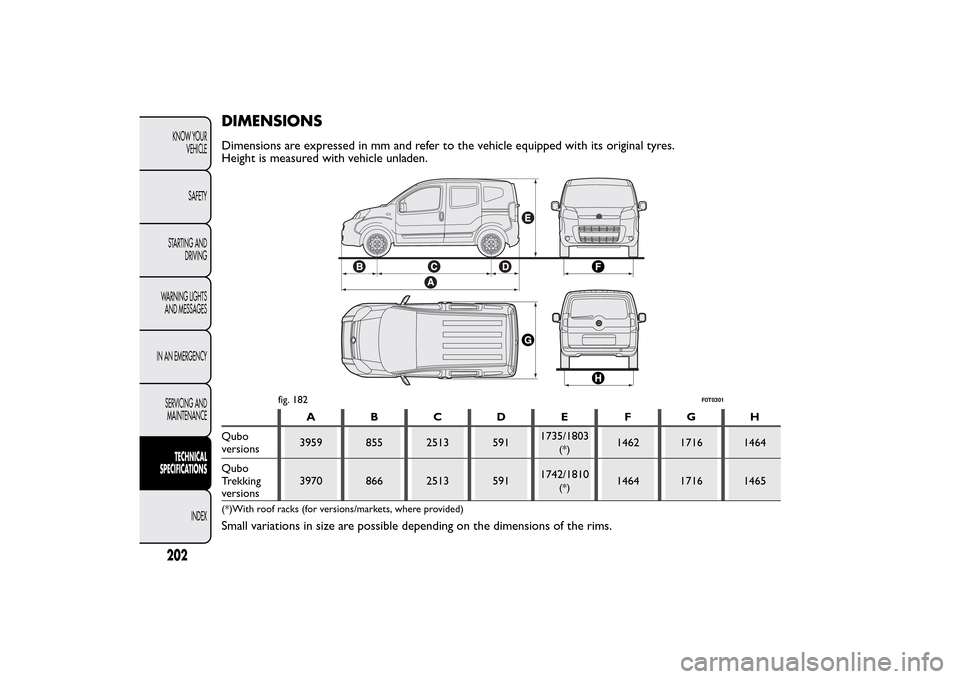

DIMENSIONSDimensions are expressed in mm and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
ABCDE FGH
Qubo
versions3959 855 2513 5911735/1803
(*)
1462 1716 1464
Qubo
Trekking
versions3970 866 2513 5911742/1810
(*)
1464 1716 1465
(*)With roof racks (for versions/markets, where provided)Small variations in size are possible depending on the dimensions of the rims.
fig. 182
F0T0301
