RIM PROTECTOR TYRES196)
WARNING
196) Do NOT fit hub caps when
using integral caps fixed (with
springs) to the steel rim and
aftersale tyres provided with Rim
Protector fig. 252. The use of
unsuitable tyres and hub caps
may cause sudden loss of tyre
pressure.
CORRECT READING OF
THE RIM CODE
Example: 6J x 15 ET 43
(see fig. 251)6rim width in inches (1).Jrim drop centre outline (side
projection where the tyre bead rests)
(2).15
rim fitting diameter in inches
(corresponds to the diameter of the
tyre to be mounted) (3 = Ø).
ET 43
wheel camber (distance between
the disc/rim support plane and
the wheel rim centre line).
252
F1A0248
261

RIMS AND TYRES PROVIDED
Versions Rims Tyres provided
Ducato (except
recreational)6Jx15'' - H2215/70 R15C 109/107S
225/70 R15C 112/105S
6Jx16'' - H2215/75 R16C 116/114R (*)
225/75 R16C 118/116R (*)
Ducato (recreational)6Jx15'' - H2 215/70 R15CP 109/107Q
6Jx16'' - H2 225/75 R16CP 116/114Q
Ducato Maxi (except
recreational)6Jx16'' - H2215/75 R16C 116/114R
225/75 R16C 118/116R
Ducato Maxi
(recreational)6Jx16'' - H2225/75 R16CP 116/114Q
225/75 R16CP 118R(*) For versions/markets, where provided, depending on the max. speed of the vehicle.
.
If using M+S winter tyres with speed index lower than “S” for 15" wheels and “R” for 16" wheels, respect the max. vehicle
speed indicated in the table: Maximum speed index.
IMPORTANT Only use the tyres indicated on the vehicle registration document.
If using class C tyres on a Camping vehicle, always use wheels with a metal inflation valve. When replacing, it is always
advisable to use Camping tyres.
262
TECHNICAL SPECIFICATIONS

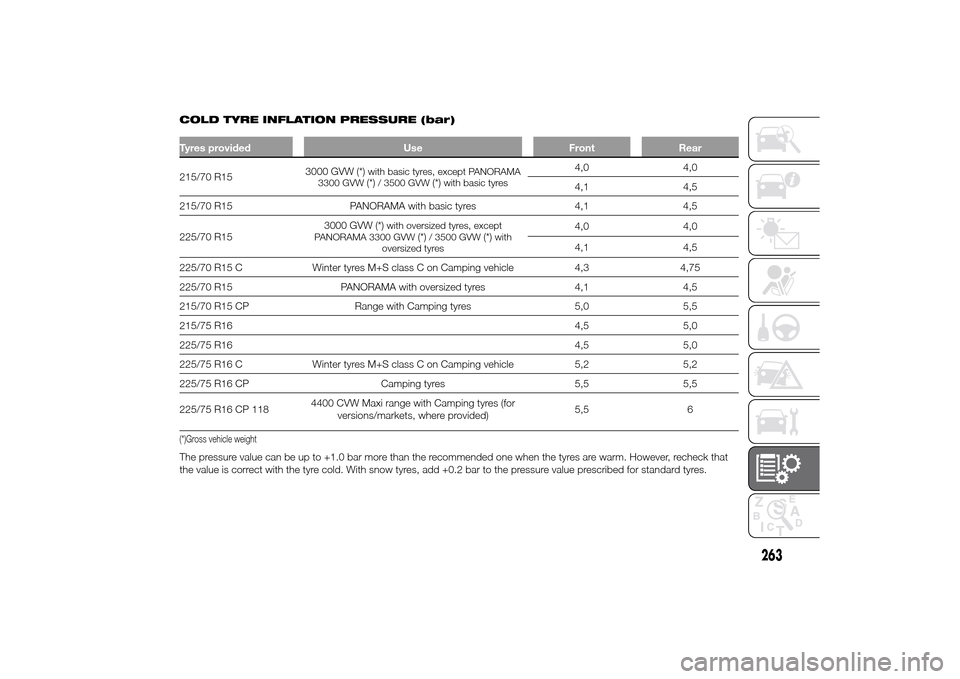

COLD TYRE INFLATION PRESSURE (bar)Tyres provided Use Front Rear215/70 R153000 GVW (*)
with basic tyres, except PANORAMA
3300 GVW(*)/ 3500 GVW
(*)with basic tyres
4,0 4,0
4,1 4,5
215/70 R15 PANORAMA with basic tyres 4,1 4,5
225/70 R153000 GVW (*)
with oversized tyres, except
PANORAMA 3300 GVW
(*)/ 3500 GVW
(*)with
oversized tyres
4,0 4,0
4,1 4,5
225/70 R15 C Winter tyres M+S class C on Camping vehicle 4,3 4,75
225/70 R15 PANORAMA with oversized tyres 4,1 4,5
215/70 R15 CP Range with Camping tyres 5,0 5,5
215/75 R164,5 5,0
225/75 R164,5 5,0
225/75 R16 C Winter tyres M+S class C on Camping vehicle 5,2 5,2
225/75 R16 CP Camping tyres 5,5 5,5
225/75 R16 CP 1184400 CVW Maxi range with Camping tyres (for
versions/markets, where provided)5,5 6
(*)Gross vehicle weightThe pressure value can be up to +1.0 bar more than the recommended one when the tyres are warm. However, recheck that
the value is correct with the tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
263

DIMENSIONSP
Dimensions
The
253
F1A0367
264
TECHNICAL

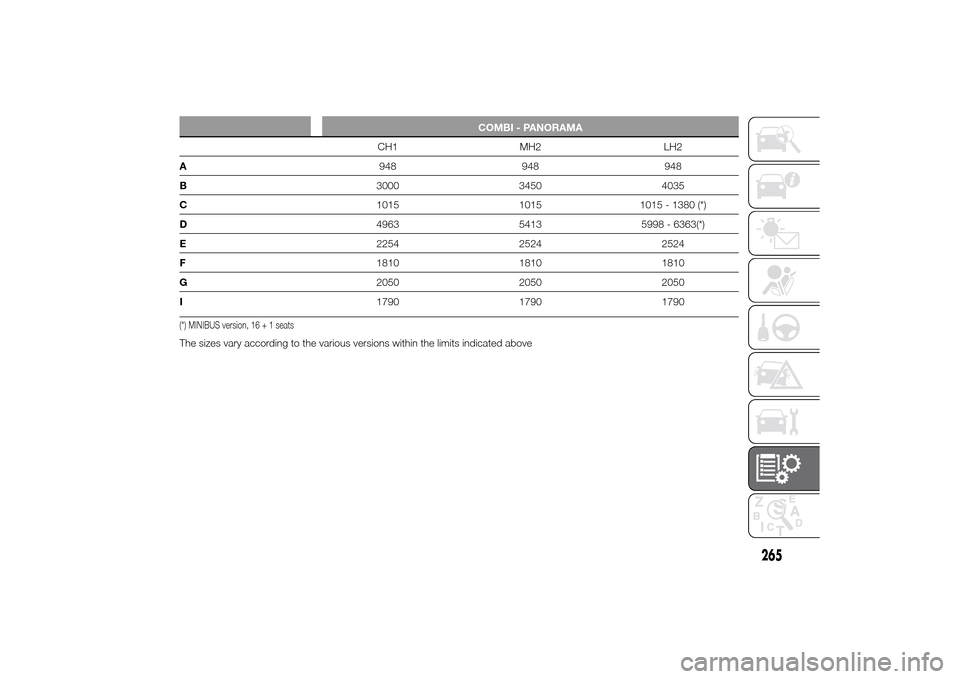

COMBI - PANORAMA
CH1 MH2 LH2
A948 948 948
B3000 3450 4035
C1015 1015 1015 - 1380 (*)
D4963 5413 5998 - 6363(*)
E2254 2524 2524
F1810 1810 1810
G2050 2050 2050
I1790 1790 1790
(*) MINIBUS version, 16 + 1 seatsThe sizes vary according to the various versions within the limits indicated above
265

V
Dimensions
The
254
F1A0328
266
TECHNICAL

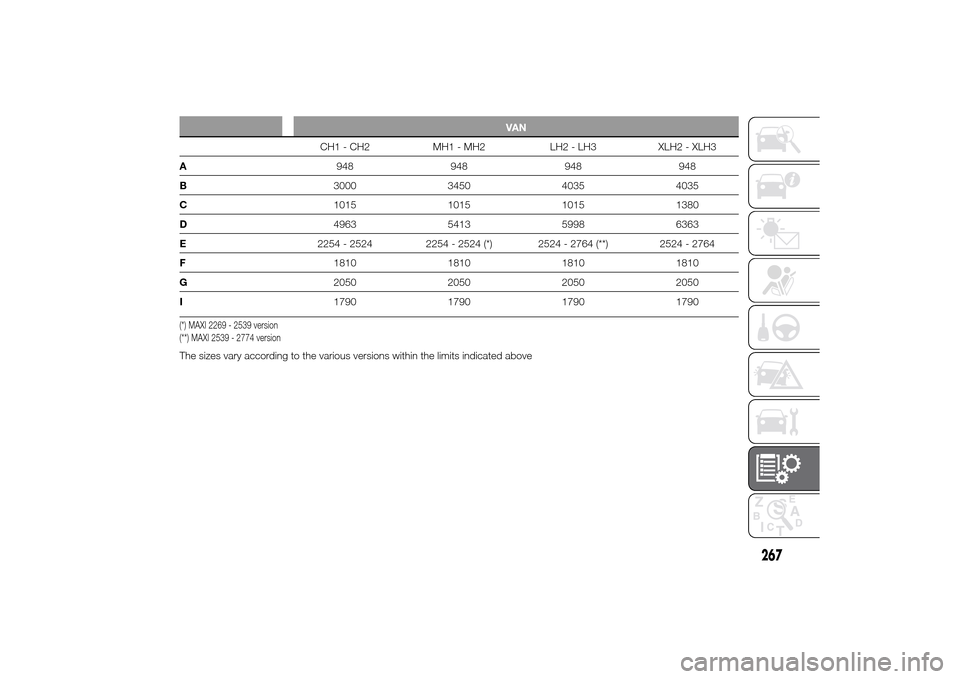

VAN
CH1 - CH2 MH1 - MH2 LH2 - LH3 XLH2 - XLH3
A948 948 948 948
B3000 3450 4035 4035
C1015 1015 1015 1380
D4963 5413 5998 6363
E2254 - 2524 2254 - 2524 (*) 2524 - 2764 (**) 2524 - 2764
F1810 1810 1810 1810
G2050 2050 2050 2050
I1790 1790 1790 1790
(*) MAXI 2269 - 2539 version
(**) MAXI 2539 - 2774 versionThe sizes vary according to the various versions within the limits indicated above
267

TRUCK VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
255
F1A0329
268
TECHNICAL SPECIFICATIONS
