2014 FIAT BRAVO Owners Manual

Version Rims Tyres Snow tyresSpare wheel
Rim Tyre
2.0 MultiJet
165 HP7J x 16 ET 31 195/55 R16 91V195/55 R16 91T
(M+S)
(***) (***)
7J x 16 ET 31 205/55 R16 91V205/55 R16 91T
(M+S)
7J x 17 ET 26 225/45 R17 91W225/45 R17 91T
(M+S)
7Jx16ET31205/55 R16 91H
205/55 R16 91V
(****)
7J x 17 ET 31 225/45 R17 91W225/45 R17 91T
(M+S)
71/2Jx18ET35225/40 R18 92W
REINFORCED
(*****)
225/40 R18 92T
(M+S)
(***) On versions equipped with 195/55 R16 and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the
Fix&Go.
(****) The 205/55 R16 91H (or 205/55 R16 91V) tyre has the same specifications as the space-saver wheel: the information in the
“Replacing a wheel” paragraph therefore refers to the 205/55 R16 91H (or 205/55 R16 91V) tyre.
(*****) Tyres which cannot be fitted with chains.SPACE-SAVER WHEEL (for versions/markets, where provided)
Rim: 4B x 15H ET 35
Tyre: T125/90 R15 96M
IMPORTANT Special techniques need to be adopted for 225/40 R18 92W tyres. For this reason, these tyres
can only be requested when the vehicle is purchased. Do not fit this tyre after the vehicle has been
purchased!
237GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

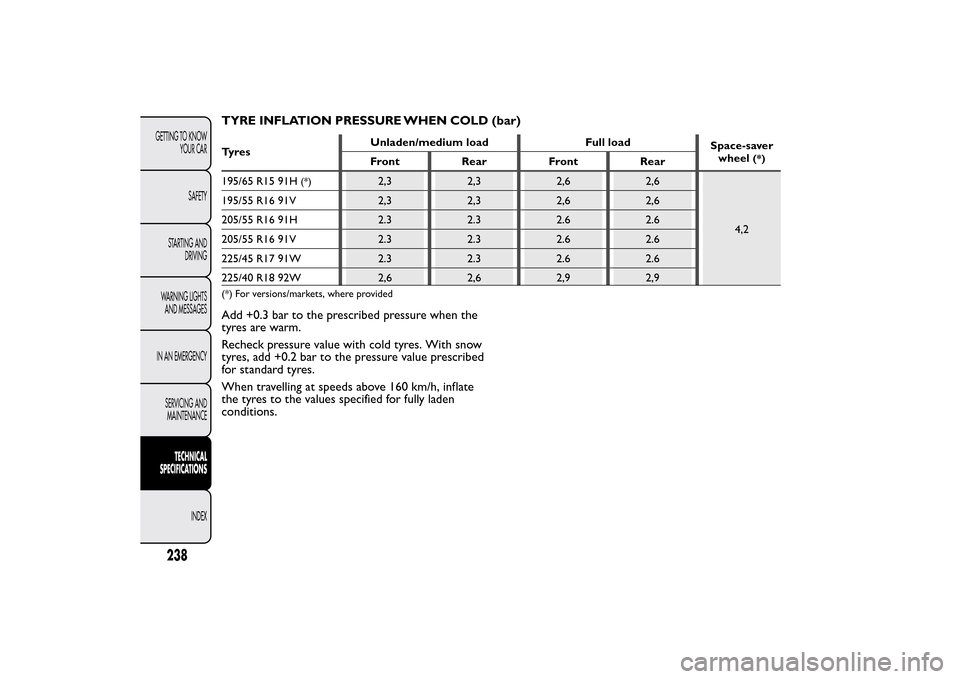

TYRE INFLATION PRESSURE WHEN COLD (bar)Ty r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/65 R15 91H
(*)
2,3 2,3 2,6 2,6
4,2 195/55 R16 91V 2,3 2,3 2,6 2,6
205/55 R16 91H 2.3 2.3 2.6 2.6
205/55 R16 91V 2.3 2.3 2.6 2.6
225/45 R17 91W 2.3 2.3 2.6 2.6
225/40 R18 92W 2,6 2,6 2,9 2,9
(*) For versions/markets, where providedAdd +0.3 bar to the prescribed pressure when the
tyres are warm.
Recheck pressure value with cold tyres. With snow
tyres, add +0.2 bar to the pressure value prescribed
for standard tyres.
When travelling at speeds above 160 km/h, inflate
the tyres to the values specified for fully laden
conditions.
238GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

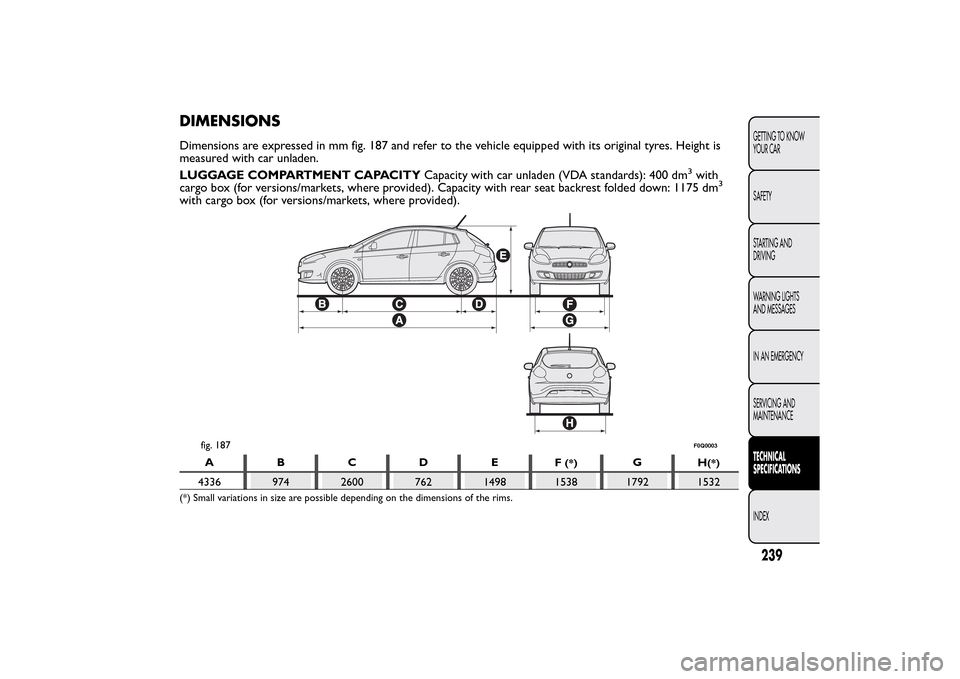

DIMENSIONSDimensions are expressed in mm fig. 187 and refer to the vehicle equipped with its original tyres. Height is
measured with car unladen.
LUGGAGE COMPARTMENT CAPACITYCapacity with car unladen (VDA standards): 400 dm
3with
cargo box (for versions/markets, where provided). Capacity with rear seat backrest folded down: 1175 dm
3
with cargo box (for versions/markets, where provided).
ABCDE
F
(*)
G
H
(*)
4336 974 2600 762 1498 1538 1792 1532
(*) Small variations in size are possible depending on the dimensions of the rims.
fig. 187
F0Q0003
239GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

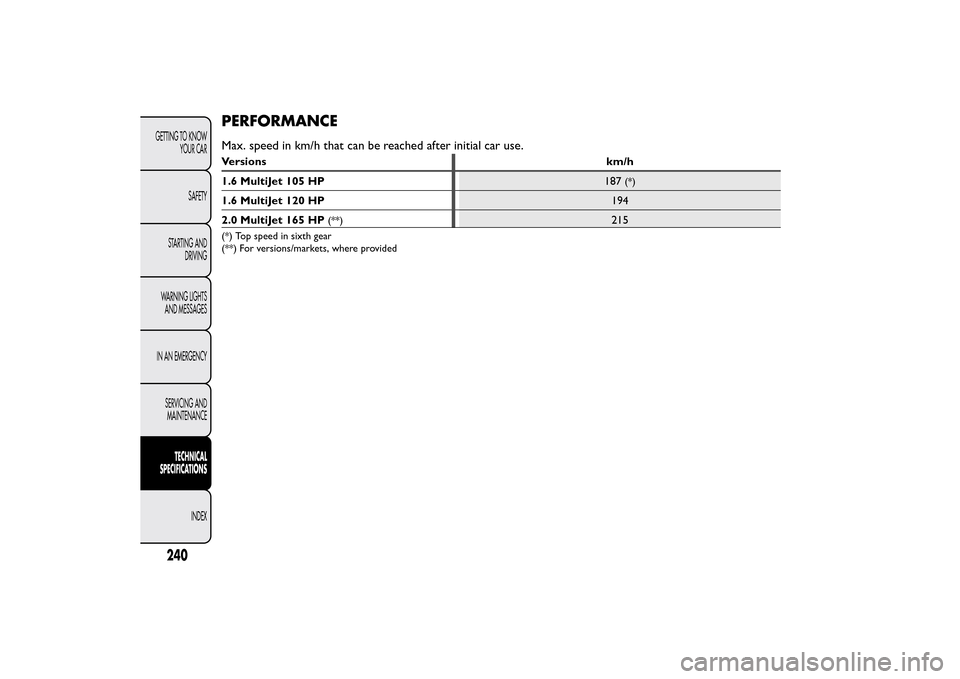

PERFORMANCEMax. speed in km/h that can be reached after initial car use.Versions km/h
1.6 MultiJet 105 HP
187
(*)
1.6 MultiJet 120 HP194
2.0 MultiJet 165 HP
(**)
215
(*) Top speed in sixth gear
(**) For versions/markets, where provided
240GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

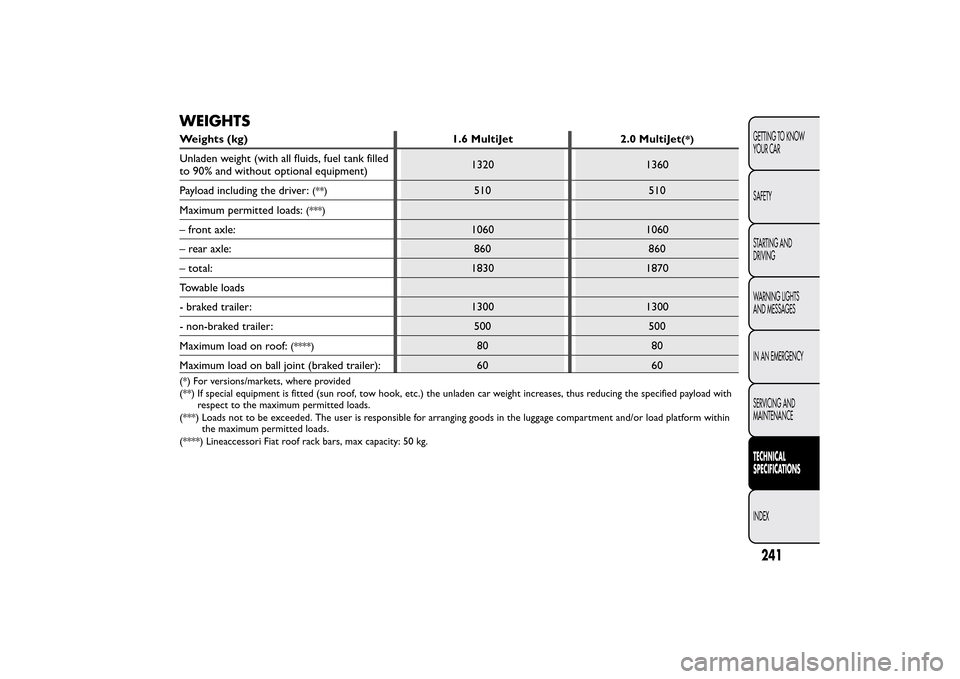

WEIGHTSWeights (kg) 1.6 MultiJet
2.0 MultiJet
(*)
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1320 1360
Payload including the driver:
(**)
510 510
Maximum permitted loads:
(***)
– front axle: 1060 1060
– rear axle: 860 860
– total: 1830 1870
Towable loads
- braked trailer: 1300 1300
- non-braked trailer: 500 500
Maximum load on roof:
(****)
80 80
Maximum load on ball joint (braked trailer): 60 60
(*) For versions/markets, where provided
(**) If special equipment is fitted (sun roof, tow hook, etc.) the unladen car weight increases, thus reducing the specified payload with
respect to the maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(****) Lineaccessori Fiat roof rack bars, max capacity: 50 kg.
241GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

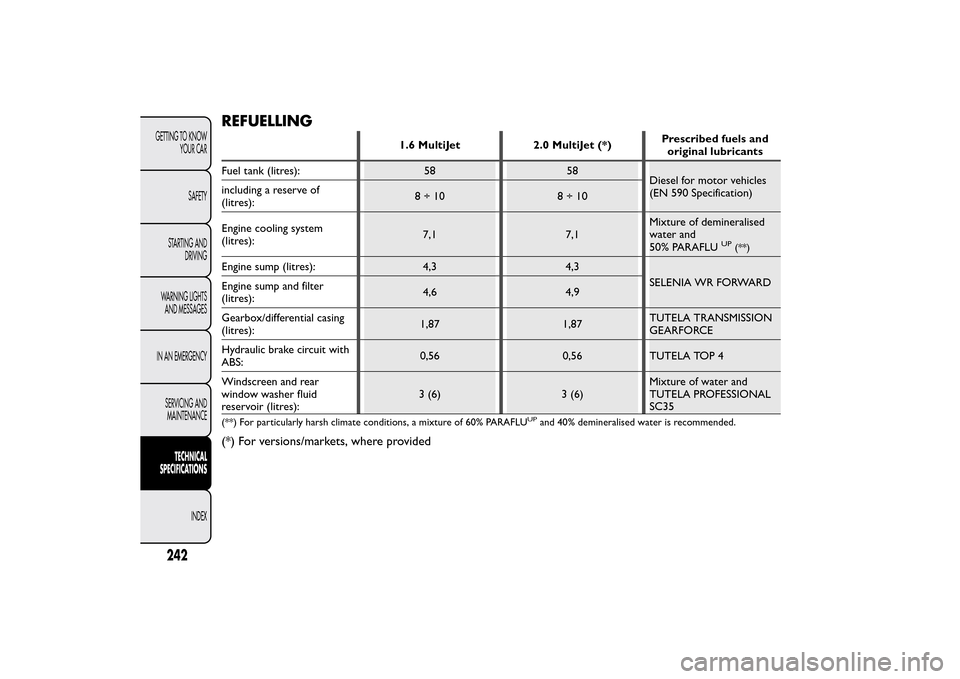

REFUELLING
1.6 MultiJet 2.0 MultiJet (*)Prescribed fuels and
original lubricants
Fuel tank (litres): 58 58
Diesel for motor vehicles
(EN 590 Specification) including a reserve of
(litres):8÷10 8÷10
Engine cooling system
(litres):7,1 7,1Mixture of demineralised
water and
50% PARAFLU
UP
(**)
Engine sump (litres): 4,3 4,3
SELENIA WR FORWARD
Engine sump and filter
(litres):4,6 4,9
Gearbox/differential casing
(litres):1,87 1,87TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with
ABS:0,56 0,56 TUTELA TOP 4
Windscreen and rear
window washer fluid
reservoir (litres):3 (6) 3 (6)Mixture of water and
TUTELA PROFESSIONAL
SC35(**) For particularly harsh climate conditions, a mixture of 60% PARAFLU
UP
and 40% demineralised water is recommended.
(*) For versions/markets, where provided
242GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

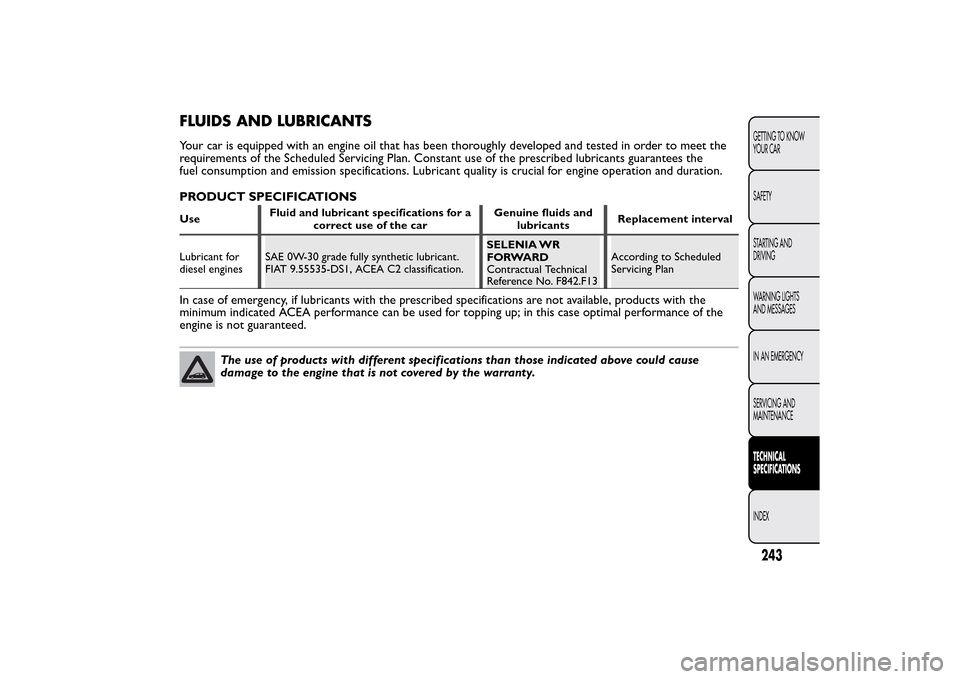

FLUIDS AND LUBRICANTSYour car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the
fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONSUseFluid and lubricant specifications for a
correct use of the carGenuine fluids and
lubricantsReplacement interval
Lubricant for
diesel enginesSAE 0W-30 grade fully synthetic lubricant.
FIAT 9.55535-DS1, ACEA C2 classification.SELENIA WR
FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Servicing PlanIn case of emergency, if lubricants with the prescribed specifications are not available, products with the
minimum indicated ACEA performance can be used for topping up; in this case optimal performance of the
engine is not guaranteed.
The use of products with different specifications than those indicated above could cause
damage to the engine that is not covered by the warranty.
243GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

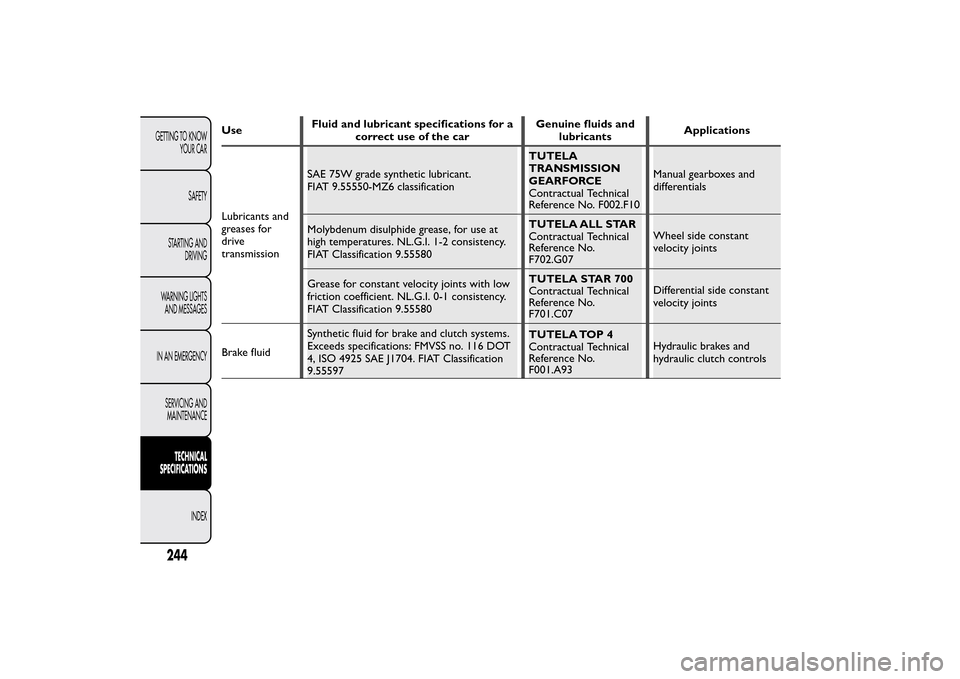

UseFluid and lubricant specifications for a
correct use of the carGenuine fluids and
lubricantsApplications
Lubricants and
greases for
drive
transmissionSAE 75W grade synthetic lubricant.
FIAT 9.55550-MZ6 classificationTUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Manual gearboxes and
differentials
Molybdenum disulphide grease, for use at
high temperatures. NL.G.I. 1-2 consistency.
FIAT Classification 9.55580TUTELA ALL STAR
Contractual Technical
Reference No.
F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low
friction coefficient. NL.G.I. 0-1 consistency.
FIAT Classification 9.55580TUTELA STAR 700
Contractual Technical
Reference No.
F701.C07Differential side constant
velocity joints
Brake fluidSynthetic fluid for brake and clutch systems.
Exceeds specifications: FMVSS no. 116 DOT
4, ISO 4925 SAE J1704. FIAT Classification
9.55597TUTELA TOP 4
Contractual Technical
Reference No.
F001.A93Hydraulic brakes and
hydraulic clutch controls
