2014 FIAT BRAVO Owners Manual

2.0 MultiJet 165 HP
(*)
Type code 198A8000
Cycle Diesel
Number and arrangement of cylinders 4 in line
Piston bore and stroke (mm) 83.0 x 90.4
Total displacement (cm3) 1956
Compression ratio 16,5
Maximum power (EC) (kW) 121
Maximum power (EC) (HP) 165
corresponding engine speed (rpm) 4000
Maximum torque (EC) (Nm) 350
Maximum torque (EC) (kgm) 35,6
corresponding engine speed (rpm) 1750
Fuel Diesel for automotive engines (Specification EN590)(*) For versions/markets, where provided
229GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

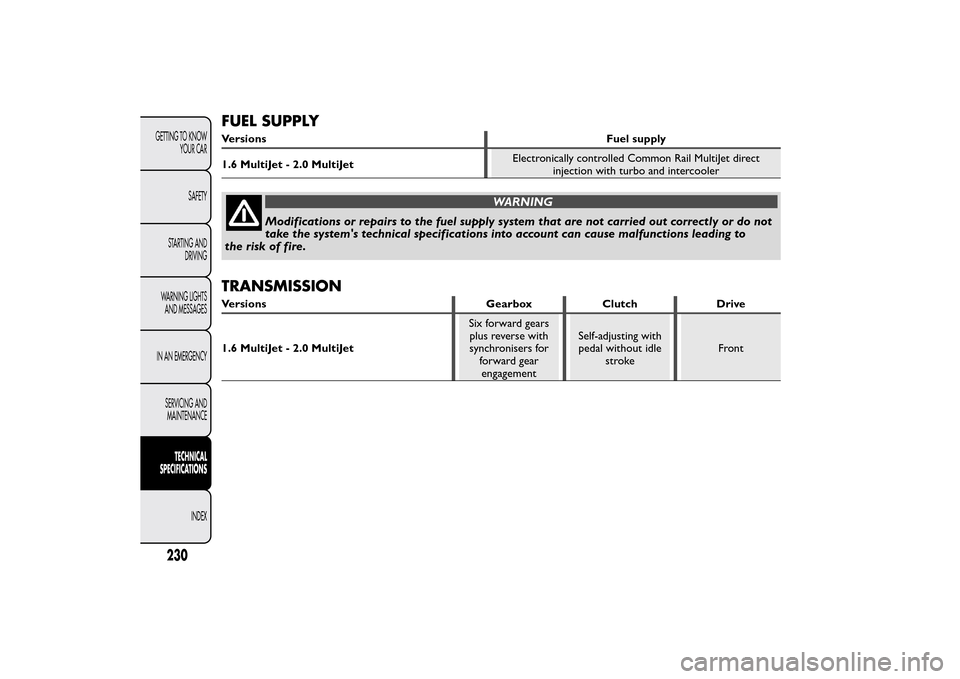

FUEL SUPPLYVersions Fuel supply
1.6 MultiJet - 2.0 MultiJetElectronically controlled Common Rail MultiJet direct
injection with turbo and intercooler
WARNING
Modifications or repairs to the fuel supply system that are not carried out correctly or do not
take the system's technical specifications into account can cause malfunctions leading to
the risk of fire.
TRANSMISSIONVersions Gearbox Clutch Drive
1.6 MultiJet - 2.0 MultiJetSix forward gears
plus reverse with
synchronisers for
forward gear
engagementSelf-adjusting with
pedal without idle
strokeFront
230GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

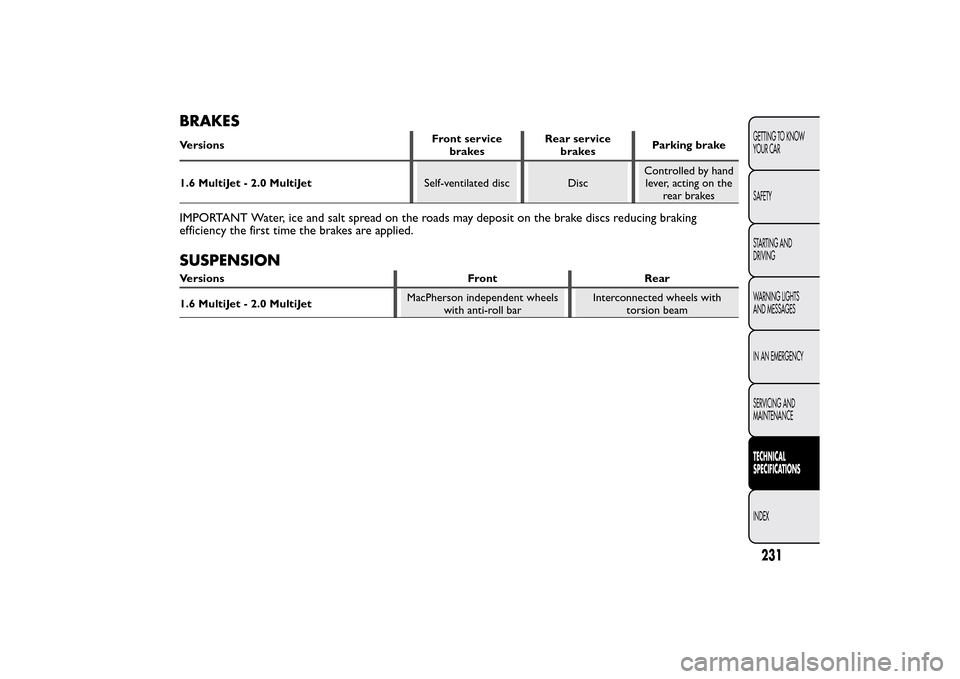

BRAKESVersionsFront service
brakesRear service
brakesParking brake
1.6 MultiJet - 2.0 MultiJetSelf-ventilated disc DiscControlled by hand
lever, acting on the
rear brakesIMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs reducing braking
efficiency the first time the brakes are applied.SUSPENSIONVersions Front Rear
1.6 MultiJet - 2.0 MultiJetMacPherson independent wheels
with anti-roll barInterconnected wheels with
torsion beam
231GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

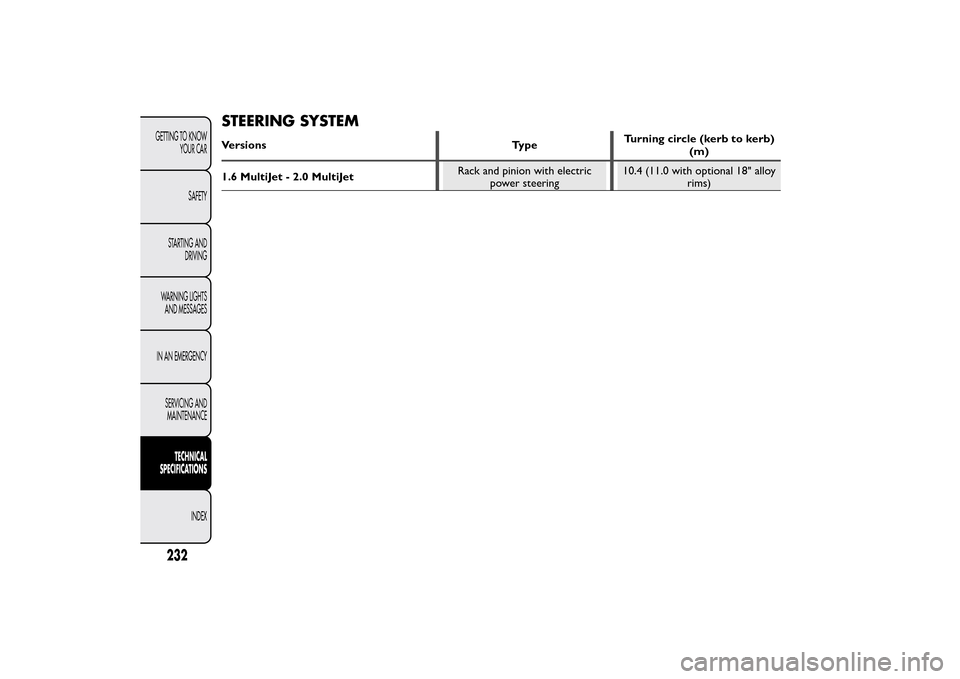

STEERING SYSTEMVersions TypeTurning circle (kerb to kerb)
(m)
1.6 MultiJet - 2.0 MultiJetRack and pinion with electric
power steering10.4 (11.0 with optional 18" alloy
rims)
232GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

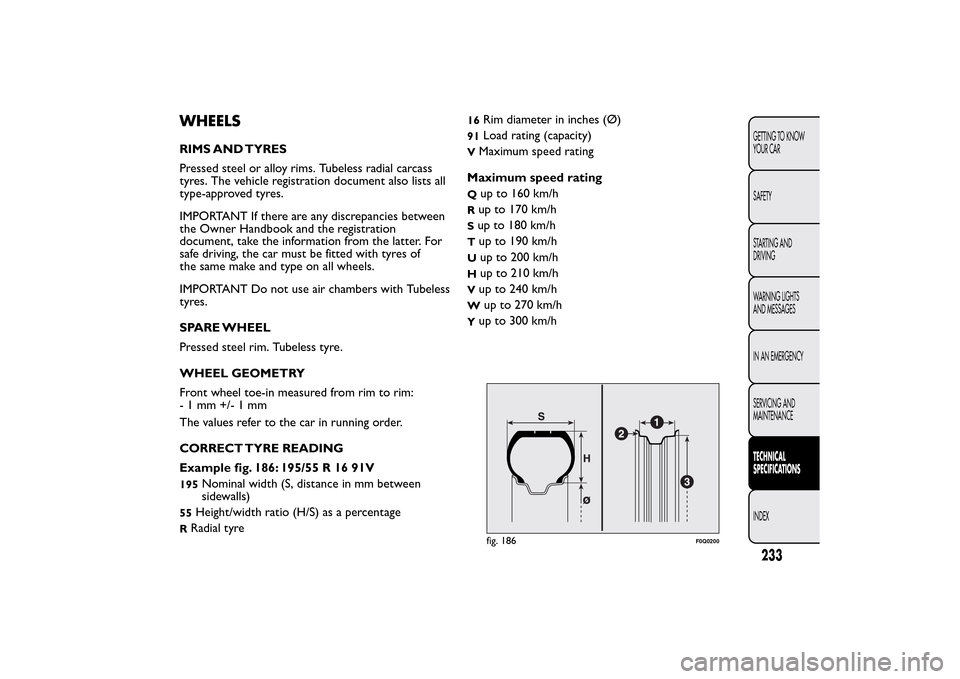

WHEELSRIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass
tyres. The vehicle registration document also lists all
type-approved tyres.
IMPORTANT If there are any discrepancies between
the Owner Handbook and the registration
document, take the information from the latter. For
safe driving, the car must be fitted with tyres of
the same make and type on all wheels.
IMPORTANT Do not use air chambers with Tubeless
tyres.
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to rim:
-1mm+/-1mm
The values refer to the car in running order.
CORRECT TYRE READING
Example fig. 186: 195/55 R 16 91V195
Nominal width (S, distance in mm between
sidewalls)
55
Height/width ratio (H/S) as a percentage
RRadial tyre
16
Rim diameter in inches (Ø)
91
Load rating (capacity)
V
Maximum speed rating
Maximum speed rating
Q
up to 160 km/h
Rup to 170 km/hSup to 180 km/hT
up to 190 km/h
U
up to 200 km/h
H
up to 210 km/h
V
up to 240 km/h
W
up to 270 km/h
Y
up to 300 km/hfig. 186
F0Q0200
233GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

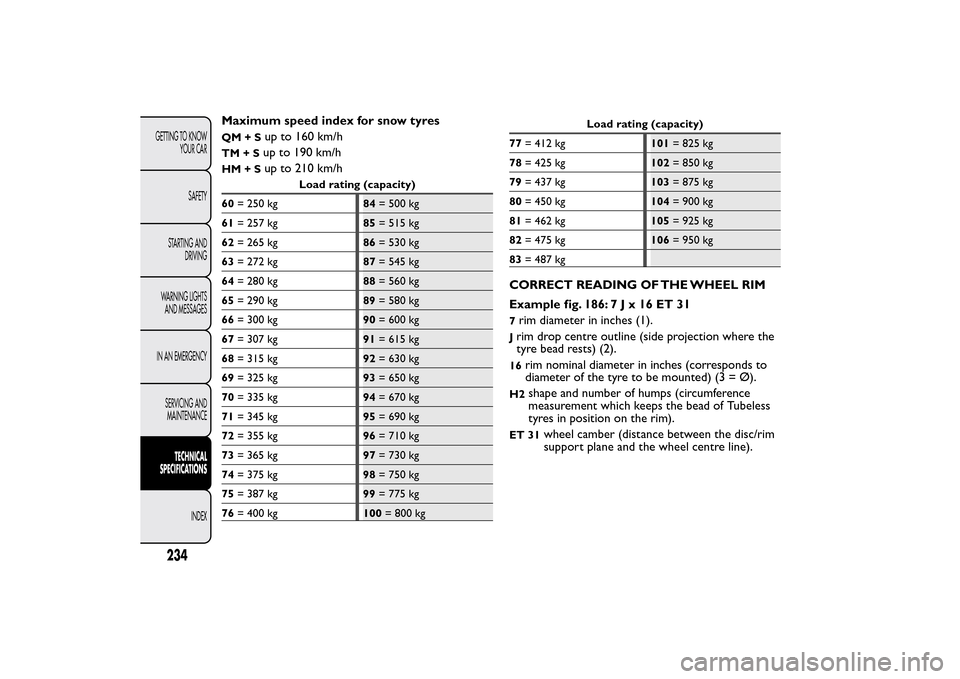

Maximum speed index for snow tyresQM+S
up to 160 km/h
TM+S
up to 190 km/h
HM+S
up to 210 km/h
Load rating (capacity)
60= 250 kg84= 500 kg
61= 257 kg85= 515 kg
62= 265 kg86= 530 kg
63= 272 kg87= 545 kg
64= 280 kg88= 560 kg
65= 290 kg89= 580 kg
66= 300 kg90= 600 kg
67= 307 kg91= 615 kg
68= 315 kg92= 630 kg
69= 325 kg93= 650 kg
70= 335 kg94= 670 kg
71= 345 kg95= 690 kg
72= 355 kg96= 710 kg
73= 365 kg97= 730 kg
74= 375 kg98= 750 kg
75= 387 kg99= 775 kg
76= 400 kg100= 800 kg
Load rating (capacity)
77= 412 kg101= 825 kg
78= 425 kg102= 850 kg
79= 437 kg103= 875 kg
80= 450 kg104= 900 kg
81= 462 kg105= 925 kg
82= 475 kg106= 950 kg
83= 487 kg
CORRECT READING OF THE WHEEL RIM
Example fig. 186:7Jx16ET317rim diameter in inches (1).Jrim drop centre outline (side projection where the
tyre bead rests) (2).16
rim nominal diameter in inches (corresponds to
diameter of the tyre to be mounted) (3 = Ø).
H2
shape and number of humps (circumference
measurement which keeps the bead of Tubeless
tyres in position on the rim).
ET 31
wheel camber (distance between the disc/rim
support plane and the wheel centre line).
234GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

RIMS AND TYRES PROVIDED AS STANDARD
Version Rims Tyres Snow tyresSpare wheel
Rim Tyre
1.6 MultiJet
105 HP6J x 15 ET 31.5
(**)
195/65 R15 91H
(**)
195/65 R15 91T
(M+S)
(**)
(***) (***)
7J x 16 ET 31 205/55 R16 91H205/55 R16 91T
(M+S)
7J x 17 ET 26 225/45 R17 91W225/45 R17 91T
(M+S)
7Jx16ET31205/55 R16 91H
205/55 R16 91V
(****)
7J x 17 ET 31 225/45 R17 91W225/45 R17 91T
(M+S)
71/2Jx18ET35225/40 R18 92V
REINFORCED
(*****)
225/40 R18 92T
(M+S)
(**) For versions/markets, where provided
(***) On versions equipped with 195/65 R15 and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the
Fix&Go.
(****) The 205/55 R16 91H (or 205/55 R16 91V) tyre has the same specifications as the space-saver wheel: the information in the
“Replacing a wheel” paragraph therefore refers to the 205/55 R16 91H (or 205/55 R16 91V) tyre.
(*****) Tyres which cannot be fitted with chains.
235GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Version Rims Tyres Snow tyresSpare wheel
Rim Tyre
1.6 MultiJet
120 HP7J x 16 ET 31 195/55 R16 91V195/55 R16 91T
(M+S)
(***) (***)
7J x 16 ET 31 205/55 R16 91V205/55 R16 91T
(M+S)
7J x 17 ET 31 225/45 R17 91W225/45 R17 91T
(M+S)
7Jx16ET31205/55 R16 91H
205/55 R16 91V
(****)
71/2Jx18ET35225/40 R18 92W
REINFORCED
(*****)
225/40 R18 92T
(M+S)
(***) On versions equipped with 195/55 R16 and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the
Fix&Go.
(****) The 205/55 R16 91H (or 205/55 R16 91V) tyre has the same specifications as the space-saver wheel: the information in the
“Replacing a wheel” paragraph therefore refers to the 205/55 R16 91H (or 205/55 R16 91V) tyre.
(*****) Tyres which cannot be fitted with chains.
