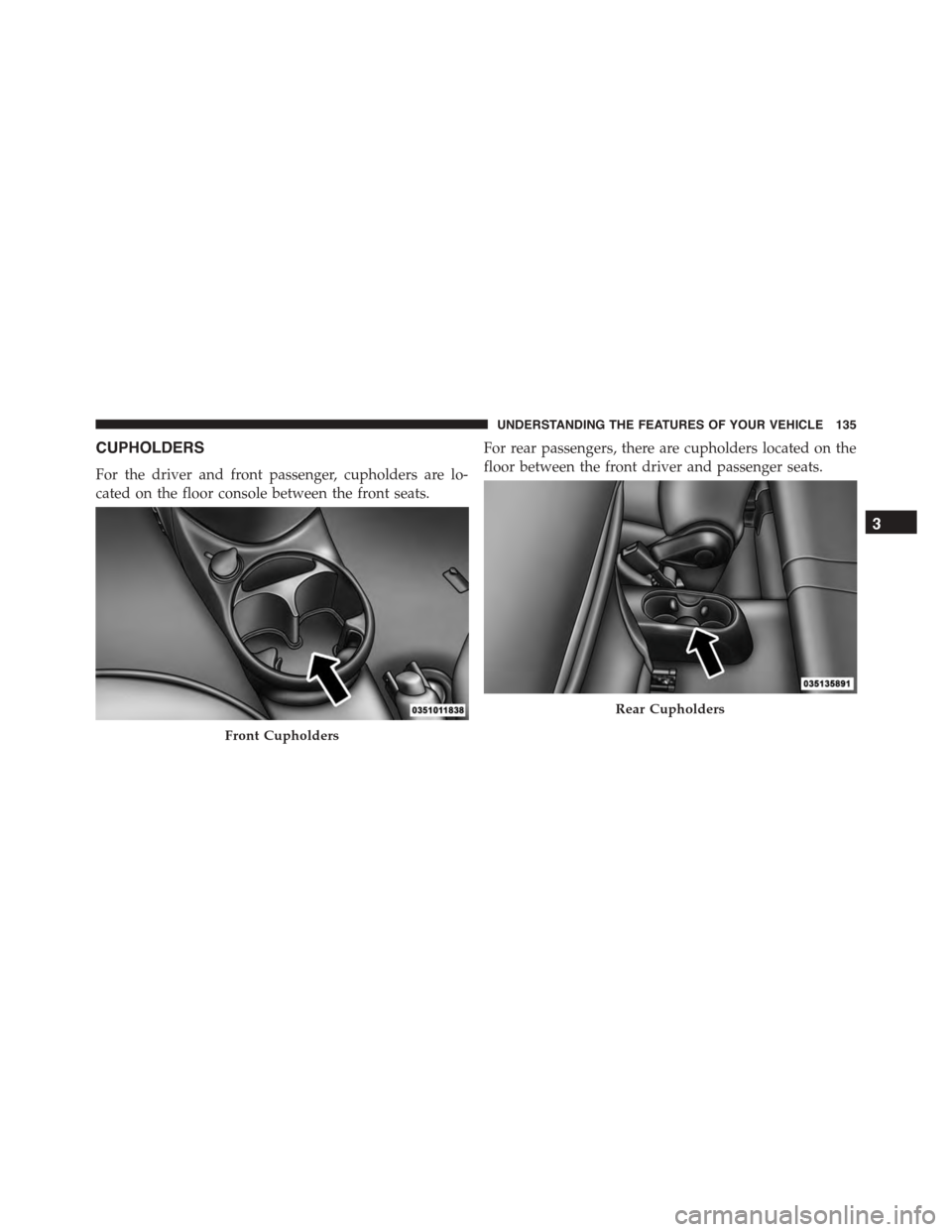

CUPHOLDERS
For the driver and front passenger, cupholders are lo-
cated on the floor console between the front seats.
For rear passengers, there are cupholders located on the
floor between the front driver and passenger seats.
Front Cupholders
Rear Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

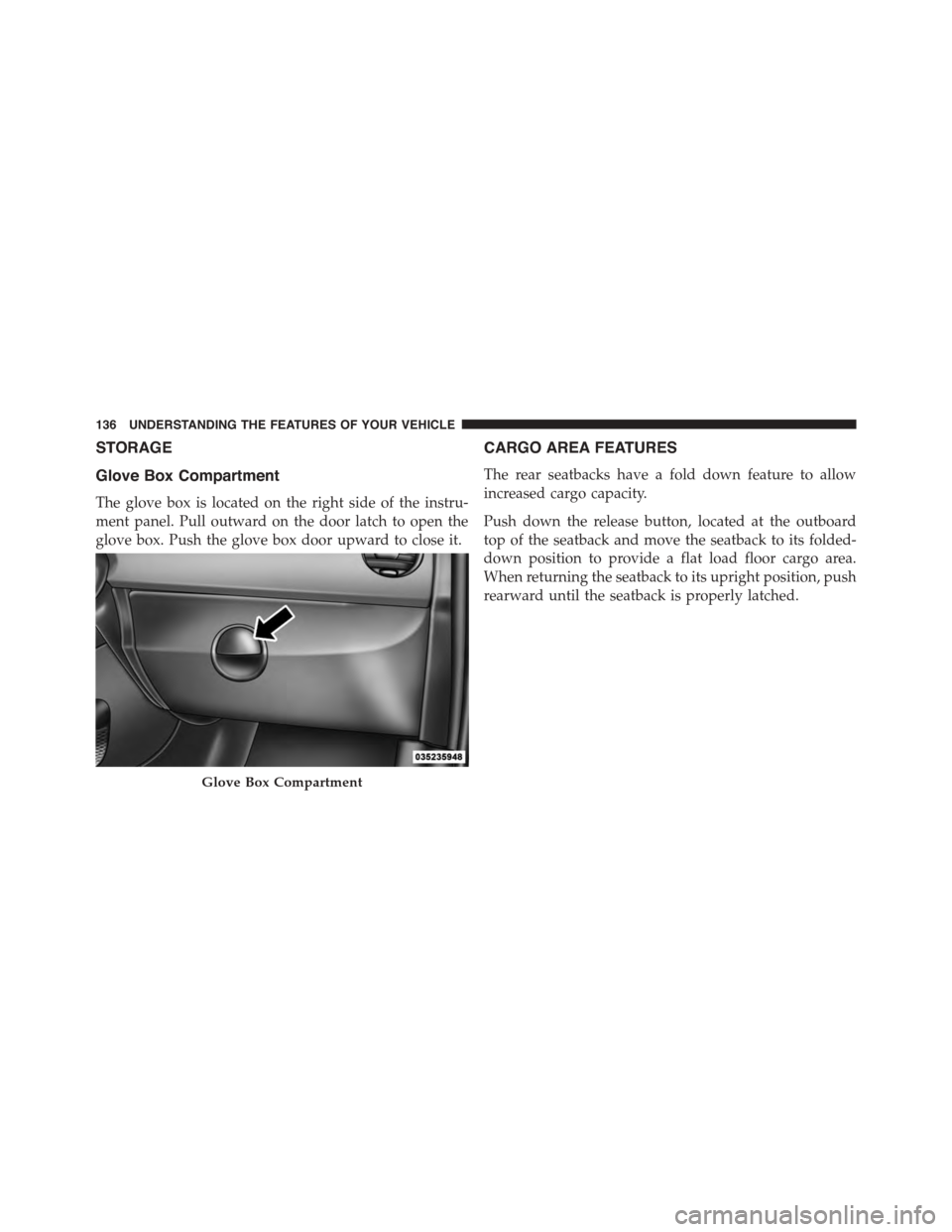

STORAGE
Glove Box Compartment
The glove box is located on the right side of the instru-
ment panel. Pull outward on the door latch to open the
glove box. Push the glove box door upward to close it.
CARGO AREA FEATURES

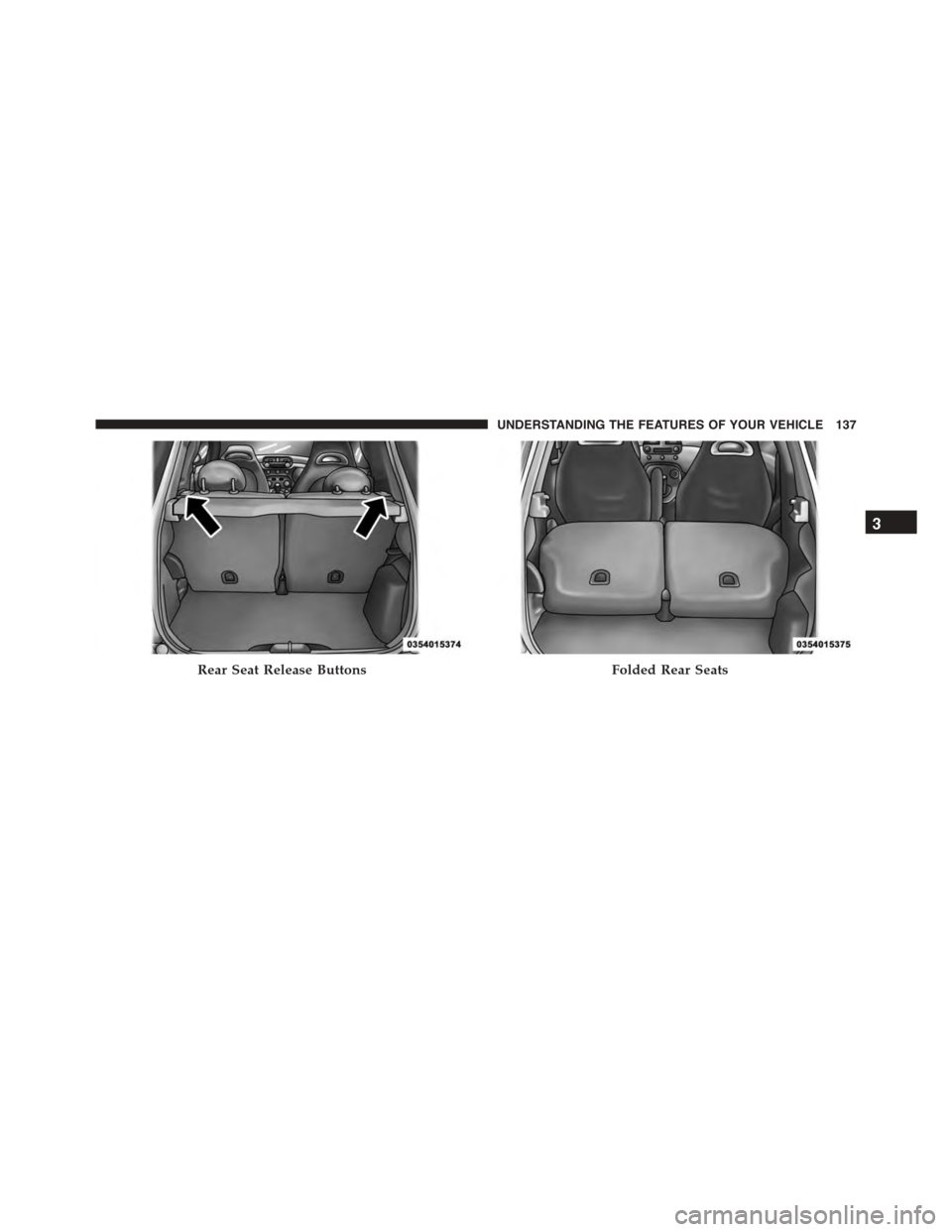

The rear seatbacks have a fold down feature to allow
increased cargo capacity.
Push down the release button, located at the outboard
top of the seatback and move the seatback to its folded-
down position to provide a flat load floor cargo area.
When returning the seatback to its upright position, push
rearward until the seatback is properly latched.
Glove Box Compartment
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Seat Release ButtonsFolded Rear Seats
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located in the
center of the instrument panel, below the radio.
Press this button to turn on the rear window defroster.
An indicator in the instrument cluster will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after approximately 20
minutes. To manually shut the defroster off, push the
button a second time.
NOTE:To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
•Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
!INSTRUMENT PANEL FEATURES..........141
!TURBO BOOST GAUGE..................142
!INSTRUMENT CLUSTER.................143
!INSTRUMENT CLUSTER DESCRIPTIONS.....144
!ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)..............................156
▫EVIC Control Buttons..................157
▫Electronic Vehicle Information Center (EVIC)
Setup Menu.........................157
▫Change Engine Oil Indicator System........159
▫Trip Computer.......................160
▫Trip Button..........................160
▫Trip Functions........................161
▫Values Displayed......................162
▫Personal Settings (Customer-Programmable
Features)............................163
!SALES CODE (RAB) RADIO..............174
▫Introduction.........................174
▫Suggestions..........................174
▫Technical Specifications.................176
4

▫Quick Guide.........................177
▫General Information....................180
▫Functions And Adjustments..............182
▫Radio..............................189
▫SiriusXM Satellite Radio — If Equipped......190
▫CD Player...........................193
▫CD MP3 Player.......................196
▫Troubleshooting.......................198
!iPod®/USB/MEDIA PLAYER CONTROL — IF
EQUIPPED...........................199
!STEERING WHEEL AUDIO CONTROLS......200
▫Radio Operation......................201
▫CD Player Operation...................201
▫Operating Instructions — Hands-Free Phone (If
Equipped)...........................202
!CD/DVD DISC MAINTENANCE...........202
!RADIO OPERATION AND MOBILE PHONES . .203
!CLIMATE CONTROLS...................203
▫Manual Heating And Air Conditioning......203
▫Operating Tips Chart...................207
▫Automatic Temperature Control (ATC) — If
Equipped...........................208
▫Operating Tips Chart...................215
140 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1—SideVent7—PassengerAirBag13 — Storage Compartment2—MultifunctionLever–LightControl8—GloveCompartment14 — Shift Lever3 — Instrument Cluster And Warning Lights9 — Rear Defrost Button15 — Sport Button4 — Windshield Wiper, Washer, Trip Computer 10 — Hazard Button16 — Horn/Driver Airbag5 — Central Air Vents11 — Climate Controls17 — Boost Gauge6—StorageCompartment/Radio12 — Power Windows Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 141

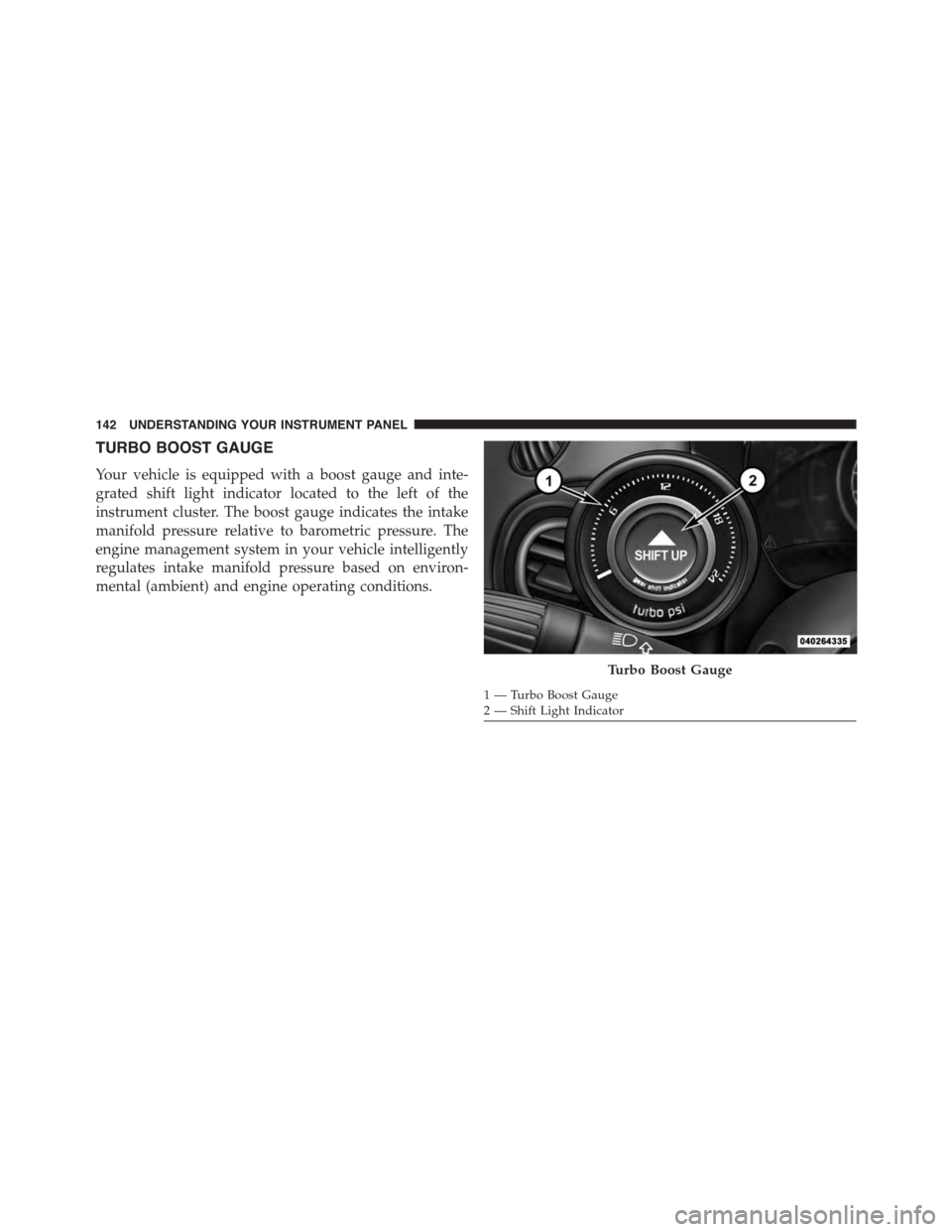

TURBO BOOST GAUGE
Your vehicle is equipped with a boost gauge and inte-
grated shift light indicator located to the left of the
instrument cluster. The boost gauge indicates the intake
manifold pressure relative to barometric pressure. The
engine management system in your vehicle intelligently
regulates intake manifold pressure based on environ-
mental (ambient) and engine operating conditions.
Turbo Boost Gauge
1—TurboBoostGauge2—ShiftLightIndicator
142 UNDERSTANDING YOUR INSTRUMENT PANEL
