2014 DODGE CHARGER Owners Manual

CavityCartridge Fuse Mini-Fuse Description
35 –20 Amp Yellow Powertrain #2
36 –10 Amp Red Anti-Lock Brake Module
37 –10 Amp Red Engine Controller/Rad Fan Relays
38 –10 Amp Red Airbag Module
39 –10 Amp Red Power Steering Module/AC Clutch Relay
48 –10 Amp Red AWD Module/Front Axle Disconnect
49 –– Fuse – Spare
50 –– Fuse – Spare
51 –20 Amp Yellow Vacuum Pump
52 –– Fuse – Spare
53 –– Fuse – Spare
7
MAINTAINING YOUR VEHICLE 575

Rear Power Distribution Center (Fuses)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Opening The Access Cover
Rear Power Distribution Center
576 MAINTAINING YOUR VEHICLE

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
(Continued)
CAUTION! (Continued)
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
Cavity Cartridge Fuse Mini-FuseDescription
2 60 Amp Yellow —Front PDC Feed #1
3 — —Fuse – Spare
4 60 Amp Yellow —Front PDC Feed #2
5 30 Amp Pink —Sunroof
6 40 Amp Green —Exterior Lighting #1
7 40 Amp Green —Exterior Lighting #2
7
MAINTAINING YOUR VEHICLE 577

CavityCartridge Fuse Mini-FuseDescription
8 30 Amp Pink —Interior Lighting/Washer
Pump
9 30 Amp Pink —Power Locks
10 30 Amp Pink —Driver Door
11 30 Amp Pink —Passenger Door
12 —20 Amp Yellow Cigar Lighters, Instru-
ment Panel & Power Out-
let Console Rear
15 40 Amp Green —HVAC Blower
16 ——Fuse — Spare
17 ——Fuse — Spare
18 ——Fuse — Spare
19 ——Fuse — Spare
20 ——Fuse — Spare
21 ——Fuse — Spare
578 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Mini-FuseDescription
22 ——Fuse — Spare
23 —10 Amp Red Fuel Door/Diagnostic
Port
24 —15 Amp Blue Radio Screen
25 —10 Amp Red Tire Pressure Monitor
26 ——Fuse — Spare
27 —25 Amp Natural Amplifier
31 —25 Amp Natural Power Seats
32 —15 Amp Blue HVAC Module/Cluster
33 —15 Amp Blue Ignition Switch/Wireless
Module
34 —10 Amp Red Steering Column
Module/Clock
35 —10 Amp Red Battery Sensor
36 ——Fuse — Spare
7
MAINTAINING YOUR VEHICLE 579

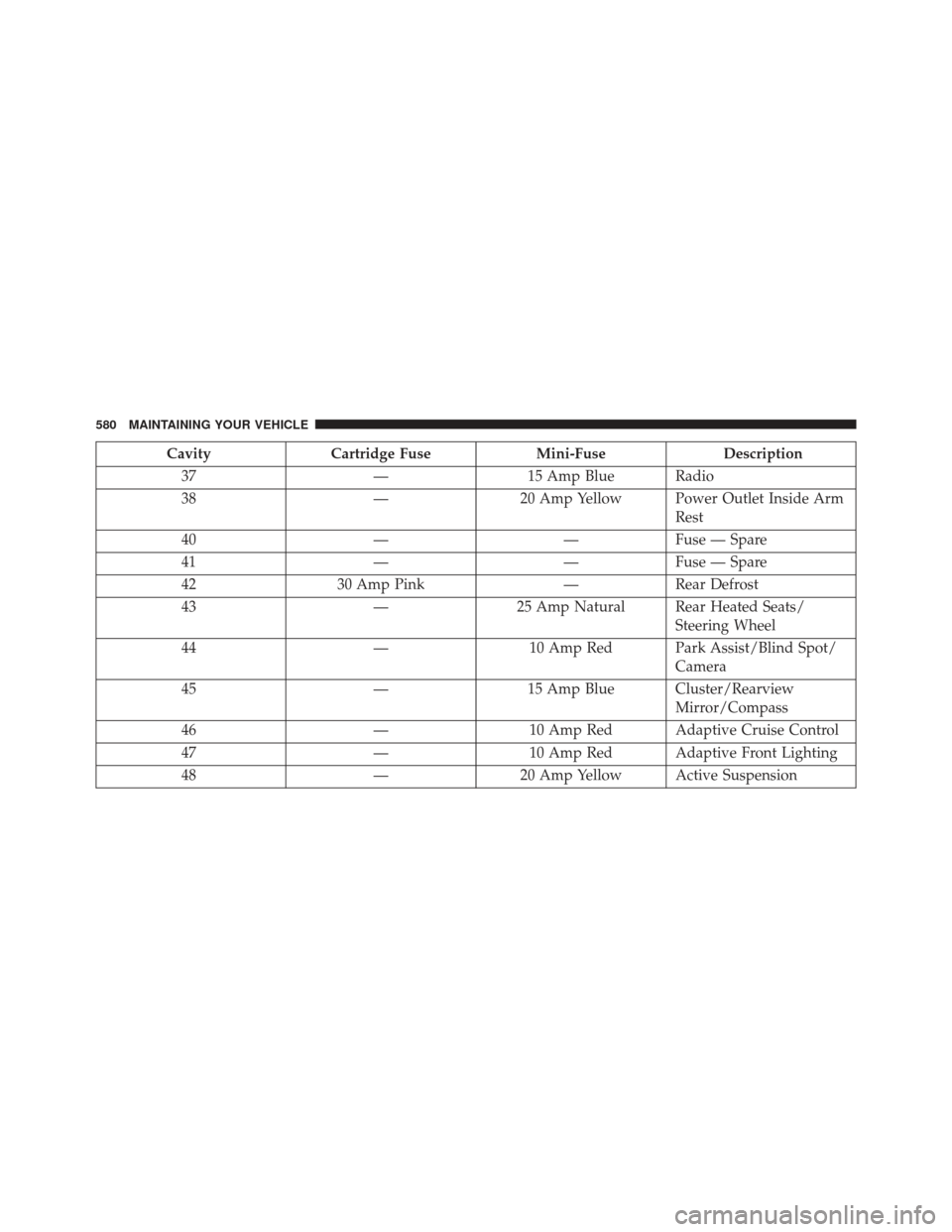

CavityCartridge Fuse Mini-FuseDescription
37 —15 Amp Blue Radio
38 —20 Amp Yellow Power Outlet Inside Arm
Rest
40 ——Fuse — Spare
41 ——Fuse — Spare
42 30 Amp Pink —Rear Defrost
43 —25 Amp Natural Rear Heated Seats/
Steering Wheel
44 —10 Amp Red Park Assist/Blind Spot/
Camera
45 —15 Amp Blue Cluster/Rearview
Mirror/Compass
46 —10 Amp Red Adaptive Cruise Control
47 —10 Amp Red Adaptive Front Lighting
48 —20 Amp Yellow Active Suspension
580 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Mini-FuseDescription
49 ——Fuse — Spare
50 ——Fuse — Spare
51 —20 Amp Yellow Front Heated Seats
52 —10 Amp Red Heated Cupholders/Rear
Heated Seat Switches
53 —10 Amp Red HVAC Module/In Car
Temperature Sensor
54 ——Fuse — Spare
55 ——Fuse — Spare
56 ——Fuse — Spare
57 ——Fuse — Spare
58 —10 Amp Red Airbag Module
59 ——Fuse — Spare
60 ——Fuse — Spare
61 ——Fuse — Spare
7
MAINTAINING YOUR VEHICLE 581

CavityCartridge Fuse Mini-FuseDescription
62 ——Fuse — Spare
63 ——Fuse — Spare
64 —25 Amp Natural Rear Windows
65 —10 Amp Red Airbag Module
66 ——Fuse — Spare
67 —15 Amp Blue Run Sense
68 —15 Amp Blue Illumination/Rear Sun-
shade
69 ——Fuse — Spare
70 ——Fuse — Spare
582 MAINTAINING YOUR VEHICLE
