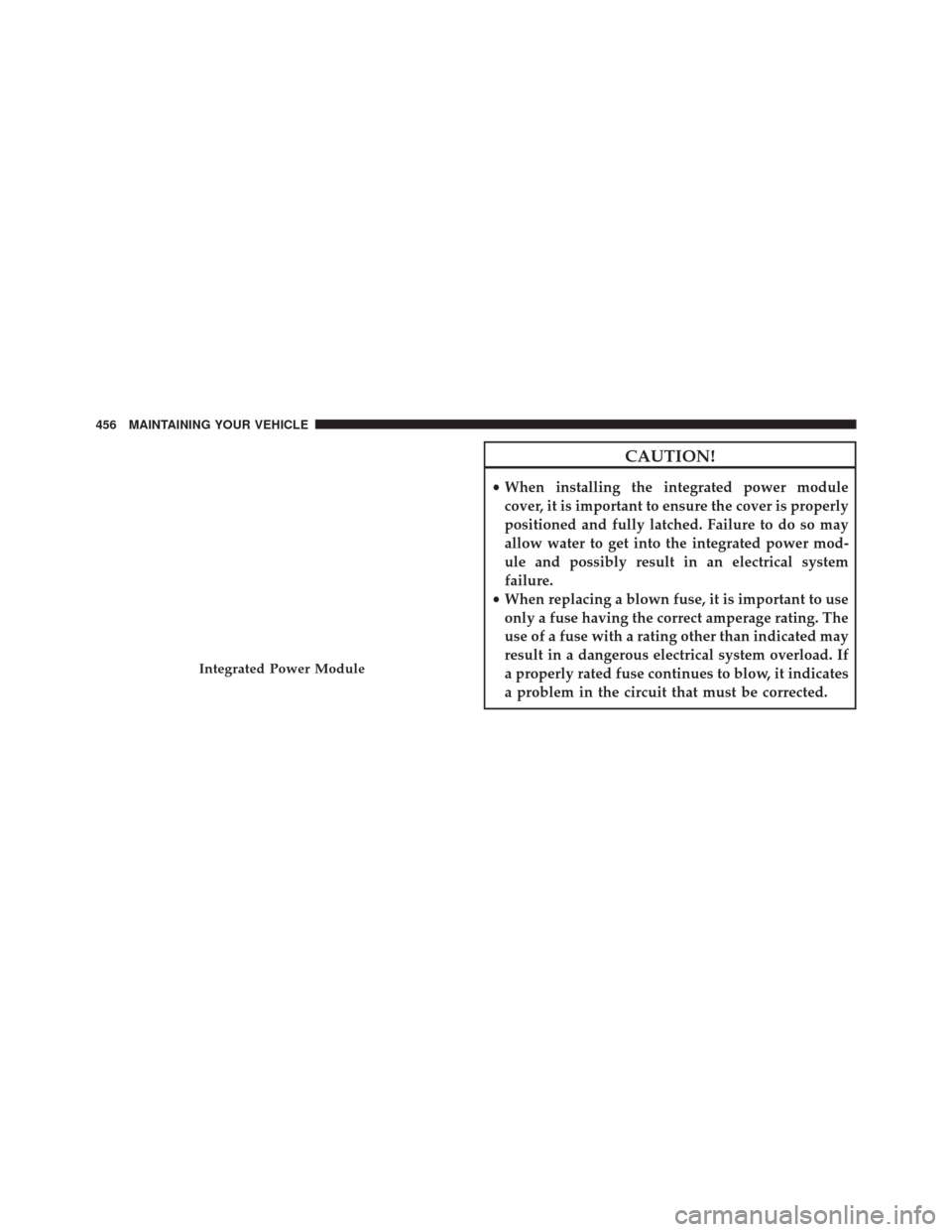

CAUTION!
•When installing the integrated power module
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the integrated power mod-
ule and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
Integrated Power Module
456 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Mini-Fuse Description
1 —15 Amp Blue Washer Motor
2 —25 Amp Natural Powertrain Control Module (PCM)/NGS
Module Feed (Batt)
3 —25 Amp Natural Ignition Run/Start
4 —25 Amp Natural EGR Solenoid/Alternator
5 —15 Amp Blue Powertrain Control Module
6 —25 Amp Natural Ignition Coils/Injectors
7 —25 Amp Natural Headlamp Washer Relay – If Equipped
8 —30 Amp Green Starter
9—— —
10 30 Amp Pink —Windshield Wiper
11 30 Amp Pink —Anti-Lock Brake System (ABS) Valves
12 40 Amp Green —Radiator Fan Lo/High
13 50 Amp Red —Anti-Lock Brake System (ABS) Pump
Motor
7
MAINTAINING YOUR VEHICLE 457

CavityCartridge Fuse Mini-Fuse Description

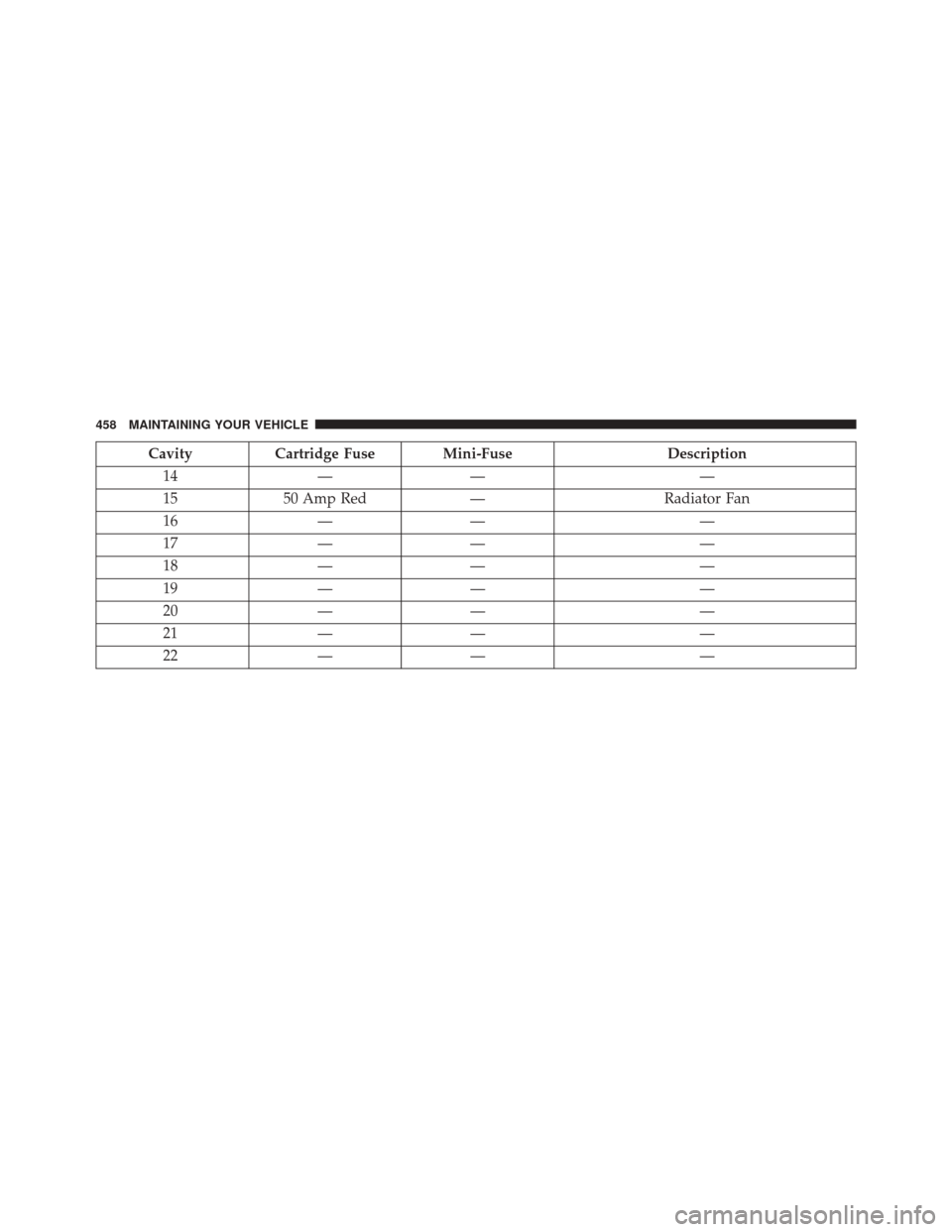

14 —— —
15 50 Amp Red — Radiator Fan
16 —— —
17 —— —
18 —— —
19 —— —
20 —— —
21 —— —
22 —— —
458 MAINTAINING YOUR VEHICLE

Rear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
Rear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 459

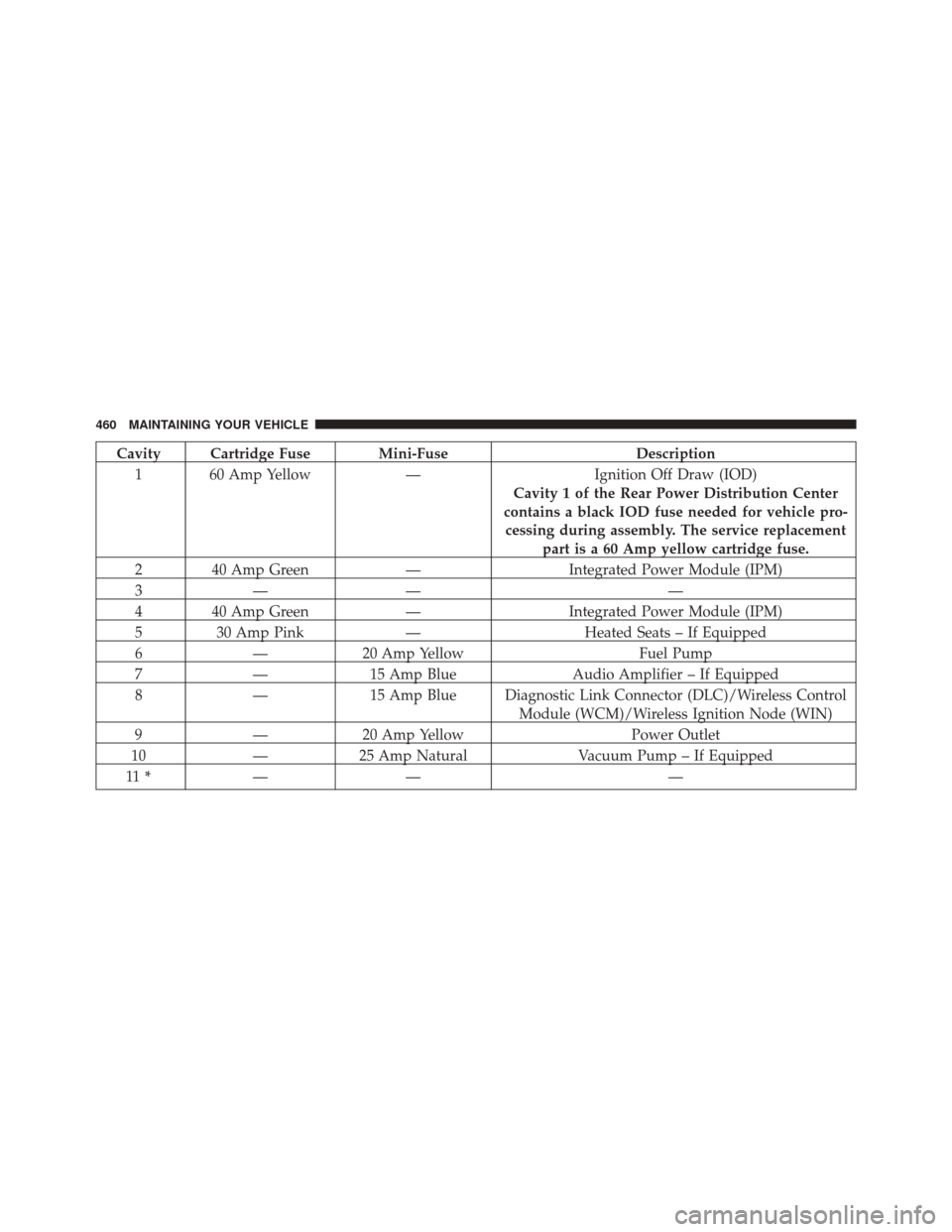

Cavity Cartridge Fuse Mini-FuseDescription
1 60 Amp Yellow —Ignition Off Draw (IOD)
Cavity 1 of the Rear Power Distribution Center
contains a black IOD fuse needed for vehicle pro- cessing during assembly. The service replacement part is a 60 Amp yellow cartridge fuse.
2 40 Amp Green —Integrated Power Module (IPM)
3— — —
4 40 Amp Green —Integrated Power Module (IPM)
5 30 Amp Pink —Heated Seats – If Equipped
6 —20 Amp Yellow Fuel Pump
7 —15 Amp Blue Audio Amplifier – If Equipped
8 —15 Amp Blue Diagnostic Link Connector (DLC)/Wireless Control
Module (WCM)/Wireless Ignition Node (WIN)
9 —20 Amp Yellow Power Outlet
10 —25 Amp Natural Vacuum Pump – If Equipped
11 * —— —
460 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Mini-FuseDescription
12 * —— —
13 * —— —

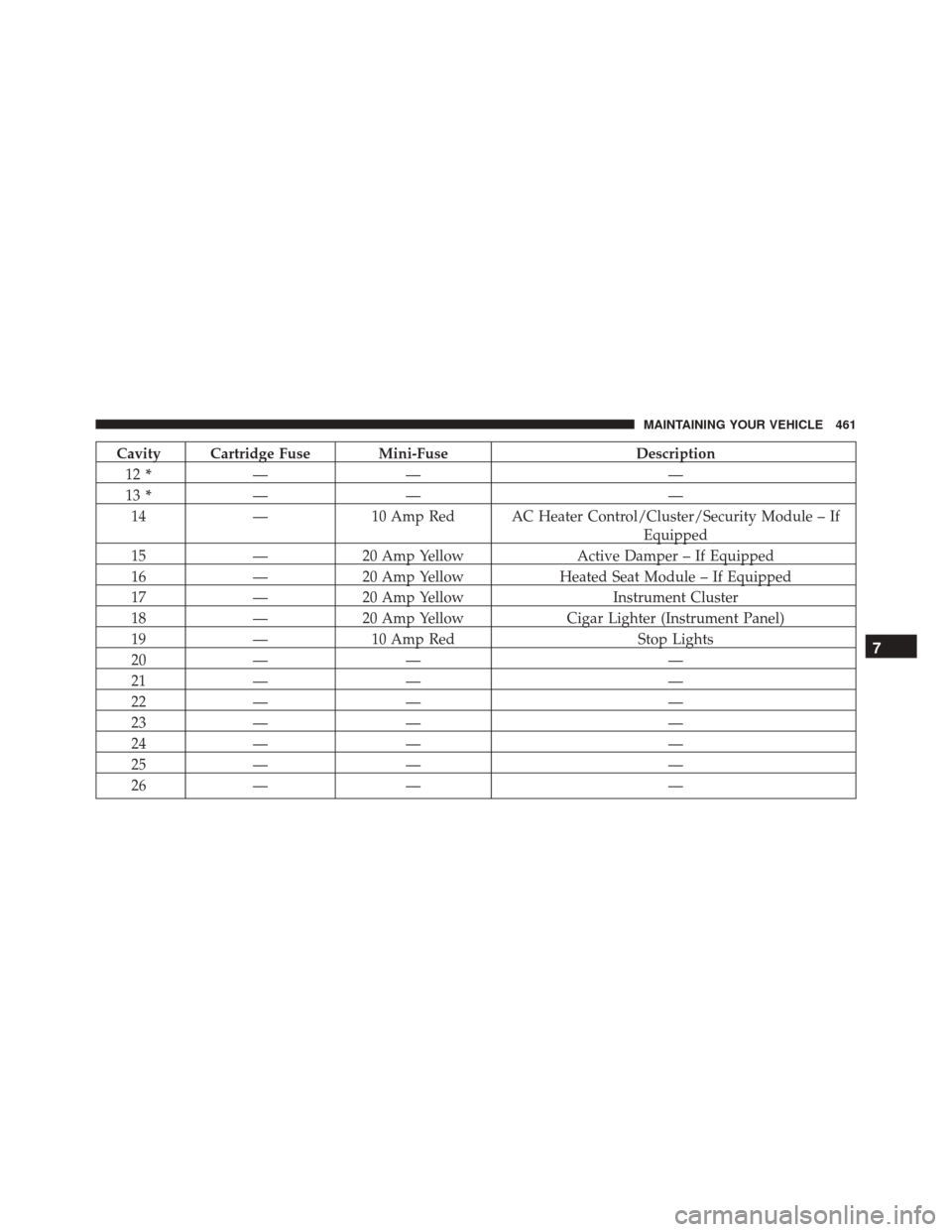

14 —10 Amp Red AC Heater Control/Cluster/Security Module – If
Equipped
15 —20 Amp Yellow Active Damper – If Equipped
16 —20 Amp Yellow Heated Seat Module – If Equipped
17 —20 Amp Yellow Instrument Cluster
18 —20 Amp Yellow Cigar Lighter (Instrument Panel)
19 —10 Amp Red Stop Lights
20 — — —
21 — — —
22 — — —
23 — — —
24 — — —
25 — — —
26 — — —
7
MAINTAINING YOUR VEHICLE 461

Cavity Cartridge Fuse Mini-FuseDescription

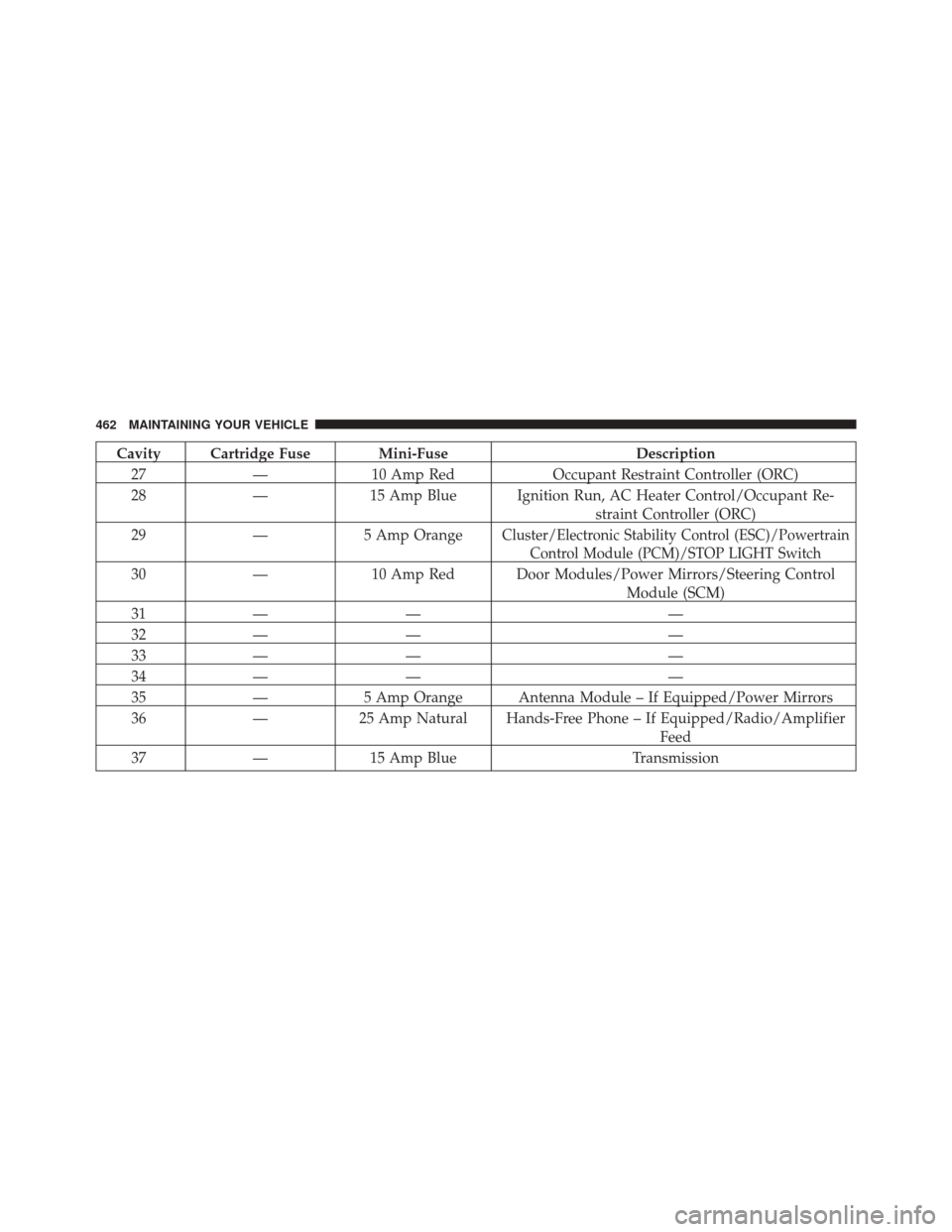

27 —10 Amp Red Occupant Restraint Controller (ORC)
28 —15 Amp Blue Ignition Run, AC Heater Control/Occupant Re-
straint Controller (ORC)
29 —5 Amp Orange
Cluster/Electronic Stability Control (ESC)/Powertrain
Control Module (PCM)/STOP LIGHT Switch
30 —10 Amp Red Door Modules/Power Mirrors/Steering Control
Module (SCM)
31 — — —
32 — — —
33 — — —
34 — — —
35 —5 Amp Orange Antenna Module – If Equipped/Power Mirrors
36 —25 Amp Natural Hands-Free Phone – If Equipped/Radio/Amplifier
Feed
37 —15 Amp Blue Transmission
462 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Mini-FuseDescription
38 —10 Amp Red Cargo Light/Vehicle Information Module – If
Equipped
39 —10 Amp Red Heated Mirrors – If Equipped
40 —5 Amp Orange Auto Inside Rearview Mirror/Heated Seats – If
Equipped/Switch Bank
41 — — —
42 30 Amp Pink —Front Blower Motor
43 30 Amp Pink —Rear Window Defroster
44 20 Amp Blue —Amplifier/Sunroof – If Equipped
*Cavities 11, 12, and 13 contain self-resetting fuses (circuit
breakers) that are only serviceable by an authorized
dealer. The cluster and the driver seat switch are fused by
the 25 Amp circuit breaker in cavity 11. The passenger
seat switch is fused by the 25 Amp circuit breaker in cavity 12. The door modules, the driver power window
switch, and the passenger power window switch are
fused by the 25 Amp circuit breaker in cavity 13. If you
experience temporary or permanent loss of these sys-
tems, see your authorized dealer for service.
7
