2014 DODGE CHALLENGER SRT Owners Manual

Side Window Demisters
A side window demister outlet is located at each end of
the instrument panel. These non-adjustable outlets direct
air toward the side windows when the system is in the
FLOOR, MIX, or DEFROST mode. The air is directed at
the area of the windows through which you view the
outside mirrors.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter
The A/C Filter prevents most dust and pollen from
entering the cabin. The filter acts on air coming from
outside the vehicle and recirculated air within the pas-
senger compartment. Refer to “Maintenance Procedures”
in “Maintaining Your Vehicle” for A/C Air Filter service
information or see your authorized dealer for service.
Refer to “Maintenance Schedules” for filter service inter-
vals.
288 UNDERSTANDING YOUR INSTRUMENT PANEL

Control Setting Suggestions For Various Weather Conditions While In Manual Override
4
UNDERSTANDING YOUR INSTRUMENT PANEL 289

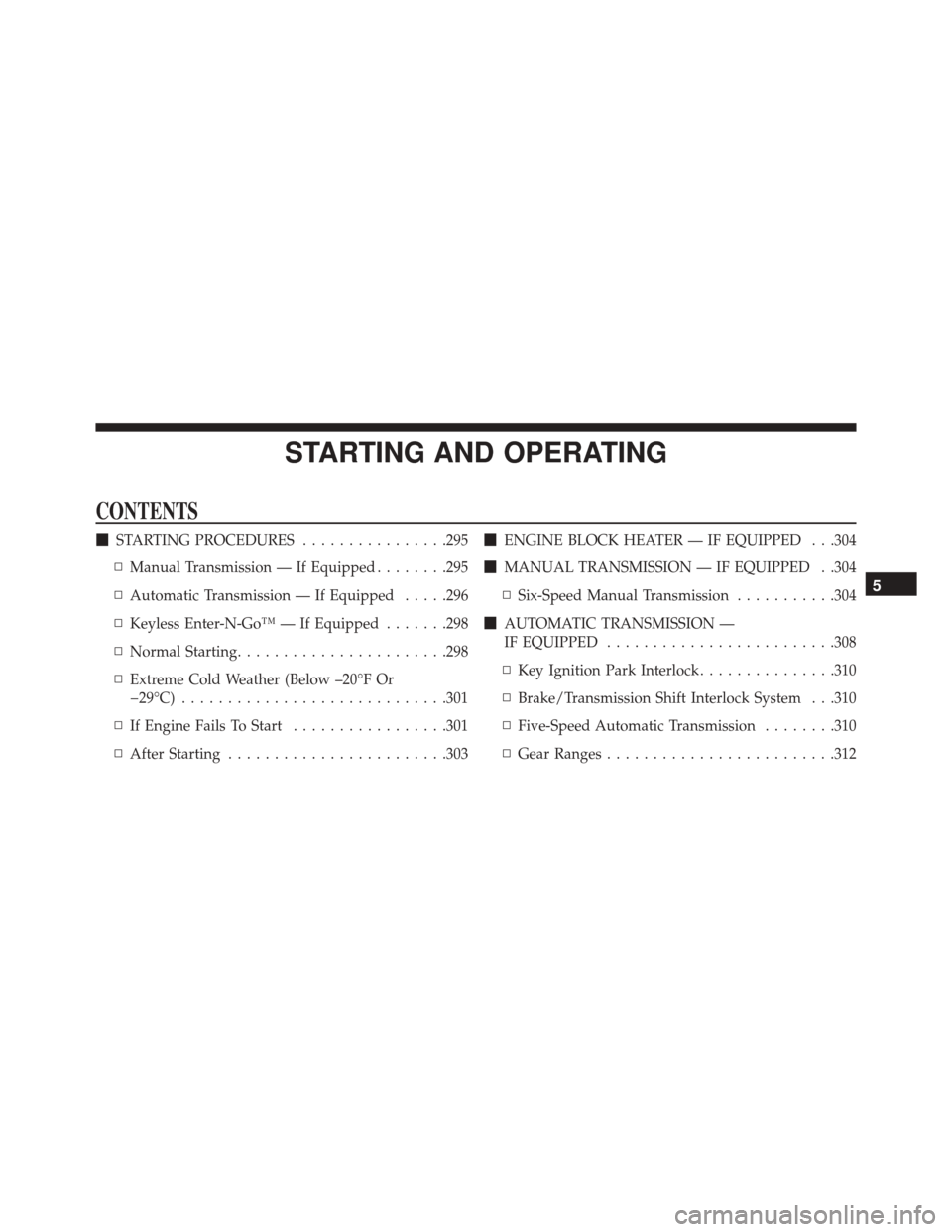

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................295
▫ Manual Transmission — If Equipped ........295
▫ Automatic Transmission — If Equipped .....296
▫ Keyless Enter-N-Go™ — If Equipped .......298
▫ Normal Starting ...................... .298
▫ Extreme Cold Weather (Below –20°F Or
29°C) ............................ .301
▫ If Engine Fails To Start .................301
▫ After Starting ....................... .303
ENGINE BLOCK HEATER — IF EQUIPPED . . .304
 MANUAL TRANSMISSION — IF EQUIPPED . .304
▫ Six-Speed Manual Transmission ...........304
 AUTOMATIC TRANSMISSION —
IF EQUIPPED ........................ .308
▫ Key Ignition Park Interlock ...............310
▫ Brake/Transmission Shift Interlock System . . .310
▫ Five-Speed Automatic Transmission ........310
▫ Gear Ranges ........................ .312
5

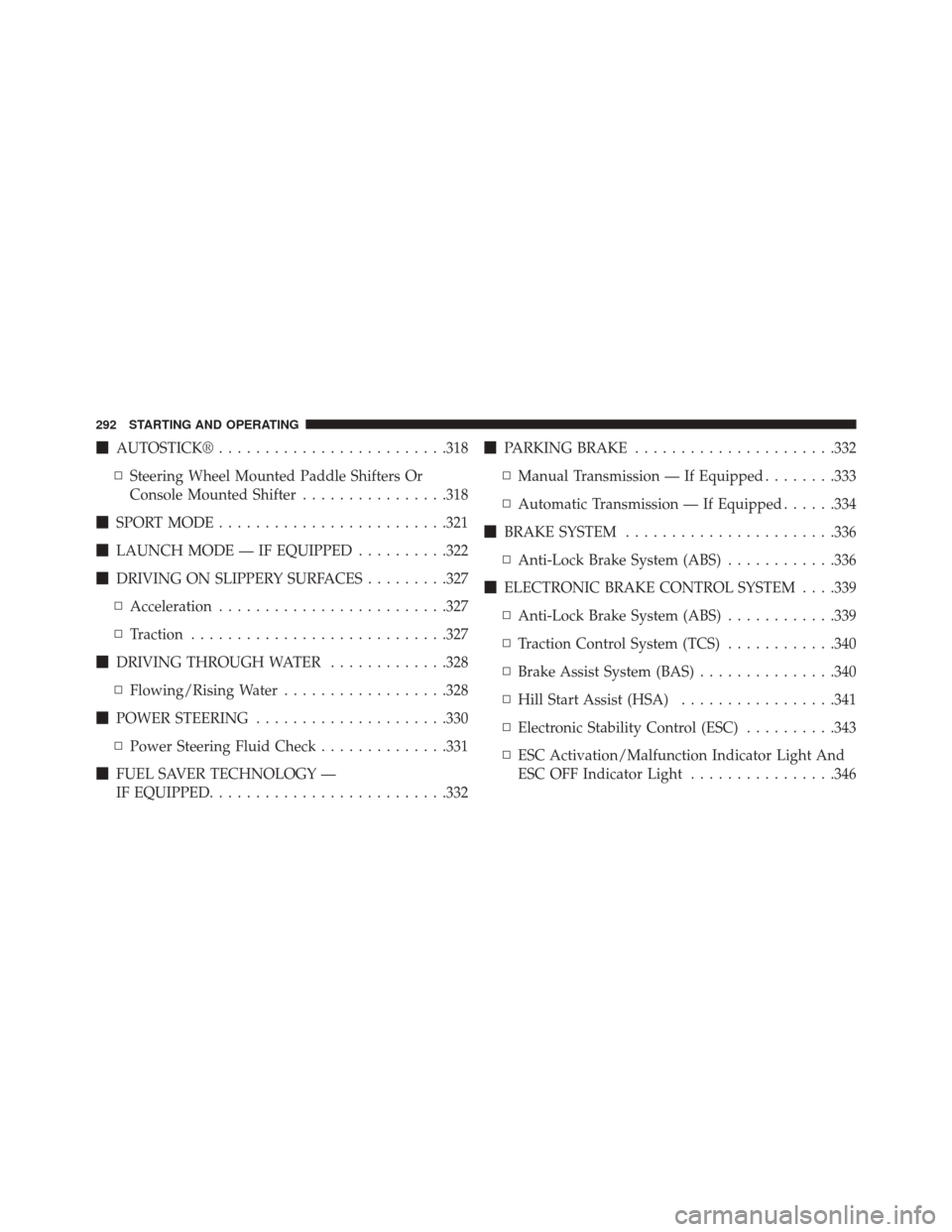

AUTOSTICK® ........................ .318
▫ Steering Wheel Mounted Paddle Shifters Or
Console Mounted Shifter ................318
 SPORT MODE ........................ .321
 LAUNCH MODE — IF EQUIPPED ..........322
 DRIVING ON SLIPPERY SURFACES .........327
▫ Acceleration ........................ .327
▫ Traction ........................... .327
 DRIVING THROUGH WATER .............328
▫ Flowing/Rising Water ..................328
 POWER STEERING .....................330
▫ Power Steering Fluid Check ..............331
 FUEL SAVER TECHNOLOGY —
IF EQUIPPED ......................... .332
PARKING BRAKE ..................... .332
▫ Manual Transmission — If Equipped ........333
▫ Automatic Transmission — If Equipped ......334
 BRAKE SYSTEM ...................... .336
▫ Anti-Lock Brake System (ABS) ............336
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .339
▫ Anti-Lock Brake System (ABS) ............339
▫ Traction Control System (TCS) ............340
▫ Brake Assist System (BAS) ...............340
▫ Hill Start Assist (HSA) .................341
▫ Electronic Stability Control (ESC) ..........343
▫ ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light ................346
292 STARTING AND OPERATING

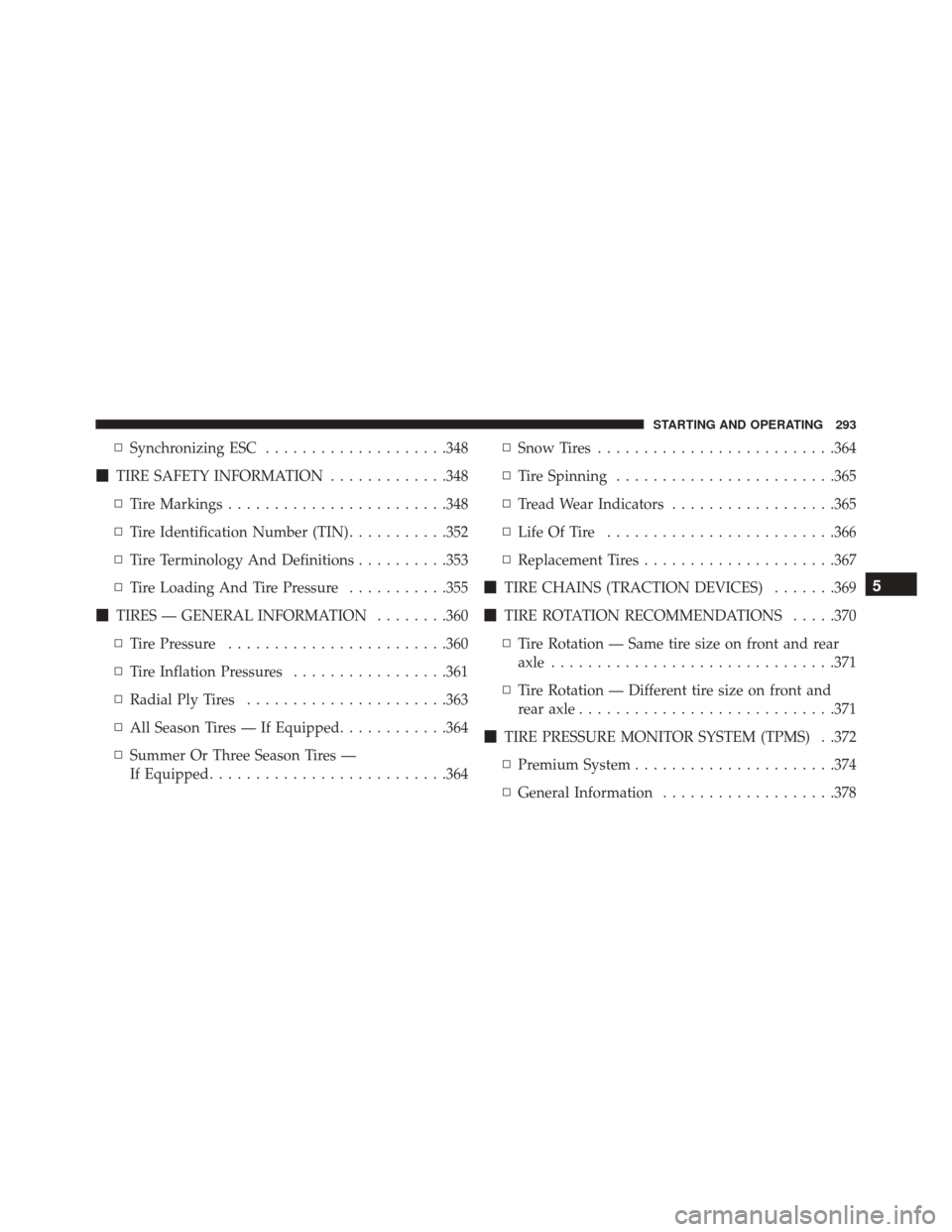

▫Synchronizing ESC ....................348
 TIRE SAFETY INFORMATION .............348
▫ Tire Markings ....................... .348
▫ Tire Identification Number (TIN) ...........352
▫ Tire Terminology And Definitions ..........353
▫ Tire Loading And Tire Pressure ...........355
 TIRES — GENERAL INFORMATION ........360
▫ Tire Pressure ....................... .360
▫ Tire Inflation Pressures .................361
▫ Radial Ply Tires ..................... .363
▫ All Season Tires — If Equipped ............364
▫ Summer Or Three Season Tires —
If Equipped ......................... .364▫
Snow Tires ......................... .364
▫ Tire Spinning ....................... .365
▫ Tread Wear Indicators ..................365
▫ Life Of Tire ........................ .366
▫ Replacement Tires .....................367
 TIRE CHAINS (TRACTION DEVICES) .......369
 TIRE ROTATION RECOMMENDATIONS .....370
▫ Tire Rotation — Same tire size on front and rear
axle .............................. .371
▫ Tire Rotation — Different tire size on front and
rear axle ........................... .371
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . .372
▫ Premium System ..................... .374
▫ General Information ...................378
5
STARTING AND OPERATING 293

FUEL REQUIREMENTS ..................379
▫ 6.4L Engine ......................... .379
▫ Reformulated Gasoline .................379
▫ Gasoline/Oxygenate Blends ..............380
▫ E-85 Usage In Non-Flex Fuel Vehicles .......380
▫ MMT In Gasoline .....................381
▫ Materials Added To Fuel ................381
▫ Fuel System Cautions ...................382
▫ Carbon Monoxide Warnings .............383
 ADDING FUEL ....................... .383
▫ Fuel Filler Cap (Gas Cap) ...............383 ▫
Loose Fuel Filler Cap Message ............385
 VEHICLE LOADING ....................385
▫ Vehicle Certification Label ...............386
▫ Gross Vehicle Weight Rating (GVWR) .......386
▫ Gross Axle Weight Rating (GAWR) .........386
▫ Overloading ........................ .387
▫ Loading ........................... .387
 TRAILER TOWING .....................387
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ...................388
▫ Towing This Vehicle Behind Another Vehicle . .388
294 STARTING AND OPERATING

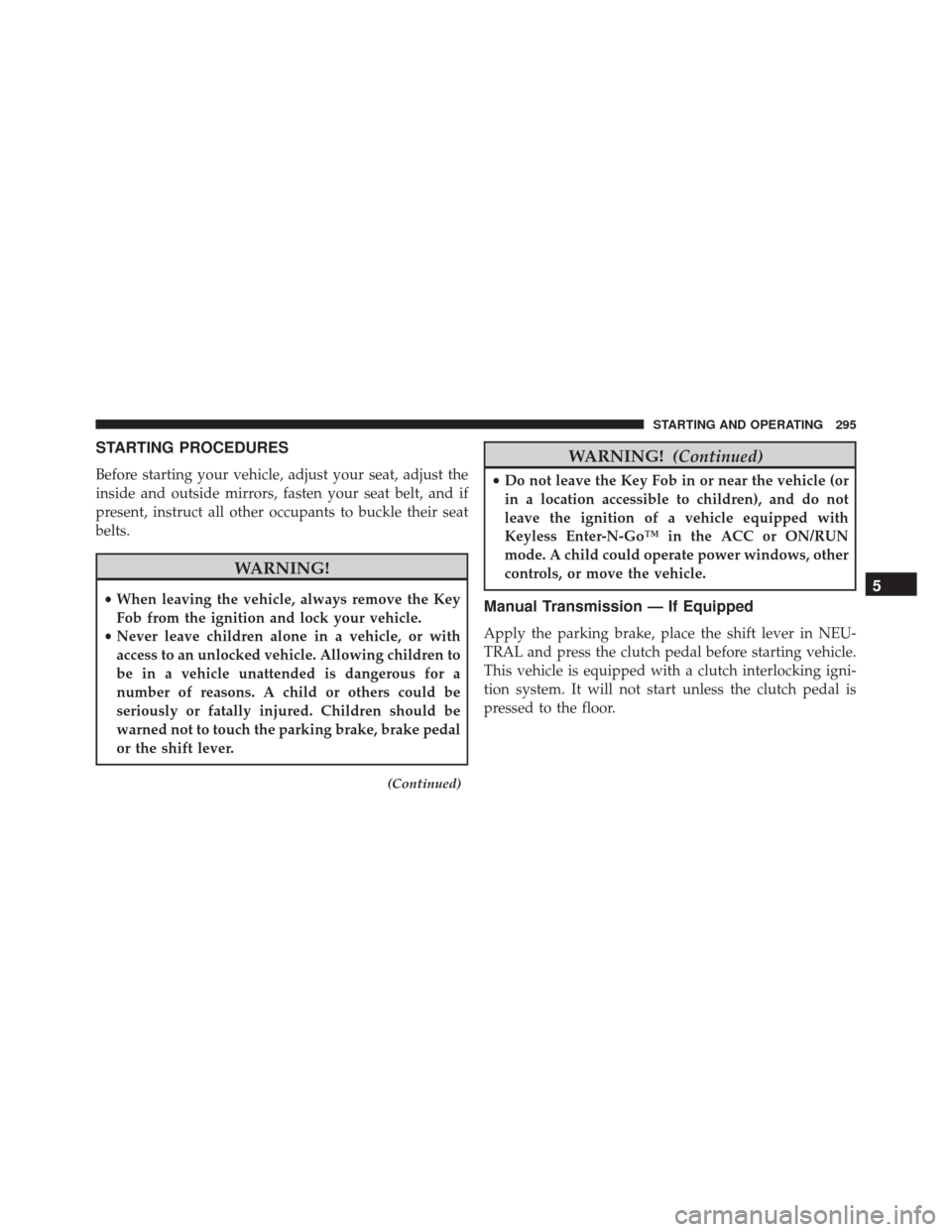

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•When leaving the vehicle, always remove the Key
Fob from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the shift lever.
(Continued)
WARNING! (Continued)
•Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
Manual Transmission — If Equipped
Apply the parking brake, place the shift lever in NEU-
TRAL and press the clutch pedal before starting vehicle.
This vehicle is equipped with a clutch interlocking igni-
tion system. It will not start unless the clutch pedal is
pressed to the floor.
5
STARTING AND OPERATING 295
