Deactivation

Only the passenger's front airbag can be
deactivated:



insert the key in the passenger airbag
deactivation switch,


turn it to the "OFF"
position,


then, remove the key keeping the switch in
the new position. According to version, this warning
lamp comes on either in the
instrument panel or in the seat belt
and passenger's front airbag warning lamp
display when the ignition is on and until the
airbag is reactivated.
To assure the safety of your child,
the passenger's front airbag must
be deactivated when you install a
"rear facing" child seat on the front
passenger seat.
Other wise, the child would risk being
seriously injured or killed if the airbag
were deployed.


Reactivation

When you remove the child seat, with
the ignition off
, turn the switch to the
"ON"
position to reactivate the airbag and so
assure the safety of your front passenger in the
event of an impact.
With the ignition on, this warning
lamp comes on in the seat belt and
passenger's front airbag warning lamp
display for approximately one minute, if
the passenger's front airbag is activated.


Operating fault

If this warning lamp comes on in the
instrument panel, accompanied by
an audible warning and a message in
the instrument panel screen, contact
a CITROËN dealer or a qualified workshop to
have the system checked. The airbags may no
longer be deployed in the event of a serious
impact.

01 FIRST STEPS


Short press: select a preset
radio station.
Long press: store the
current radio station.
TA (Traffi c Announcement)
function On / Off.
Display the list of radio stations received, CD/MP3/
Apple ® player tracks or folders.
Long press: management of the classifi cation of
MP3/WMA fi les/update the list of stations received.


Access to " Audio settings
":
musical ambiences, bass,
treble, loudness, distribution,
left/right balance, front/rear
fader, automatic volume
adjustment.


Selection of AM / FM / DAB *
wavebands.

Press and hold: reinitialise
the system.

Select the source: CD,
USB, AUX, Apple
® player,
Bluetooth Streaming,
Radio.
Abandon the current
operation, go up one level.
Long press: return to
permanent display.
On / Off.


MODE
button: select the type
of permanent display.

Rotation: adjust volume
(each source is independent,
including TA messages and
navigation instructions).

Select:


- the previous/next line in a list or menu.

- the previous next media folder.

- step by step previous/next radio frequency.

- previous/next MP3 folder.
Move up/down, in " Move the map
" mode.
Select:


- automatically the previous/next radio frequency.

- the previous/next CD, MP3 or media track.
Move left/right, in " Move the map
" mode.
Display black screen.

Short press: mute /
restore sound.

*
Depending on model.

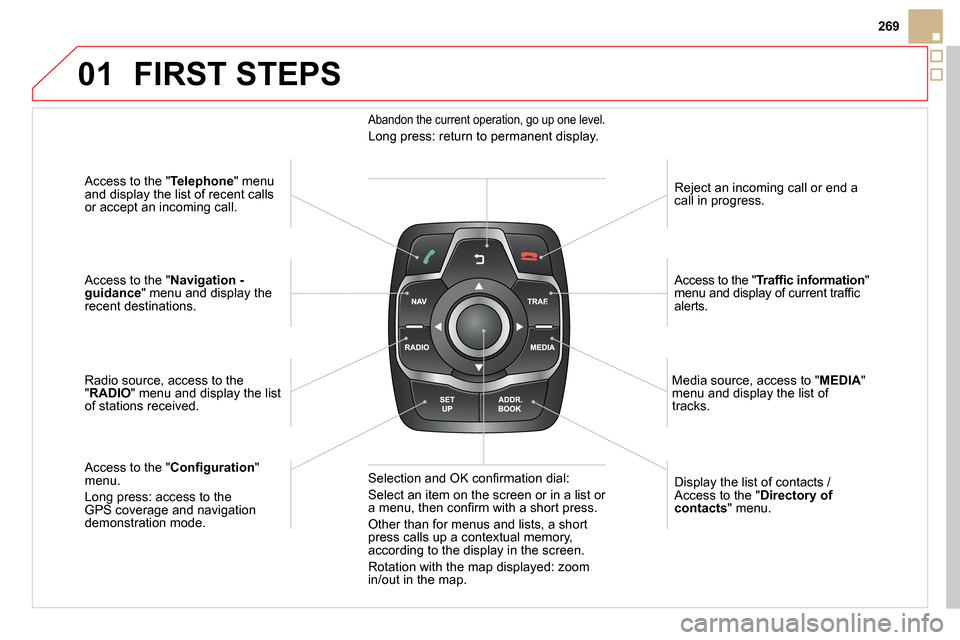

01
269

Access to the " Telephone
" menu
and display the list of recent calls
or accept an incoming call.


Access to the " Navigation -
guidance
" menu and display the
recent destinations.

Radio source, access to the
" RADIO
" menu and display the list
of stations received.

Access to the " Confi guration
"
menu.
Long press: access to the
GPS coverage and navigation
demonstration mode.
Reject an incoming call or end a
call in progress.

Access to the " Traffi c information
"
menu and display of current traffi c
alerts.

Display the list of contacts /
Access to the " Directory of
contacts
" menu.
Media source, access to " MEDIA
"
menu and display the list of
tracks.



Abandon the current operation, go up one level.

Long press: return to permanent display.

Selection and OK confi rmation dial:
Select an item on the screen or in a list or
a menu, then confi rm with a short press.
Other than for menus and lists, a short
press calls up a contextual memory,
according to the display in the screen.
Rotation with the map displayed: zoom
in/out in the map.

FIRST STEPS

SRC

02


-
+

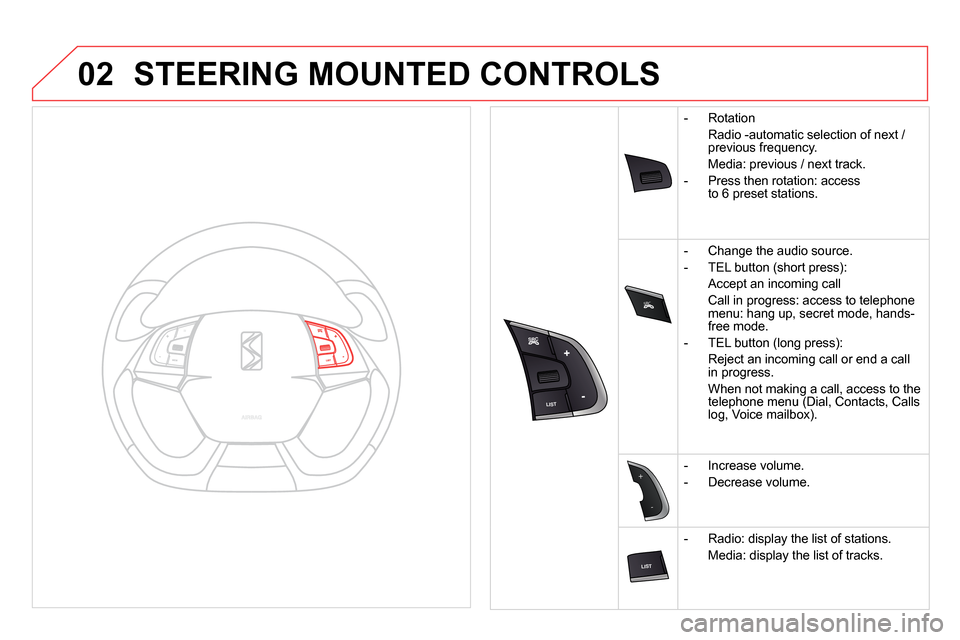

STEERING MOUNTED CONTROLS



- Rotation
Radio -automatic selection of next /
previous frequency.
Media: previous / next track.

- Press then rotation: access
to 6 preset stations.


- Change the audio source.


- TEL button (short press):
Accept an incoming call
Call in progress: access to telephone
menu: hang up, secret mode, hands-
free mode.


- TEL button (long press):
Reject an incoming call or end a call
in progress.
When not making a call, access to the
telephone menu (Dial, Contacts, Calls
log, Voice mailbox).


- Increase volume.

- Decrease volume.


- Radio: display the list of stations.
Media: display the list of tracks.

03
271

For the details of the menus, refer to the "Screen menu map"
section.

For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.
" RADIO
"

" TELEPHONE
"
(If conversation in progress)


SETUP
:
PARAMETERS



date and time, display confi guration,
sound, vehicle settings.
Changing the audio source:
RADIO
:
RADIO broadcasts.

MUSIC
: playing MUSIC.






Press the MODE
button several times in succession for access to the following displays:

GENERAL OPERATION


" FULL SCREEN MAP
"

" MAP IN WINDOW
"
(If navigation guidance in
progress)

03
A press on the knob gives access to
short-cut menus according to the display
in the screen.

GENERAL OPERATION







Display according to context

MUSIC MEDIA PLAYERS,
CD or USB (according to
media):
Play modes:

Normal
Random
Random on all media
Repetition

FULL SCREEN MAP OR IN
A NEW WINDOW:
Stop / Restore guidance Select destination



Enter an address


Directory


GPS coordinates





Divert route

Move the map



Info. on location


Select as destination


Select as stage


Save this place (contacts)


Quit map mode






Guidance criteria

1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1

DTMF ring tones
Hang up
1
1


RADIO:
Activate / Deactivate TA
Activate / Deactivate RDS

TELEPHONE (call in
progress):
Private mode
Put call on hold
1
1
1
1


Change waveband



FM


AM


2
2
1


TA 1

04

Press NAV
to display the " Navigation -
guidance
" menu.
Towards a new destination

NAVIGATION - GUIDANCE













Selecting a destination


Select " Select destination
" and
confi rm, then select " Enter an address
"
and confi rm.

Select the " Country
" function then
confi rm.

Select the " Town
" or " Post code
"
function then confi rm.

Select the letters in the name of the
town or the characters in a post code
one at a time, confi rming each one with
the knob.
Selection the town from the list offered,
then confi rm .
A pre-set list (by entering the fi rst few
letters) of the towns in the country
selected can be accessed directly by
selecting and confi rming " List
" in the
screen.

If possible, enter the " Road
" and " N°/X
"
information in the same way.

Select " Archive
" to save the address entered in a contact fi le.
The system allows up to 400 contact fi les to be recorded.

Confi rm " OK
" to start guidance.

Select the guidance criteria: " Fastest
route
", " Shortest route
" or optimised
" Distance/Time
", then select the
desired restriction criteria: " With tolls
",
" With Ferry
", or " Traffi c info
" then
con
fi rm " OK
".

04
275
NAVIGATION - GUIDANCE



Towards a recent destination

Press NAV
to display the " Navigation -
guidance
" menu.

Select the desired destination and
confi rm to start guidance.


Towards a contact in the contacts directory

Select " Select destination
" and
confi rm, then select " Directory
" and
confi rm.

Selection the desired destination from
your contacts and confi rm " OK
" to start
the guidance.

Press NAV
to display the " Navigation -
guidance
" menu.
Navigation towards a contact is only possible if it has an address
entered in the audio navigation system.

Press NAV
to display the " Navigation -
guidance
" menu.

Select " Options
" and confi rm and then
" Delete recent destinations
" and
confi rm.


Delete recent destinations
