Storing driving positions

System which stores the electrical settings
of the driver's seat and the head-up display
settings. It enables you to store up to
two positions using the buttons on the side
of the driver's seat.

Storing a position using
buttons M / 1 / 2




Switch on the ignition.


Adjust your seat and the head-up display.


Press button M
, then press button 1
or 2

within four seconds.
An audible signal indicates that the position
has been stored.
Storing a new position cancels the previous
position.


Recalling a stored position




Briefly press button 1
or 2
to recall the
corresponding position.
An audible signal indicates the end of the
adjustment.
You can interrupt the current movement
by pressing button M
, 1
or 2
or by using
one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is
deactivated 45 seconds after switching
off the ignition.

USB Player


This connection box, consisting of a JACK
auxiliary socket and a USB port, is located in
the front armrest (under the cover).
It permits the connection of portable device,
such as a digital audio player of the iPod
® type
or a USB memory stick.
It reads the audio file formats (MP3, OGG,
WMA, WAV, ...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the instrument panel
screen.
When the USB por t is used, the por table device
charges automatically.

For more information on the use of
this system, refer to the "Audio and
telematics" section. Comfort and storage system for the driver and
front passenger.













Centre armrest


Storage




For access to the large storage box, press
button 1
then lift the cover.


For access to the small storage box (below
the armrest cover) press button 2
then lift
the cover.
These can be used for portable devices (mobile
phone, MP3 player...) which can be connected
to the USB port / auxiliary socket.
An air vent (with adjustable opening) delivers
cooled air into the large storage box.

Dual-zone digital air conditioning


1. Automatic comfort programme

We recommend the use of one of
the three AUTO modes available:
they provide optimised regulation of
the temperature in the passenger
compartment according to the comfort value
that you have chosen.
These three modes automatically control the
system, according to the desired setting, while
also maintaining the desired comfort value.


Press the "AUTO "
button repeatedly:


- a first indicator lamp comes on; the "low"
setting mode is selected,

- a second indicator lamp comes on; the
"medium" setting mode is selected,

- a third indicator lamp comes on; the
"high" mode setting is selected.

Use the "medium" and "high" settings in
preference to maintain the comfort level at the
rear.
When the engine is cold, the air
flow will reach its optimum level
progressively, taking account of the
weather and the desired comfort level
so as to avoid too great a distribution
of cold air.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no
need to change the value displayed in
order to obtain the comfort required. In
all seasons, with the windows closed
the system corrects the difference
in temperature automatically and as
quickly as possible.
This system is designed to operate effectively
in all seasons, with the windows closed.

Automatic operation

97Comfort

4. Automatic visibility
programme

For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the minimum value 14 or the
maximum value 28.



Turn control 2
or 3
to the left
until "LO"
is displayed or to the
right until "HI"
is displayed.
See "Front demisting - defrosting".



2-3. Driver's-passenger's side
settings
The driver and front passenger can
each adjust the temperature to their
requirements.
The value indicated on the display
corresponds to a level of comfort and not to a
temperature in degrees Celsius or Fahrenheit.



Turn control 2
or 3
to the left or to the right
respectively to decrease or increase this
value.
A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
You are advised to avoid a left / right setting
difference of more than 3.


Manual operation

If you wish, you can make a different choice
from that offered by the system by changing a
setting. The "AUTO "
indicator lamps go off; the
other functions, except the air conditioning, will
still be controlled automatically.



Pressing the "AUTO "
button returns the
system to completely automatic operation.






With Stop & Start, when demisting has
been activated, the STOP mode is not
available.

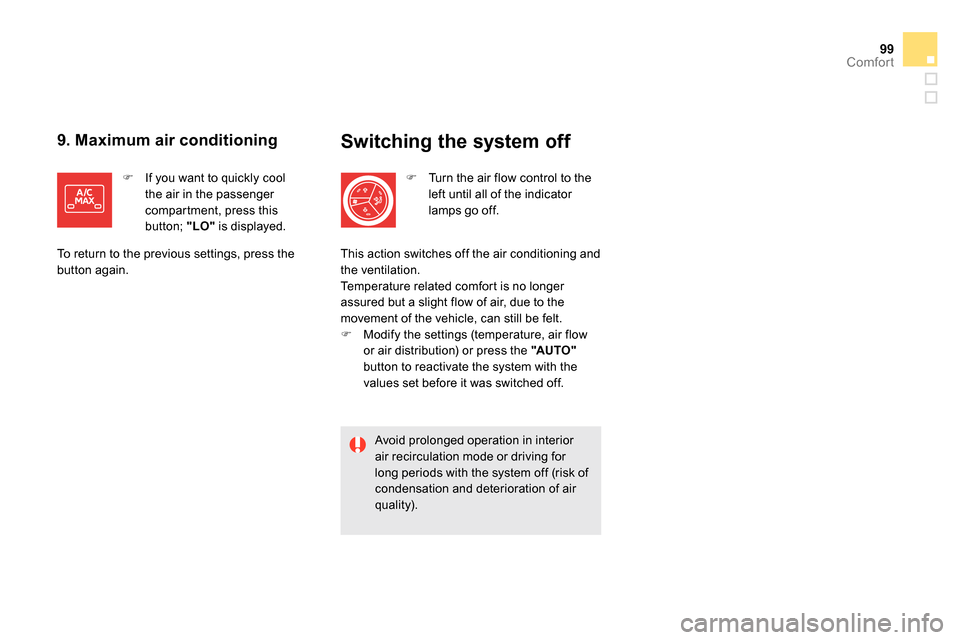

99Comfort

Switching the system off




Turn the air flow control to the
left until all of the indicator
lamps go off.

Avoid prolonged operation in interior
air recirculation mode or driving for
long periods with the system off (risk of
condensation and deterioration of air
quality). This action switches off the air conditioning and
the ventilation.
Temperature related comfort is no longer
assured but a slight flow of air, due to the
movement of the vehicle, can still be felt.



Modify the settings (temperature, air flow
or air distribution) or press the "AUTO "

button to reactivate the system with the
values set before it was switched off.



9. Maximum air conditioning




If you want to quickly cool
the air in the passenger
compartment, press this
button; "LO"
is displayed.
To return to the previous settings, press the
button again.

107Driving

It is recommended that you do not
apply the parking brake in very cold
conditions (ice) and during towing
(breakdown, caravan...).
For this, with the ignition on, deactivate
the automatic functions and release the
parking brake manually:



Manual gearbox:
engage first gear
or reverse.


Electronic gearbox:
select
position A
or R
.


Automatic gearbox:
select
position P
or R
.


The electric parking brake combines
2 operating modes:


- Automatic Application/Release

Application is automatic when the engine
stops, release is automatic on use of the
accelerator (this mode is activated by
default),

- Manual Application/Release

Manual application of the parking brake is
done by pulling control lever A.

Manual release is done by pulling
then
releasing the control lever, while pressing
the brake pedal
When the driver's door is opened, there is an
audible signal and a message is displayed if
the brake is not applied.

Programming the automatic
mode
Depending on the country of sale of the vehicle,
the automatic application when the engine is
switched off and the automatic release when
you press the accelerator can be deactivated.
You can contact a CITROËN dealer or a
qualified workshop to have it activated.

In this case, programming is done via
the configuration menu.









Electric parking brake


If deactivated, the parking brake must
be applied and released manually.
If this warning lamp comes on in
the instrument panel, the automatic
mode is deactivated.
Never leave the vehicle without
checking that the parking brake is on.
This warning lamp comes on
fixed.


Label on door panel

With the ignition on or the engine running, to
release the parking brake, press
the brake

pedal
, pull
then release control lever A
.
The full release of the parking brake is
confirmed by:

Manual release



- the braking warning lamp and
the P
warning lamp in the control
lever A
going off,

- display of the message "Parking
brake off ".
If you pull the control lever A
without pressing
the brake pedal, the parking brake will not
be released and a message appears in the
instrument panel.
If necessary, you can make a maximum
application
of the parking brake. It is obtained
by means of a long pull
on control lever A
,
until you see the message "Parking brake
applied fully" and an audible signal is heard.

Maximum application is essential:



- in the case of a vehicle towing a caravan
or a trailer, if the automatic functions are
activated but you are applying the parking
brake manually,

- when the slope you are parked on may
vary (e.g. on a ferry, on a lorry, during
towing).



Maximum application


In the case of towing, a loaded vehicle
or parking on a gradient, make a
maximum application of the parking
brake then turn the front wheels
towards the pavement and engage a
gear when you park.
After a maximum application, the
release time will be longer.

Before leaving the vehicle, check that
parking brake warning lamps in the
instrument panel and the control lever A

are on fixed, not flashing.
With the vehicle stationary, to apply the parking
brake whether the engine is running or off, pull

control lever A
.


Manual application

The application of the parking brake is
confirmed by:


- illumination of the braking warning
lamp and of the P
warning lamp in
the control lever A
,

- display of the message "Parking
brake on".
When the driver’s door is opened with the
engine running, there is an audible signal and a
message is displayed if the parking brake has
not been applied, unless the selector lever is
in position P
(Park) in the case of an automatic
gearbox.

109Driving

Before leaving the vehicle, check that
parking brake warning lamps in the
instrument panel and in the control
lever A
are on fixed (not flashing).
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.



Automatic application,
engine off


- illumination of the braking
warning lamp and of
the P
warning lamp in the control
lever A
,

- display of the message "Parking
brake on". With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off.
The application of the parking brake is
confirmed by:

Automatic release

The electric parking brake releases
automatically and progressively
when you
press the accelerator:



Manual gearbox
: fully depress the clutch
pedal, engage 1
st or reverse gear; press
the accelerator pedal and let up the clutch
pedal until the brake releases.


Electronic gearbox
: select position A
, M

or R
then press the accelerator pedal.


Automatic gearbox
: select position D
, M

or R
then press the accelerator pedal.
Full release of the parking brake is confirmed
by:


- the braking warning lamp and
the P
warning lamp in the control
lever A
going off,

- display of the message "Parking
brake off ".


When stationary, with the engine running, do
not press the accelerator pedal unnecessarily,
as you may release the parking brake.



Before leaving the vehicle, check that
parking brake warning lamps in the
instrument panel and the control lever A

are on fixed, not flashing.



Immobilising the vehicle,
engine running
With the engine running and the vehicle
stationary, in order to immobilise the vehicle
it is essential to manually
apply the parking
brake by pulling
control lever A
.
The application of the parking brake is
confirmed by:


- illumination of the braking warning
lamp and of the P
warning lamp in
the control lever A
,

- display of the message "Parking
brake on".
When the driver’s door is opened, a loud beep
is heard and a message is displayed if the
parking brake has not been applied, unless the
gear lever is in position P
(Park) in the case of
an automatic gearbox.
