2014 CITROEN DS3 CABRIO display

System language
This menu allows you to select the language
used by the display: Deutsch, English,Espanol, Français, Italiano, Nederlands, Polski,
Portugues, Türkçe * .
Date and time
This menu allows you to set the date and time,
the format of the date and the format of the
time:)Press "SETUP".)Select the "Date and time" function andpress the knob to confirm. )Select the "Adjust date and time" function and press the knob to confirm. )Adjust the settings in turn using the
directional arrows, confirming with the knob.)Select the "Date format" function and press
the knob to confirm. )Confirm the desired format using the knob. )Select the "Time format" function andpress the knob to confirm. )Confirm the desired format using the knob.



Display

This menu allows you to set the brightness of
the screen, the screen colour scheme and the
colour of the map (day/night or auto mode).

*
Accordin
g to country.

Vehicle
This menu allows you to activate or deactivate certain driving and comfor t equipment:


- wiper linked with reverse gear (refer to the "Visibility"),

- guide-me-home lighting and duration (refer
to the "Visibility"),

- parking sensors (refer to the "Driving"section).



Units

This menu allows you to select the units:
temperature (°C or °F) and fuel consumption(km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and
activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.

73Comfort

















Digital air conditioning
The air conditioning operates when the engine is running, as well as in STOP mode with Stop & Start.


Automatic operation


1. Automatic "comfort" programme
Press the "AUTO"button.The "AUTO"
symbol is displayed. We recommend that you use
this mode. It provides optimisedautomatic control of all of the following functions: passenger compar tment
temperature, air flow, air distribution and air
intake, in accordance with the comfort value
that
you have chosen.
This system is designed to operate effectivelyin all seasons, with the windows closed.
For your comfor t, when the engine isswitched off, the settings are retained until the engine is switched on again. To prevent too great a distribution of cold air when the engine is cold, the air flow will only reach its optimum level gradually.
2. Temperature adjustment
The value indicated on the display corresponds
to a level of comfor t and not to a temperature in
de
grees Celsius or Fahrenheit.
On entering the vehicle, if the interior is very cold or hot, there is no need tochange the value displayed in order to reach the required level of comfort. The system corrects the temperature difference automatically and as quickly as possible.
Pr
ess the ""
and ""
buttons tochange this value. A setting around
the value 21enables optimum comfor t to be obtained. However,
depending on your requirements, asetting between 18 and 24 is usual.

3. Automatic "visibility" programme
The automatic comfor t programmemay not be sufficient for rapid
demisting or defrosting of the
windscreen and side windows(humidity, several passengers, ice, etc.).
In this case, select the automatic visibility
programme. The button 3indicator lamp comes on.
The system automatically controls the air conditioning and the flow of air and provides optimum air distribution to the windscreen andside windows. It deactivates air recirculation 5.
To exit this programme, press button 3again or "AUTO"
, the indicator lamp on the button goes off and "AUTO"
is displayed.
With Stop & Start, when demisting has been activated, the STOP mode is notavailable.

It is possible to adjust one or more functionsmanually while leaving the other functions in automatic mode.
The "AUTO"
symbol switches off.
To return to automatic mode, press
the "AUTO"
button.
Manual override


4. Air conditioning on/off

For maximum cooling or heating of the cabin, it is possible to go beyond the minimum 14 or maximum 28 values.)Press the blue button 2until "LO"
is displayed or the red button 2until "HI"is displayed. Pr
ess this button to switch off the air conditioning.
Stopping the air conditioning maycause some problems (humidity,
misting).
Automatic operation of the air conditioning isresumed when the button is pressed again. The
symbol "A/C"is displayed.


5. Air intake / Air recirculation
Press this button for recirculation of
the interior air. The air recirculation symbol 5
is displayed.
Air recirculation enables the passenger compar tment to be isolated from exterior odours and smoke.
Press this button again or press the "AU TO "
button to resume automatic management
of the intake of air. The air recirculation symbol 5goes off.

Avoid prolonged recirculation of interior air (risk of condensation or deterioration of the air quality).

Switching to manual mode may not besuitable (temperature, humidity, odour,condensation) and does not provide optimum comfort.

113Visibility


Model without AUTO lighting



Model with AUTO lighting
Manual controls
The lighting is controlled directly by the driver
by means of the ring Aand the stalk B.
Automatic illumination of headlamps.
B
. Stalk for switching the headlamp beam:
pull the stalk to switch between dipped and
main beam headlamps.
In the lamps off and sidelamps modes,
t
he driver can switch on the main beam headlamps temporarily ("headlamp flash") bymaintaining a pull on the stalk.
A. Main lighting mode selection ring: turn it
to position the symbol required facing the
mark.
Lighting o
ff / daytime running lamps.

Sidelamps only.
Dipped headlamps or main beam headlamps.

Displays

Lighting of the corresponding indicator lamp on
the instrument panel confirms the switching onof the lighting selected.
The instrument panel has permanent back-
lighting. Illumination of the instrument panel is
therefore not linked to the exterior lighting.

are switched on automatically, without any action on the par t of the driver, when a low level
of external light is detected or in certain cases
of activation of the windscreen wipers.

As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Automatic illumination of headlamps
Activation
)
Turn ring to the "AU TO "position. The
automatic illumination of headlamps is
accompanied by a message in the screen.

Deactivation
)
Turn ring to a position other than "AU TO ".
Deactivation is accompanied by a message
in the screen.

Association with the automatic "Guide-me-home" lighting

Association with the automatic illumination of
headlamps provides "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration to 15,30 or 60 seconds in the functions that can
be set in the vehicle configuration menu(except in the case of the monochrome screen A, for which the duration is set:
60 seconds),

- automatic activation of "guide-me-home"lighting when automatic illumination of
headlamps is in operation.



Operating fault

In the event of a fault with the
sunshine sensor, the lighting come on, this warning lamp is displayed in the
instrument panel and/or a message appears in
the screen, accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
workshop.
In fog or snow, the sunshine sensor may detect sufficient light. Therefore, the lighting will not come onautomatically.
Do not cover the sunshine sensor,coupled with the rain sensor and located in the centre of the windscreenbehind the rear view mirror; theassociated functions would no longer be controlled.

Auxiliary socket
The auxiliary socket is located in the " AUX" box on the centre console.
It permits the connection of a por table device,such as a digital audio player of the iPod ®type,
to listen to your music files using the vehicle'sspeakers.














USB Player
For more information on the use of this equipment, refer to the "Audio system" or "eMyWay" section.
When it is in use, the por table devicecharges automatically.
The U
SB por t is located in the "AU X "box on
the centre console.
It permits the connection of a por table device,
such as a digital audio player of the iPod®
generation 5 and later type or USB memory
stick type.
It reads the audio file formats (mp3, ogg,
wma, wav...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio equipmentcontrol panel and display them on the
multifunction screen.

F
or more information on the use of thisequipment, refer to the "Audio system" section.






12 V accessory
socket
)To connect a 12 V accessory (max power:
120 W), lift the cover and connect asuitable adaptor.
The management of the files is doneusing your por table device.

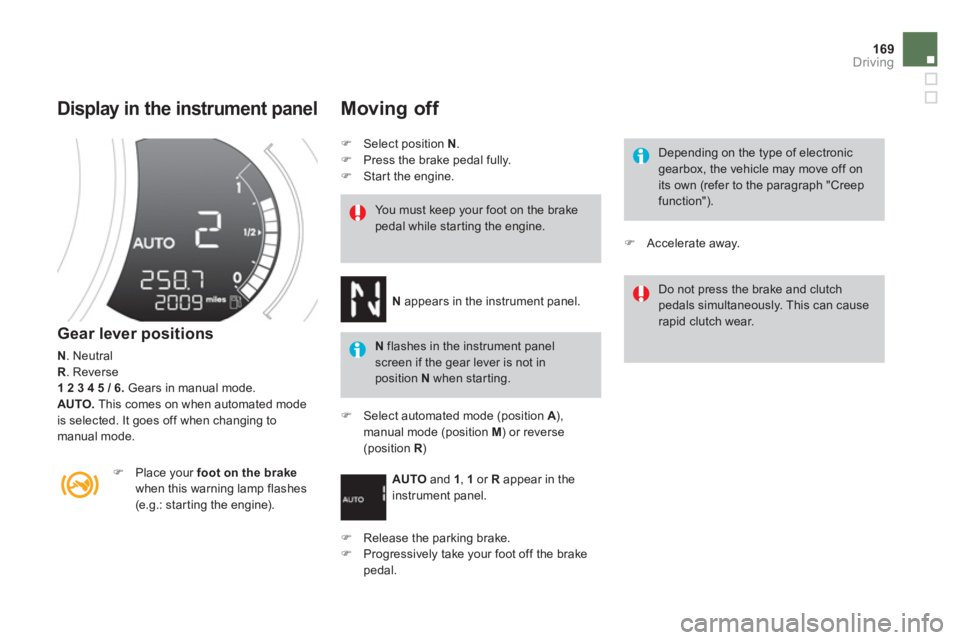

169Driving

Display in the instrument panel


Gear lever positions
N
. Neutral R
. Reverse 1 2 3 4 5 / 6.Gears in manual mode.
AUTO. This comes on when automated mode
is selected. It goes off when changing tomanual mode.
)Place your foot on the brakewhen this warning lamp flashes (e.g.: star ting the engine).


You must keep your foot on the brake pedal while star ting the engine.
Moving off
)
Select position N
. )
Press the brake pedal fully. )
Start the engine.
N
appears in the instrument panel.
Nflashes in the instrument panelscreen if the gear lever is not inposition N
when star ting.
)
Select automated mode (position A
), Amanual mode (position M ) or reverse(position R)R
AUTOand 1
, 1 or R
appear in the
instrument panel.
) Release the parking brake.)
Progressively take your foot off the brakepedal.

Depending on the type of electronicgearbox, the vehicle may move off onits own (refer to the paragraph "Creep function").

Do not press the brake and clutchpedals simultaneously. This can cause rapid clutch wear.
)
Accelerate away.

When you move the lever in the gate to selecta position, the corresponding indicator isdisplayed in the instrument panel.P. Park R.ReverseN.
Neutral D.
Drive (Automatic driving) S.Sportprogramme7.Snowprogramme 1 2 3 4. Gears engaged during manualoperation -.Invalid value during manual operation
Displays in the instrument panel
Foot on brake
)
Press the brake pedal when this
indicator lamp is displayed in the
instrument panel (e.g.: star tingthe engine).




Moving off
If position Nis selected inadvertently while driving, allow the engine to return to idle then select position D
to accelerate.


When the engine is running at idle, with the brakes released, if position R , D
or
M
is selected, the vehicle moves evenwithout the accelerator being pressed. When the engine is running, never leave children in the vehicle without supervision.
When carrying out maintenance with the engine running, apply the parkingbrake and select position P
.
P
)
Apply the parking brake.)
Select position P
or N.)
Start the engine.
If this procedure is not followed, there is an
audible signal, accompanied by the display of
an warning message.
) With the engine running, press the brake
pedal.
) Release the parking brake.)
Select position R , D
or M . )
Gradually release the brake pedal.
The vehicle moves off immediately.
