Page 216 of 384
Fitting a wheel
After changing a wheel
To store the punctured wheel in the boot correctly, first remove the centralcover. When using the "space-saver" typetemporary-use spare wheel, do not exceed 50 mph (80 km/h).Have the tightening of the bolts and thepressure of the spare wheel checked by a CITROËN dealer or a qualified workshop without delay. Have the punctured wheel repaired andreplace it on the vehicle as soon aspossible. Do not drive with more than one temporary-use spare wheel fitted to thevehicle at one time.
List of operations
)Put the wheel in place on the hub. )Screw in the bolts by hand.
)Pre-tighten the security bolt (if your vehicle
is fitted with them) using the wheelbrace 1fitted with the socket 4. )Pre-tighten the other bolts using the
wheelbrace 1only.
Page 223 of 384
221Practical information
1.Brake lamps / sidelamps (P21/5W).2.Sidelamps (P5W).3.Direction indicators (PY21W amber)4.Foglamp, right hand side (PR21W red)Reversing lamp, left hand side (P21W).
Rear lamps
Amber or red bulbs, such as thosefor the direction indicators and rear foglamp, must be replaced by bulbs of the same rating and colour.
Changing bulbs
) Open the boot. )
Remove the access flap from the corresponding side trim panel. )
Unscrew the butterfly nut securing thelamp unit. )
Unclip the lamp unit connector. )
Extract the lamp unit carefully pulling in its
middle towards the outside.
) Spread the four tabs and remove the bulbholder. )
Turn the bulb a quar ter of a turn andchange it.
To r efit, carry out these operations in reverseorder.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Page 224 of 384
Changing direction indicator (4)and foglamp or reversing lamp(5) bulbs
)Turn the bulb a quar ter turn and change it.
Changing LED sidelamps and
brake lamps (LEDs)
For the replacement of this type of LED lamp,contact a CITROËN dealer or a qualified
workshop.
3D rear lamps
Access to the bulbs
)
Open the boot. )
Remove the access flap from the corresponding side trim panel.
)
Unscrew the butterfly nut securing thelamp unit. )
Unclip the lamp unit connector. )
Extract the lamp unit carefully pulling it in line towards the outside.
To r e f i t , c a r ry out these operations in reverse order.
Ta k e c a r e t o e ngage the lamp unit in its guides,
while keeping it in line with the vehicle.
1.3D LED sidelamps (LEDs).2.LED brake lamps / sidelamps (LEDs).3.LED lateral sidelamps (LEDs).4.Direction indicators (PY21W amber)
5.
Foglamp, right hand (H21W red)
Reversing lamp, left hand (H21W).
Amber or red bulbs, such as thosefor the direction indicators and rear foglamp, must be replaced by bulbs of the same rating and colour.
Page 225 of 384
Practical information
Third brake lamp (4 W5W bulbs)
) Open the boot. )
Remove the plugs Aon the inner panel. )
Push on the centre of the lamp using two screwdrivers to lever it outwards. )
Disconnect the connector and if necessary
the screenwash pipe from the lamp. ) Turn the bulb holder for the faulty bulb aquar ter of a turn. )
Pull out the bulb and change it.
To r e f i t , c a r ry out these operations in reverse order.
Third brake lamp (LEDs)
For the replacement of this type of LED lamp, contact a CITROËN dealer or a qualified
workshop.
Changing the number plate lamp
bulbs (W5W)
)Insert a thin screwdriver into one of the
outer holes of the lens. )Push it outwards to unclip. )Remove the lens. )Pull the bulb out and change it.
Page 226 of 384
Interior lighting
Interior lamp (1 / W5W)
Detach the cover of the interior lamp 1
with athin screwdriver, close to the button, to access
the failed bulb.
Map reading lamps (2 / W5W)
Detach the cover of the interior lamp 1
. To access the failed bulb, detach the par tition for
the reading lamp 2 concerned.
Boot lamp (W5W)
Detach the unit by pushing it rear wards.
Footwell and central storageillumination (W5W)
Detach the unit for access to the bulb.
Page 239 of 384
Practical information
Towing the vehicle
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
The towing eye is installed in the boot under
the floor.
To gain access to it:
)open the boot, )raise the floor, )remove the polystyrene storage box, )remove the towing eye from the holder.
Access to the tools
General recommendations
Obser ve the legislation in force in your country. Ensure that the weight of the towing vehicle is higher than that of the towed vehicle. The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.When towing a vehicle with all four wheels on the ground, always use an approved towingbar; rope and straps are prohibited. When towing a vehicle with the engine off, there is no longer any power assistance for braking or steering. In the following cases, you must always call on a professional recovery service: - vehicle broken down on a motor way or fast road, - 4 wheel drive vehicle, - when it is not possible to put the gearbox into neutral, unlock the steering, or releasethe parking brake,- towing with only two wheels on the ground, - where there is no approved towing bar available...
Page 244 of 384
A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
The
y are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
Accessories
"Comfort":
sun blinds, air deflectors, isotherm module,ashtray, fragrance car tridges, coat hanger fixed
to head restraint, front centre armrest, movable
mirror, reading lamp, front and rear parking sensors...
"Transport solutions":
boot liner, boot spacers, boot carpet, boot net,
transverse roof bars, bic
ycle carrier, ski carrier, roof boxes, towbars, towbar wiring harnesses...
"Styling":
full grain leather steering wheel, coloured and carbotech dashboards, coloured and leather gear lever knobs, aluminium footrest, spoiler,
alloy wheels, coloured wheel trims, coloured
wheel caps, exterior expressive stickers,
exterior chrome kit, LED rear lamps kit...
*
To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctl
y,
- never fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, wheel security devices,
vehicle trackin
g system, breathalyser, first aid kit, warning triangle, high visibility safety vest,child seats, snow chains, non-skid covers, fire extinguisher, pet seat belt, ...
"Protection":
mats *
, mudflaps, seat covers, vehicle covers,
bumper protectors...
When fitting a towbar outside the CITROËN dealer network, the installation must be done using thevehicle's electrical pre-equipment and following the vehicle manufacturer'srecommendations.
Page 343 of 384

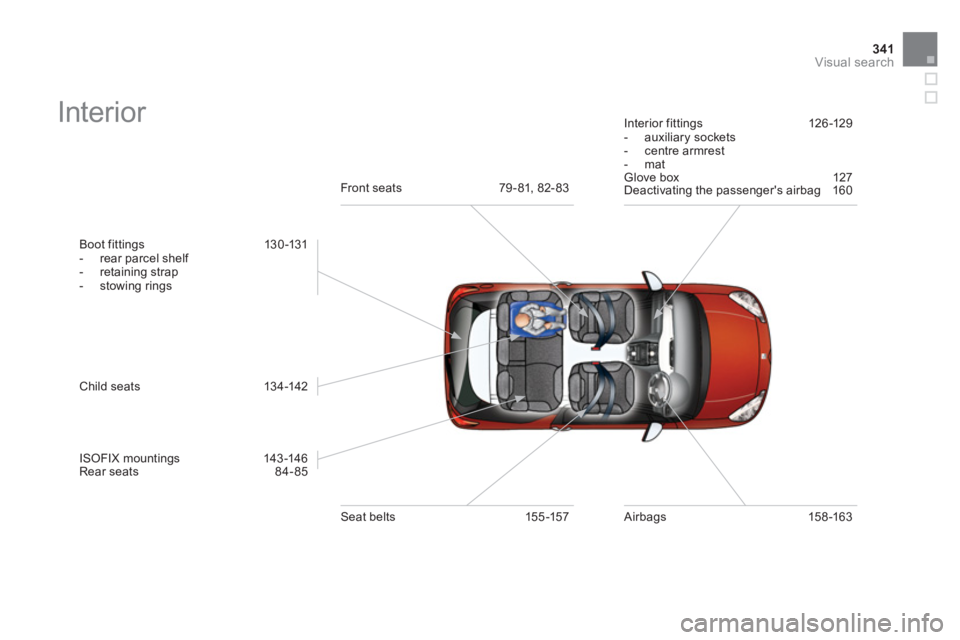

341Visual search
Interior
Boot fittings 13 0 -131
- rear parcel shelf
- retaining strap
- stowin
g rings
Child seats 134-142
I
SOFIX mountings 143 -146
Rear seats 84-85
Front seats 79 - 81, 82- 83
Seat belts 155-157
Interior fittin
gs 126 -129
- auxiliary sockets
- centre armrest
- mat
Glove box 127
Deactivating the passenger's airbag 160
Airbags 158 -163
