3D rear lamps................................................222
Battery...................................................198,232Battery, charging...........................................232Battery, remote control.............................94, 95Black panel......................................................47Bluetooth (hands-free)..........................286,327Bluetooth (telephone)....................................286Bonnet...........................................................191Boot...............................................................105Boot lamp..............................................123,224Brake discs ....................................................199Brake lamps..........................................221,222Brake pads ....................................................199Brakes ...........................................................199Braking assistance system ...........................152
Capacity, fuel tank........................................106CD MP3.........................................................323Central locking........................................90, 103Changing a bulb.............................217, 221-223Changing a fuse............................................225Changing a wheel.........................................209Changing a wiper blade........................ 121, 236Changing the date...............................54,57, 61Changing the remote control battery..............94Changing the time...............................54,57, 61Checking levels......................................195-197Checking the engine oil level..........................45Checking tyre pressures (using the kit)........202Checks ..................................193, 194,198, 199Children.................................141,143,145, 146Child seats ............................ 134-136, 140, 141Child seats, conventional..............................140Citroën Localised Assistance Call................262Citroën Localised Emergency Call...............262Cleaning (advice)..........................................241Closing the boot ......................................90, 105Closing the doors ....................................90, 102Connectors, audio .........................128, 324,326Coolant level...........................................42, 196Coolant temperature indicator........................r42Courtesy lamps.............................................224Courtesy mirror.............................................r127Cruise control................................................184Cup holder.....................................................r126
BC
Assistance call..............................151,261,262Audible warning............................................151Audio streaming (Bluetooth) ................302, 329Audio system .................................317, 330, 332Automatic illumination of headlamps ....113,116Automatic operation of hazard warning
lamps ..........................................................151Automatic rain sensitive windscreen
wipers.................................................118,120Auxiliary socket....................................303,326Auxiliary sockets...........................................324
ABS and EBFD systems...............................152Accessories..................................................242Accessory socket, 12V.................................128Access to rear seats.................................81,82Adjusting headlamps....................................117Adjusting head restraints ................................80Adjusting the steering wheel...........................85Advice on care and maintenance.................241Airbags .......................................................... 137Airbags, curtain.....................................162,163Airbags, front.........................................159,163Airbags, lateral......................................161,163Air conditioning...............................................24Air conditioning, automatic.......................67, 73Air conditioning, manual ...........................67,70Air filter..........................................................r198Air flow............................................................24Air intake .........................................................73Air recirculation...............................................73Air vents..........................................................66Alarm...............................................................96Alloy wheels..................................................241Anti-lock braking system (ABS)....................152Anti-pinch ......................................................100Anti-theft..........................................................92Armrest, front................................................127

345
Alphabetical index
EBA(Emergency braking assistance)........152,153Eco-driving.....................................................24Eco-driving (advice)........................................24Economical driving .........................................24Economy mode .............................................235Electric window controls ...............................100Electronic brake force distribution (EBFD) ......152Electronic engine immobiliser...................r92,95Emergency boot release...............................105Emergency braking system..........................153Emergency call.............................151, 261, 262Emergency warning lamps...................150,151
eMyWay..................................................61, 263Energy economy mode.................................235Engine, Diesel...............................107,194,252Engine, petrol ................................107,193, 246Engine compartment.............................193, 194Engine compar tment fusebox .......................225Engine oil level indicator.........................r45,195Engines........................................246, 250,252Environment..............................................24, 95ESP/ASR.......................................................153
D
G.P.S.............................................................272Gearbox, automatic......................173, 199, 234Gearbox, electronic...............168,178, 199, 234Gearbox, manual..........................167, 178,199Gear efficiency indicator...............................r177Gear lever........................................................24Gear lever, automatic gearbox.....................173Gear lever,electronic gearbox system .................168,199Gear lever, manual gearbox.........................167Glove box......................................................127GPL...............................................................250Grab handles.............................................81, 82Guidance...............................................270,277
EF
Date (setting).......................................54,57, 61Deactivating the passenger airbag...............159Deadlocking ....................................................91Defrosting ..................................................70, 76Demisting..................................................70, 73Dials and gauges ......................................28,30Diesel additive level ...................................... 197Dimensions...................................................254Dipped beam.........................................112,218Dipstick....................................................45, 195Direction indicators.......................150, 221, 222Doors.............................................................102Doors emergency control .............................104
Door trays......................................................126
Filling with fuel......................................106-108Fitting a wheel...............................................212Fittings, boot.................................................130Flashing indicators ........................................150Foglamps, rear..............................................r114Fragrance car tridge........................................77Front foglamps ......................................114, 220Front seats................................................79, 82Fuel..........................................................24,107Fuel consumption............................................24Fuel filler flap.........................................106,108Fuel gauge....................................................106Fuel tank................................................106,108Fusebox, dashboard .....................................225Fuses .............................................................225
G
H
Halogen headlamps......................................217Hands-free kit........................................286,327Hazard warning lamps..........................150,151Head restraints, front......................................80Head restraints, rear.......................................r84Heating ......................................................24, 70Height and reach adjustment,steering wheel ..............................................85Hill start assist...............................................181Horn...............................................................151

Main beam ............................................112,219Maintenance....................................................24Maintenance (advice)....................................241Map reading lamps...............................122,224Markings, identification.................................256Mat ................................................................129Menu, main ...................................................320Mini fuel level ................................................106Mirror, rear view ..............................................87
M
Navigation.............................................269, 270Number plate lamps..............................221, 222
N L
Labels, identification.....................................256Lamps, front..................................................217Lamps, rear...................................................r221Lamps, warning and indicator.............r32,36, 37Leather (care)................................................241LED daytime running lamps..................117, 220Level, brake fluid...........................................195Levels and checks..................................193-197Lighting, guide-me home......................115,116Lighting, interior............................r122,123,224Lighting bulbs (replacement).........217,221-223Lighting control stalk .....................................112Lighting dimmer..............................................r46Loading............................................................24Load reduction mode ....................................236Locating your vehicle......................................92Locking from the inside.................................103Luggage retaining strap................................130
Jack...............................................................209JACK socket.................................303, 324, 326
J
Indicators, direction......................................150Inflating accessories (using the kit)..............202Inflating tyres ..................................................24
Inputs for audio system ................303, 324, 326Instrument panel lighting................................ 46Instrument panels .....................................28,30Instrument panel screen ...................28, 30,177Interior fittings.......................................126,127Interior lamp..................................................122Interior mood lighting....................................123ISOFIX...........................................................145ISOFIX child seats........................143, 145,146ISOFIX mountings.................................143,146
IMirrors, door....................................................r86Misfuel prevention.........................................108Motorway function (direction indicators).......150Mountings for ISOFIX seats .................143, 146MP3 CD .........................................................323Music media players .....................................298
K
Keeping children safe.....134-136, 143,145, 159Key in ignition warning ....................................92Key with remote control .....................90,92,95
O
Oil filter..........................................................r198Oil level ....................................................45, 195Opening the bonnet......................................191Opening the boot ....................................90, 105Opening the doors..........................90,102,104Opening the fuel filler flap.............................106Operation indicator lamps.........................32,36

Contents

Contents


ACCESS


2
Soft top

11
Boot

13
Alarm
004004

PR ACTICAL
INFORMATION

14
Rear shelf
012012
011011

TECHNICAL DATA


15
Changing a bulb

16
Changing a fuse

17
Recommendations on care

18
Petrol engines

19
Petrol weights

20
Diesel engine

21
Diesel weights

22
Dimensions

Key


safety warning

additional information

contributes to the protection of
the environment

refer to the page indicated


FITTINGS 006006

5Access

Automatic mode


During automatic operation of the roof
in zone A
, pressing the control stops
the roof.
During complete opening of the roof,
the rear screen comes down onto the
rear shelf. Ensure that no object is left
on the shelf which might damage the
rear screen or the roof.

Automatic opening of the roof in zone B

is not possible if the boot is open.
In the event of a problem, check that
the boot is fully closed
During an operation in zone B
, an
instruction to stop the roof is not
possible.
Pressing the control reverses the
direction of movement of the roof,
whichever direction the control is
pressed.
This "anti-panic" function allows a quick
change in direction of movement of the
roof if suddenly required.

)
Release the control: opening of the roof
continues up to the maximum horizontal
position (position 2
).
)
In zone B
, a press on the control opens the
roof completely (position 3
).




)
In zone A
, press the control beyond the
point of resistance to begin opening the
roof.

11Access











Boot


Opening



)
After unlocking the vehicle using the
remote control or the key, press the
opening control and raise the boot lid.



Closing



)
Lower the boot lid by pressing on the
middle of its finisher.
If the boot is not closed correctly:


-

when the engine is running
, this
warning lamp comes on, accompanied
by a message on the multifunction
screen for a few seconds,

- when the vehicle is moving
(speed above
6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message in the multifunction screen for a
few seconds.


It is strongly recommended not to lower
the boot lid by pressing on either end.


If the boot is not fully closed, opening
the roof in zone B
is not possible.
Check that the boot is fully closed.

12Access

If the roof is carrying out an opening operation in zone B
, an action on the boot opening
control causes the roof to close. The boot will be released when the roof reaches
position 2
. You can then raise the boot lid.

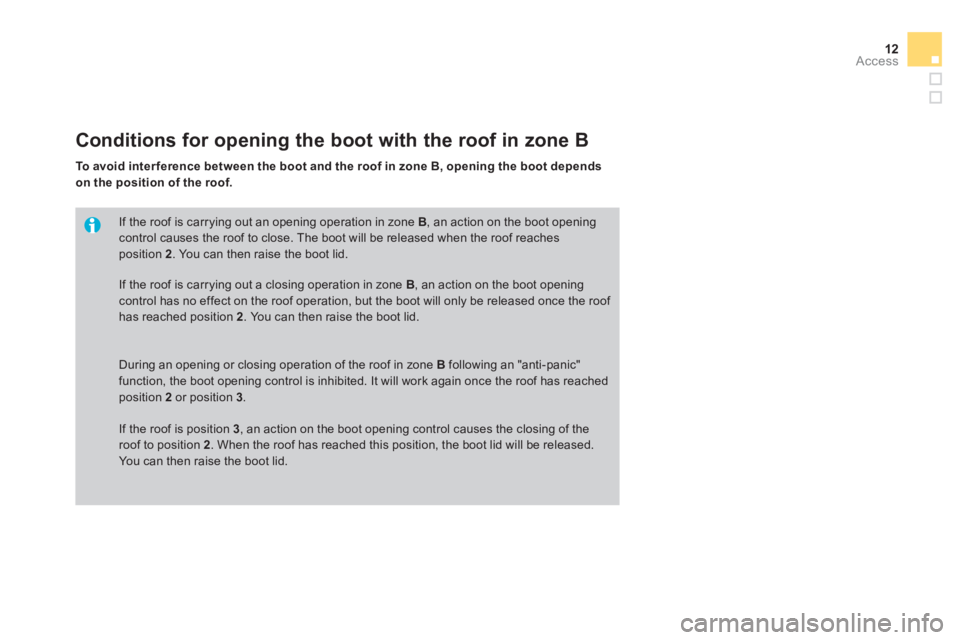

Conditions for opening the boot with the roof in zone B


To avoid inter ference between the boot and the roof in zone B, opening the boot depends
on the position of the roof.


If the roof is carrying out a closing operation in zone B
, an action on the boot opening
control has no effect on the roof operation, but the boot will only be released once the roof
has reached position 2
. You can then raise the boot lid.

During an opening or closing operation of the roof in zone B
following an "anti-panic"
function, the boot opening control is inhibited. It will work again once the roof has reached
position 2
or position 3
.

If the roof is position 3
, an action on the boot opening control causes the closing of the
roof to position 2
. When the roof has reached this position, the boot lid will be released.
You can then raise the boot lid.

13Access
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.

Unlocking







Emergency release


)
Insert a small screwdriver into hole A
of
each lateral latch to unlock the boot.


)
Fold back the rear seat to gain access to
the two latches, from inside the boot.

Before opening the boot, ensure that
the roof is not in zone B
.


Alarm


System for the protection and dissuasion
against theft of your vehicle.

For information on the perimeter
protection of your vehicle, refer to the
DS3 handbook.

The alarm provides only perimeter
protection
for your vehicle.
