2014 Citroen C4 CACTUS RHD Owner's Manual

7
Interior
7-inch touch screen tablet
37
241
Multimedia controls
Electronic gearbox
90
Speed limiter / Cruise
control
99, 101
These two systems allow you to control the
speed of the vehicle to a value you have
programmed.
It offers the ease of automatic management of
the gears, without intervention by the driver.
It gives access to the heating and air
conditioning controls, settings for vehicle
systems, controls for the audio navigation
and telematic systems, configuration of the
display,


...
They allow access to the various sources
(radio, MP3, portable player, jukebox,
telephone) and volume adjustment.
.
Familiarisation

8
Instruments and controls
1. Vents for demisting or defrosting the front side windows.
2.
S

ide adjustable air vents.
3.
D

oor mirror controls.
4.
H

eadlamp height adjustment.
5.
W

iper / screenwash / trip computer stalk.
6.
A

udio system and telephone steering
mounted controls.
7.
S

teering mounted controls
(electronic gearbox).
8.
I

nstrument panel.
9.
D

river's front airbag.


Horn.
10.
C

ontrols for the speed limiter / cruise
control.
11.
L

ighting and direction indicator stalk
12 .
7

-inch touch screen tablet.
13.
C

ontrols for: front /rear demisting and
defrosting, central locking, deactivating
DSC, Park Assist, hazard warning lamps.
14 .
C

entral adjustable air vents.
15.
1

2V accessory socket.
16.
U

SB port.
17.
C

ontrol panel (electronic gearbox).
18.
C

entral storage.
19.
P

arking brake.
Familiarisation

9
7-inch touch screen tablet
Operation
Use the buttons arranged either side of the
touch screen tablet for access to the menus,
then press on the virtual buttons in the screen.
Each menu is displayed over one or two pages
(primary page and secondary page).For access to the secondary page
(from the primary page).
To return to the primary page
(from the secondary page).
For access to additional information
and to the settings for certain
functions.
To confirm.
To quit.
Menus
37 "
Air conditioning ".
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet
hands. Use a clean soft cloth to clean the touch
screen tablet.
"
Driving assistance ".
" Media ".
" Navigation ". "
Configuration ".
" Connected services ".
" Telephone ".
.
Familiarisation

10

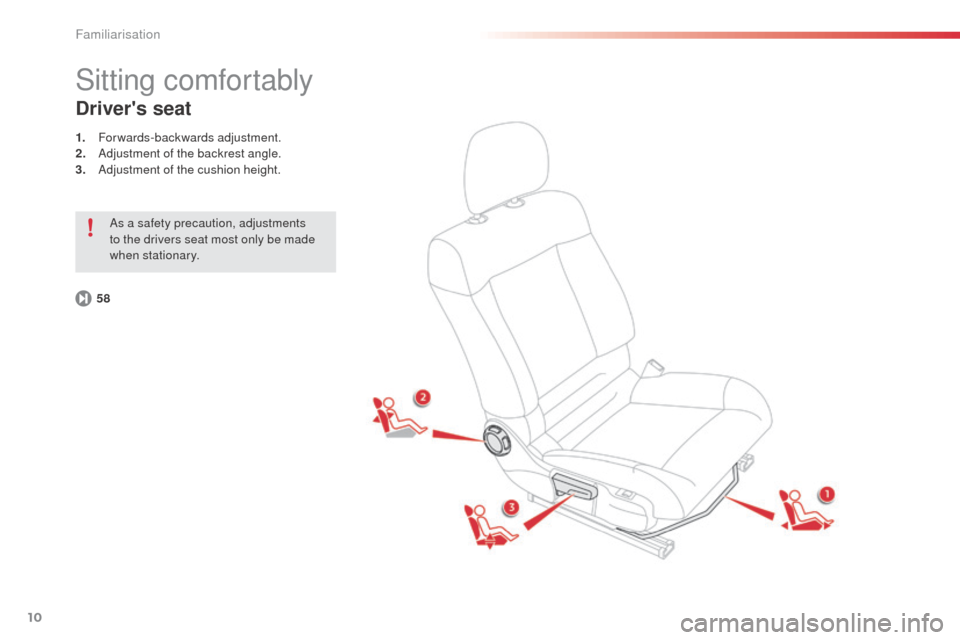

Sitting comfortably
Driver's seat
1. Forwards-backwards adjustment.
2. Adjustment of the backrest angle.
3.
A

djustment of the cushion height.
58 As a safety precaution, adjustments
to the drivers seat most only be made
when stationary.
Familiarisation

11
Sitting comfortably
Head restraint adjustment
To raise it, pull it upwards.
To lower it, press on the lug A and on the head
restraint at the same time.62
59 1.
Release.
2. A djust for height.
3.


Lock.
Steering wheel adjustment
64
Door mirrors
Adjustment
A. Turn to select the mirror to adjust.
B. Adjust the mirror position in four directions.
As a safety precaution, these
operations must only be carried out
when stationary.
.
Familiarisation

12
Sitting comfortably
Rear view mirror
1. Selection of the "day" position of the mirror.
2. Adjustment of the mirror.
63 Fastening the buckle.
Front seat belts
137
Familiarisation

13
Seeing clearly
Lighting
Ring A
Ring B
Lighting off/daytime running lamps.
Automatic illumination of headlamps.
Sidelamps.
Dipped / main beam headlamps.123
114
115
Rear foglamp only.
Wipers
Stalk A: windscreen wipers
2. Fast wipe.
1. N ormal wipe.
Int.
I

ntermittent wipe.
0.


Of f.
â

S
ingle wipe: pull the stalk briefly towards
you.
or
AUTO
A

utomatic wiping.
122
Switching on "AUTO"
F Press the stalk downwards.
Switching off "AUTO"
F Press the stalk downwards again or place the stalk in another position (Int, 1 or 2).
124
Ring B: rear wiper
Park.
Intermittent wipe.
Wipe with screen wash.
Front foglamps and rear foglamp.
.
Familiarisation

14
Passenger's front airbag
Passenger safety
160
141 1.
N

ot fastened / unfastened front seat belts,
in the instrument panel.
2.
L

eft hand front.
3.
R

ight hand front.
4.
R

ight hand rear.
5.
C

entre rear.
6. L
eft hand rear.
138
Seat belt warning lamps
This electric system prevents the opening of
the rear doors using the interior door controls.
Electric child lock
1. Open the glove box.
2. I nsert the key.
3.
Sel

ect the position:
"

OFF" (deactivated), with "rear ward facing"
child seat,


"ON" (activated), with front passenger or
"for ward facing" child seat.
4.
R

emove the key keeping the switch in the
new position. F

W
ith the ignition on, press this button.
Familiarisation
