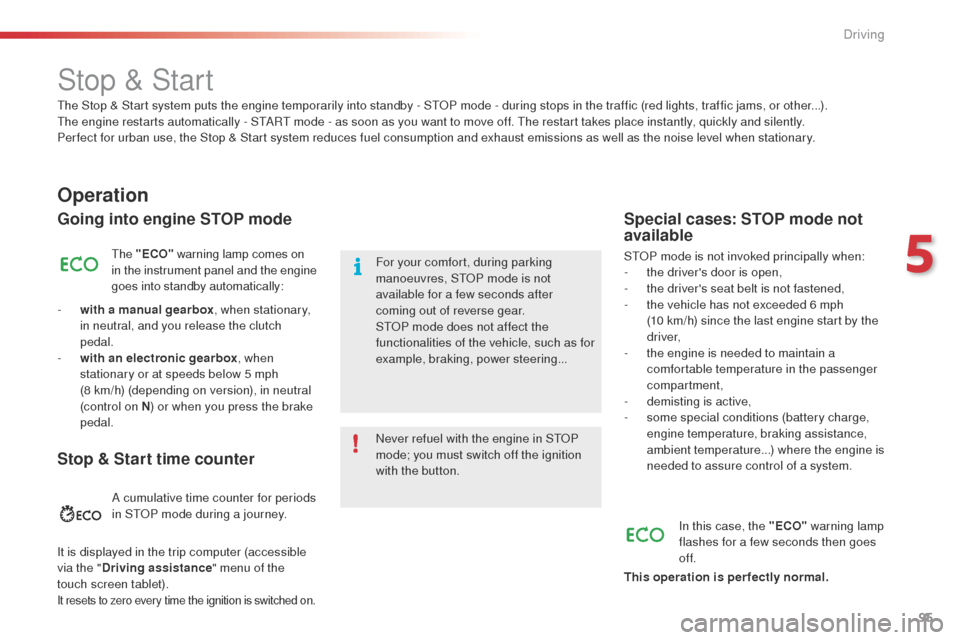

Stop & Start
Operation
Going into engine STOP mode
The "ECO" warning lamp comes on
in the instrument panel and the engine
goes into standby automatically:
-

w

ith a manual gearbox , when stationary,
in neutral, and you release the clutch
pedal.
-

w

ith an electronic gearbox , when
stationary or at speeds below 5 mph
(8

km/h) (depending on version), in neutral
(control on N ) or when you press the brake
pedal.
Never refuel with the engine in STOP
mode; you must switch off the ignition
with the button. For your comfort, during parking
manoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionalities of the vehicle, such as for
example, braking, power steering...
Special cases: STOP mode not
available
STOP mode is not invoked principally when:
- the driver's door is open,
-

t
he driver's seat belt is not fastened,
-

t
he vehicle has not exceeded 6 mph
(10 km/h) since the last engine start by the
driver,
-

t
he engine is needed to maintain a
comfortable temperature in the passenger
compartment,
-
d

emisting is active,
-
s

ome special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
In this case, the "ECO" warning lamp
flashes for a few seconds then goes
of f.
This operation is perfectly normal.
The Stop & Start

system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...).
The

engine restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Stop & Start time counter
A cumulative time counter for periods
in STOP mode during a journey.
It is displayed in the trip computer (accessible
via the " Driving assistance " menu of the
touch screen tablet).
It resets to zero every time the ignition is switched on.
5
Driving

97
E3_en_Chap05_conduite_ed01-2014
A fault with the system is signalled
in the "Driving assistance " menu
(primary page) of the touch screen
tablet.
Operating fault
In the event of a fault with the
system, the indicator lamp in the
Stop & Start
button flashes for a few
moments, the stays on continuously.
If you press this button to reactivate the
system, the indicator lamp flashes again for a
few moments and then stays on continuously.
The Stop & Start system can be deactivated in
the touch screen tablet.
Deactivation
If the system has been deactivated in STOP
mode, the engine restarts immediately.
When driving on a flooded road, it is
recommended that the Stop & Start
function be deactivated and that you
drive very slowly. The system can be reactivated in the touch
screen tablet.
Reactivation
The system is reactivated automatically
every time the engine is started by
the


driver.
F

P

ress on " Stop & Star t ".
F

Sel

ect the " Driving assistance "
menu.
The indicator lamp in this button comes on
continuously. Pressing this button again reactivates
the Stop & Start system. The
indicator lamp in the button goes off.
Have it checked by a CITROËN dealer or a
qualified workshop.
In the event of a fault in STOP mode, the vehicle
may stall.
All of the instrument panel warning lamps come on.
Depending on version, an alert message may
also be displayed, asking you to change to
neutral (control on N) and put your foot on the
brake pedal.
You must switch off the ignition, then start the
engine again.
5
Driving

98
E3_en_Chap05_conduite_ed01-2014
Steering mounted controls
The information is grouped together in the
instrument panel.
6.
S
peed limiter on / pause indication.
7.
Spe

ed value setting.
8.
Spe

ed limiter mode selection indication.
Speed limiter
System which prevents the vehicle from exceeding the speed programmed by the driver.
The speed limiter cannot, in any circumstances,
replace the need to observe speed limits,
nor can it replace the need for vigilance and
responsibility on the part of the driver.
The controls are grouped together at the
steering wheel.
1.
Spe
ed limiter mode selection wheel.
2.
V

alue decrease button.
3.
V

alue increase button.
4.
S

peed limiter on / pause button.
5.
L

ist of memorised speeds display button.
Display in the instrument panelThe programmed speed remains in the system
memory when the ignition is switched off.
Driving

99
E3_en_Chap05_conduite_ed01-2014
Switching on / Pause
F Turn wheel 1 to the "LIMIT" position: the
speed limiter mode is selected but is not
switched on (Pause).
F

S
witch the speed limiter back on by
pressing button 4 , if the speed displayed
is suitable (by default, the last speed
programmed).
F

Y
ou can temporarily stop the the speed
limiter by pressing button 4 again: the
display confirms that it has been stopped
(Pause). After first selecting speed limiter mode (wheel 1
in position "LIMIT"), you can modify the speed
setting by:
-

a p
ress on button 5
:
F
t
he six speeds memorised are displayed
in the touch screen tablet,
F
c
hoosing a speed: it is displayed in the
instrument panel.
T
he selection screen closes after a few
moments. Speed limits can be memorised in the
"Driving assistance"
menu.
For more information on the list of
memorised speeds, refer to the
"Memorising speeds" section.
You do not have to switch the speed
limiter on in order to set the speed.
The speed limiter is switched on

manually: it requires a programmed
speed of at least 20 mph (30 km/h).
Adjusting the speed limit
setting
Or:
- u sing buttons 2 and 3 , increasing or
decreasing the speed displayed:
F

b
y successive short presses, to modify
by + or - ½ mph (1 km/h),
F

b
y a maintained press, to modify in steps
of + or - 3 mph (5 km/h).
5
Driving

100
E3_en_Chap05_conduite_ed01-2014
On sharp acceleration, as when
descending a steep hill, the speed
limiter will not be able to prevent
the vehicle from exceeding the
programmed speed.
The limiter is temporarily deactivated
and the displayed programmed speed
flashes.
An audible signal accompanies the
flashing of the programmed speed
when exceeding the speed is not due to
an action by the driver.
The use of mats not approved by
CITROËN may inter fere with the
operation of the speed limiter.
To avoid any risk of jamming of the
pedals:
-
e
nsure that the mat is secured
c o r r e c t l y,
-

d
o not fit one mat on top of another.
Flashing of the dashes indicates a fault with the
speed limiter.
Have it checked by a CITROËN dealer or a
qualified workshop.
Operating fault
Switching off
F Turn wheel 1 to the "0" position. T
he display of information related to the
speed limiter disappears.
F
Press
firmly on the accelerator pedal,
going beyond the point of resistance,

to
exceed the programmed speed limit.
The speed limiter is deactivated temporarily
and the displayed programmed speed flashes.
Temporarily exceeding the
programmed speed
As soon as the vehicle's speed returns to the
programmed value, the limiter operates again:
the display of the programmed speed becomes
steady again. An audible signal accompanies the
flashing of the programmed speed
when exceeding the speed is not due to
an action by the driver (steep hill...).
Driving

101
E3_en_Chap05_conduite_ed01-2014
Steering mounted controls
The information is grouped together in the
instrument panel.
6.
C
ruise control pause / resume indication.
7.
C

ruise speed setting.
8.
C

ruise control mode selection indication.
Cruise control
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal.
The cruise control system cannot, in any
circumstances, replace the need to observe speed
limits, nor can it replace the need for vigilance and
responsibility on the part of the driver.
You are advised to keep your feet near the pedals
at all times.
The controls of this system are grouped
together at the steering wheel.
1.
C
ruise control mode selection wheel.
2.
D

ecrease value or speed setting on the fly
button.
3.
I

ncrease value or speed setting on the fly
button.
4.
C

ruise control pause / resume button.
5.
M

emorised speeds display button.
Display in the instrument panelSwitching off the ignition cancels any
programmed speed value.
5
Driving

102
E3_en_Chap05_conduite_ed01-2014
Switching on
If the cruise control is switched on, you can
then modify the initial speed in one of the
following ways:
-
p
ressing button 5 :
F

t
he six memorised speeds are displayed
in the the touch screen tablet,
F

c
hoose a value: it is displayed in the
instrument panel.
T

he selection screen closes after a
few
moments.
T

he modification is then accepted.
F

T

urn wheel 1 to the "CRUISE" position: the
cruise control mode is selected but is not
switched on (Pause).
F

P

ress button 2 or 3

: your vehicle's current
speed becomes the cruise speed (selected
on the fly).
The cruise control is activated (ON).
Modification of the initial
speed setting
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h).
The memorised speeds can be
programmed in the "Driving
assistance" menu.
For more information on the list of
memorised speeds, refer to the
"Memorising speeds" section.
Or by:
-

u
sing buttons 2 or 3:
F

b
y successive short presses, to modify
the speed by + or - 1 mph (km/h),
F

b
y a long press, to modify the speed in
steps of + or - 5 mph (km/h),
Driving

103
E3_en_Chap05_conduite_ed01-2014
Flashing of the dashes indicates a fault with the
cruise control.
Have it checked by a CITROËN dealer or a
qualified workshop.
Operating fault Switching off
F Turn wheel 1 to the "0" position. T
he display of information related to the
cruise control disappears. When the cruise control is switched on,
be careful if you maintain the pressure
on one of the programmed speed
changing buttons: this may result in a
very rapid change in the speed of your
vehicle.
Do not use the cruise control on
slippery roads or in heavy traffic.
On a steep descent, the cruise control
will not be able to prevent the vehicle
from exceeding the programmed speed.
On steep climbs or when towing, the
programmed speed may not be reached
or maintained.
The use of mats not approved by
CITROËN may inter fere with the
operation of the cruise control.
To avoid any risk of jamming of the
pedals:
-

e
nsure that the mat is secured
c o r r e c t l y,
-

n
ever fit one mat on top of another.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal until the
programmed cruise speed is reached again.
Exceeding the programmed
speed
Once switched on, you can pause the cruise
control at any time by pressing button 4: the
screen confirms the pause.
Pause
If the programmed speed is exceeded,
the displayed speed flashes.
Once the speed of the vehicle returns
to the programmed speed, the display
becomes steady again. The cruise control is paused
manually
or by pressing the brake or clutch pedal
or if the ESP system is invoked for
safety reasons.
5
Driving
