2014 Citroen C4 CACTUS dashboard

66
E3_en_Chap03_confort_ed01-2014
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
T
o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O
perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T
o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F

I
f the system does not produce cold air, switch it off and contact a CITROËN dealer or a
qualified workshop.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Stop & Start
The heating and air conditioning
systems only work when the engine
is running. To maintain a comfortable
temperature in the passenger
compartment, you can temporarily
deactivate the Stop & Start system (see
the corresponding section).
Comfort

86
E3_en_Chap05_conduite_ed01-2014
Starting - Stopping the engine
F Insert the key in the ignition switch. The system recognises the starting code.
F

T
urn the key fully towards the dashboard to
position 3 (Starting) .
F

W
hen the engine starts, release the key.
Starting
Avoid attaching heavy objects to the
key, which could pull down in it when in
the ignition switch and cause faults.Key left in the "Ignition on"
position
On opening the driver's door, an alert
message is displayed, accompanied by an
audible signal, to remind you that the key is
still in the ignition switch at position 1 (Stop) .
F Immobilise the vehicle.
F
T urn the key fully towards you to
position 1 (Stop) .
F

R
emove the key from the ignition switch.
Switching off
If the key has been left in the ignition
switch at position 2 (Ignition on) ,
the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop) , then back to
position 2 (Ignition on) .
Driving

141
E3_en_Chap07_securite_ed01-2014
Deactivating the passenger's
front airbag
Only the passenger's front airbag can be
deactivated.
F
W
ith the ignition off , insert the key in the
passenger airbag deactivation switch.
F

T
urn it to the "OFF" position.
F

R
emove the key keeping the switch in the
new position.
When the ignition is on, this warning
lamp comes in the seat belt display
screen. It stays on while the airbag is
deactivated. To assure the safety of your child,
the passenger's front airbag must
be deactivated when you install a
"rear ward facing" child seat on the front
passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.
Reactivating the passenger's
front airbag
When you remove a "
rearward facing" child
seat, with the ignition off , turn the switch to
the "ON" position to reactivate the airbag and
so assure the safety of your front passenger in
the event of an impact.
Front airbags
Deployment
The airbags are deployed, except the
passenger's front airbag if it is deactivated, in the
event of a serious front impact to all or part of the
front impact zone A , in the longitudinal centreline
of the vehicle on a horizontal plane and directed
from the front to the rear of the vehicle.
The front airbag inflates between the thorax and
head of the front occupant of the vehicle and the
steering wheel, driver's side, and the dashboard,
passenger's side to cushion their forward
movement. System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag
is fitted in the roof to allow more space in the
glove box.
When the ignition is switched on, this
warning lamp comes on in the seat
belt display screen for approximately
one minute to signal that the front
airbag is activated.
7
Safety

145
E3_en_Chap07_securite_ed01-2014

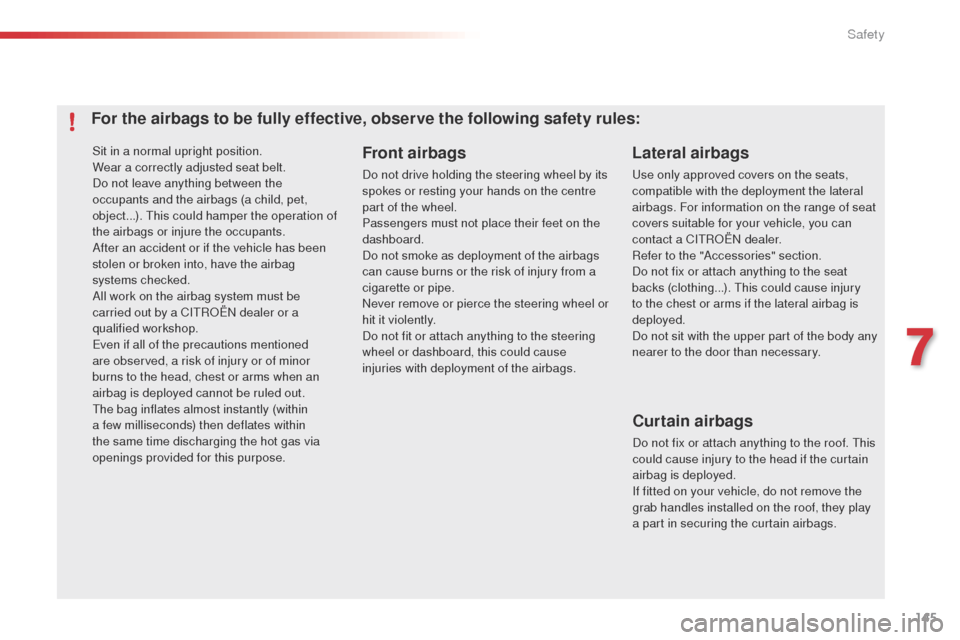

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...). This could hamper the operation of
the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out.
The bag inflates almost instantly (within
a few milliseconds) then deflates within
the same time discharging the hot gas via
openings provided for this purpose.Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
Do not smoke as deployment of the airbags
can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Do not fit or attach anything to the steering
wheel or dashboard, this could cause
injuries with deployment of the airbags.
For the airbags to be fully effective, observe the following safety rules:
Lateral airbags
Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a CITROËN
dealer.
Refer to the "Accessories" section.
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.
Curtain airbags
Do not fix or attach anything to the roof. This
could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a part in securing the curtain airbags.
7
Safety

196
E3_en_Chap09_info_pratiques_ed01-2014
Before changing a fuse:
F t he cause of the failure must be identified
and rectified,
F

a
ll electrical consumers must b
switched


off,
F

t
he vehicle must be immobilised with the
ignition off,
F

i
dentify the failed fuse using the tables and
layout drawings in the following pages.
Changing a fuse
Good Failed
The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a CITROËN dealer or a qualified
workshop. Tw e e z e r
Changing a fuse
The extraction tweezer is fitted to the back of
the cover of the dashboard fuseboxes.
Access to the tools
To replace a fuse, you must:
F
u se the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F

a
lways replace the failed fuse with a fuse
of the same rating (same colour); using
a different rating could cause faults (risk
of f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a CITROËN dealer or a qualified workshop.
F

U

nclip the cover by pulling at the top left,
then right.
F

D

isengage the cover completely and turn it
ove r,
F

R

emove the tweezer from the back of the
c ove r.
Practical information

198
E3_en_Chap09_info_pratiques_ed01-2014
Dashboard fuses
The 2 fuseboxes are placed in the lower
dashboard, below the steering wheel.Fuse
N° Rating
(A) Functions
F01 10Brake pedal (switch 2), Stop & Start.
F02 5Headlamp bean height adjuster, additional heater (Diesel),
parking sensors, diagnostic socket, door mirrors (electric
adjustment).
F03 10Diesel additive pump, electric power steering, clutch pedal
(sw i tc h).
F04 5Rain and sunshine sensor.
F06 10Brake pedal (switch 1), diagnostic socket.
F08 5Top of steering column contacts with steering mounted controls.
F10 10Emergency call / Assistance call.
F12 5Stop & Start, ABS, ESC.
F13 5Parking sensors, reversing camera.
F14 15Electronic gearbox, switch panel (below the touch screen
tablet), air conditioning, touch screen tablet.
F16 1512 Volt socket.
F18 20Radio.
Access to the fuses
F Unclip the cover by pulling at top left, then
right.
Left hand fusebox
Practical information

E3_en_Chap13_recherche_visuelle_ed01-2014
Dashboard fuses 196-200
Instruments and controls
Door mirrors 6 2
Front electric windows 5 5
Opening the bonnet

2
20 Touch screen tablet

3
7- 42, 237-307
Setting the date/time
4
6
Brightness of instruments
1
28
Heating, ventilation
6
5-68
Manual air conditioning
6
9-70
Automatic air conditioning
7
1-74
5-speed manual gearbox
8
8
Gear shift indicator

8
9
Electronic gearbox
9

0-93
Hill start assist

9
4
Stop & Start

9
5 -97
Glove box

7
9
USB port(s) / Auxiliary socket

8
0
Courtesy lamp

1
27
Rear view mirror
6
3
Emergency or assistance call
1
30, 236
Parking brake
87
1

2 V accessory socket
7
7-79
USB port(s) / Auxiliary socket

7
7-78, 80
Visual search

E3_en_Chap13_recherche_visuelle_ed01-2014
Headlamp beam adjustment 120
Lighting control stalk
1
13 -119
Automatic illumination of headlamps
1
17
Direction indicators
1
29
Dashboard fuses
1
96-200 Electronic gearbox
9

0-93
Wiper control stalk
1
22-125
Trip computer
4
3 - 44
Speed limiter
9
8-100
Cruise control
10

1-103
Memorising speeds
1

04Front demist / defrost

7
5
Rear screen demist / defrost
7
6
Central locking
5
1
Park Assist 1 08 -112
ESC 13 4 -13 6
Hazard warning lamps
1

29
Instrument panels
2

0
Warning lamps
2
1-32
Service indicator
3
3-35
Engine oil level indicator
3
6
Gear shift indicator
8
9
Distance recorders
4
5
Steering wheel adjustment
6
4
H or n


13 0
Instruments and controls (cont.)
Starting - switching off the engine 86
Visual search
