Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen wipers,
operate for a pre-determined time.
B.
R

ear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the rear wiper
will operate if the windscreen wipers are
operating.
Programming
The function is activated or deactivated via the
multifunction screen configuration menu.
This function is activated by default.
Rear wiper Wiping zoneThe curved shape of the rear screen results in
a smaller wiping zone.
If a significant accumulation of snow or
ice is present, or when using a tailgate
bicycle carrier, deactivate the automatic
rear wiper via the multifunction screen
configuration menu.
Visibility

84
C3Picasso_en_Chap06_amenagement_ed01-2014
Child surveillance mirror
Sun visor
Provides protection against sunlight from the
front or the side.
The sun visors are fitted with a courtesy mirror
with concealing flap and a ticket holder.
Glove box
This has areas for storing a bottle of water, the
vehicle's handbook, etc.
F

T
o open the glove box, pull the handle
towards you.
It is illuminated when the lid is open.a
child surveillance mirror is installed above
the interior rear view mirror. This allows you
to monitor the vehicle’s rear passengers, or it
can facilitate conversation between the front
and rear passengers without the need to move
the rear view mirror. It can be folded away to
eliminate dazzle.
Fittings

91
C3Picasso_en_Chap06_amenagement_ed01-2014
2-position adjustable boot
The two-position adjustable boot floor allows
you to:
-
m
aximise the volume of the boot,
-

p
artition the boot (stowing the rear shelf...),
-

o
btain a flat floor from the boot opening to
the front seats, when the rear bench seat is
in the folded and fully back position.Placing the adjustable boot floor
in the low position
F Lift the adjustable boot floor by pulling on the strap.
F

M
ove the adjustable boot floor rear wards
and then down, following the guides on the
sides.
Placing the adjustable boot floor
in the high position
F Lift the adjustable boot floor by pulling the strap.
F

M
ove the adjustable boot floor rear wards
then up to its high position.
In the high position, the adjustable boot floor
allows stowing of the rear parcel shelf and
fragile objects.
The adjustable boot floor is fitted with four
stowing rings to secure your loads using the net
available as an accessory.
Ensure that your boot is empty before
handling the adjustable boot floor.
6
Fittings

92
C3Picasso_en_Chap06_amenagement_ed01-2014
Hooks
The hooks can be used to hold shopping bags.
2-panel rear parcel shelf
The rear section is attached to the tailgate by
two cords.
Removing the shelf
From the boot:
F u nhook the two cords,
F

p
ull the shelf towards you to unclip it,
F

l
ift the shelf to remove it.
Refitting the shelf
From the boot:
F p osition the shelf so that the two notches
are directly above the fixing pins,
F

p
ush the shelf towards the inside of the
vehicle to clip it in place,
F

a
ttach the two cords.
It can be stored under the adjustable boot floor,
if this is in its high position.
Fittings

101
C3Picasso_en_Chap07_securite-enfants_ed01-2014
Installing child seats attached using the seat beltIn accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)
in accordance with the weight of the child and the seat in the vehicle.
a Universal child seat: child seat that can be installed in all vehicles using a seat belt.
b

G
roup 0: from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front
passenger seat. When installed in the 2nd row, they may prevent use of the other seats.
c Consult the legislation in force in your country before installing your child on this seat.
U:

S
eat suitable for the installation of a child seat secured using a seat belt and universally
approved, "rear ward facing" and/or "for ward facing".
X:

S
eat position not suitable for installation of a child seat for the weight class indicated.
CITROËN recommends that children travel in the rear seats, with the rear seats in the fully back
position. Weight of the child and indicative age
Seat Under 13 kg
(groups 0 (b) a n d 0 +)
Up to approx 1 year From 9 to 18 kg
(g r o u p 1)
1 to 3 years approx From 15 to 25 kg
(group 2)
3 to 6 years approx From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger seat (c) UUUU
ou

ter rear seats UUUU
Centre rear seat XXXX
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
7
Child safety

104
C3Picasso_en_Chap07_securite-enfants_ed01-2014
Table of seating positions for ISoFIX child seatsIn accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal IS
oF

IX child seats, the IS
oF
IX size category, determined by a letter from A to G, is indicated on the child
seat next to the ISOFIX logo.
I UF: seat suitable for the installation of an I sofix Universal seat, " For wards-facing" secured using
the top belt.
IL- SU: seat suitable for the installation of an I sofix Semi-Universal seat either:
-

"
rear wards-facing" fitted with a top belt or a stay,
-

"
for wards-facing" fitted with a stay,
-

a s
hell seat fitted with an upper strap or a stay.
For advice on securing the top tether belt, refer to the " I
SoFI

X
m
ountings" section.
*
The ISOFIX infant car seat (shell seat), secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.
Weight of the child / indicative age
Less than 10 kg (group 0)
Up to approx. 6

months Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to approx. 1 year From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Shell"rearwards-facing"
"rearwards-facing""forwards-facing"
ISOFIX size categor y F G C D E C D A B B1
ISOFIX universal and semi-universal child
seats which can be installed on the outer
rear seats IL- SU
* IL- SU IL- SU IUF

IL- SU
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
Child safety

107
C3Picasso_en_Chap08_securite_ed01-2014

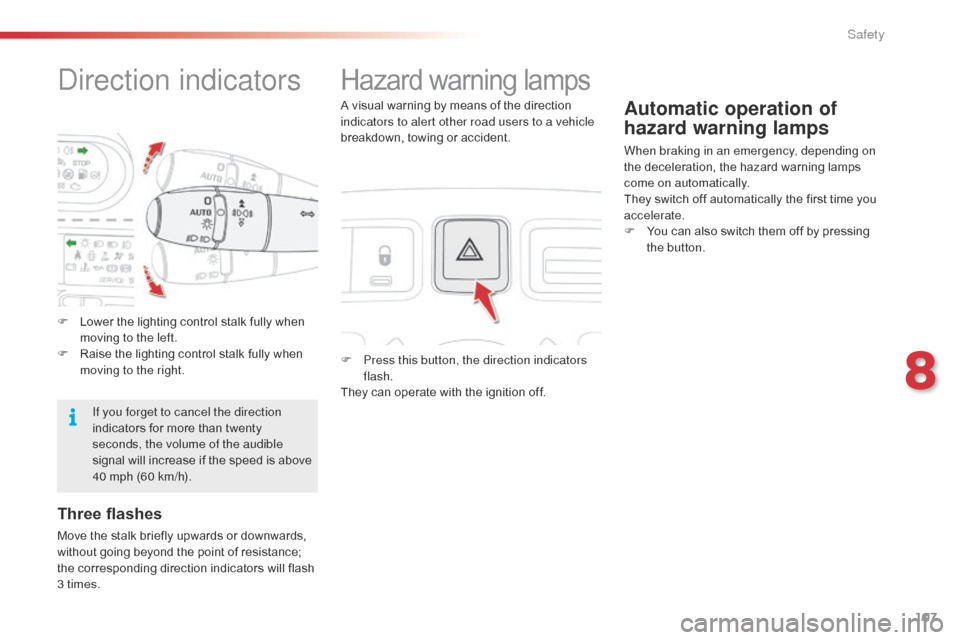

direction indicatorsHazard warning lamps
F Press this button, the direction indicators flash.
They can operate with the ignition off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lamps
come on automatically.
They switch off automatically the first time you
accelerate.
F

Y
ou can also switch them off by pressing
the button.
Three flashes
Move the stalk briefly upwards or downwards,
without going beyond the point of resistance;
the corresponding direction indicators will flash
3 times. A visual warning by means of the direction
indicators to alert other road users to a vehicle
breakdown, towing or accident.
F
L
ower the lighting control stalk fully when
moving to the left.
F
R
aise the lighting control stalk fully when
moving to the right.
If you forget to cancel the direction
indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is above
40 mph (60 km/h).
8
Safety

118
C3Picasso_en_Chap08_securite_ed01-2014
In order to be effective, a seat belt must:
- b e tightened as close to the body as
possible,
-

b
e pulled in front of you with a smooth
movement, checking that it does not
twist,
-

b
e used to restrain only one person,
-

n
ot bear any trace of cuts or fraying,
-

n
ot be converted or modified to avoid
affecting its performance.
In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
CITR
oËn

dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITR
oËn d

ealers.
af

ter folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
ne

ver use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information, refer to the "Child
seats" section.
In the event of an impact
Depending on the nature and seriousness
of the impact , the pretensioning device may
be deployed before and independently of the
airbags.
d
ep
loyment of the pretensioners
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp comes
on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITR
oËn

dealer or a qualified
workshop.
The driver must ensure that passengers use
the seat belts correctly and that they are all
restrained securely before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
do n

ot interchange the seat belt buckles as
they will not fulfil their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the length
of the strap to your size. The seat belt is
stowed automatically when not in use.
be

fore and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly.
Safety
