2014 CHRYSLER TOWN AND COUNTRY windshield wipers

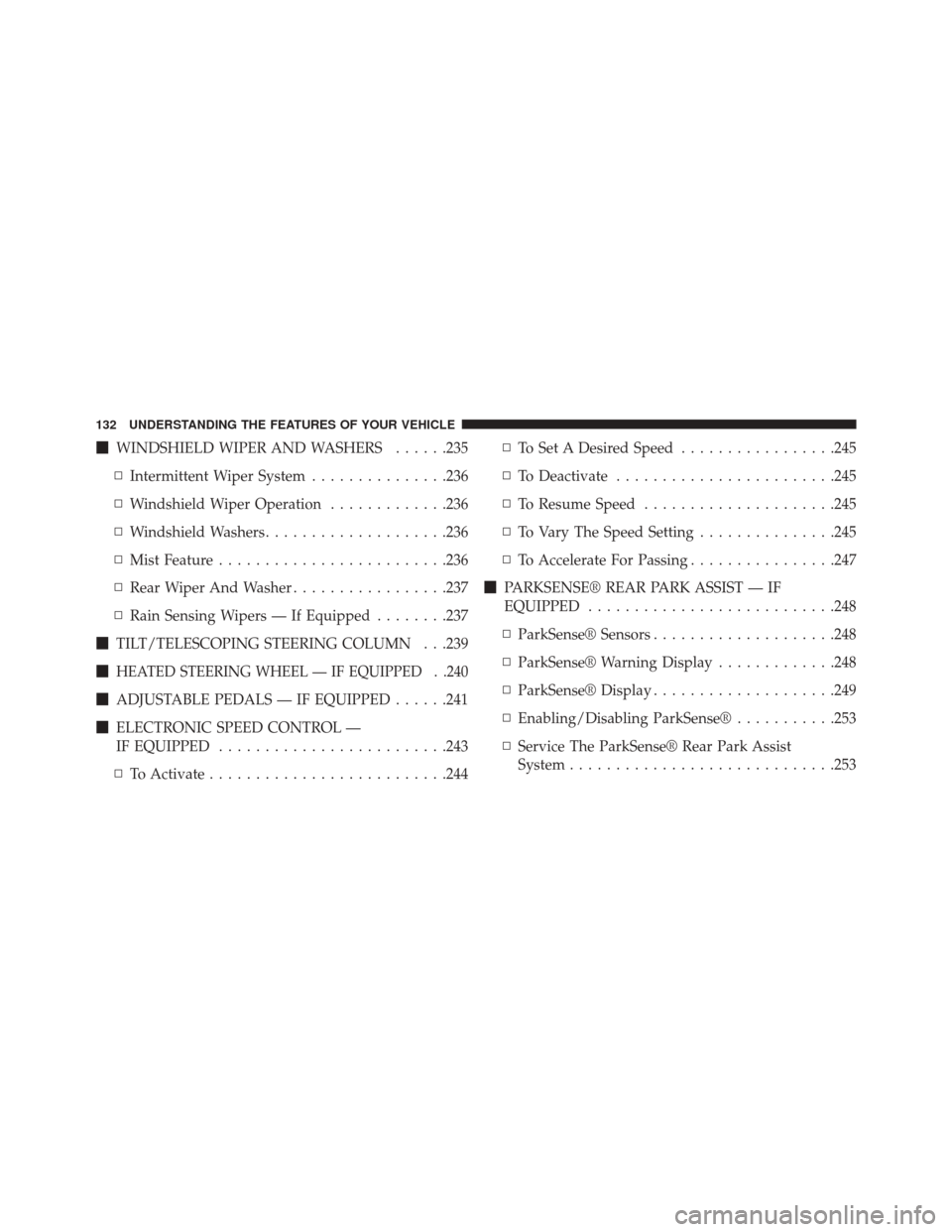

WINDSHIELD WIPER AND WASHERS ......235
▫ Intermittent Wiper System ...............236
▫ Windshield Wiper Operation .............236
▫ Windshield Washers ....................236
▫ Mist Feature ........................ .236
▫ Rear Wiper And Washer .................237
▫ Rain Sensing Wipers — If Equipped ........237
 TILT/TELESCOPING STEERING COLUMN . . .239

HEATED STEERING WHEEL — IF EQUIPPED . .240
 ADJUSTABLE PEDALS — IF EQUIPPED ......241
 ELECTRONIC SPEED CONTROL —
IF EQUIPPED ........................ .243
▫ To Activate ......................... .244▫
To Set A Desired Speed .................245
▫ To Deactivate ....................... .245
▫ To Resume Speed .....................245
▫ To Vary The Speed Setting ...............245
▫ To Accelerate For Passing ................247
 PARKSENSE® REAR PARK ASSIST — IF
EQUIPPED .......................... .248
▫ ParkSense® Sensors ....................248
▫ ParkSense® Warning Display .............248
▫ ParkSense® Display ....................249
▫ Enabling/Disabling ParkSense® ...........253
▫ Service The ParkSense® Rear Park Assist
System ............................ .253
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

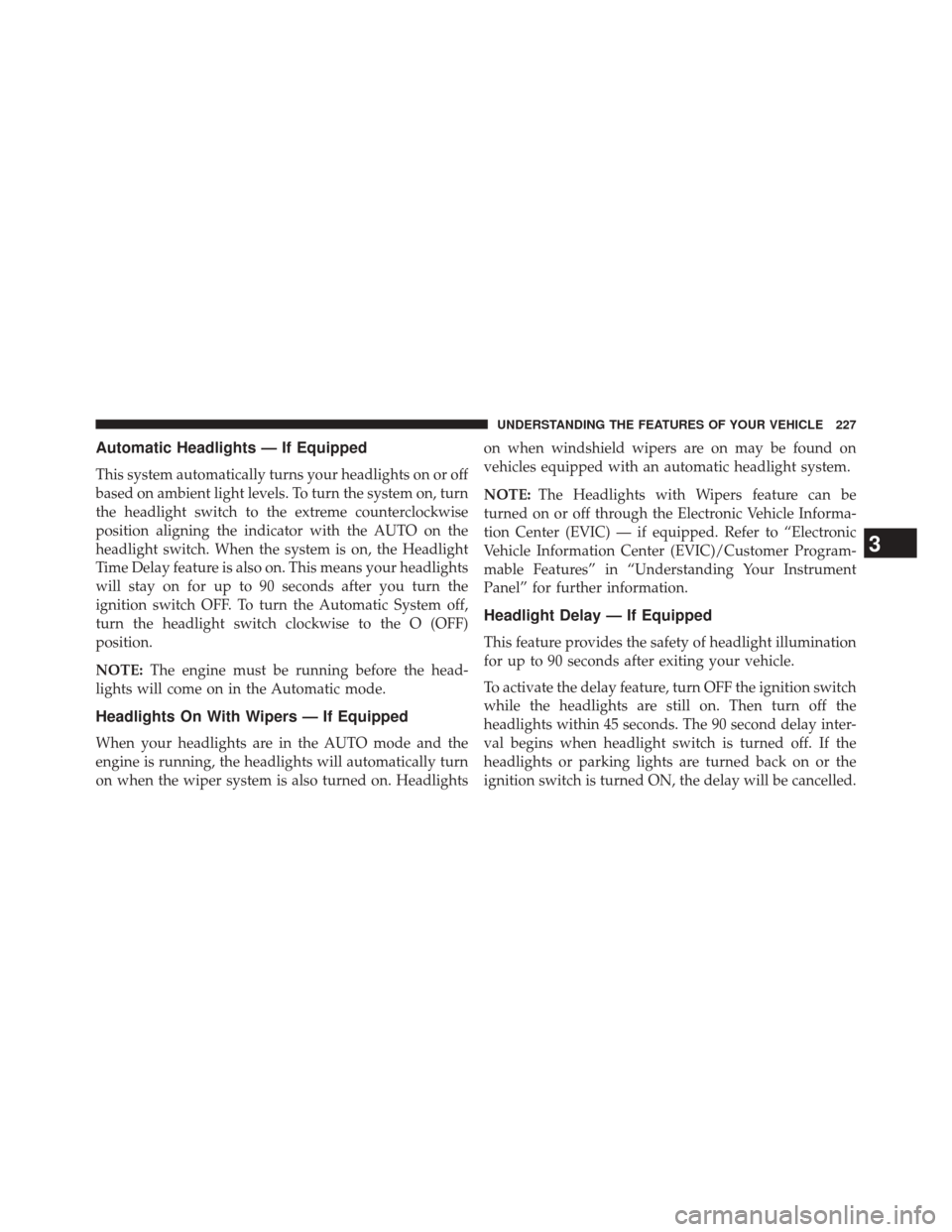

Automatic Headlights — If Equipped
This system automatically turns your headlights on or off
based on ambient light levels. To turn the system on, turn
the headlight switch to the extreme counterclockwise
position aligning the indicator with the AUTO on the
headlight switch. When the system is on, the Headlight
Time Delay feature is also on. This means your headlights
will stay on for up to 90 seconds after you turn the
ignition switch OFF. To turn the Automatic System off,
turn the headlight switch clockwise to the O (OFF)
position.
NOTE:The engine must be running before the head-
lights will come on in the Automatic mode.
Headlights On With Wipers — If Equipped
When your headlights are in the AUTO mode and the
engine is running, the headlights will automatically turn
on when the wiper system is also turned on. Headlights on when windshield wipers are on may be found on
vehicles equipped with an automatic headlight system.
NOTE:
The Headlights with Wipers feature can be
turned on or off through the Electronic Vehicle Informa-
tion Center (EVIC) — if equipped. Refer to “Electronic
Vehicle Information Center (EVIC)/Customer Program-
mable Features” in “Understanding Your Instrument
Panel” for further information.
Headlight Delay — If Equipped
This feature provides the safety of headlight illumination
for up to 90 seconds after exiting your vehicle.
To activate the delay feature, turn OFF the ignition switch
while the headlights are still on. Then turn off the
headlights within 45 seconds. The 90 second delay inter-
val begins when headlight switch is turned off. If the
headlights or parking lights are turned back on or the
ignition switch is turned ON, the delay will be cancelled.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 227

WINDSHIELD WIPER AND WASHERS
The wipers and washers are operated by a switch within
the multifunction lever. Rotate the end of the multifunc-
tion lever to select the desired wiper speed.NOTE:
Always remove any buildup of snow that pre-
vents the windshield wiper blades from returning to the
off position. If the windshield wiper switch is turned off
and the blades cannot return to the off position, damage
to the wiper motor may occur.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Washer And Wiper Controls
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 235

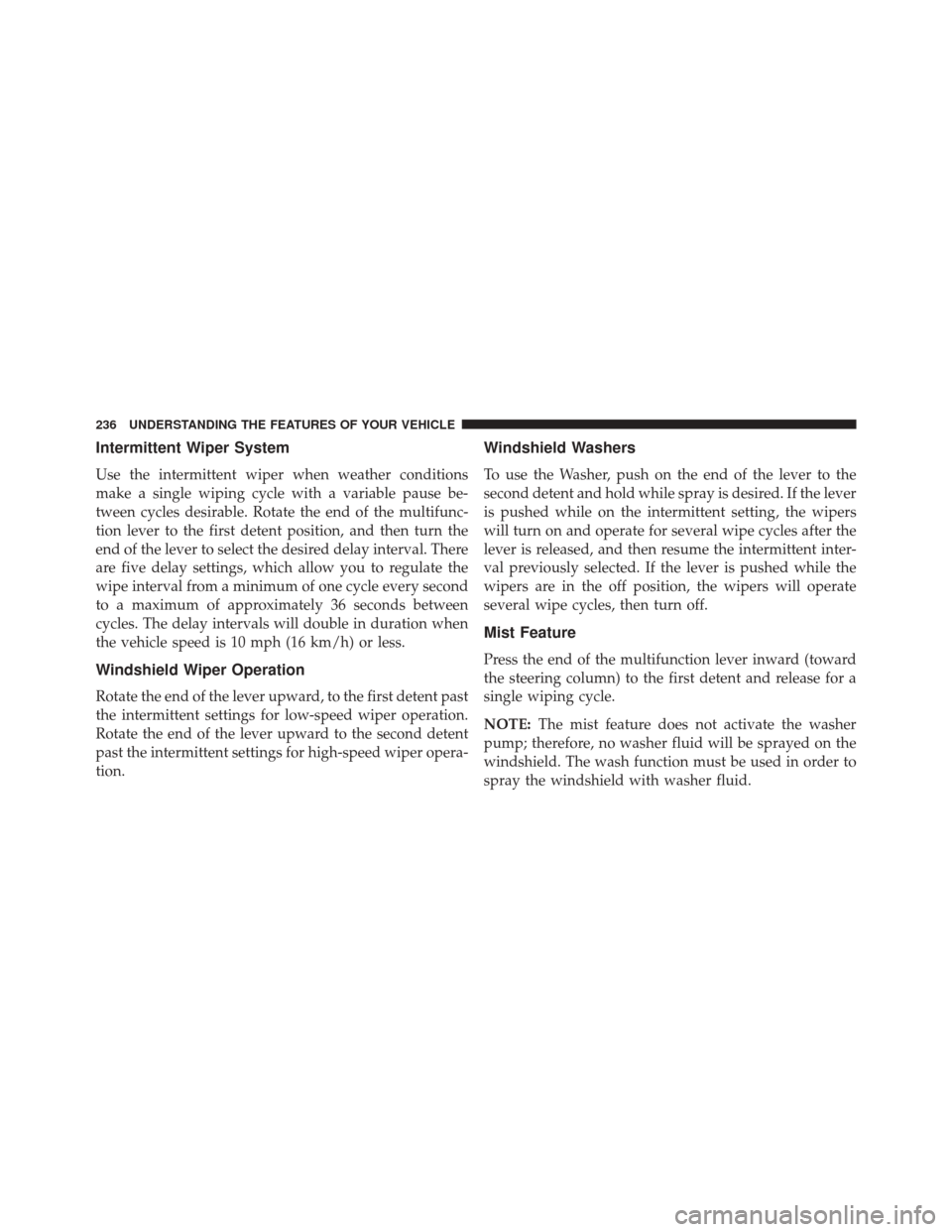

Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle with a variable pause be-
tween cycles desirable. Rotate the end of the multifunc-
tion lever to the first detent position, and then turn the
end of the lever to select the desired delay interval. There
are five delay settings, which allow you to regulate the
wipe interval from a minimum of one cycle every second
to a maximum of approximately 36 seconds between
cycles. The delay intervals will double in duration when
the vehicle speed is 10 mph (16 km/h) or less.
Windshield Wiper Operation
Rotate the end of the lever upward, to the first detent past
the intermittent settings for low-speed wiper operation.
Rotate the end of the lever upward to the second detent
past the intermittent settings for high-speed wiper opera-
tion.
Windshield Washers
To use the Washer, push on the end of the lever to the
second detent and hold while spray is desired. If the lever
is pushed while on the intermittent setting, the wipers
will turn on and operate for several wipe cycles after the
lever is released, and then resume the intermittent inter-
val previously selected. If the lever is pushed while the
wipers are in the off position, the wipers will operate
several wipe cycles, then turn off.
Mist Feature
Press the end of the multifunction lever inward (toward
the steering column) to the first detent and release for a
single wiping cycle.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
236 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Wiper And Washer
Rotating the rotary ring to the first detent activates the
rear intermittent wipers. To activate the washers, rotate
the rotary ring fully forward and the washers will spray
until the ring is released, and then resume the intermit-
tent interval.
NOTE:Rear window wipers function in the intermittent
wiper speed only.
Rain Sensing Wipers — If Equipped
This feature senses moisture on the windshield and
automatically activates the wipers for the driver. This
feature is especially useful for road splash or overspray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of the five
intermittent wiper sensitivity settings to activate this
feature. The sensitivity of the system is adjustable from the
multifunction lever. Wiper sensitivity position 3 has been
calibrated for best overall wiping sensitivity. If the opera-
tor desires more wiping sensitivity, they may select
sensitivity positions 4 or 5. If the operator desires less
wiping sensitivity, they may select sensitivity positions 2
or 1. Place the multifunction lever in the OFF position
when not using the system.
NOTE:
•
The Rain Sensing feature will not operate when the
wiper speed is in the low or high position.
• The Rain Sensing feature may not function properly
when ice or dried saltwater is present on the wind-
shield.
• Use of Rain-X® or products containing wax or silicone
may reduce rain sensor performance.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 237

components to ensure proper function. When performing
other underhood services, the hood latch, release mecha-
nism and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR®
Lock Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.Adding Washer Fluid
The fluid reservoir for the windshield washers and the
rear window washer is shared. It is located in the engine
compartment and should be checked at regular intervals.
Fill the reservoir with windshield washer solvent (not
radiator antifreeze) and operate the system for a few
seconds to flush out any residual water.
7
MAINTAINING YOUR VEHICLE 625

Universal Consumer Interface (UCI)..........382
Conserving Fuel ......................... .344
Console ............................... .293
Console, Floor .......................... .293
Console, Overhead ....................... .259
Console, Removable ...................... .297
Contract, Service ......................... .673
Coolant Pressure Cap (Radiator Cap) ...........630
Cooling System .......................... .626
Adding Coolant (Antifreeze) ...............628
Coolant Capacity ...................... .658
Coolant Level ......................... .627
Disposal of Used Coolant .................631
Drain, Flush, and Refill ...................627
Inspection ........................... .631
Points to Remember .....................631
Pressure Cap ......................... .630
Radiator Cap ......................... .630
Selection of Coolant (Antifreeze) .............627Corrosion Protection
...................... .637
Cupholders ............................ .282
Customer Assistance ...................... .671
Data Recorder, Event .......................95
Daytime Running Lights ....................228
Dealer Service ........................... .613
Defroster, Windshield ..................... .125
Delay (Intermittent) Wipers ..................236
Diagnostic System, Onboard .................610
Dimmer Control ......................... .229
Dipsticks Automatic Transmission ..................636
Oil (Engine) .......................... .615
Power Steering ........................ .484
Disabled Vehicle Towing ....................604
Disposal Antifreeze (Engine Coolant) ................631
10
INDEX 683

WaterDriving Through ....................... .482
Wind Buffeting ............................50
Window Fogging ........................ .456
Windows ................................45
Power ................................46
Rear Vent ..............................45
Windshield Defroster ...................... .125
Windshield Washers ...................... .235
Windshield Wiper Blades ....................625
Wiper Blade Replacement ...................625
Wipers, Intermittent ...................... .235
Zone Control (Temperature Control) ............437
10
INDEX 699
