2014 CHEVROLET CAMARO Owners Manual

Black plate (23,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Keys, Doors, and Windows 2-23
5. Locate the pressure release bolton the top of the hydraulic pump.
6. Using the provided wrench, turn the pressure release bolt
counterclockwise no more than
one turn.
7. Reinstall the trim cover.
8. Pull the front of the convertible top up and forward.
9. After the convertible top iscompletely raised, release the
convertible top front latch from
the lock position by pulling down
and turning it clockwise.
10. Lock the convertible top front latch by pulling down and
turning it counterclockwise,
then push it up.
When power is restored to the
vehicle, the pressure release bolt
must be tightened using the
provided wrench by turning it clockwise. The convertible top
button can then be used to lower or
raise the convertible top.
If the convertible top is operated
multiple times, the engine should be
running to prevent drain on the
vehicle's battery. Under certain
conditions, the Driver Information
Center (DIC) may display a
message regarding the convertible
top. See
Convertible Top Messages
on page 5-33.
If the battery has been
disconnected, the power windows
must be programmed for the
convertible top to operate. See
Power Windows on page 2-16.
Cleaning the Convertible Top
The convertible top should be
cleaned often. High pressure car
washes may cause water to enter
the vehicle.
Hand wash the convertible top in
the shade. Use a mild soap,
lukewarm water, and a soft sponge.

Black plate (24,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
2-24 Keys, Doors, and Windows
A chamois or cloth may leave lint on
the top, and a brush can chafe the
threads in the top fabric. Do not use
detergents, harsh cleaners,
solvents, or bleaching agents.
Wet the entire vehicle and wash the
top evenly to avoid spots or rings.
Let the soap remain on the fabric for
a few minutes. When the top is very
dirty, use a mild foam-type cleaner.
Thoroughly rinse, then let the top
dry in direct sunlight.
To protect the convertible top:
.After washing, the top must be
completely dry before lowering.
.Do not get any cleaner on the
painted finish; it could leave
streaks.
.Before going through an
automatic car wash, find out if
the equipment could damage the
convertible top.

Black plate (1,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Seats and Restraints 3-1
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats
Seat Adjustment . . . . . . . . . . . . . . 3-3
Power Seat Adjustment . . . . . . . 3-4
Reclining Seatbacks . . . . . . . . . . 3-4
Seatback Latches . . . . . . . . . . . . . 3-5
Heated Front Seats . . . . . . . . . . . 3-6
Rear Seats
Rear Seats . . . . . . . . . . . . . . . . . . . . 3-7
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . . 3-8
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . 3-9
Lap-Shoulder Belt . . . . . . . . . . . 3-10 Safety Belt Use During
Pregnancy . . . . . . . . . . . . . . . . . . 3-13
Safety Belt Extender . . . . . . . . . 3-14
Safety System Check . . . . . . . . 3-14
Safety Belt Care . . . . . . . . . . . . . 3-14
Replacing Safety Belt System Parts after a Crash . . . . . . . . . 3-15
Airbag System
Airbag System . . . . . . . . . . . . . . . 3-15
Where Are the Airbags? . . . . . 3-17
When Should an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . 3-19
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . 3-20
How Does an Airbag Restrain? . . . . . . . . . . . . . . . . . . . 3-20
What Will You See after an Airbag Inflates? . . . . . . . . . . . . 3-21
Passenger Sensing System . . . . . . . . . . . . . . . . . . . . . 3-22
Servicing the Airbag-Equipped Vehicle . . . . . . . . . . . . . . . . . . . . . 3-26 Adding Equipment to the
Airbag-Equipped Vehicle . . . 3-26
Airbag System Check . . . . . . . . 3-27
Replacing Airbag System Parts after a Crash . . . . . . . . . 3-28
Child Restraints
Older Children . . . . . . . . . . . . . . . 3-28
Infants and Young
Children . . . . . . . . . . . . . . . . . . . . 3-30
Child Restraint Systems . . . . . 3-33
Where to Put the Restraint . . . 3-34
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . 3-36
Replacing LATCH System Parts After a Crash . . . . . . . . . 3-42
Securing Child Restraints (Rear Seat) . . . . . . . . . . . . . . . . . 3-42
Securing Child Restraints (Right Front
Passenger Seat) . . . . . . . . . . . 3-44

Black plate (2,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
3-2 Seats and Restraints

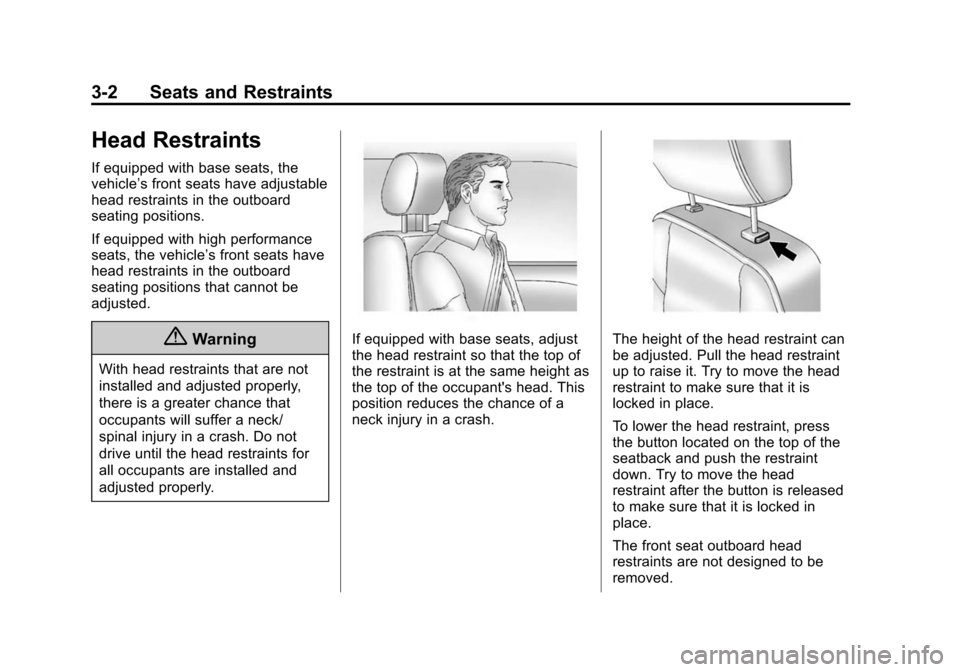

Head Restraints
If equipped with base seats, the
vehicle’s front seats have adjustable
head restraints in the outboard
seating positions.
If equipped with high performance
seats, the vehicle’s front seats have
head restraints in the outboard
seating positions that cannot be
adjusted.
{Warning
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do not
drive until the head restraints for
all occupants are installed and
adjusted properly.
If equipped with base seats, adjust
the head restraint so that the top of
the restraint is at the same height as
the top of the occupant's head. This
position reduces the chance of a
neck injury in a crash.The height of the head restraint can
be adjusted. Pull the head restraint
up to raise it. Try to move the head
restraint to make sure that it is
locked in place.
To lower the head restraint, press
the button located on the top of the
seatback and push the restraint
down. Try to move the head
restraint after the button is released
to make sure that it is locked in
place.
The front seat outboard head
restraints are not designed to be
removed.

Black plate (3,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Seats and Restraints 3-3
Front Seats
Seat Adjustment
{Warning
You can lose control of the
vehicle if you try to adjust a driver
seat while the vehicle is moving.
Adjust the driver seat only when
the vehicle is not moving.Seat Position
High Performance Seat Shown,
Other Manual Seats Similar
To adjust a manual seat,
if equipped:
1. Lift the handle under the seat to unlock it.
2. Slide the seat and release the handle.
3. Try to move the seat back and forth to be sure it is locked in
place. Height AdjustmentBase Manual Seat Shown, High
Performance Seat Similar
If equipped, move the lever up or
down repeatedly to manually raise
or lower the seat.

Black plate (4,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
3-4 Seats and Restraints
Power Seat Adjustment
High Performance Seat Shown,Other Power Seats Similar
To adjust a power seat, if equipped:
.Move the seat forward or
rearward by sliding the
horizontal control forward or
rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the horizontal control up
or down.
.Raise or lower the entire seat by
moving the entire horizontal
control up or down.
Reclining Seatbacks
Base Power Seat Shown, High Performance Seat Similar
If equipped, to adjust the seatback:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
{Warning
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job.
The shoulder belt will not be
against your body. Instead, it will
be in front of you. In a crash, you
could go into it, receiving neck or
other injuries.
The lap belt could go up over
your abdomen. The belt forces
would be there, not at your pelvic
bones. This could cause serious
internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.

Black plate (5,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Seats and Restraints 3-5

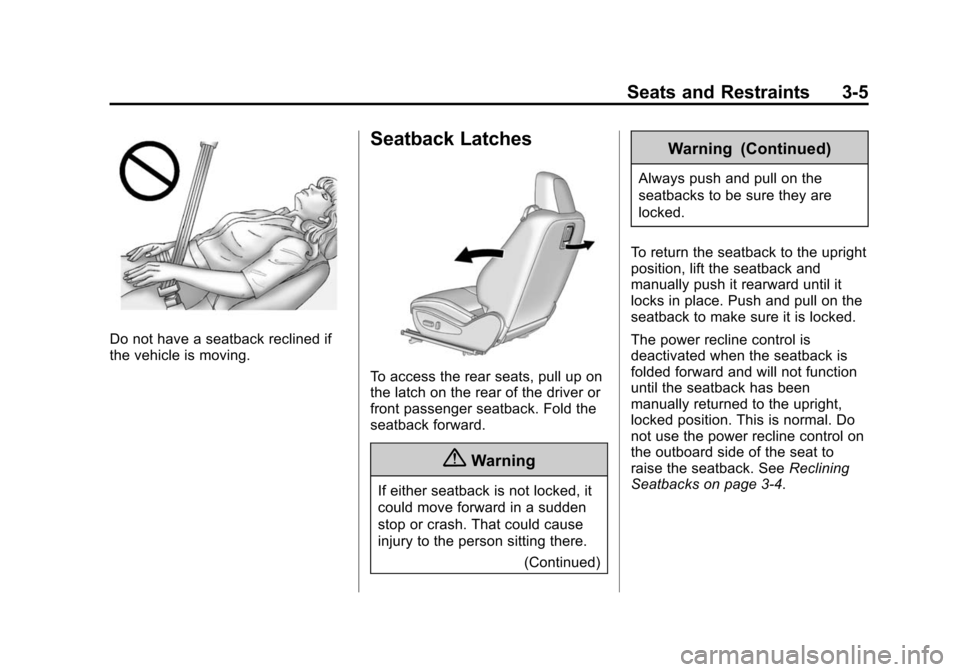

Do not have a seatback reclined if
the vehicle is moving.
Seatback Latches
To access the rear seats, pull up on
the latch on the rear of the driver or
front passenger seatback. Fold the
seatback forward.
{Warning
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.(Continued)
Warning (Continued)
Always push and pull on the
seatbacks to be sure they are
locked.
To return the seatback to the upright
position, lift the seatback and
manually push it rearward until it
locks in place. Push and pull on the
seatback to make sure it is locked.
The power recline control is
deactivated when the seatback is
folded forward and will not function
until the seatback has been
manually returned to the upright,
locked position. This is normal. Do
not use the power recline control on
the outboard side of the seat to
raise the seatback. See Reclining
Seatbacks on page 3-4.

Black plate (6,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
3-6 Seats and Restraints
Heated Front Seats
{Warning
If you cannot feel temperature
change or pain to the skin, the
seat heater may cause burns. To
reduce the risk of burns, people
with such a condition should use
care when using the seat heater,
especially for long periods of
time. Do not place anything on
the seat that insulates against
heat, such as a blanket, cushion,
cover, or similar item. This may
cause the seat heater to
overheat. An overheated seat
heater may cause a burn or may
damage the seat.
If available, pressLorMto turn on
the heated seat. A light indicates
this feature is on.
To operate, the engine must be
running.
Press the button once for the
highest setting. With each press of
the button, the heated seat will
change to the next lower setting,
and then the off setting. Two lights
indicate the highest setting, and one
light indicates the lowest.
The passenger seat may take
longer to heat up. Remote Start Auto Heated Seats
When it is cold outside, the heated
seats can be turned on
automatically during a remote start.
They are canceled when the ignition
is turned on. Press the button to use
the heated seats after the vehicle is
started.
The heated seat indicator lights do
not turn on during a remote start.
The temperature performance of an
unoccupied seat may be reduced.
This is normal.
The heated seats will not turn on
during a remote start unless they
are enabled in the vehicle
personalization menu. See
Remote
Vehicle Start on page 2-5 and
Vehicle Personalization on
page 5-43.
