2014 CHEVROLET CAMARO Owners Manual

Black plate (5,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-5
Hood
To open the hood:
1. Pull the release handle belowthe instrument panel to the left of
the steering wheel.
2. Push the secondary hoodrelease to the right. The lever is
near the middle of the hood.
3. Lift the hood. Before closing the hood, be sure all
filler caps are on properly. Then lift
the hood to relieve pressure. Pull
the hood down on the passenger
side to close it firmly.

Black plate (6,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
10-6 Vehicle Care

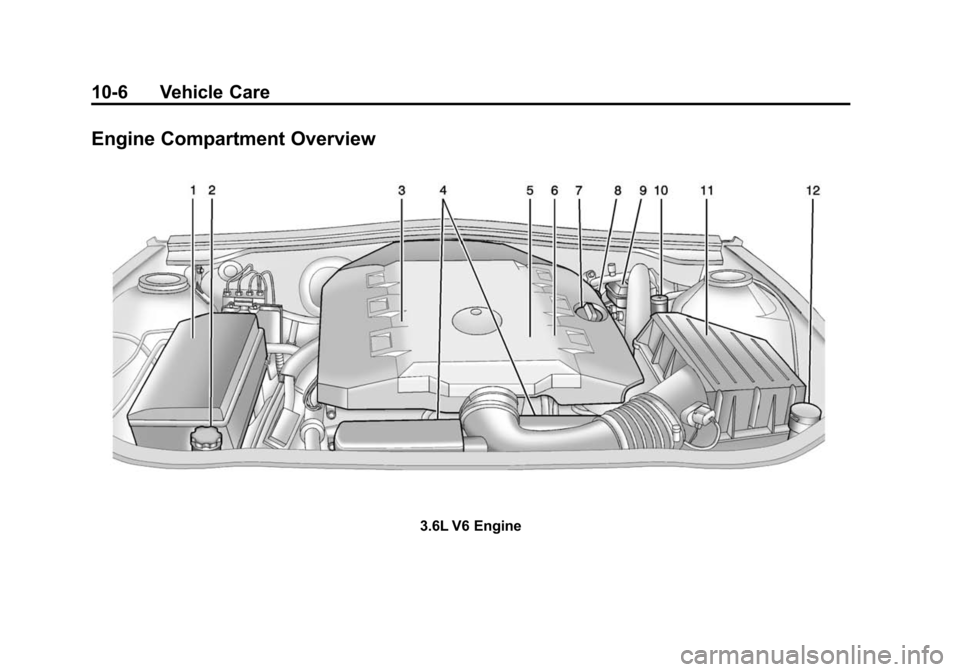

Engine Compartment Overview
3.6L V6 Engine

Black plate (7,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-7
1. Underhood Electrical Center.See Engine Compartment Fuse
Block on page 10-49.
2. Engine Coolant Recovery Bottle and Cap. See Engine Coolant
on page 10-30.
3. Engine Cover on page 10-13.
4. Engine Cooling Fans (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29.
5. Radiator Fill Cap (Out of View). See Engine Coolant on
page 10-30. 6. Power Steering Reservoir and
Cap (Out of View). See Power
Steering Fluid (L99, LS3,
ZL1 and Z/28) on page 10-37 or
Power Steering Fluid (LFX) on
page 10-37.
7. Engine Oil Fill Cap. See Engine
Oil on page 10-15.
8. Engine Oil Dipstick (Out of View). See Engine Oil on
page 10-15.
9. Brake Fluid and Hydraulic Clutch Reservoir (If Equipped with
Manual Transmission). See
Brakes on page 10-38 or
Hydraulic Clutch on page 10-21. 10. Remote Positive (+) Terminal.
SeeBattery on page 10-41.
11. Engine Air Cleaner/Filter
(Except ZL1 and Z/28) on
page 10-22 orEngine Air
Cleaner/Filter (ZL1 Only) on
page 10-23 orEngine Air
Cleaner/Filter (Z/28 Only) on
page 10-24.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-38.

Black plate (8,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
10-8 Vehicle Care

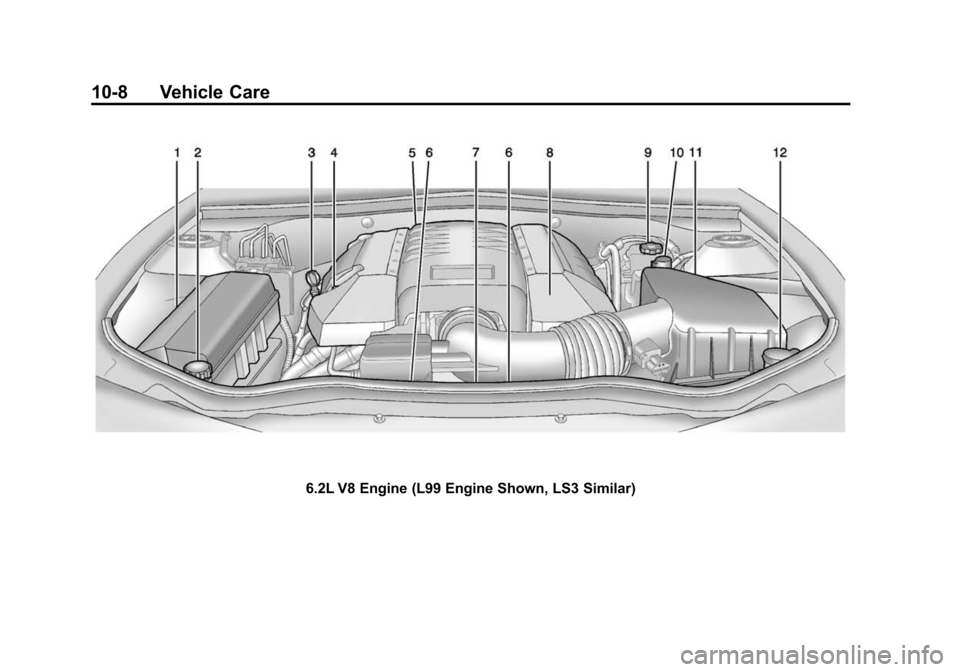

6.2L V8 Engine (L99 Engine Shown, LS3 Similar)

Black plate (9,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-9
1. Underhood Electrical Center.See Engine Compartment Fuse
Block on page 10-49.
2. Engine Coolant Recovery Bottle and Cap. See Engine Coolant
on page 10-30.
3. Engine Oil Dipstick. See Engine
Oil on page 10-15.
4. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10-15.
5. Engine Cover on page 10-13.
6. Engine Cooling Fans (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29. 7. Radiator Fill Cap (Out of View).
See Engine Coolant on
page 10-30.
8. Power Steering Reservoir and Cap (Under Engine Cover) (if
equipped). See Power Steering
Fluid (L99, LS3, ZL1 and Z/28)
on page 10-37 orPower
Steering Fluid (LFX) on
page 10-37.
9. Brake Fluid and Hydraulic Clutch Reservoir (If Equipped with
Manual Transmission). See
Brakes on page 10-38 or
Hydraulic Clutch on page 10-21.
10. Remote Positive (+) Terminal. SeeBattery on page 10-41. 11.
Engine Air Cleaner/Filter
(Except ZL1 and Z/28) on
page 10-22 orEngine Air
Cleaner/Filter (ZL1 Only) on
page 10-23 orEngine Air
Cleaner/Filter (Z/28 Only) on
page 10-24.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-38.

Black plate (10,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
10-10 Vehicle Care

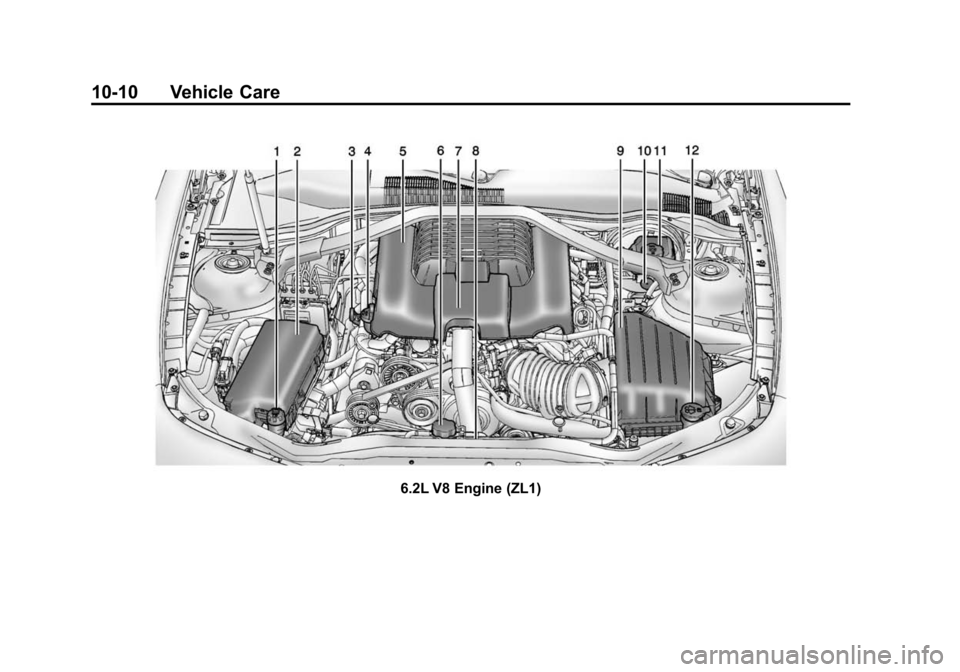

6.2L V8 Engine (ZL1)

Black plate (11,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-11
1. Engine Coolant Recovery Bottleand Cap. See Engine Coolant
on page 10-30.
2. Underhood Electrical Center. See Engine Compartment Fuse
Block on page 10-49.
3. Engine Oil Dipstick. See Engine
Oil on page 10-15.
4. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10-15.
5. Engine Cover on page 10-13.
6. Radiator Fill Cap. See Engine
Coolant on page 10-30.
7. Intercooler Fill Cap (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29. 8. Engine Cooling Fans (Out of
View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29.
9. Engine Air Cleaner/Filter (Except
ZL1 and Z/28) on page 10-22 or
Engine Air Cleaner/Filter (ZL1
Only) on page 10-23 orEngine
Air Cleaner/Filter (Z/28 Only) on
page 10-24.
10. Remote Positive (+) Terminal. SeeBattery on page 10-41. 11. Brake Fluid and Hydraulic
Clutch Reservoir (If Equipped
with Manual Transmission).
SeeBrakes on page 10-38 or
Hydraulic Clutch on
page 10-21.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-38.

Black plate (12,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
10-12 Vehicle Care

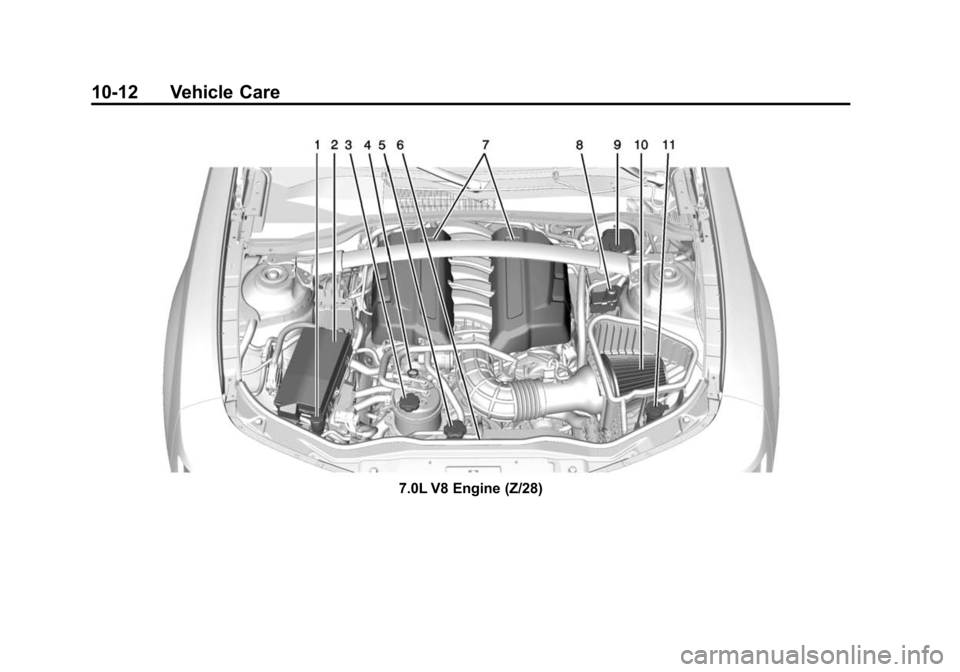

7.0L V8 Engine (Z/28)
