2014 BUICK LACROSSE Owner's Manual

Black plate (3,1)Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6043609) - 2014 - 2nd Edition - 10/17/13
In Brief 1-3
1.Exterior Lamp Controls on
page 6-1.
Fog Lamps on page 6-4
(If Equipped).
Instrument Panel Illumination
Control on page 6-5.
Head-Up Display (HUD) on
page 5-30 (If Equipped).
2. Air Vents on page 8-6.
3. Turn Signal Lever. See Turn and
Lane-Change Signals on
page 6-4.
4. Instrument Cluster on page 5-8.
Driver Information Center
Display. See Driver Information
Center (DIC) on page 5-27.
5. Windshield Wiper/Washer on
page 5-3.
6. Infotainment Display Screen. 7.
Hazard Warning Flashers on
page 6-4.
Lane Departure Warning (LDW)
on page 9-56 (If Equipped).
Assistance Systems for Parking
or Backing on page 9-47 (If
Equipped).
8. Light Sensor. See Automatic
Headlamp System on page 6-3.
9. Infotainment on page 7-1.
10. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp on page 5-16.
11. Front Storage on page 4-2.
12. Hood Release. See Hood on
page 10-4.
13. Cruise Control on page 9-37.
Forward Collision Alert (FCA)
System on page 9-50 (If
Equipped).
14. Steering Wheel Adjustment on
page 5-2.
15. Horn on page 5-3. 16.
Steering Wheel Controls on
page 5-2 (If Equipped).
Driver Information Center (DIC)
Buttons. See Driver Information
Center (DIC) on page 5-27.
17. Ignition Positions (Key Access)
on page 9-15 orIgnition
Positions (Keyless Access) on
page 9-16.
18. Heated and Ventilated Front
Seats on page 3-9 (If
Equipped).
19. Shift Lever. See Automatic
Transmission on page 9-27.
20. Parking Brake on page 9-32.
Traction Control/Electronic
Stability Control on page 9-34.
21. Dual Automatic Climate Control
System on page 8-1.
22. CD Player (If Equipped). See Infotainment on page 7-1.

Black plate (4,1)Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6043609) - 2014 - 2nd Edition - 10/17/13
1-4 In Brief
Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless Entry
(RKE) System
The RKE transmitter may work up to
60 m (197 ft) away from the vehicle.
The RKE transmitter can have one
of the two symbols for the remote
trunk release.
With Remote Start ShownPress the button to extend the key.
The key can be used for all locks.
This key is also used for the
ignition, if the vehicle does not have
pushbutton start.
K:
Press to unlock the driver door
or all doors.
Q: Press to lock all doors.
Lock and unlock feedback can be
personalized.
VorY: Press and hold to
release the trunk.

Black plate (5,1)Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6043609) - 2014 - 2nd Edition - 10/17/13
In Brief 1-5
7:Press and release to initiate
vehicle locator. Press and hold for at
least three seconds to sound the
panic alarm. Press again to cancel
the panic alarm.
See Keys on page 2-1 andRemote
Keyless Entry (RKE) System
Operation on page 2-3.
Remote Vehicle Start
For vehicles with this feature, the
engine can be started from outside
the vehicle.
Starting the Vehicle
1. Aim the RKE transmitter at the vehicle.
2. Press and release
Q.
3. Immediately after completing Step 2, press and hold
/for at
least four seconds or until the
turn signal lamps flash. When the engine starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.Aim the RKE transmitter at the
vehicle and press and hold
/
until the parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
The time can be extended on a
remote start.
See Remote Vehicle Start on
page 2-9.
Door Locks
To lock or unlock the doors:
.From inside the vehicle, use the
door lock knob or the power
door lock controls. Pull once on
the door handle to unlock it, and
a second time to open it.
.From outside, use the key,
or press
QorKon the Remote
Keyless Entry (RKE) transmitter.
See Remote Keyless Entry
(RKE) System Operation on
page 2-3.
See Door Locks on page 2-11.
Power Door Locks
The power door lock controls are on
the front door panels.
K:Press to unlock all doors.
Q:Press to lock all doors.
See Power Door Locks on
page 2-11.

Black plate (6,1)Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6043609) - 2014 - 2nd Edition - 10/17/13
1-6 In Brief
Trunk Release
To open the trunk, pressVorY
on the Remote Keyless Entry (RKE)
transmitter to unlock all doors and
then press the touch pad above the
license plate.
To open the trunk from inside the
vehicle, press the trunk release
button on the driver door. The
vehicle must be in P (Park) or off.
SeeTrunk on page 2-13.
Windows
Press the switch to lower the
window. Pull the switch up to
raise it.
SeePower Windows on page 2-20.
Seat Adjustment
Manual Seats
To adjust a manual seat:
1. Pull the handle at the front of
the seat.
2. Slide the seat to the desired position and release the handle. 3. Try to move the seat back and
forth to be sure it is locked in
place.
Seat Height Adjuster
Press and hold the top or bottom of
the switch to raise or lower the seat.
Release the switch when the
desired height is reached.
See Seat Adjustment on page 3-4.

Black plate (7,1)Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6043609) - 2014 - 2nd Edition - 10/17/13
In Brief 1-7

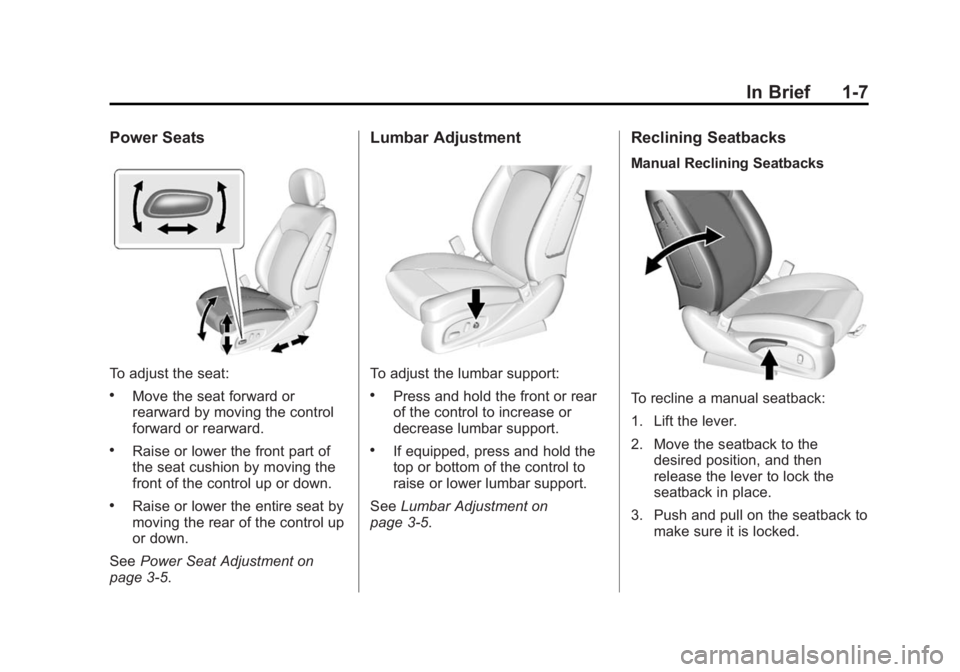

Power Seats
To adjust the seat:
.Move the seat forward or
rearward by moving the control
forward or rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the entire seat by
moving the rear of the control up
or down.
See Power Seat Adjustment on
page 3-5.
Lumbar Adjustment
To adjust the lumbar support:
.Press and hold the front or rear
of the control to increase or
decrease lumbar support.
.If equipped, press and hold the
top or bottom of the control to
raise or lower lumbar support.
See Lumbar Adjustment on
page 3-5.
Reclining Seatbacks
Manual Reclining Seatbacks
To recline a manual seatback:
1. Lift the lever.
2. Move the seatback to the
desired position, and then
release the lever to lock the
seatback in place.
3. Push and pull on the seatback to make sure it is locked.

Black plate (8,1)Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6043609) - 2014 - 2nd Edition - 10/17/13
1-8 In Brief
To return the seatback to the upright
position:
1. Lift the lever fully withoutapplying pressure to the
seatback, and the seatback will
return to the upright position.
2. Push and pull on the seatback to make sure it is locked.
Power Reclining Seatbacks
To adjust a power seatback:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
See Reclining Seatbacks on
page 3-6.
Memory Features
If equipped, the “1,” “2,”and SET
buttons on the driver door are used
to manually save and recall the
driver seat and outside mirror
positions.
See Memory Seats on page 3-7 and
Vehicle Personalization on
page 5-43.
Heated and Ventilated
Seats
Heated and Ventilated Seat
Buttons Shown, Heated Seat Buttons Similar
If available, the buttons are part of
the climate control system on the
center stack. To operate, the ignition
and the climate control system must
be on. If the climate control system
is off, press the
Obutton to turn
it on.

Black plate (9,1)Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6043609) - 2014 - 2nd Edition - 10/17/13
In Brief 1-9
PressMorLto heat the driver or
passenger seat cushion and
seatback.
Press
Cor{, if equipped, to
ventilate the driver or passenger
seat. A ventilated seat has a fan
that pulls or pushes air through the
seat. The air is not cooled.
Press the button once for the
highest setting. With each press of
the button, the seat will change to
the next lower setting, and then to
the off setting. The lights near the
heated or ventilated seat symbol on
the display indicate three for the
highest setting and one for the
lowest.
See Heated and Ventilated Front
Seats on page 3-9.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly. To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
See
Head Restraints on page 3-2
and Seat Adjustment on page 3-4.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3-12.
.How to Wear Safety Belts
Properly on page 3-13.
.Lap-Shoulder Belt on page 3-14.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3-40.
Passenger Sensing
System
United States
Canada and Mexico

Black plate (10,1)Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6043609) - 2014 - 2nd Edition - 10/17/13
1-10 In Brief
The passenger sensing system
turns off the front outboard
passenger frontal airbag under
certain conditions. No other airbag
is affected by the passenger
sensing system.
The passenger airbag status
indicator will be visible on the
overhead console when the vehicle
is started. SeePassenger Sensing
System on page 3-25 for important
information.Mirror Adjustment
Exterior
To adjust the mirrors:
1. Turn the control knob to select the L (Left) or R (Right) mirror.
2. Push the control knob left, right, up, or down to adjust the mirror.
Vehicles with the memory feature
can store a preferred mirror position.
See Memory Seats on page 3-7 and
Power Mirrors on page 2-18. Manual Folding Mirrors
The outside mirrors can be folded
inward to prevent damage when
going through an automatic car
wash. To fold, pull the mirror toward
the vehicle. Push the mirror outward
to return it to the original position.
See
Folding Mirrors on page 2-18.
Automatic Dimming Feature
If equipped, the driver outside mirror
automatically dims to reduce the
glare of headlamps from behind.
See Power Mirrors on page 2-18.Interior
Adjust the rearview mirror for a clear
view of the area behind your
vehicle.
Manual Rearview Mirror
If equipped, push the tab forward for
daytime use and pull it for nighttime
use to avoid glare from headlamps.
SeeManual Rearview Mirror on
page 2-19.
