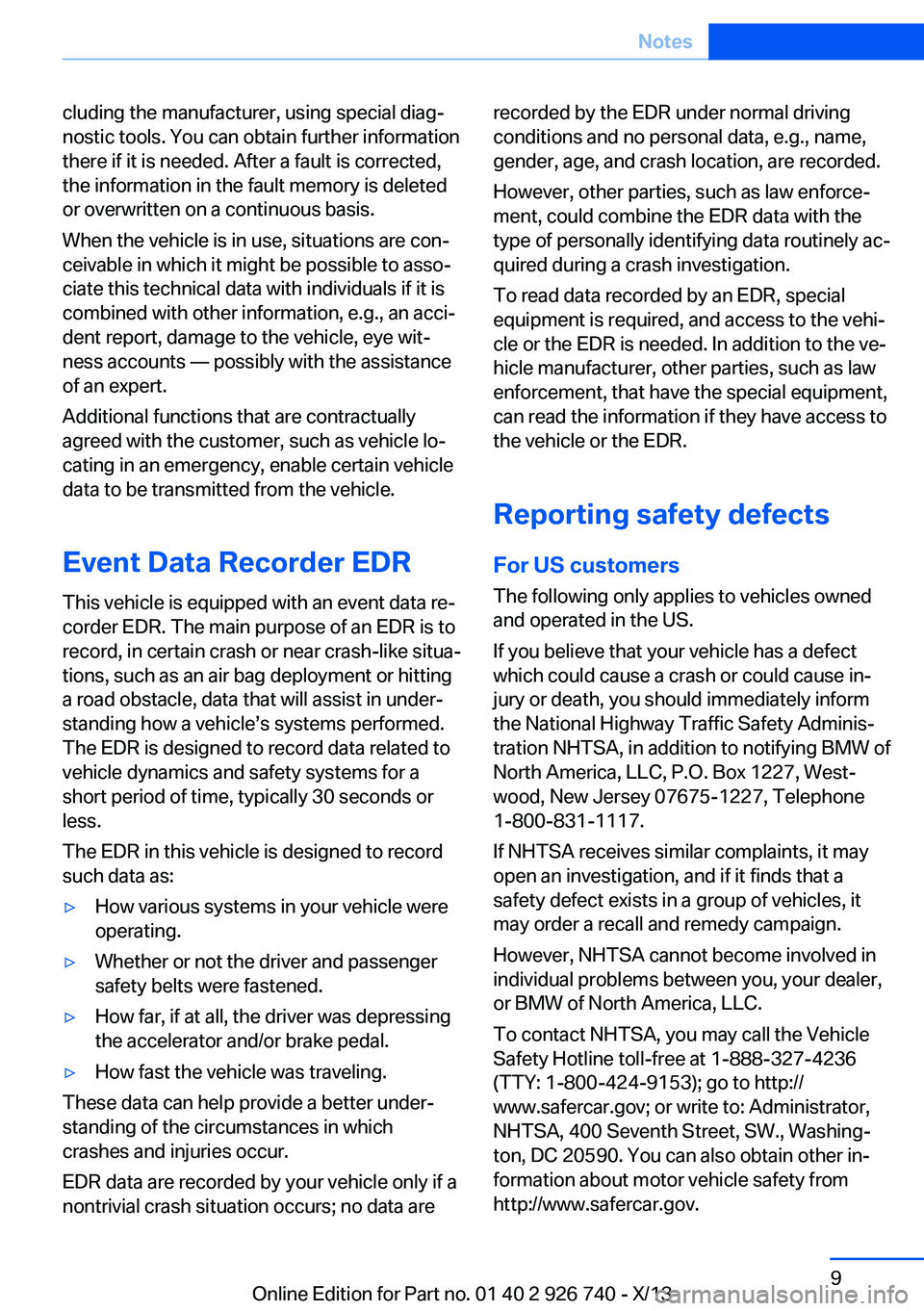

2014 BMW X5 XDRIVE 50I Owners Manual

cluding the manufacturer, using special diag‐
nostic tools. You can obtain further information
there if it is needed. After a fault is corrected,
the information in the fault memory is deleted
or overwritten on a continuous basis.
When the vehicle is in use, situations are con‐
ceivable in which it might be possible to asso‐
ciate this technical data with individuals if it is
combined with other information, e.g., an acci‐
dent report, damage to the vehicle, eye wit‐
ness accounts — possibly with the assistance
of an expert.
Additional functions that are contractually
agreed with the customer, such as vehicle lo‐
cating in an emergency, enable certain vehicle
data to be transmitted from the vehicle.
Event Data Recorder EDR
This vehicle is equipped with an event data re‐
corder EDR. The main purpose of an EDR is to
record, in certain crash or near crash-like situa‐
tions, such as an air bag deployment or hitting
a road obstacle, data that will assist in under‐
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds or
less.
The EDR in this vehicle is designed to record
such data as:▷How various systems in your vehicle were
operating.▷Whether or not the driver and passenger
safety belts were fastened.▷How far, if at all, the driver was depressing
the accelerator and/or brake pedal.▷How fast the vehicle was traveling.
These data can help provide a better under‐
standing of the circumstances in which
crashes and injuries occur.
EDR data are recorded by your vehicle only if a
nontrivial crash situation occurs; no data are
recorded by the EDR under normal driving
conditions and no personal data, e.g., name,
gender, age, and crash location, are recorded.
However, other parties, such as law enforce‐
ment, could combine the EDR data with the
type of personally identifying data routinely ac‐
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required, and access to the vehi‐
cle or the EDR is needed. In addition to the ve‐
hicle manufacturer, other parties, such as law
enforcement, that have the special equipment,
can read the information if they have access to
the vehicle or the EDR.
Reporting safety defects
For US customers The following only applies to vehicles owned
and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause in‐
jury or death, you should immediately inform
the National Highway Traffic Safety Adminis‐
tration NHTSA, in addition to notifying BMW of
North America, LLC, P.O. Box 1227, West‐
wood, New Jersey 07675-1227, Telephone
1-800-831-1117.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in
individual problems between you, your dealer,
or BMW of North America, LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to http://
www.safercar.gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW., Washing‐
ton, DC 20590. You can also obtain other in‐
formation about motor vehicle safety from
http://www.safercar.gov.Seite 9Notes9
Online Edition for Part no. 01 40 2 926 740 - X/13

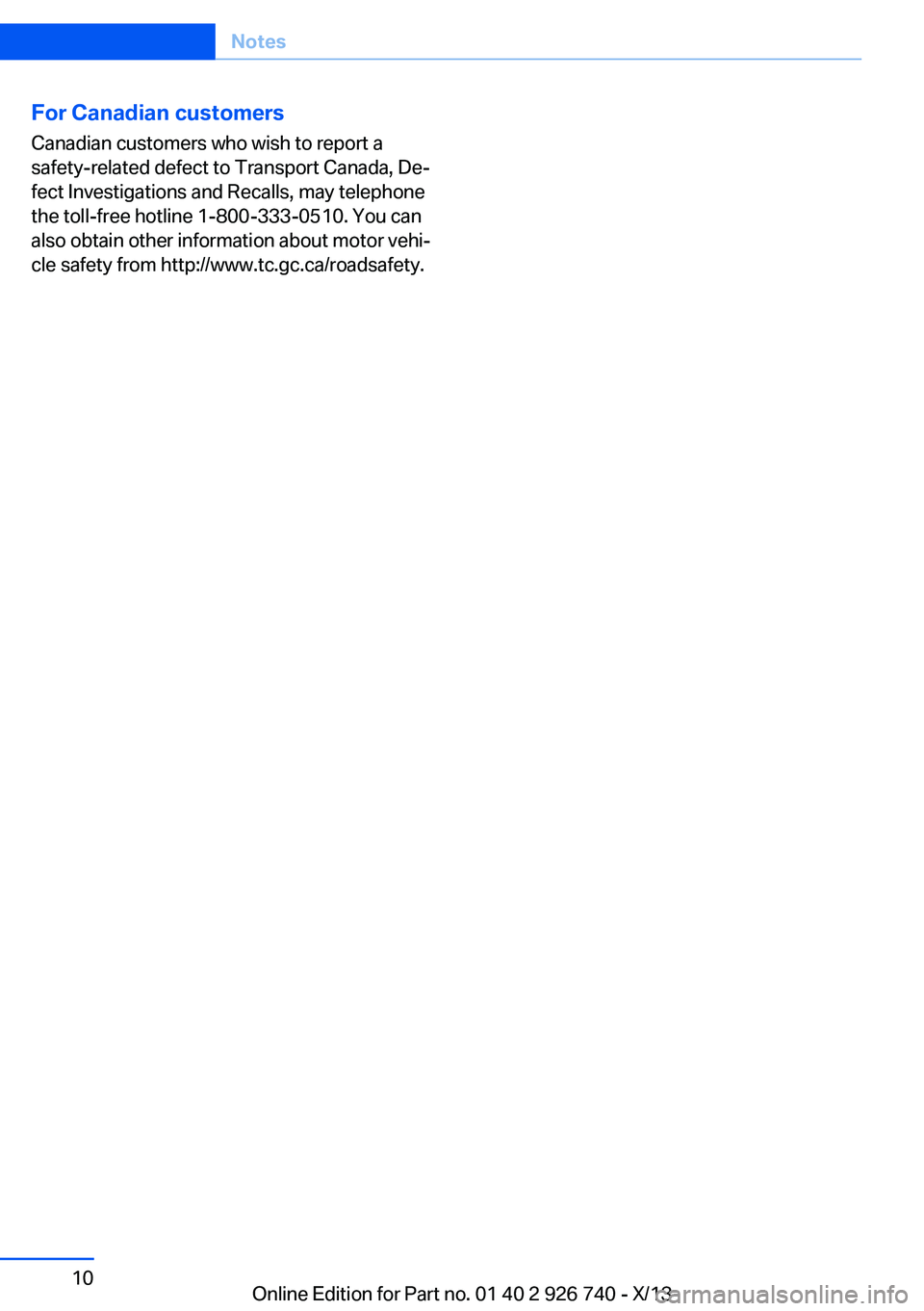

For Canadian customersCanadian customers who wish to report a
safety-related defect to Transport Canada, De‐
fect Investigations and Recalls, may telephone
the toll-free hotline 1-800-333-0510. You can
also obtain other information about motor vehi‐
cle safety from http://www.tc.gc.ca/roadsafety.Seite 10Notes10
Online Edition for Part no. 01 40 2 926 740 - X/13

Seite 11Notes11
Online Edition for Part no. 01 40 2 926 740 - X/13

Online Edition for Part no. 01 40 2 926 740 - X/13

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 926 740 - X/13

CockpitVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
All around the steering wheel
1Rear window safety switch   472Power windows  463Exterior mirror operation   604Opening and closing top tail‐
gate   405Unlocking central locking sys‐
tem   40Locking central locking sys‐
tem   406LampsFront fog lamps   102Parking lamps  99Low beams  99Automatic headlamp con‐
trol   100
Daytime running lights   100
Adaptive Light Control   100
High-beam Assistant   101Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 926 740 - X/13

Instrument lighting  102Night Vision, switch on/switch off
heat image   1217Steering column stalk, leftTurn signal   74High beams, head‐
lamp flasher   74High-beam Assistant   101Roadside parking lamps   100Computer  938Steering wheel buttons, leftStore speed   148,  138Resume speed   150,  141Cruise control on/off, interrupt‐
ing   138Cruise control on/off, interrupt‐
ing   149Congestion Assistant ON/OFF,
Pause   145Congestion Assistant: setting
cruise control distance   138Cruise control, reduce dis‐
tance   138Cruise control, increase dis‐
tance   138Cruise control rocker switch   149,  1409Shift paddles   8010Instrument cluster   8211Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  26Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   9312Steering column stalk, rightWindshield wipers  75Rain sensor  75Clean the windshields and head‐
lamps   75Rear window wiper in Canadian
models   77Rear window wiper   77Cleaning rear window   7713Start/stop the engine and switch
the ignition on/off   6814Auto Start/Stop function   6915Horn16Steering wheel heating  6217Adjust steering wheel  61Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 926 740 - X/13

18Unlock hood  222
All around the center console
1All around the headliner   172Control Display  183Glove compartment   1824Ventilation  1685Hazard warning system   239Intelligent Safety button   1126Automatic climate control   1657Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication8Controller with buttons   189Parking brake  7110Auto Hold  7211PDC Park Distance Control   150
Rearview camera   153
Top View   156
Parking assistant   159Panorama View  158HDC Hill Descent Control   13312Driving Dynamics Control   13513DSC Dynamic Stability Con‐
trol   132Seite 16At a glanceCockpit16
Online Edition for Part no. 01 40 2 926 740 - X/13
